Model # RE960PXYW1 Official Whirlpool electric self-cleaning double oven

Here are the diagrams and repair parts for Official Whirlpool RE960PXYW1 electric self-cleaning double oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

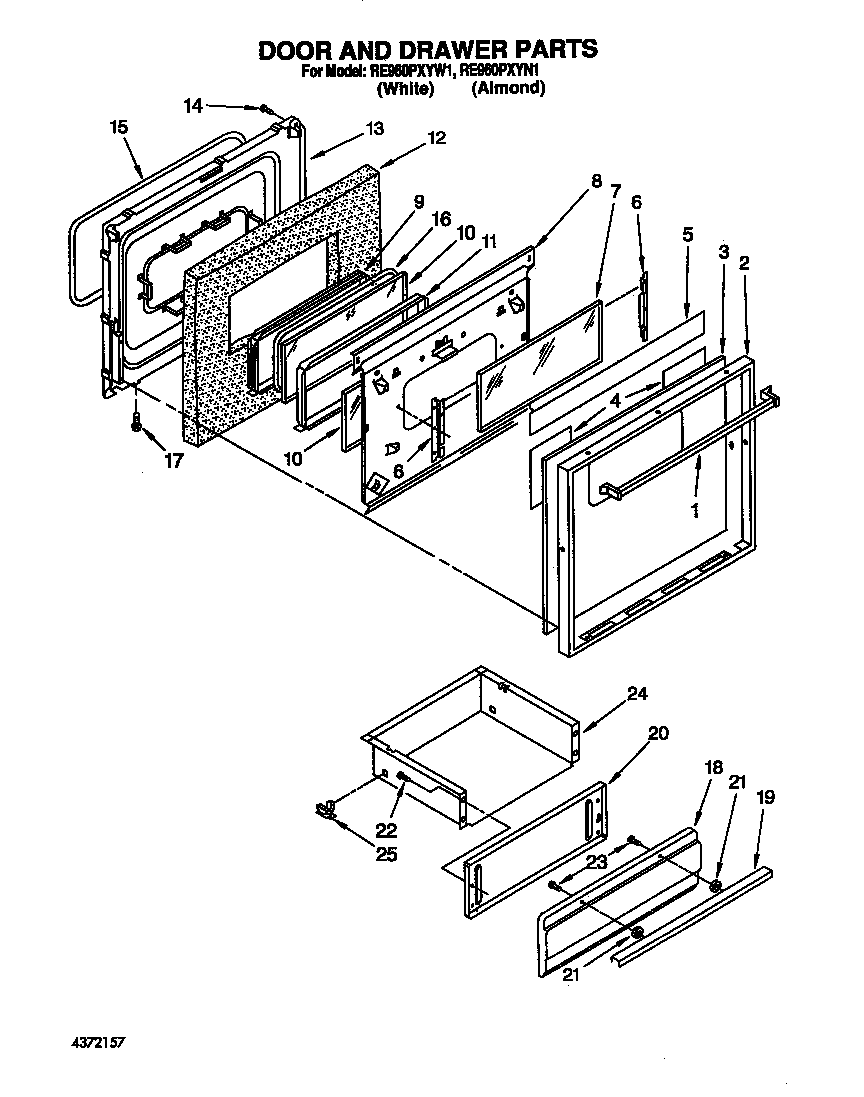

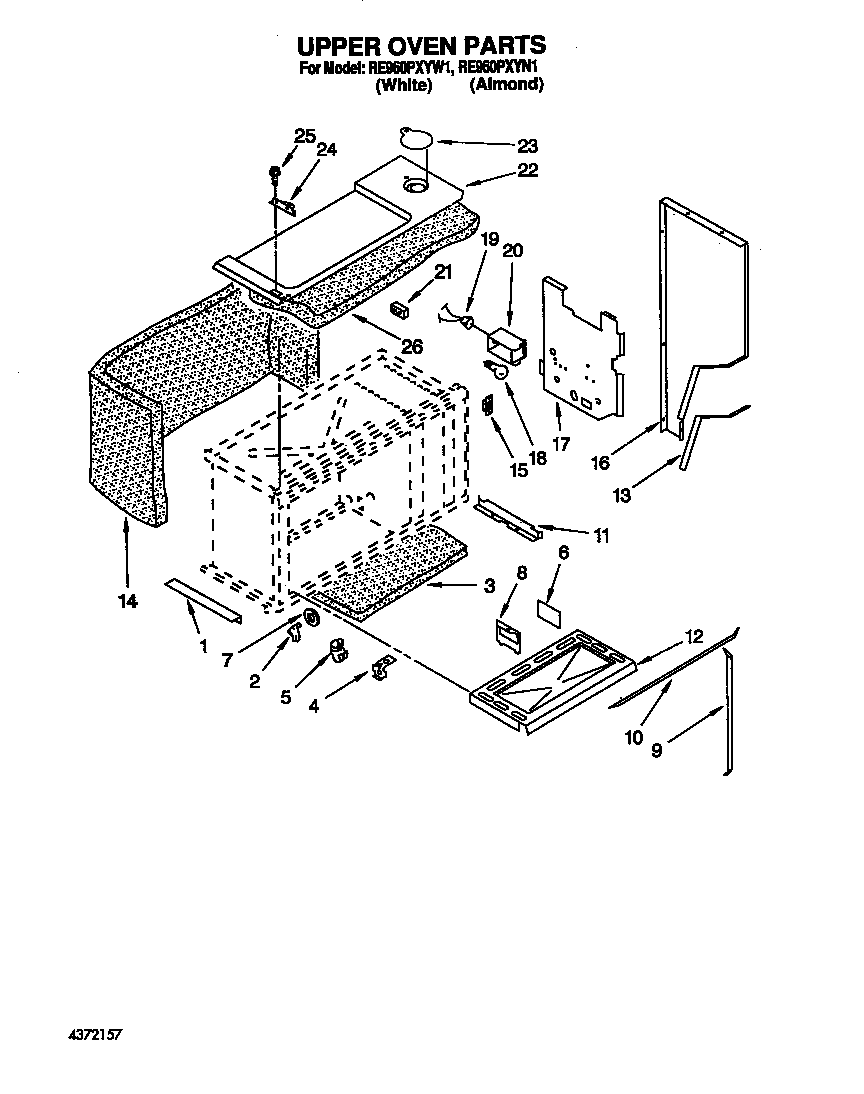

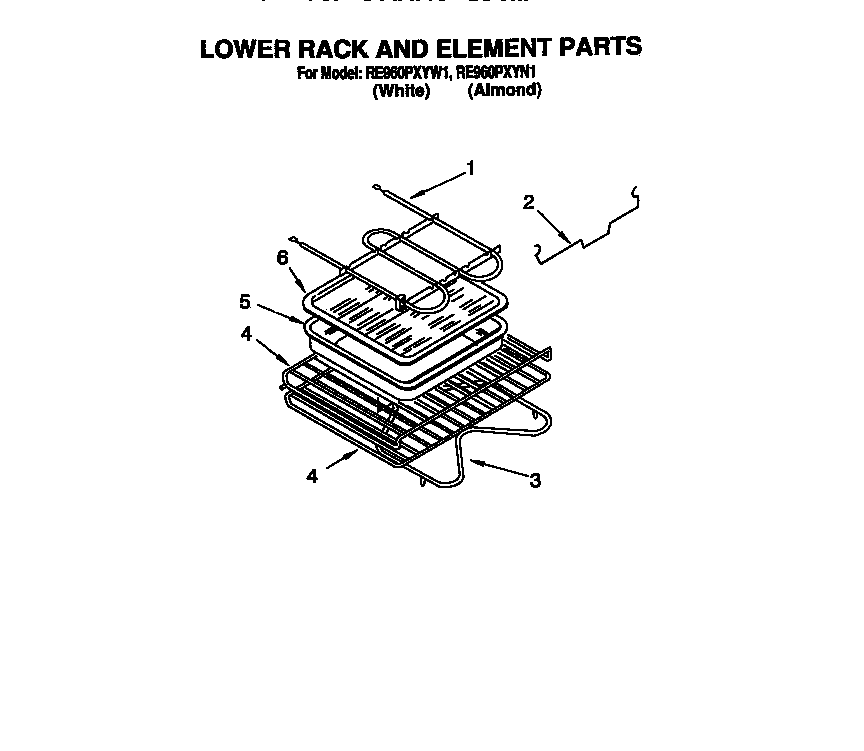

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Light Bulb 4371303
Light bulb

Part #4371303

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4371303. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Surface Element 4371427
#27B

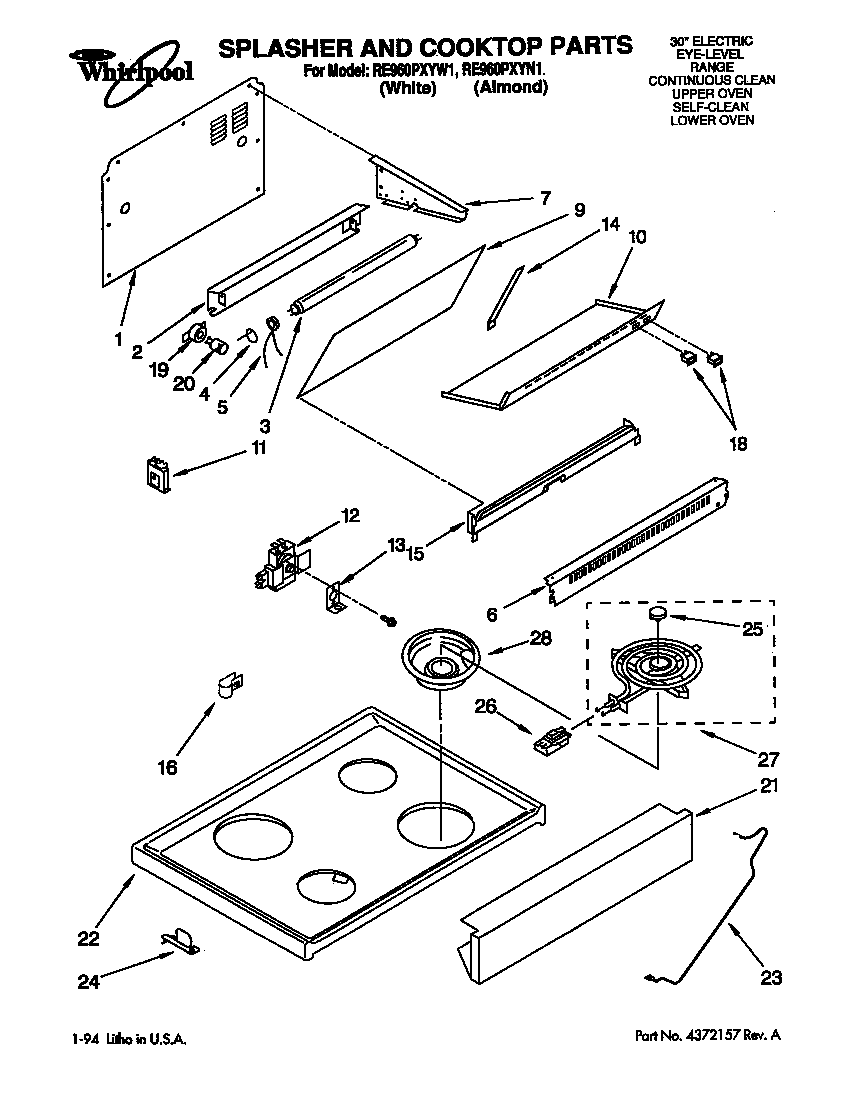

Splasher and cooktop diagram

Surface element

Part #4371427

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 4371427. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Infinite Switch 4371915
#2B

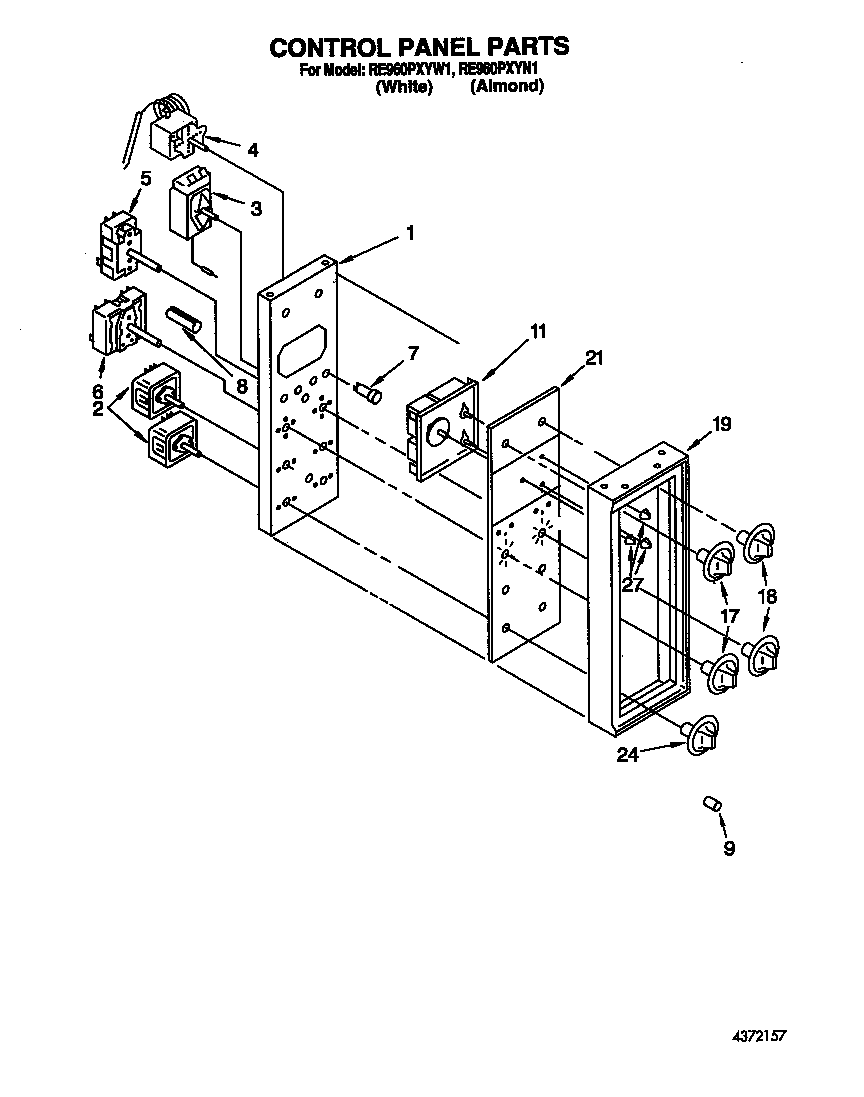

Control panel diagram

Infinite switch

Part #4371915

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4371915. Substitute parts can look different from the original.
BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Infinite Switch 4371914
#2A

Control panel diagram

Infinite switch

Part #4371914

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4371914. Substitute parts can look different from the original.
BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Surface Element 4371354
#27A

Splasher and cooktop diagram

Surface element

Part #4371354

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 4371354. Substitute parts can look different from the original.
BEST SELLER
$25.41 |
19% OFF Phone Price : $31.41
In Stock
Light Switch 816703
#18

Splasher and cooktop diagram

Light switch

Part #816703

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 816703. Substitute parts can look different from the original.
$35.52 |
14% OFF Phone Price : $41.52
In Stock
Wire Tie 816633
#14

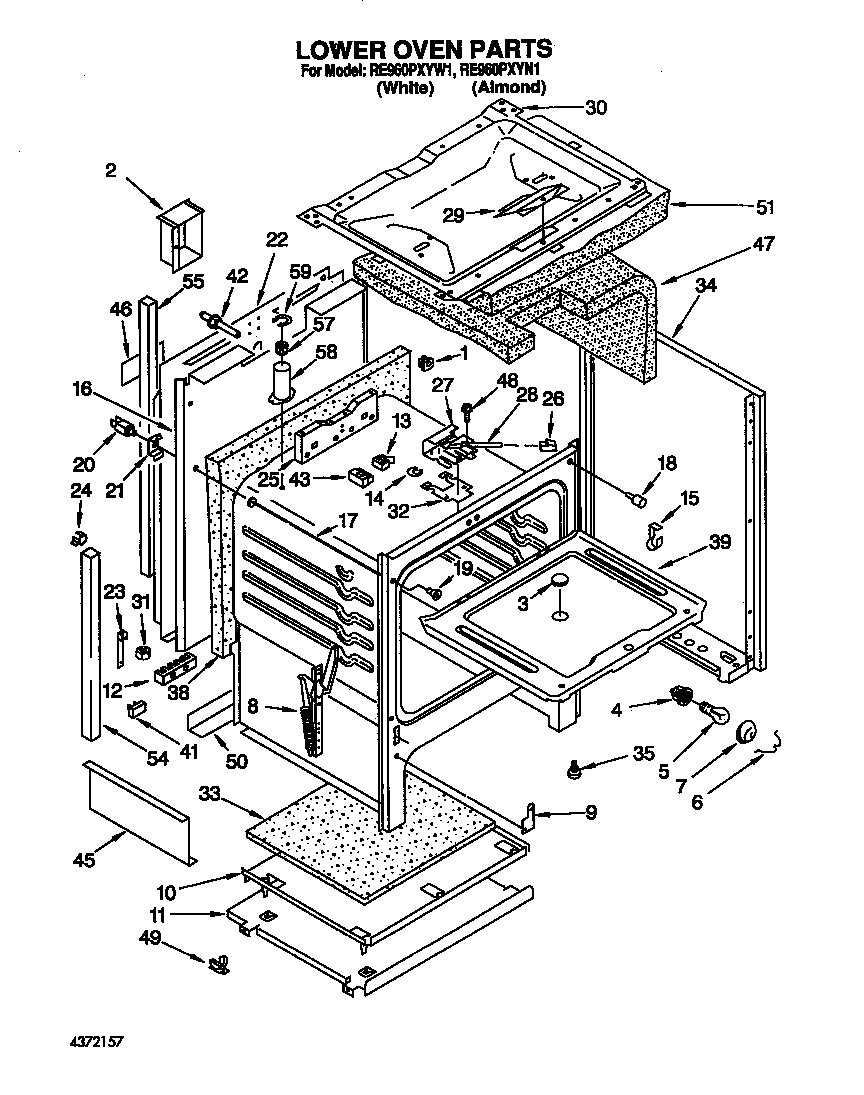

Lower oven diagram

Wire tie

Part #816633

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 816633. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Broiler Pan 4372001
#15

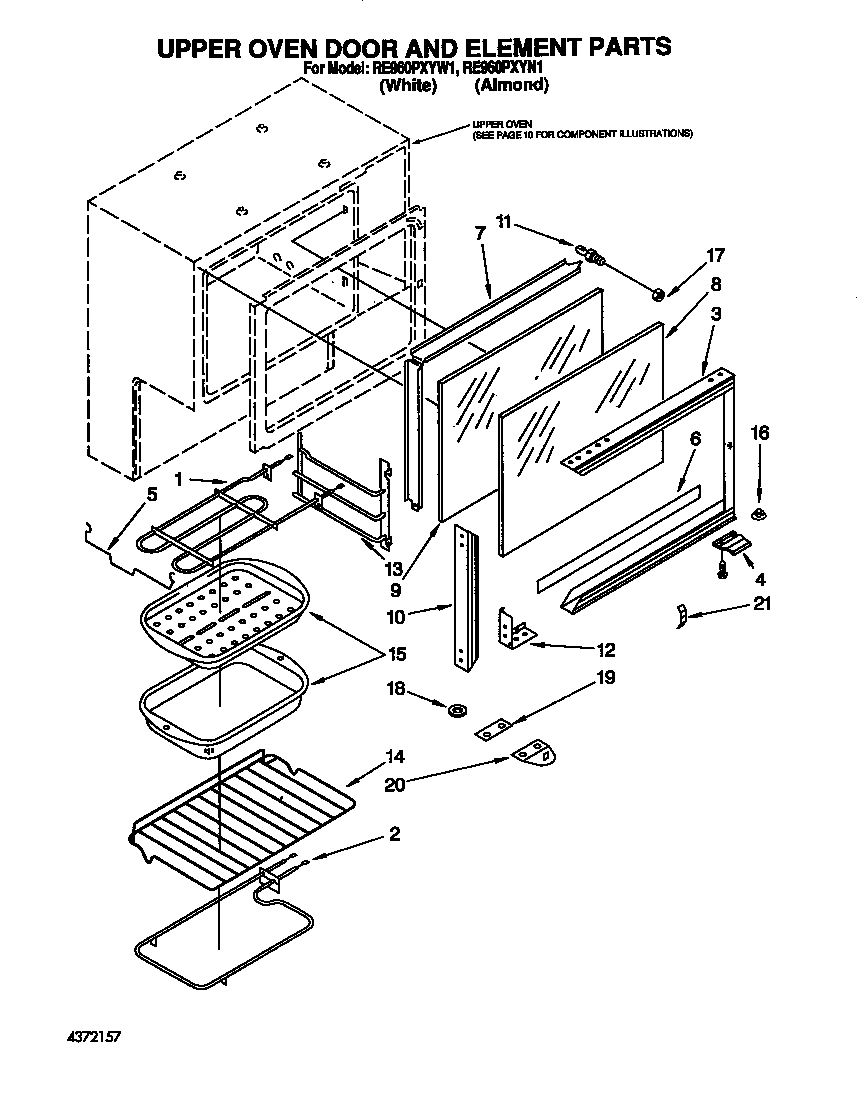

Upper oven door and element diagram

Broiler pan

Part #4372001

Replaced by #4396923

?
Manufacturer substitution
This part replaces 4372001. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Oven Knob 4371986
#18A

Control panel diagram

Oven knob

Part #4371986

$32.00
In Stock
Receptacle Element 4371919
#26

Splasher and cooktop diagram

Receptacle element

Part #4371919

Replaced by #330031

?
Manufacturer substitution
This part replaces 4371919. Substitute parts can look different from the original.
$10.32 |
16% OFF Phone Price : $12.32
In Stock
