Frigidaire
Electric Cooktop

Model # FPEC3077RF0 Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FPEC3077RF0 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

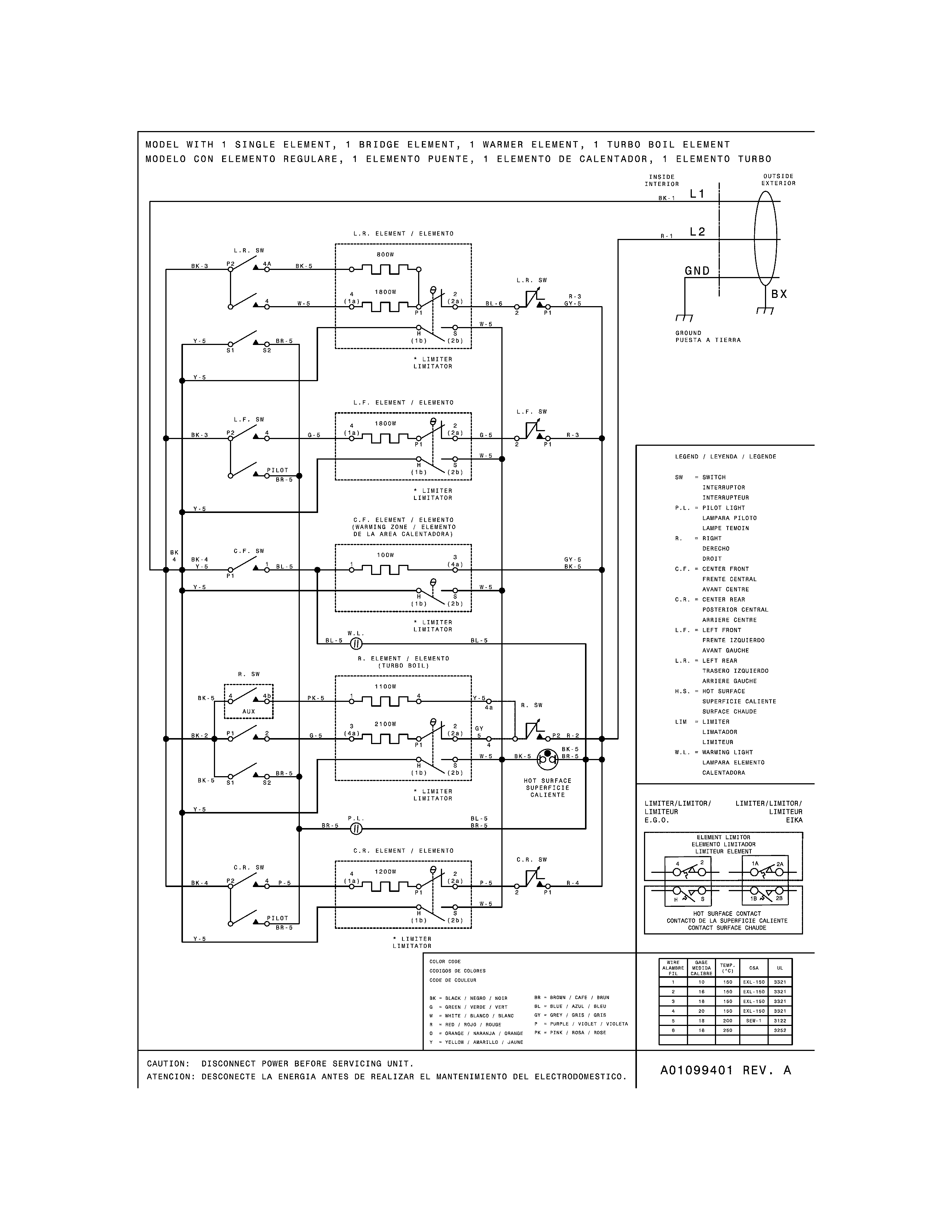

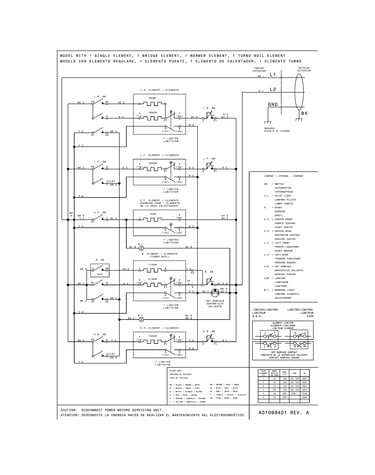

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Range Radiant Surface Element 316530000
#7

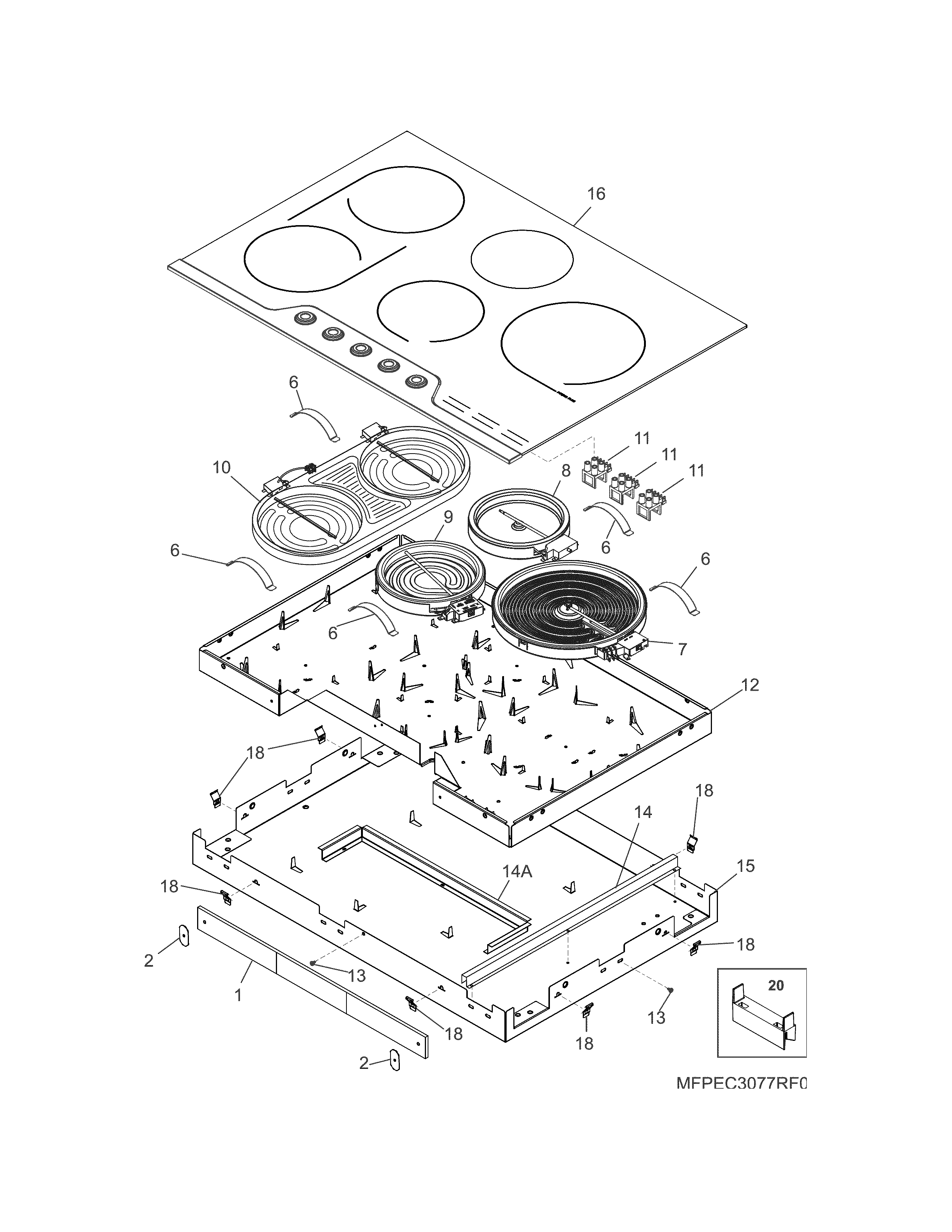

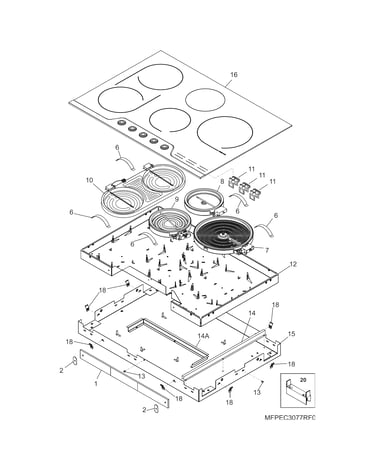

Main top/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Brdge Elmnt 318178200
#10

Main top/surface units diagram

Brdge elmnt

Part #318178200

Replaced by #318258201

?
Manufacturer substitution
This part replaces 318178200. Substitute parts can look different from the original.
$342.13 |
$12.00 OFF Phone Price : $354.13
In Stock
Cooktop Radiant Element, 6-in 374063522
#8

Main top/surface units diagram

Cooktop radiant element, 6-in

Part #374063522

Replaced by #A02843501

?
Manufacturer substitution
This part replaces 374063522. Substitute parts can look different from the original.
$117.03 |
9% OFF Phone Price : $129.03
In Stock
Cooktop Element Control Knob Bushing 318146010
#6

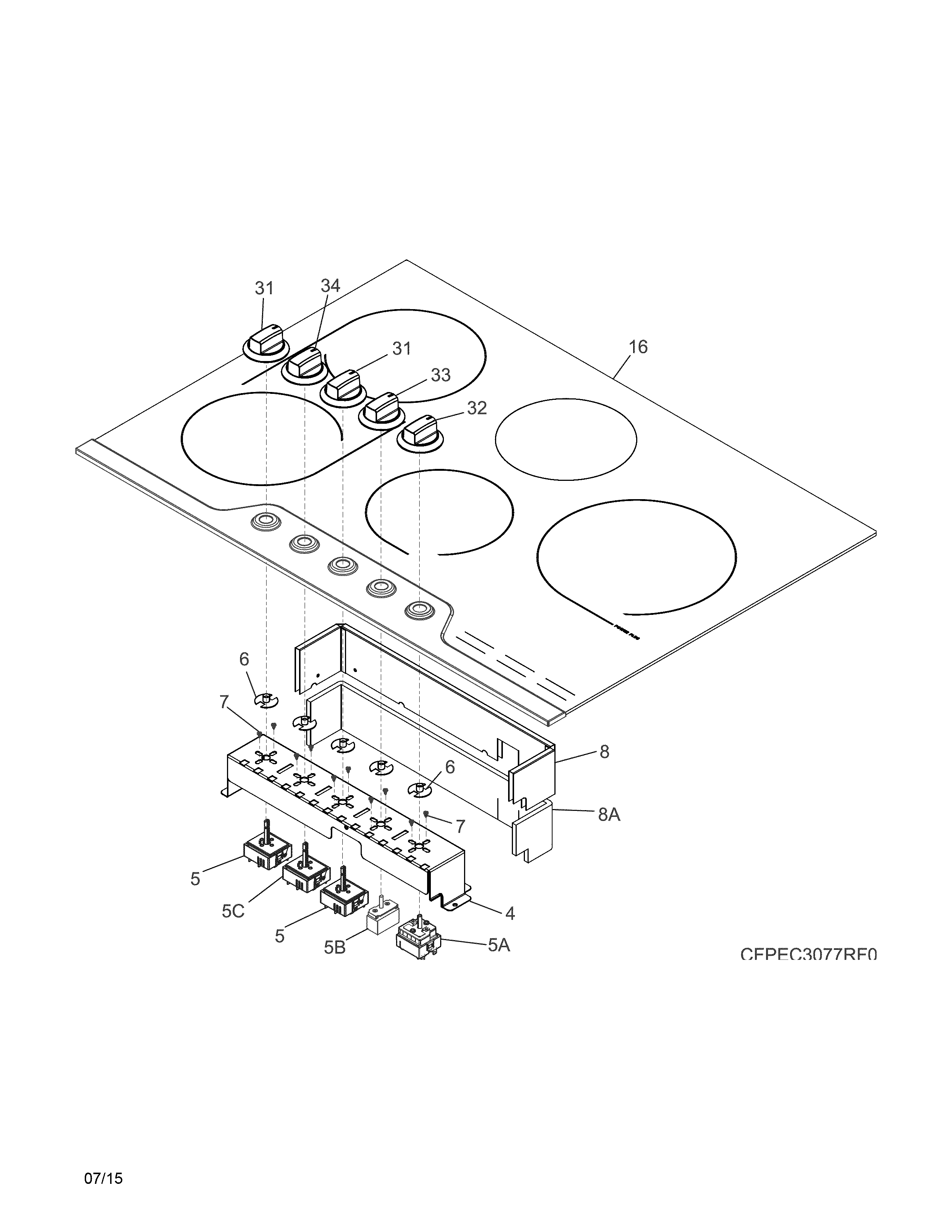

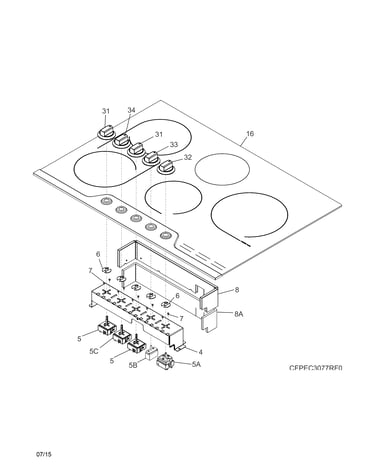

Controls diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Cooktop Centering Spring 387174602
#18

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
Cooktop Screw, #10-16 X 0.25-in 5304403558
#NI

Main top/surface units diagram

Cooktop screw, #10-16 x 0.25-in

Part #5304403558

$13.26
In Stock
Screw 319224001
#7

Controls diagram

Screw

Part #319224001

$12.60
In Stock
Spring 387372900
#6

Main top/surface units diagram

Spring

Part #387372900

$13.97
In Stock
Support 387683500
#14

Main top/surface units diagram

Support

Part #387683500

$22.37
In Stock
Screw 305452800
#NI

Main top/surface units diagram

Screw

Part #305452800

$9.09
In Stock
