Amana
Bottom-Mount Refrigerator

Model # ABL2037FES0 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana ABL2037FES0 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

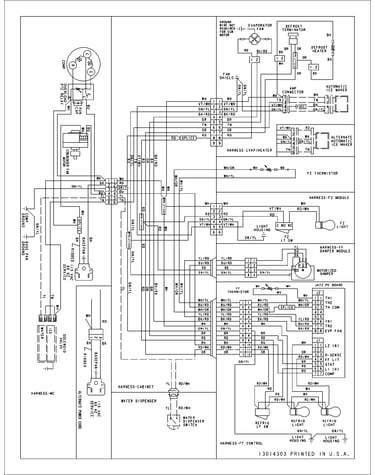

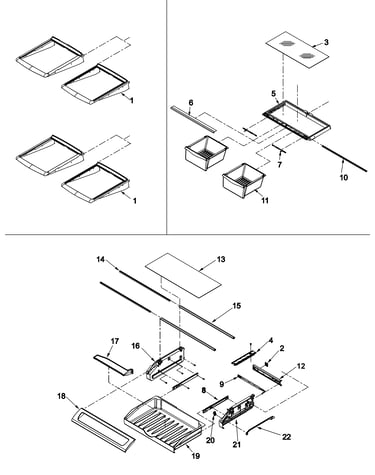

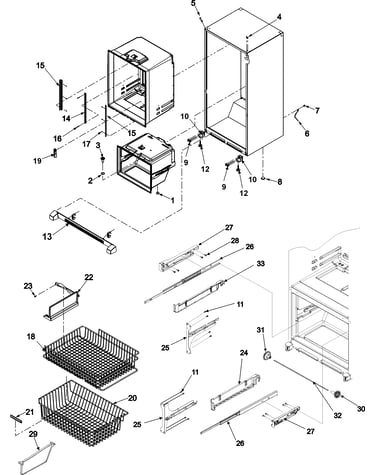

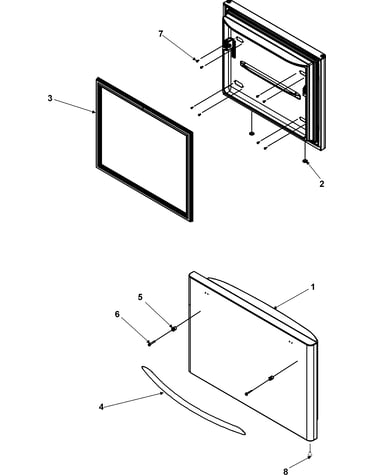

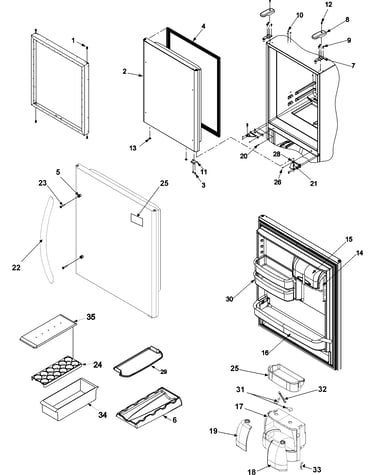

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 241 parts  |
Refrigerator Water Filter 67006467
#3

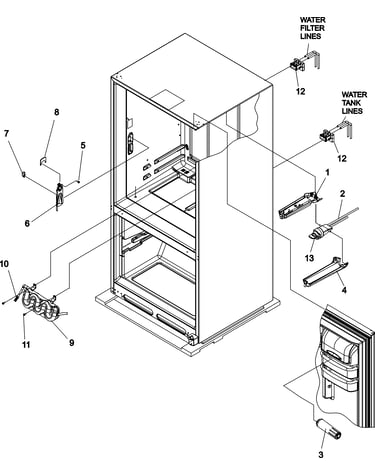

Water dispenser/filter diagram

Refrigerator water filter

Part #67006467

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker D7824706Q
#6

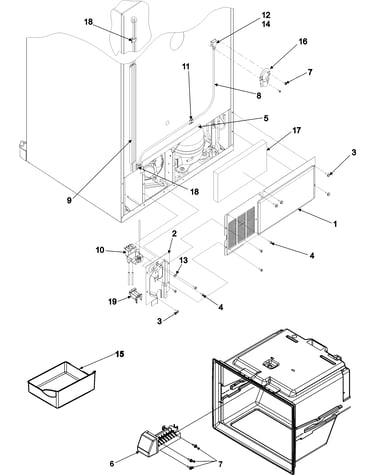

Cabinet back diagram

Refrigerator ice maker

Part #D7824706Q

BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker 61005508
#14

Optional ice maker kit ic11b p1328003w diagram

Refrigerator ice maker

Part #61005508

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 61005508. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680310
#1

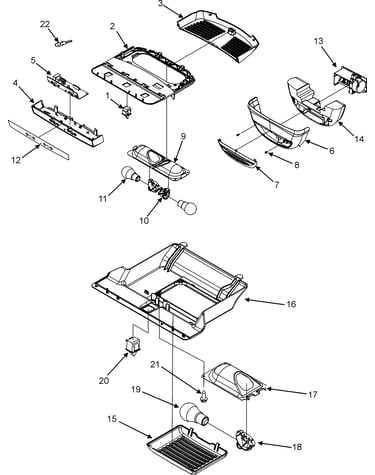

Controls diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Tube B5705323
#11

Optional ice maker kit ic11b p1328003w diagram

Refrigerator tube

Part #B5705323

Replaced by #W10823511

?
Manufacturer substitution
This part replaces B5705323. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Compressor 12002634
#8

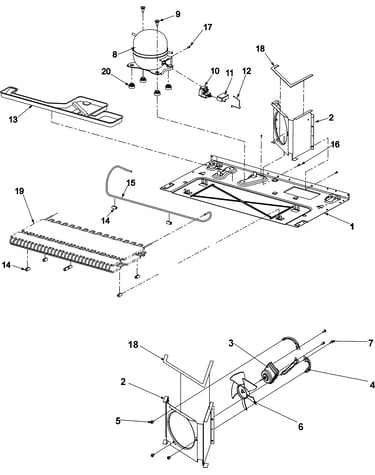

Compressor diagram

Refrigerator compressor

Part #12002634

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 12002634. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Capacitor W/ 67005562
#11

Compressor diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Overload Release 67005561
#10

Compressor diagram

Refrigerator overload release

Part #67005561

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005561. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 67005653
#20

Controls diagram

Refrigerator light switch

Part #67005653

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
