Kenmore
Gas Grill

Model # 14845961610 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 14845961610 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Butterfly Screw 1/4-20UNCX2"
#47

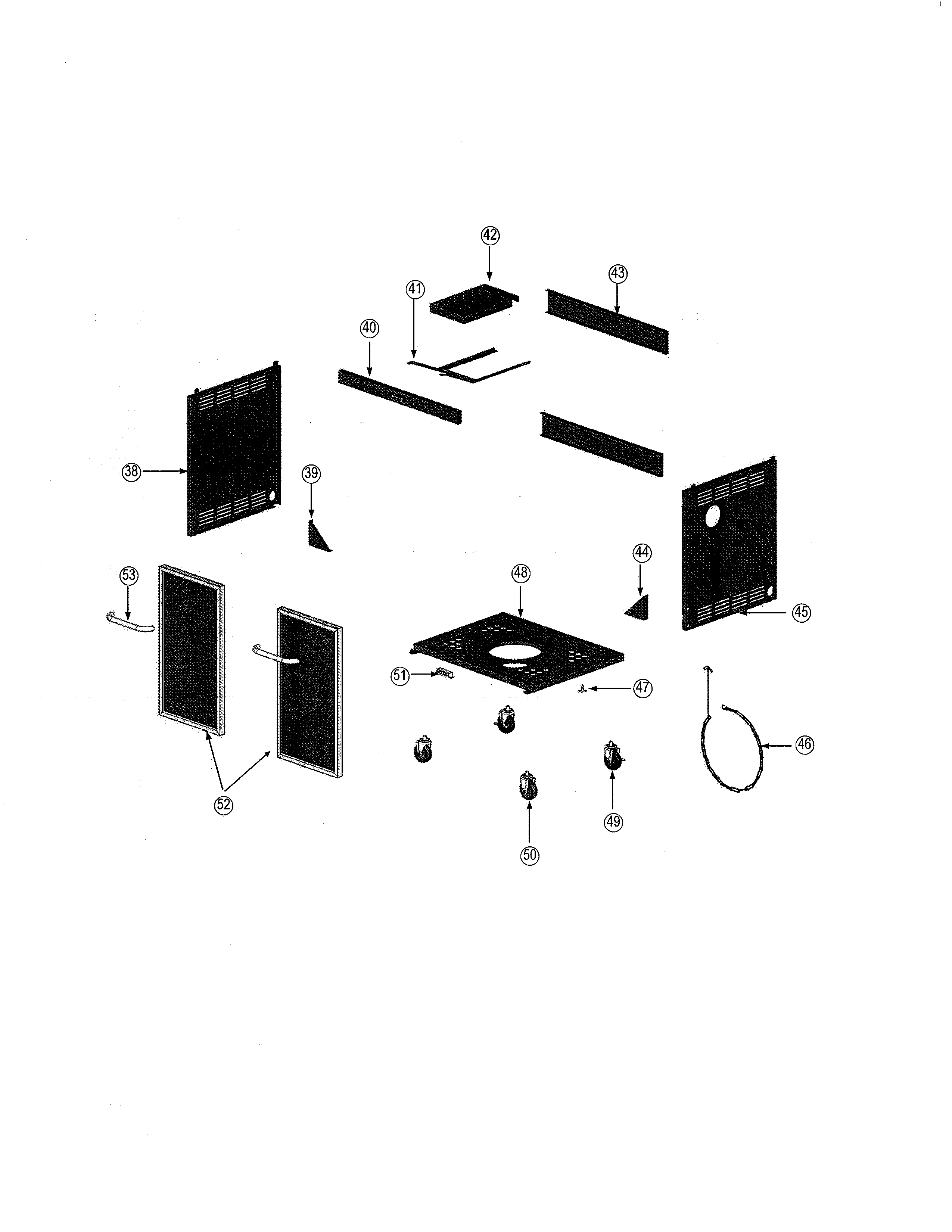

Cabinet diagram

Butterfly screw

Part #1/4-20UNCX2"

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Hardware Pack RB2518TS-HARDWARE

#NI01

All parts diagram

Gas grill hardware pack

Part #RB2518TS-HARDWARE

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Gas Hose RB2518TS-00-8001
#31

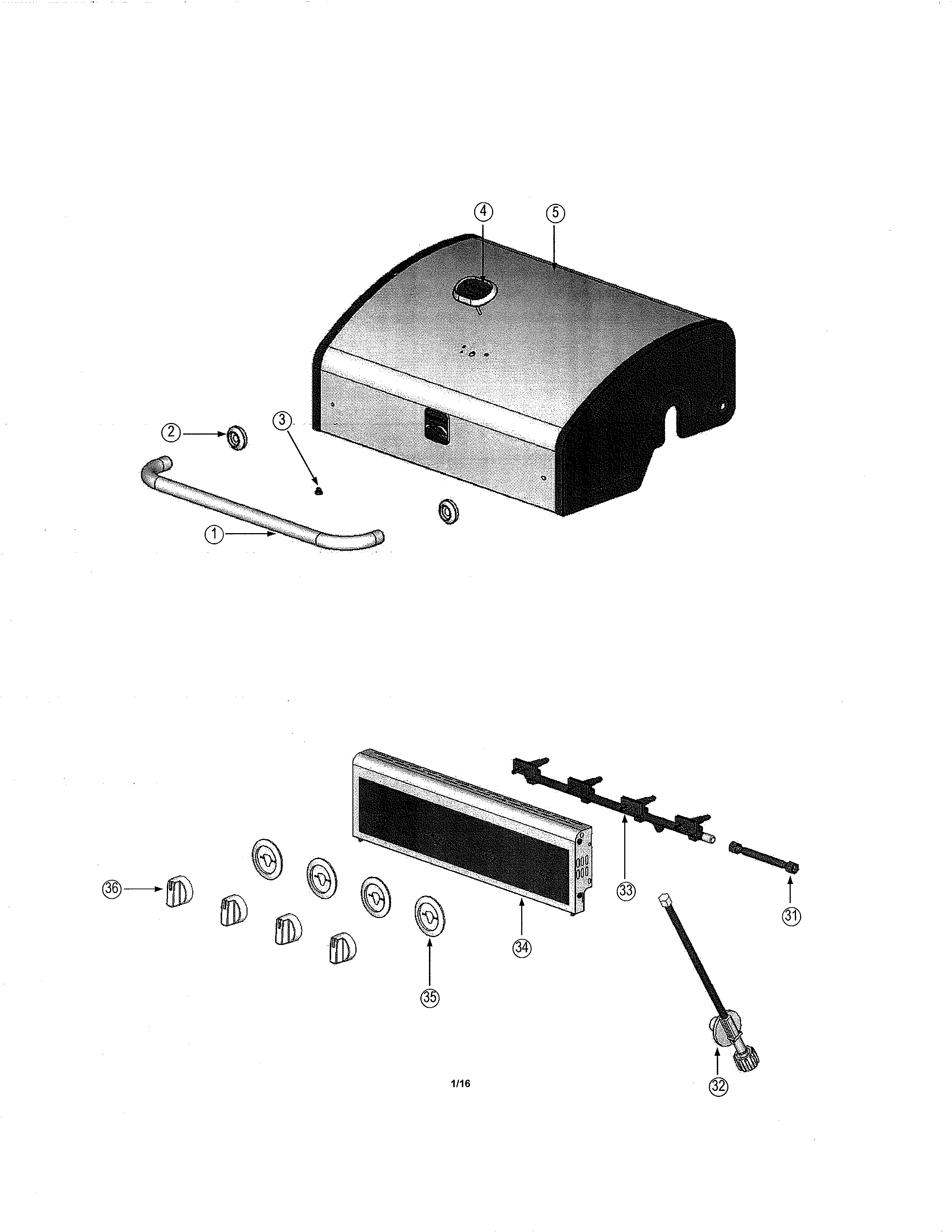

Hood & control panel diagram

Gas grill gas hose

Part #RB2518TS-00-8001

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Steamer Tray Lid RB2518TS-00-6010
#21

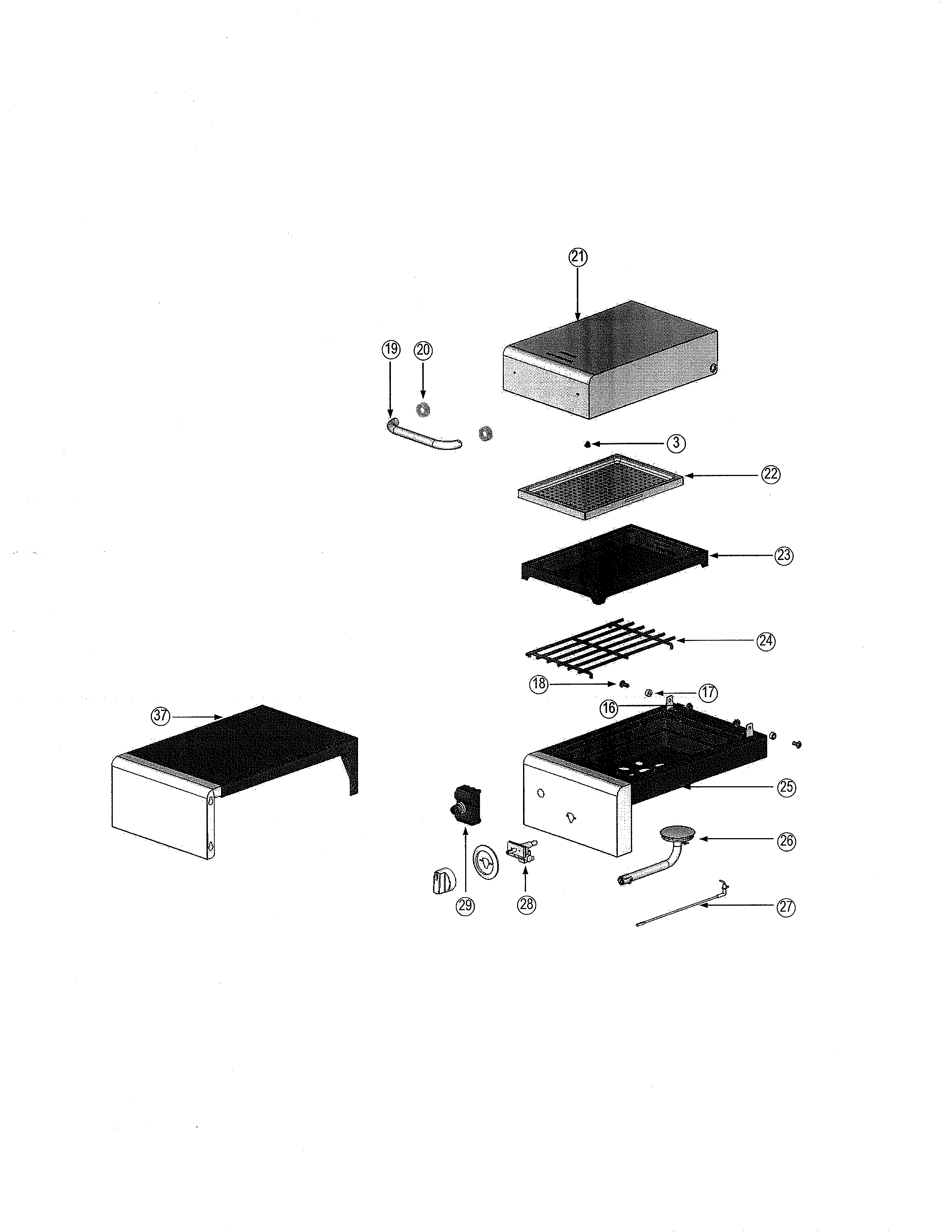

Side shelf & side burner shelf diagram

Gas grill steamer tray lid

Part #RB2518TS-00-6010

The manufacturer no longer makes this part, and there's no substitute part

Steam Tray RB2518TS-00-6001
#22

Side shelf & side burner shelf diagram

Steam tray

Part #RB2518TS-00-6001

The manufacturer no longer makes this part, and there's no substitute part

Shelf RB2518TS-00-6000
#25

Side shelf & side burner shelf diagram

Shelf

Part #RB2518TS-00-6000

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Flame Tamer L3018S-00-2007
#8

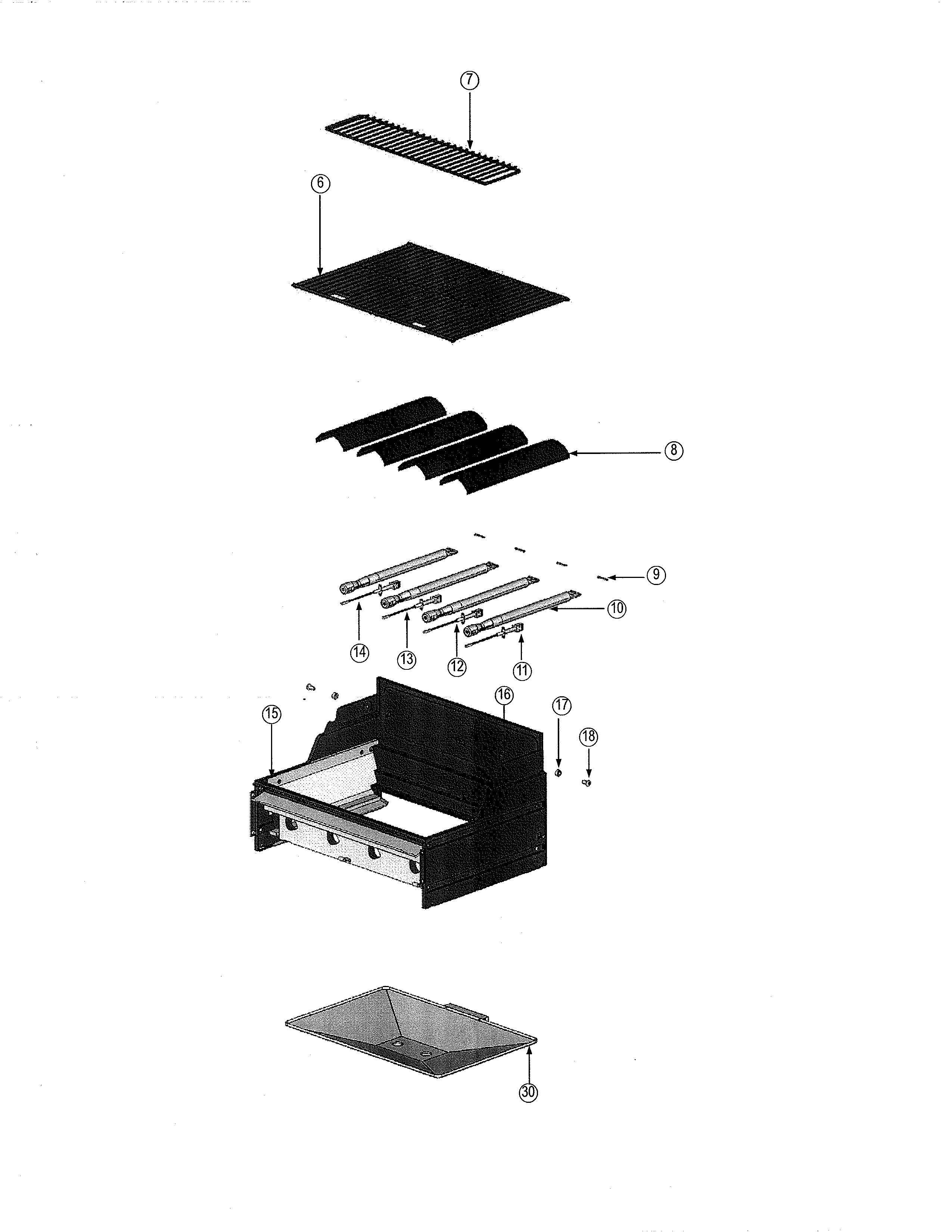

Burner box diagram

Gas grill flame tamer

Part #L3018S-00-2007

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Door RB2518TK-00-1400
#52

Cabinet diagram

Gas grill door

Part #RB2518TK-00-1400

The manufacturer no longer makes this part, and there's no substitute part

Grill Handle Base L3018SN-00-4001
#2

Hood & control panel diagram

Grill handle base

Part #L3018SN-00-4001

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Warming Rack RB2518TK-00-2002
#7

Burner box diagram

Gas grill warming rack

Part #RB2518TK-00-2002

The manufacturer no longer makes this part, and there's no substitute part
