Craftsman
Water Pump

Model # 390280030 Official Craftsman submersible pump

Here are the diagrams and repair parts for Official Craftsman 390280030 submersible pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Screen P8-20
#9

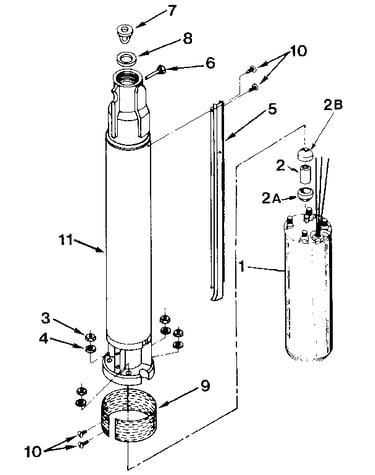

Residential diagram

Screen

Part #P8-20

This item is not returnable
$5.19
In Stock
Nut U36-41SS
#3

Residential diagram

Nut

Part #U36-41SS

Replaced by #B76087

?
Manufacturer substitution
This part replaces U36-41SS. Substitute parts can look different from the original.
$53.74
In Stock
3/4 Hp/230v 280030 P3239SS
#5C

Residential diagram

3/4 hp/230v 280030

Part #P3239SS

The manufacturer no longer makes this part, and there's no substitute part

Pin P30-9
#6

Residential diagram

Pin

Part #P30-9

The manufacturer no longer makes this part, and there's no substitute part

Slinger P69-4
#2A

Residential diagram

Slinger

Part #P69-4

The manufacturer no longer makes this part, and there's no substitute part

Label U33-62SS

#NI

All parts diagram

Label

Part #U33-62SS

The manufacturer no longer makes this part, and there's no substitute part

Pump 1 Hp P364-4
#11D

Residential diagram

Pump 1 hp

Part #P364-4

The manufacturer no longer makes this part, and there's no substitute part

Coupling P11-47
#2

Residential diagram

Coupling

Part #P11-47

The manufacturer no longer makes this part, and there's no substitute part

Washer Valve P22-7
#8

Residential diagram

Washer valve

Part #P22-7

The manufacturer no longer makes this part, and there's no substitute part

Lead Cover P3-245SS
#5A

Residential diagram

Lead cover

Part #P3-245SS

The manufacturer no longer makes this part, and there's no substitute part
