Model # 25370069002 Official Kenmore room air conditioner
Here are the diagrams and repair parts for Official Kenmore 25370069002 room air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

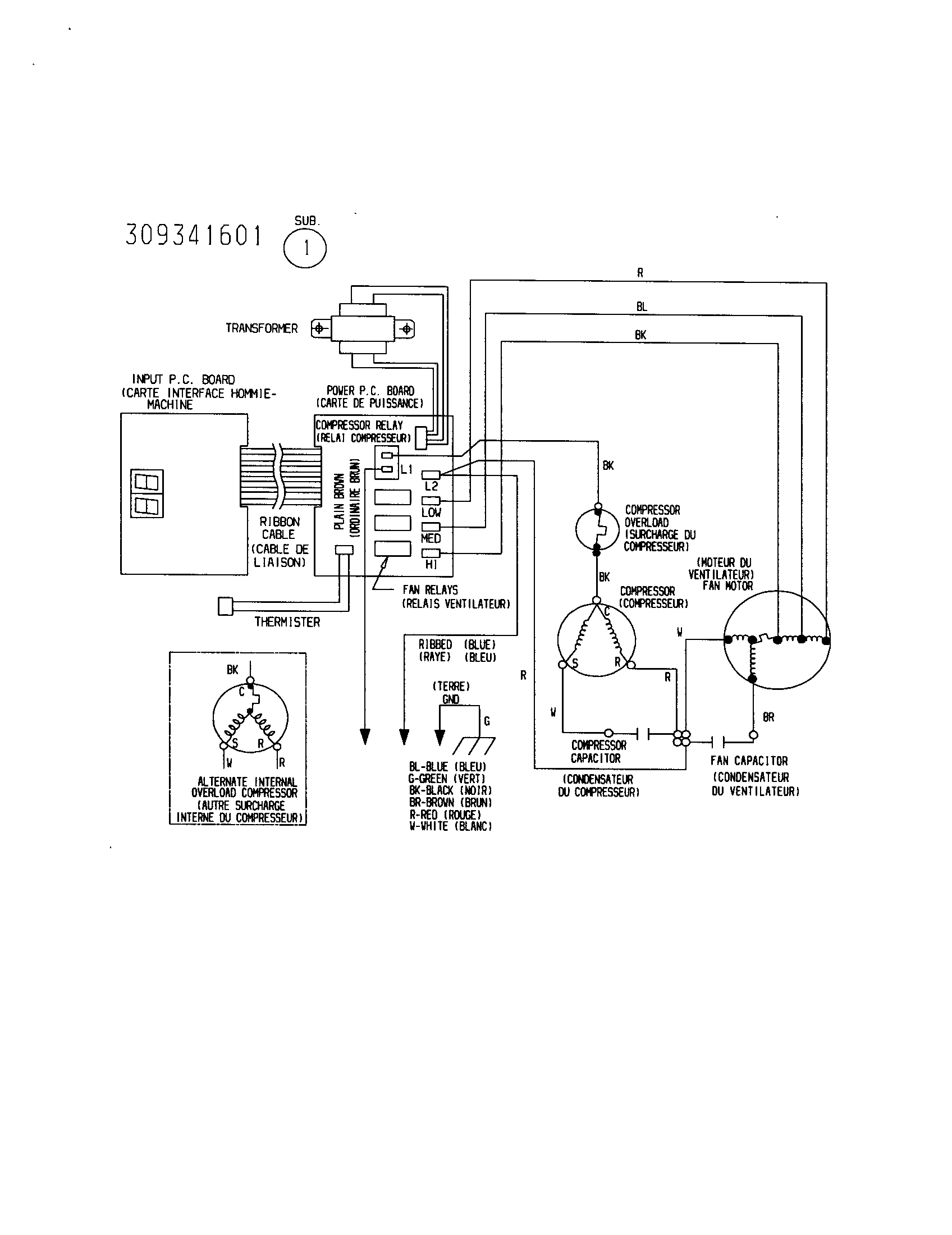

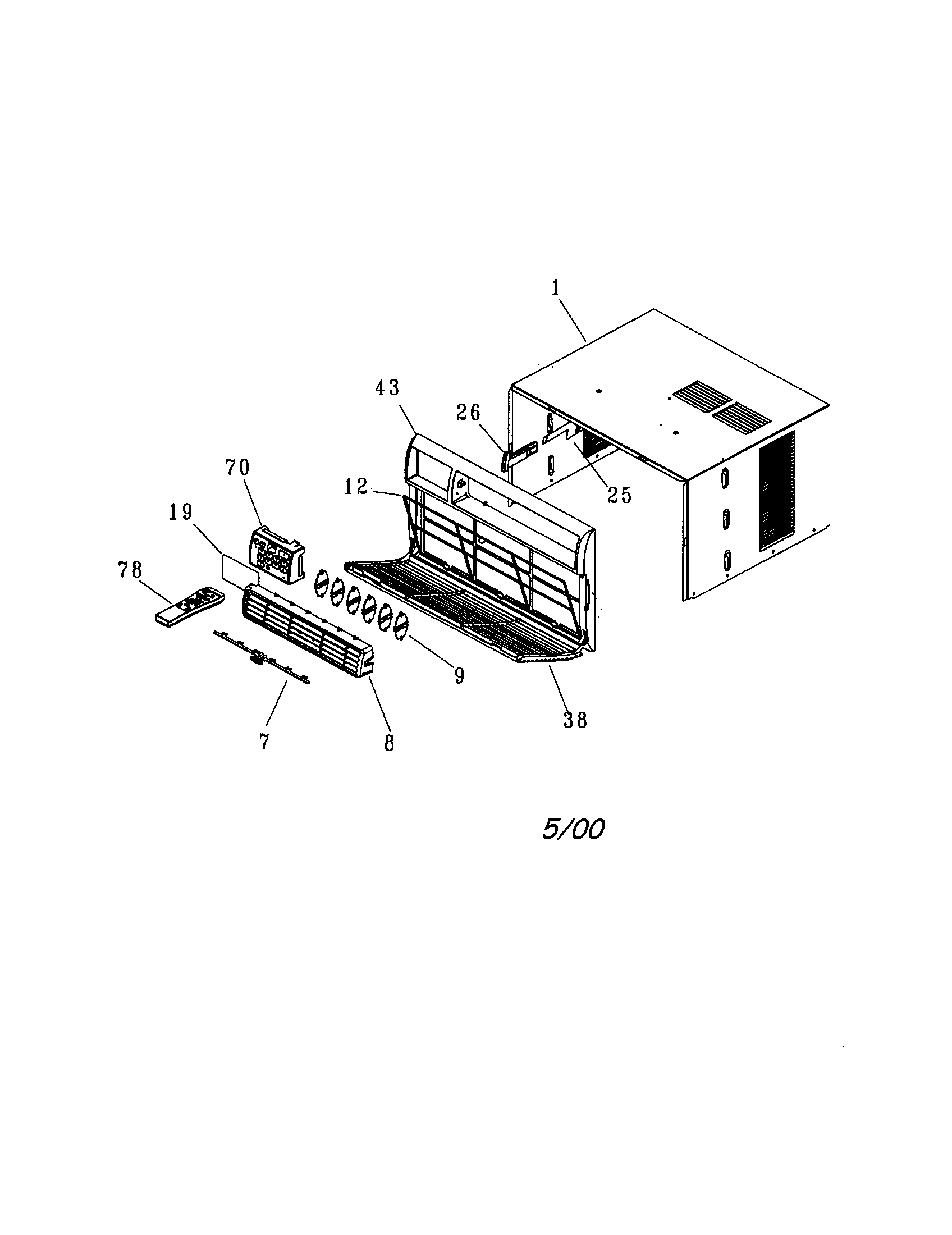

SELECT DIAGRAM
Browse Parts for
25370069002 Room Air Conditioner
#2

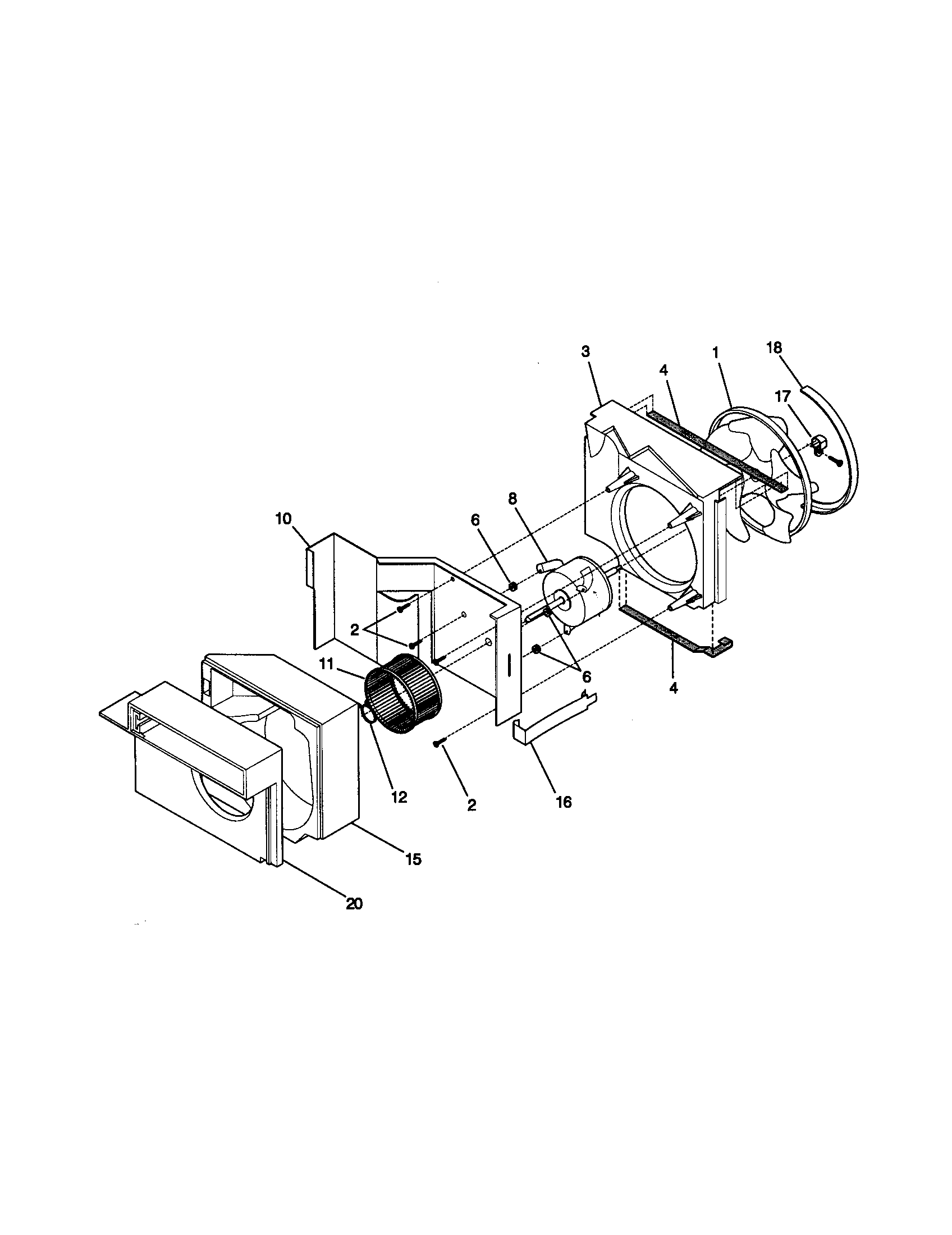

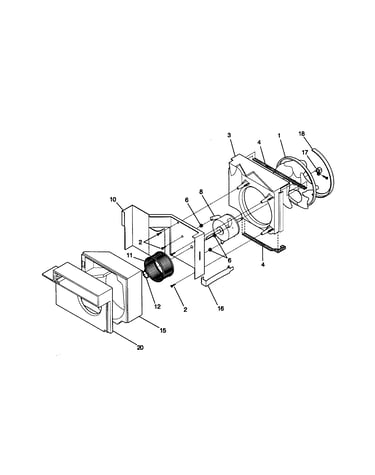

Air handling diagram
Screw
Part #3202975
Replaced by #131202300
?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$15.00 |
12% OFF Phone Price : $17.00
In Stock
#9

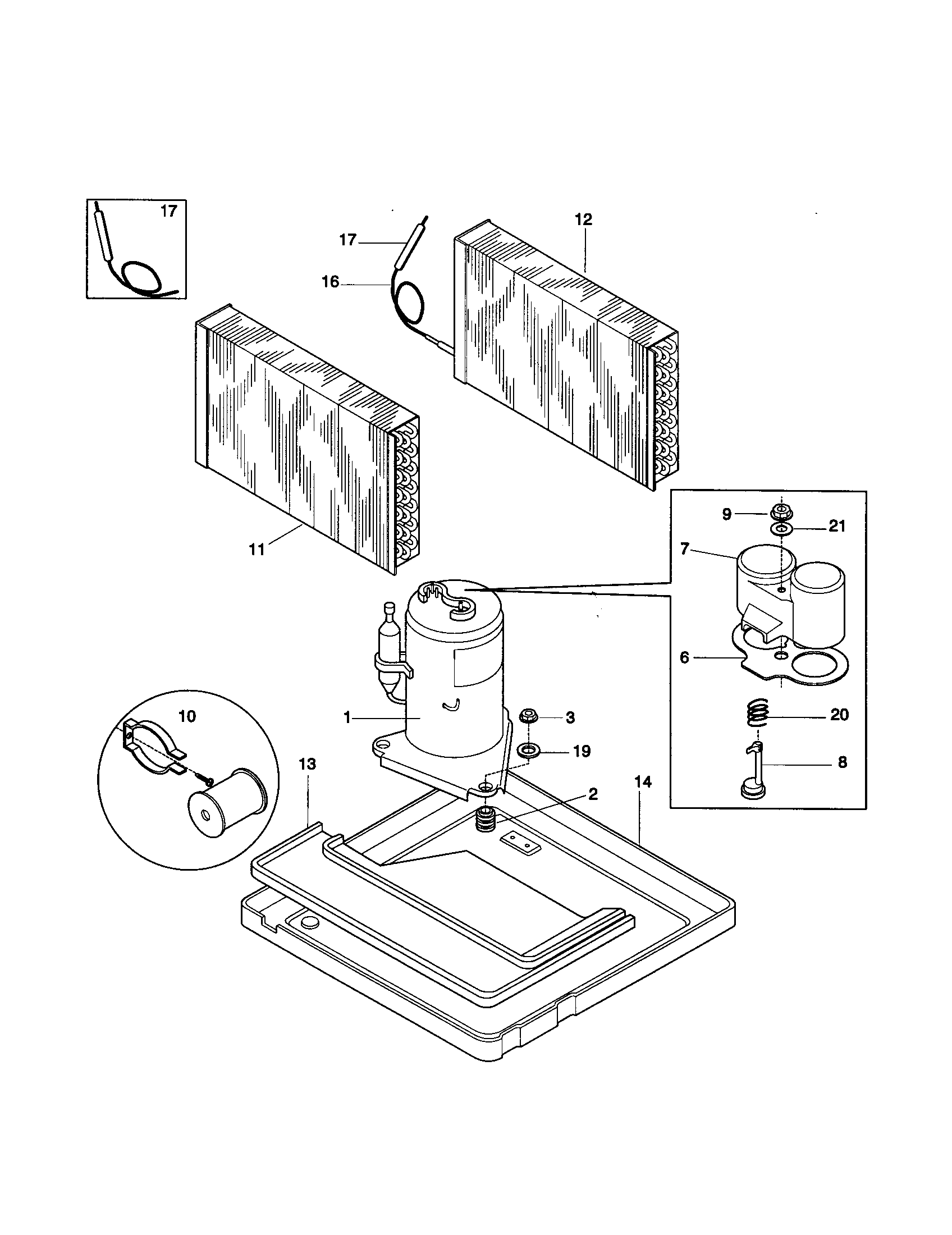

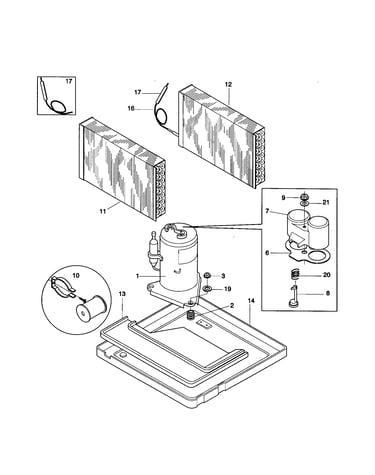

Compressor diagram
Cover nut
Part #5303301734
This item is not returnable
$3.34
In Stock
#19

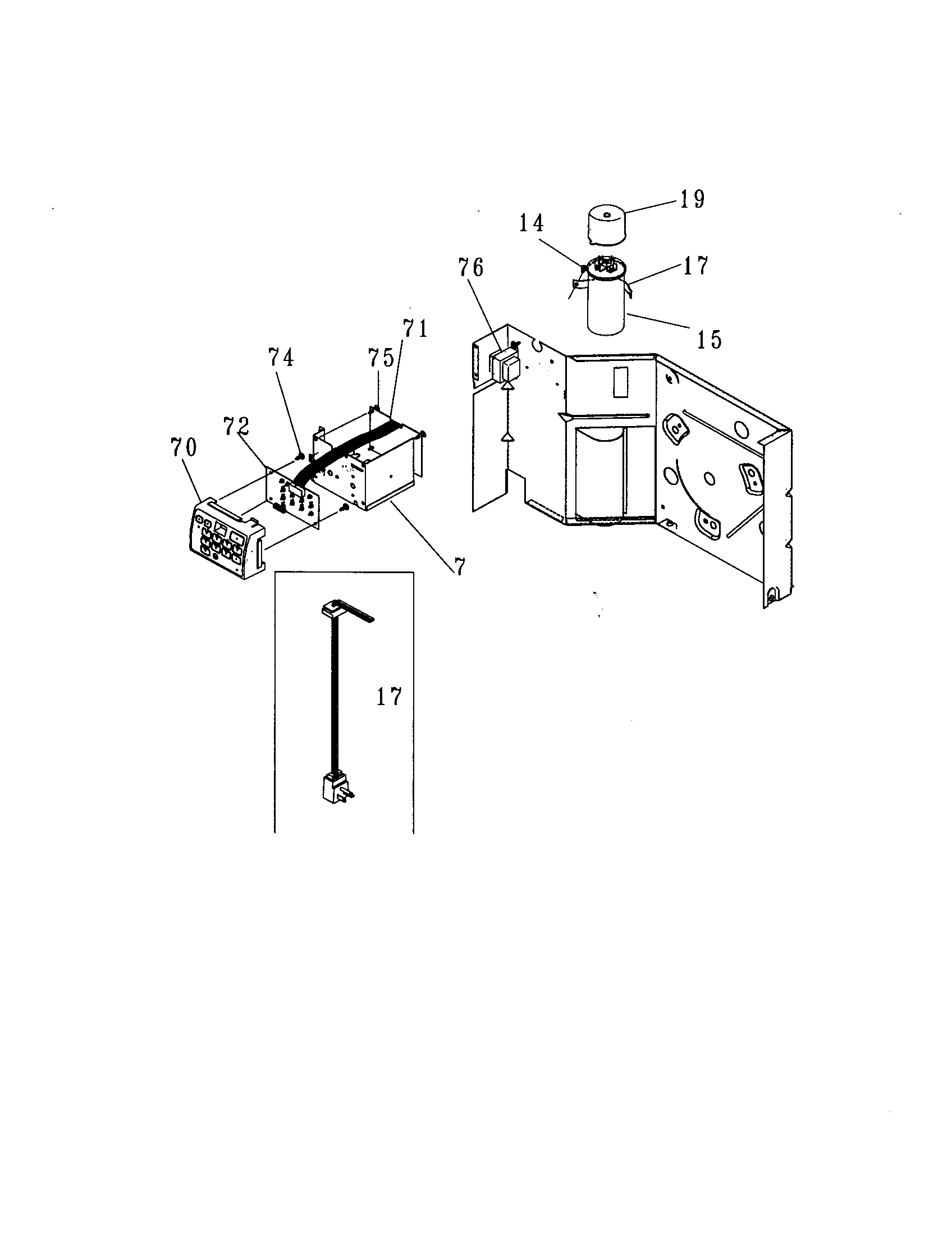

Control diagram
Cover capacitor
Part #5303302855
$30.84
In Stock
#1

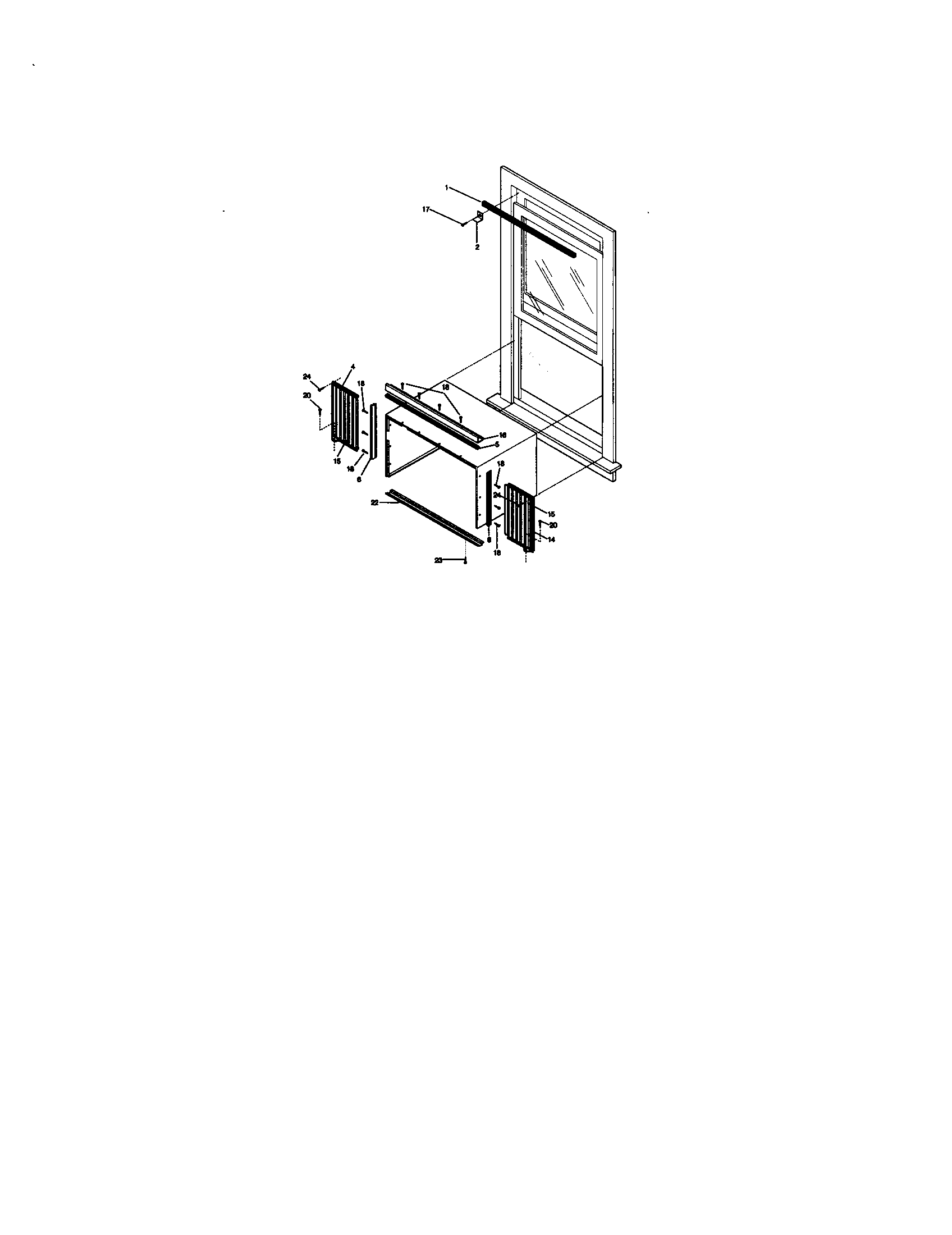

Window mounting diagram
Foam strip
Part #5304407729
$22.98
In Stock
Bulkhead
Part #309602403
Replaced by #309602404
?
Manufacturer substitution
This part replaces 309602403. Substitute parts can look different from the original.
$29.16
In Stock
Screw
Part #5303303691
Replaced by #134178901
?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$17.23
In Stock
#74
Control diagram
Bracket screw
Part #5303301590
Replaced by #3201861
?
Manufacturer substitution
This part replaces 5303301590. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
#7
Compressor diagram
Cover
Part #5303211011
Replaced by #5304440969
?
Manufacturer substitution
This part replaces 5303211011. Substitute parts can look different from the original.
$17.97
In Stock
#3
Air handling diagram
Fan housing
Part #309624201
The manufacturer no longer makes this part, and there's no substitute part
#15
Control diagram
Strap capacitor
Part #5303303086
The manufacturer no longer makes this part, and there's no substitute part
