Husqvarna
Rear-Engine Riding Mower

Model # 967323901-00 Official Husqvarna zero-turn riding lawn mower

Here are the diagrams and repair parts for Official Husqvarna 967323901-00 zero-turn riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

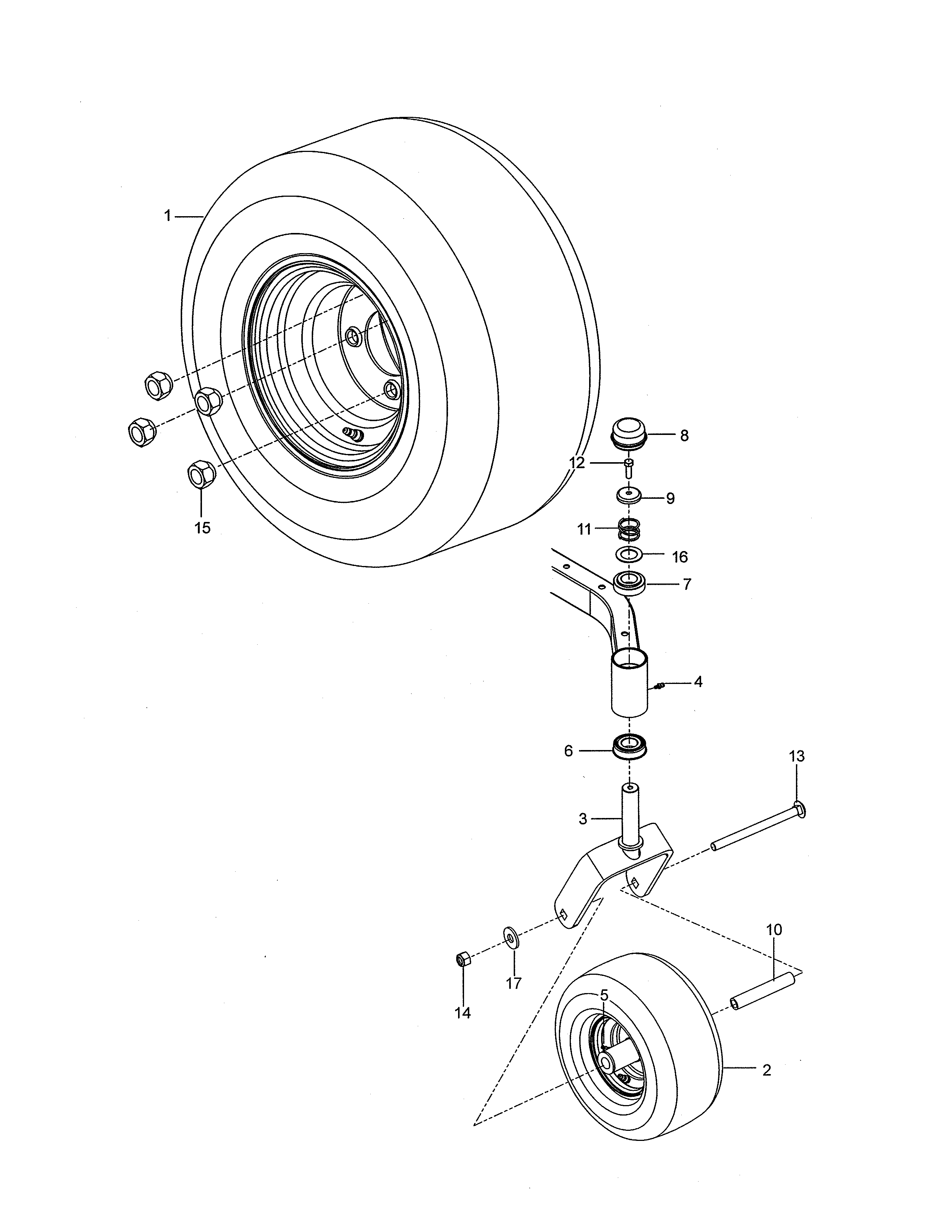

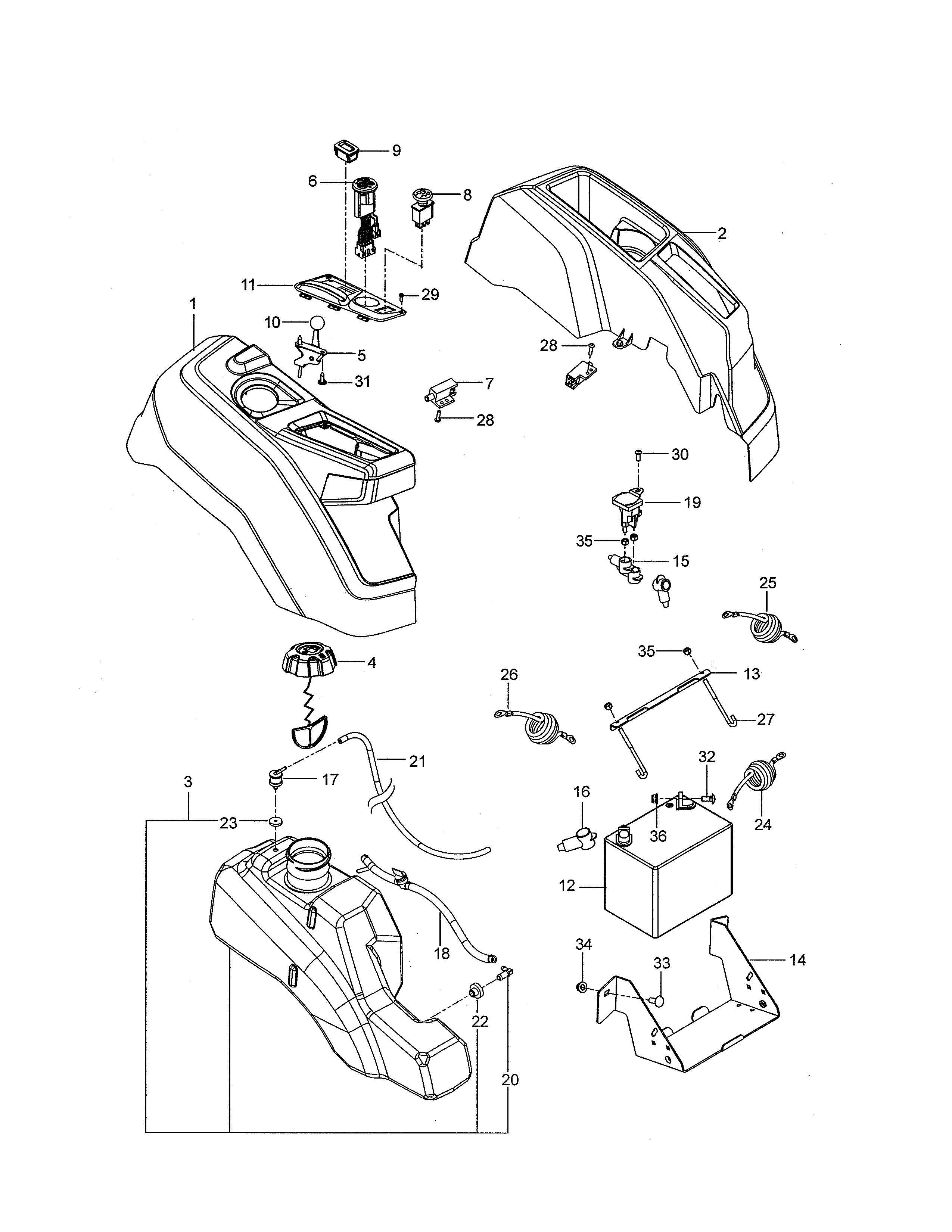

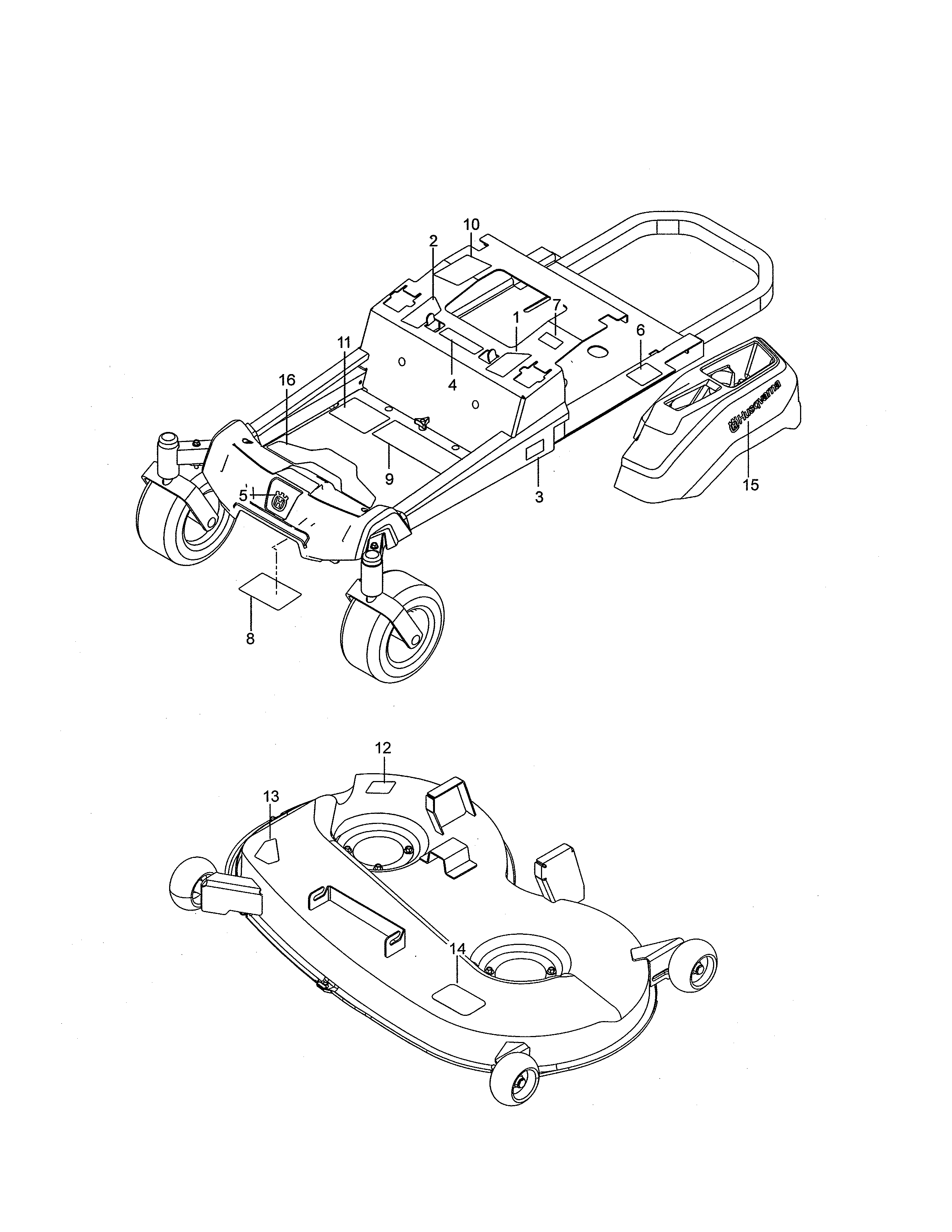

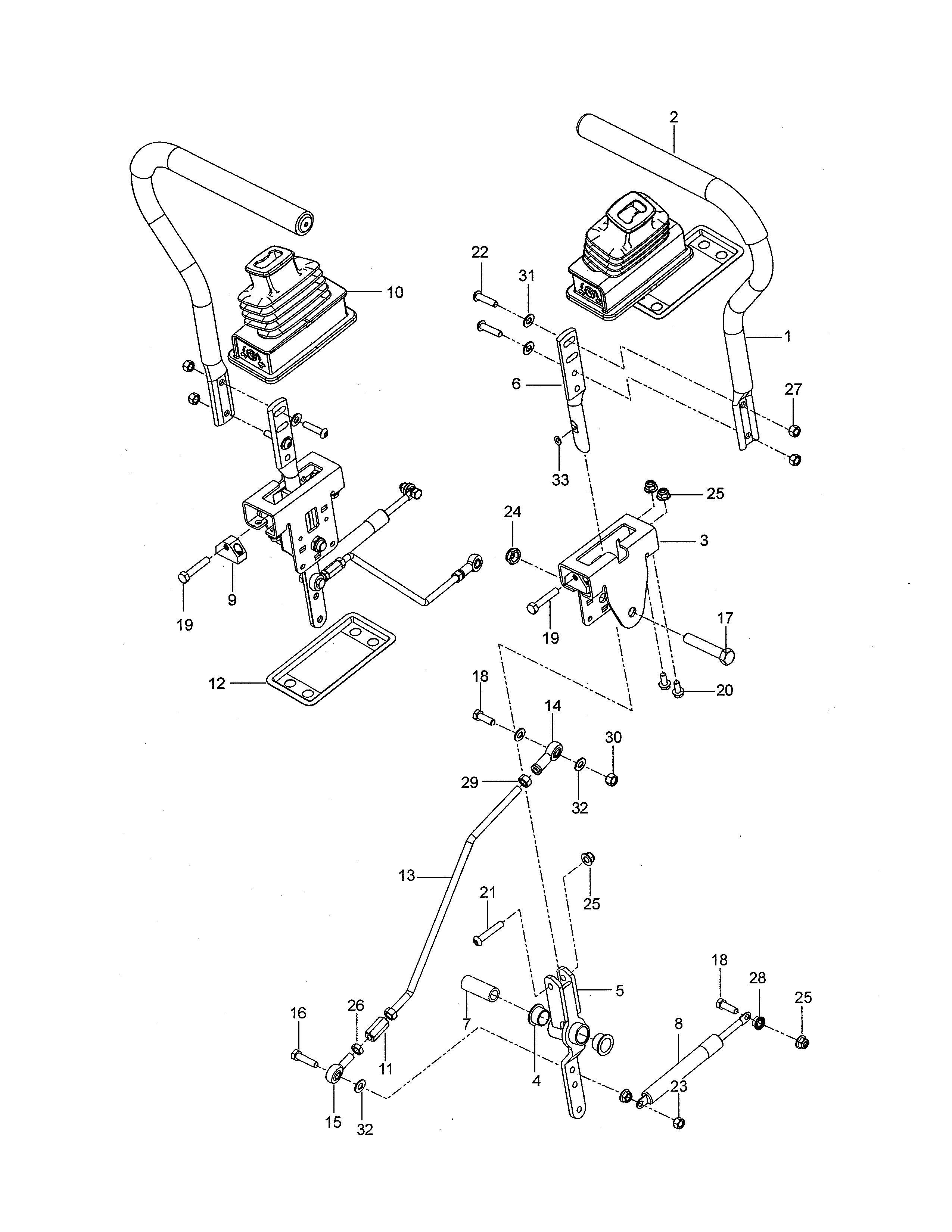

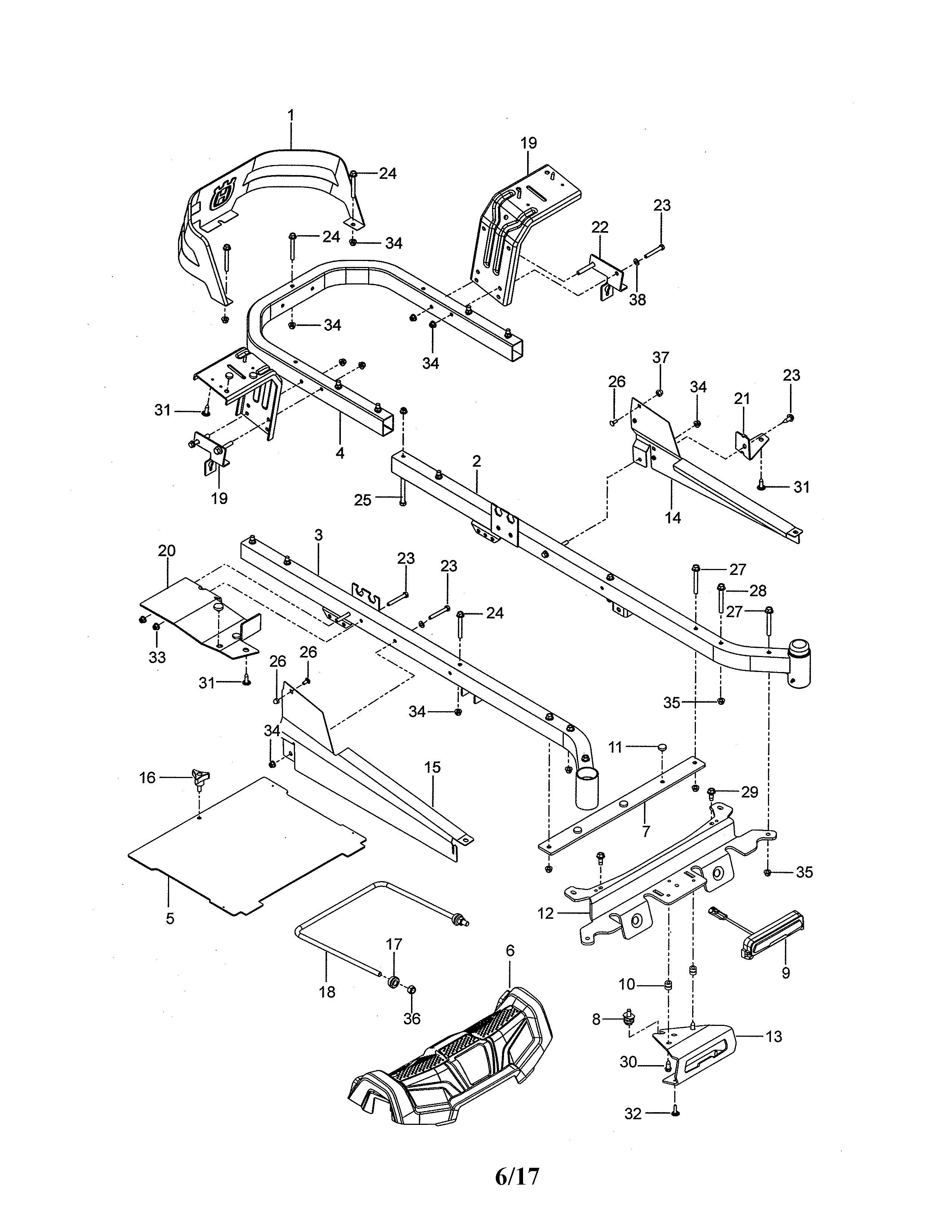

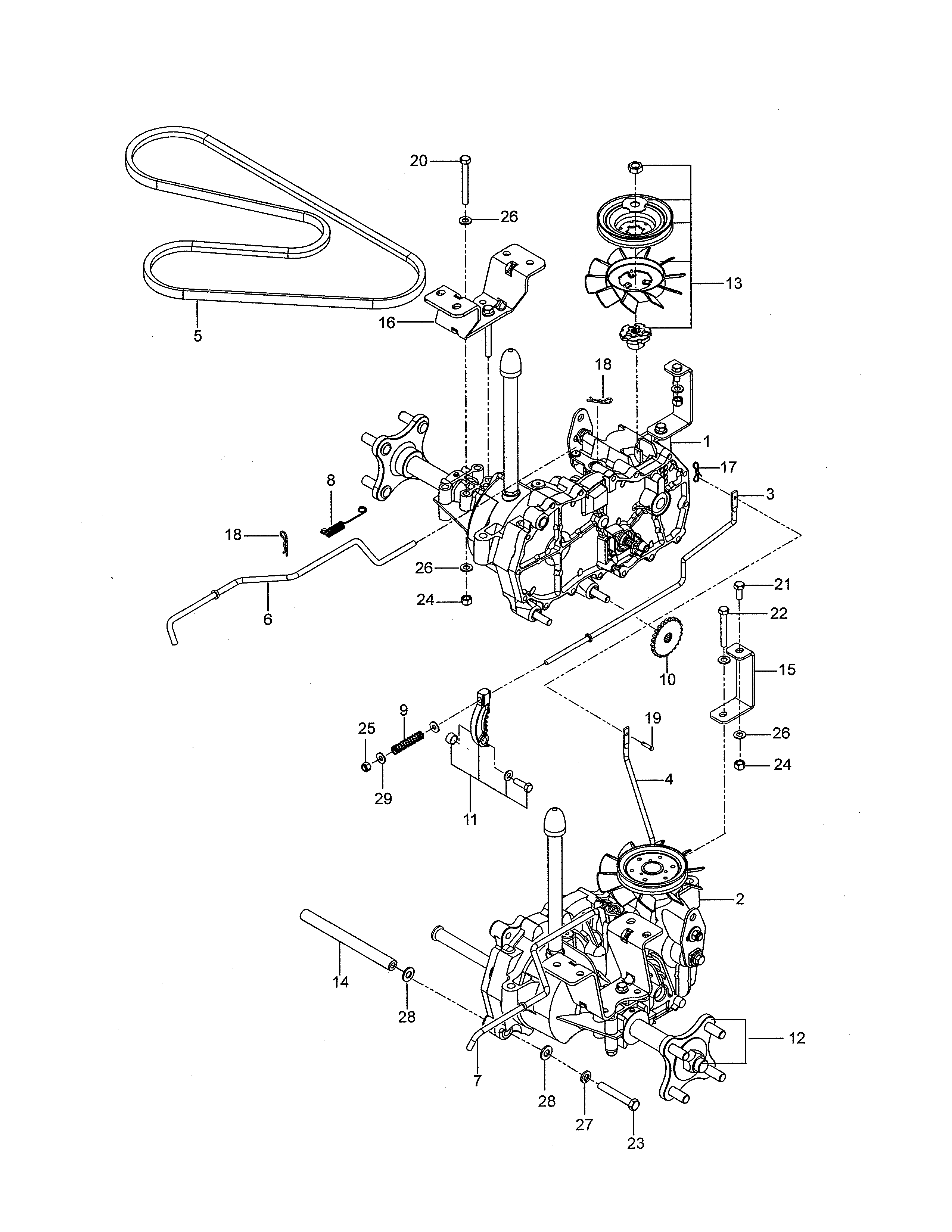

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |

Lawn Tractor Self-tapping Bolt (replaces 173984) 584953901
#38

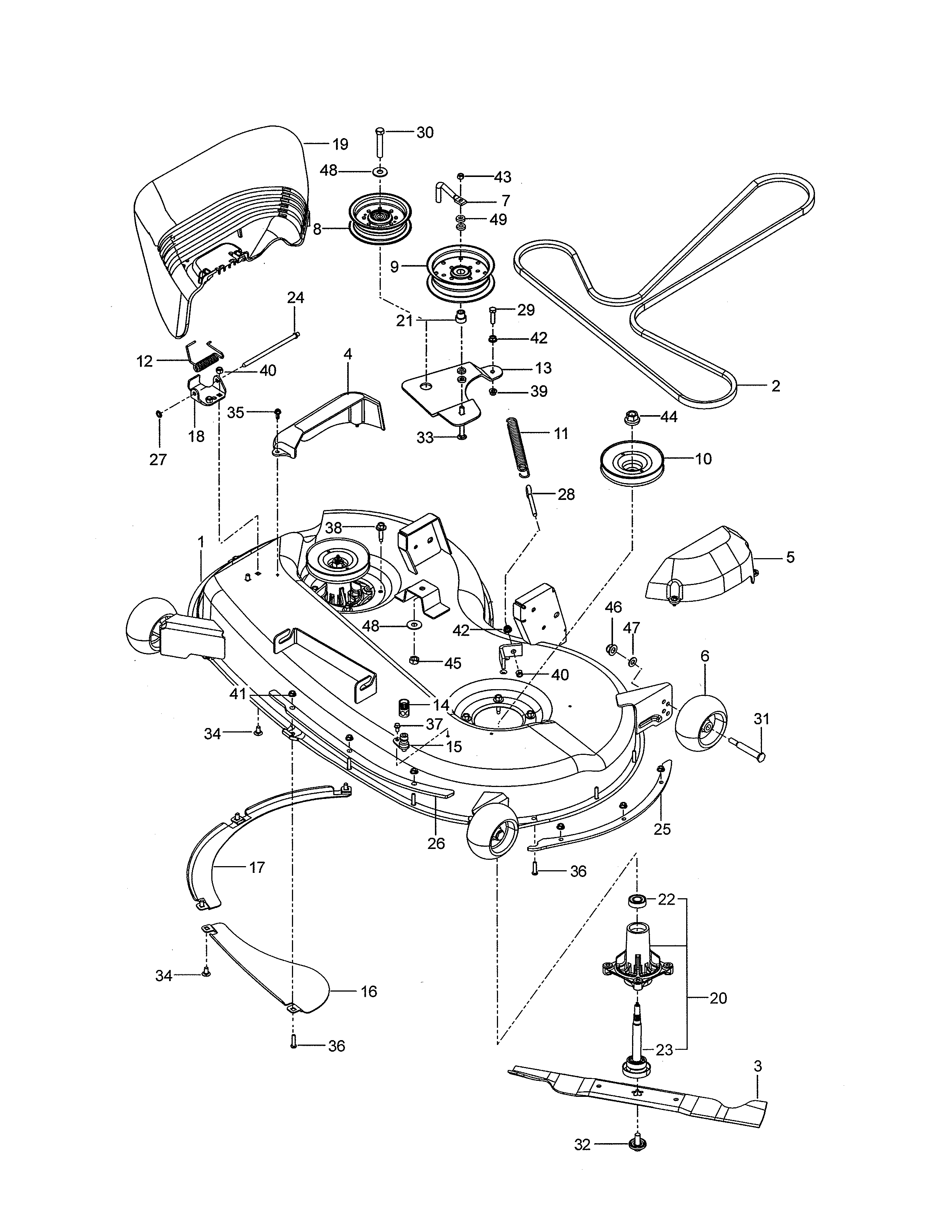

Mower deck/cutting deck diagram

Lawn tractor self-tapping bolt (replaces 173984)

Part #584953901

BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Shoulder Bolt 532193406
#31

Mower deck/cutting deck diagram

Lawn tractor shoulder bolt

Part #532193406

Replaced by #596434404

?
Manufacturer substitution
This part replaces 532193406. Substitute parts can look different from the original.
BEST SELLER
$6.64
13% OFF Phone Price : $7.64
In Stock
Hinge Rod 532131491
#24

Mower deck/cutting deck diagram

Hinge rod

Part #532131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 532131491. Substitute parts can look different from the original.
BEST SELLER
$7.05
12% OFF Phone Price : $8.05
In Stock
Lawn & Garden Equipment Washer 819121414
#29

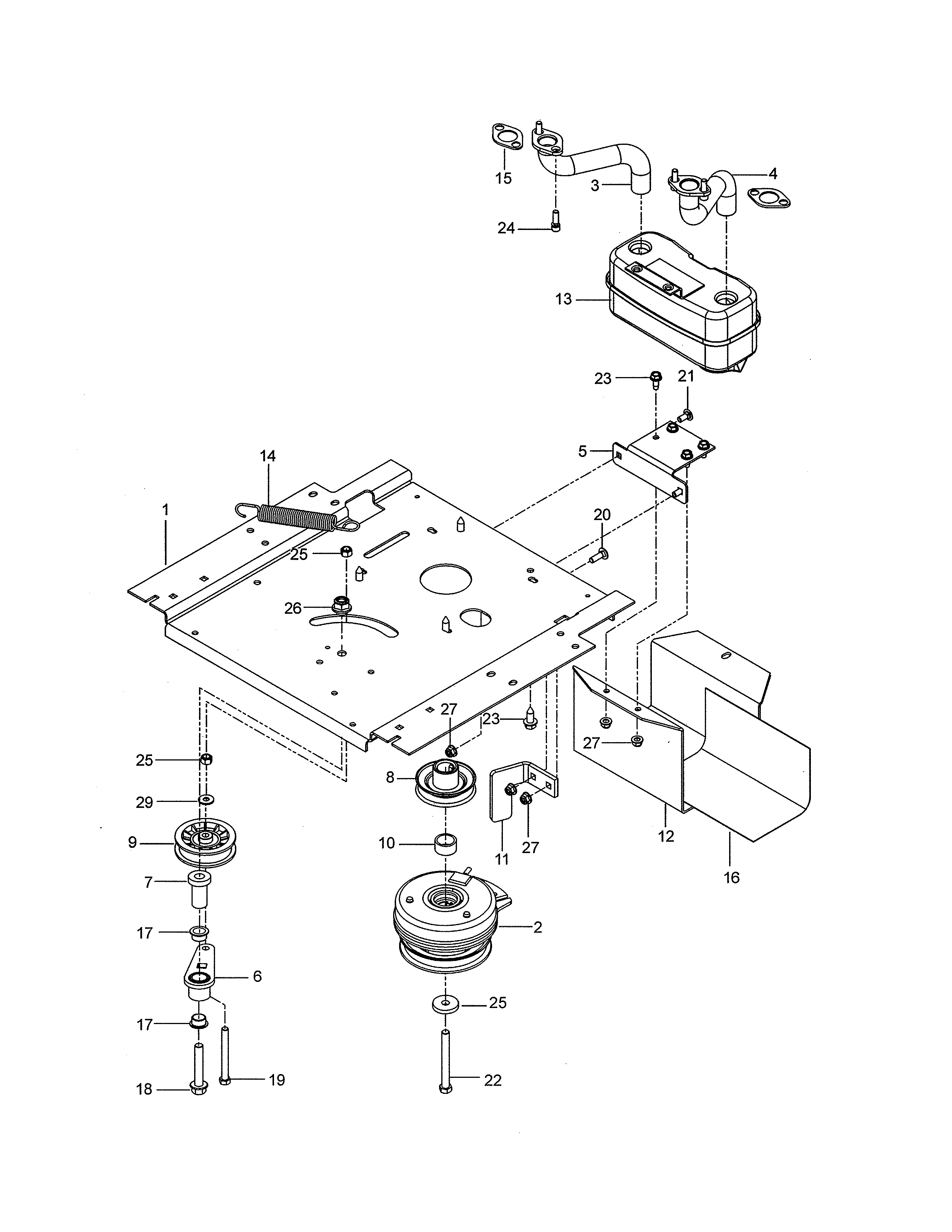

Engine plate diagram

Lawn & garden equipment washer

Part #819121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 819121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Washer 819132012
#47

Mower deck/cutting deck diagram

Lawn tractor washer

Part #819132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 819132012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Deck Baffle 532403150
#17

Mower deck/cutting deck diagram

Lawn tractor deck baffle

Part #532403150

Replaced by #531170701

?
Manufacturer substitution
This part replaces 532403150. Substitute parts can look different from the original.
BEST SELLER
In Stock
Lawn & Garden Equipment Washer 819131316
Lawn & garden equipment washer

Part #819131316

Replaced by #596565301

?
Manufacturer substitution
This part replaces 819131316. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Lawn Tractor Seat Compression Spring (replaces 124181x) 587613301
#8

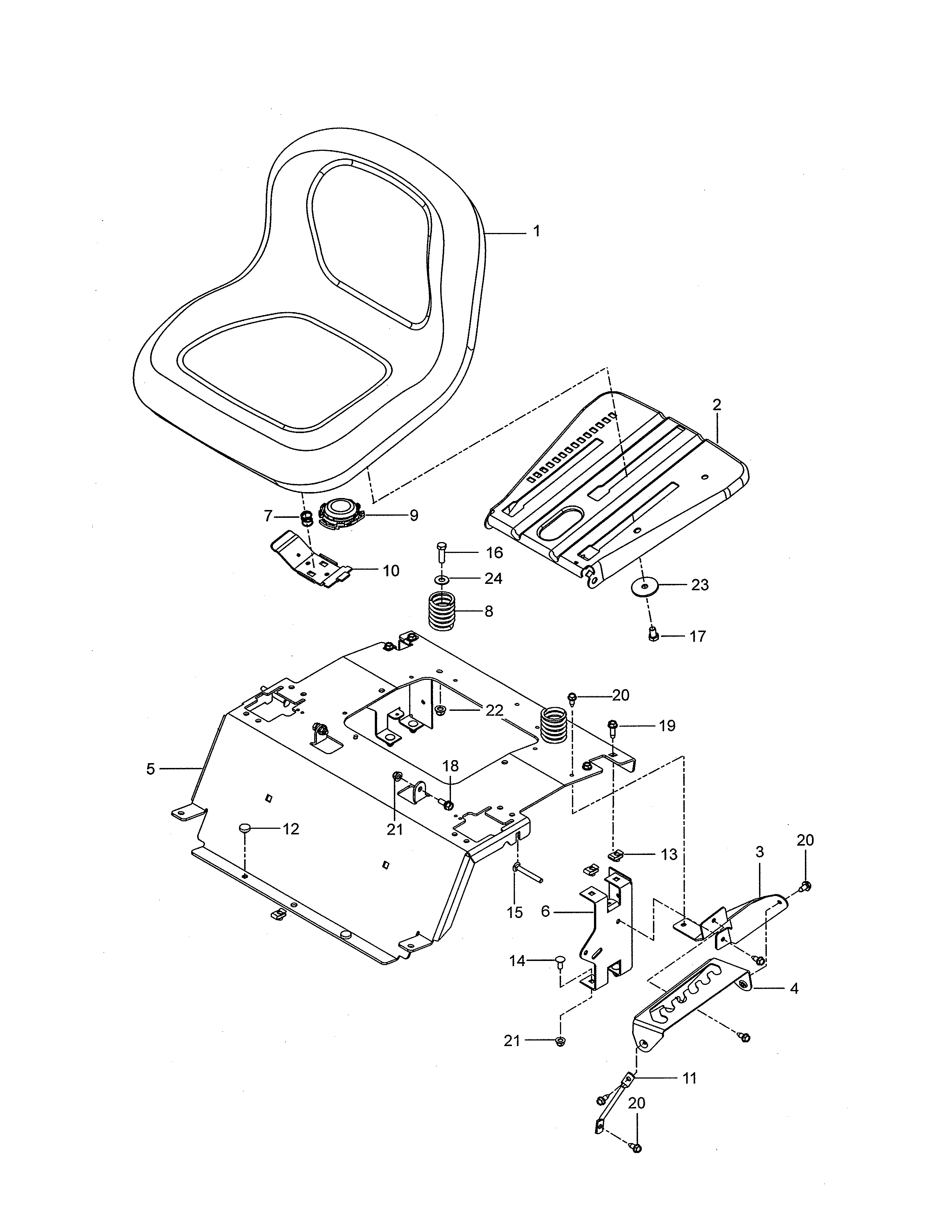

Seat diagram

Lawn tractor seat compression spring (replaces 124181x)

Part #587613301

BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Craftsman Lawn & Garden Equipment Bolt (replaces 17000510) 817000510
#20

Seat diagram

Craftsman lawn & garden equipment bolt (replaces 17000510)

Part #817000510

BEST SELLER
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Stud Fastener 532195161
#13

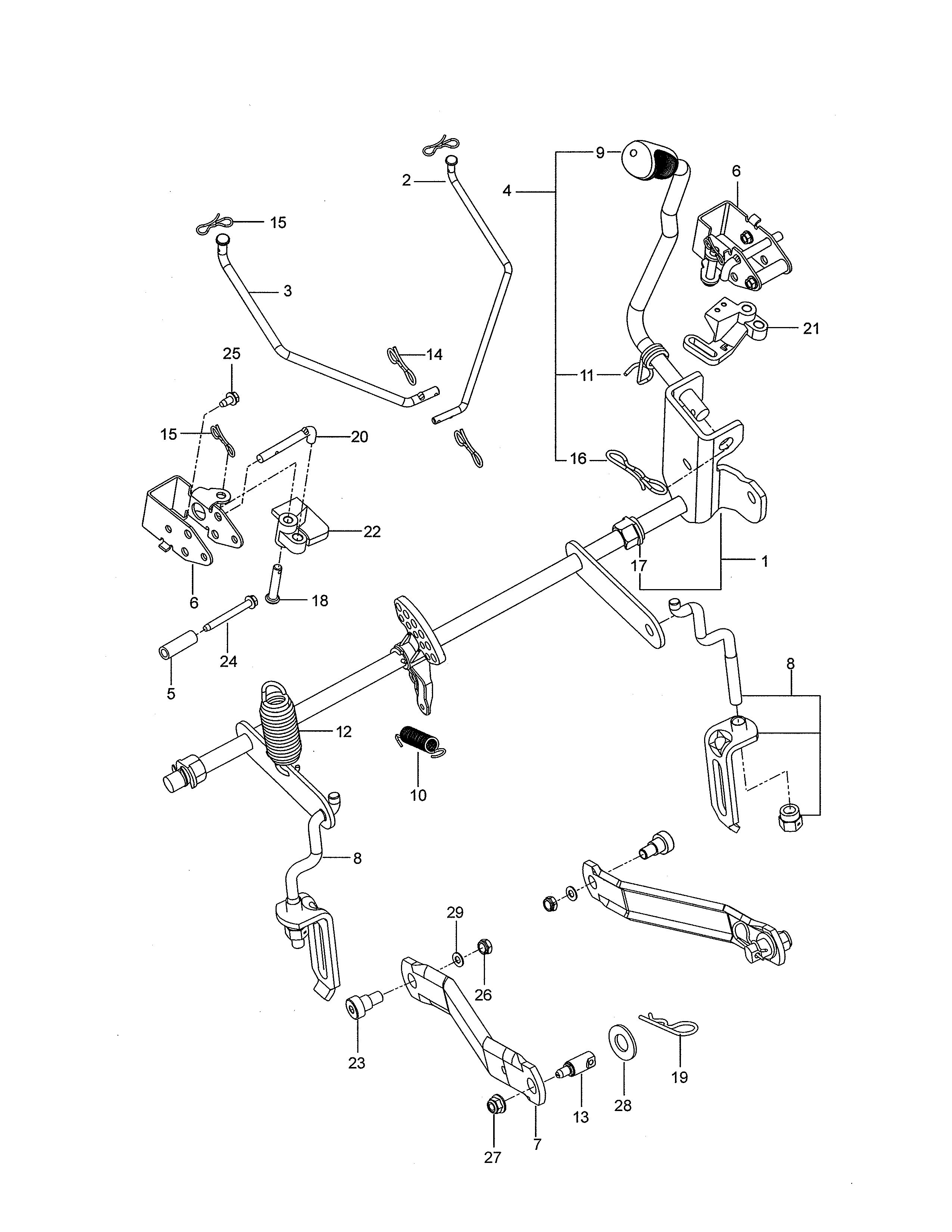

Brake/lift diagram
