Model # 545457950 Official Sears 20" boys' bmx bicycle

Here are the diagrams and repair parts for Official Sears 545457950 20" boys' bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Kent Chain W/link 072007
#22

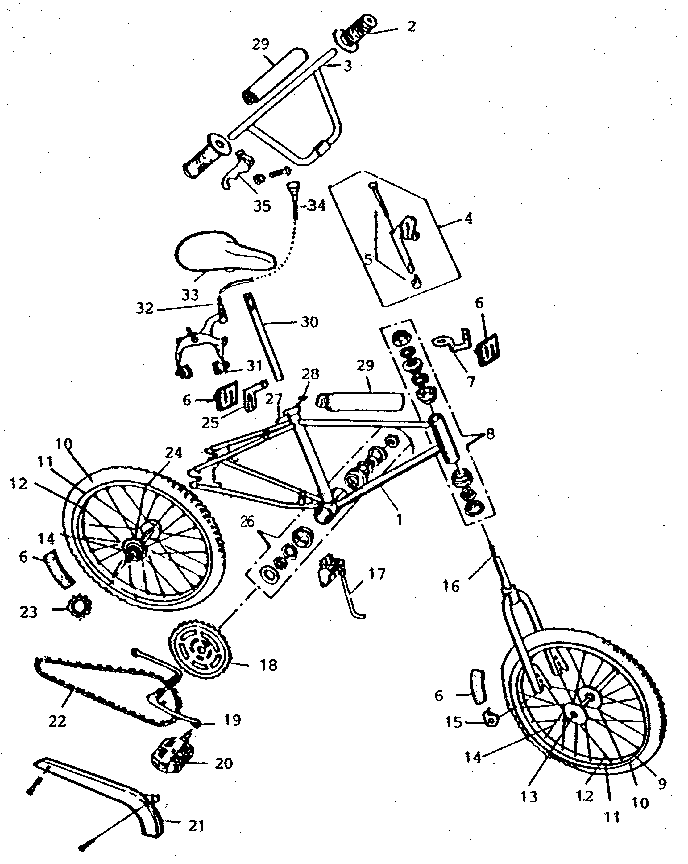

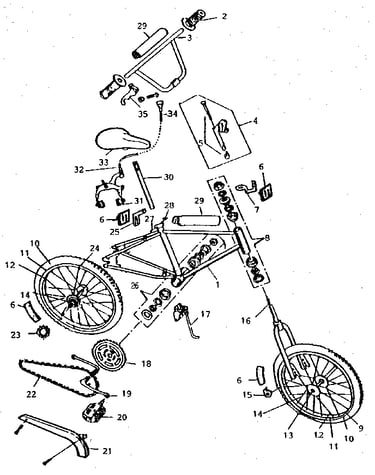

Unit parts diagram

Kent chain w/link

Part #072007

The manufacturer no longer makes this part, and there's no substitute part

Variflex Pad Set 105026
#29

Unit parts diagram

Variflex pad set

Part #105026

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard 074029
#21

Unit parts diagram

Chain guard

Part #074029

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Brake Tool 103015

#NI

All parts diagram

Lifestyler brake tool

Part #103015

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 032012
#30

Unit parts diagram

Seat post

Part #032012

The manufacturer no longer makes this part, and there's no substitute part

Seat Clp Asm 035005
#27

Unit parts diagram

Seat clp asm

Part #035005

The manufacturer no longer makes this part, and there's no substitute part

Rr Wheel Asm 045507
#24

Unit parts diagram

Rr wheel asm

Part #045507

The manufacturer no longer makes this part, and there's no substitute part

Pr Sprocket 106002
#23

Unit parts diagram

Pr sprocket

Part #106002

The manufacturer no longer makes this part, and there's no substitute part

Huffy Bicycle Wheel, Front 045006
#9

Unit parts diagram

Huffy bicycle wheel, front

Part #045006

The manufacturer no longer makes this part, and there's no substitute part

Kent R Spk/npl 049511
#14

Unit parts diagram

Kent r spk/npl

Part #049511

The manufacturer no longer makes this part, and there's no substitute part
