Model # BMV030XKB1 Official ICP blower module

Here are the diagrams and repair parts for Official ICP BMV030XKB1 blower module, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
BMV030XKB1 Blower Module
Terminal Board 1820244
#7

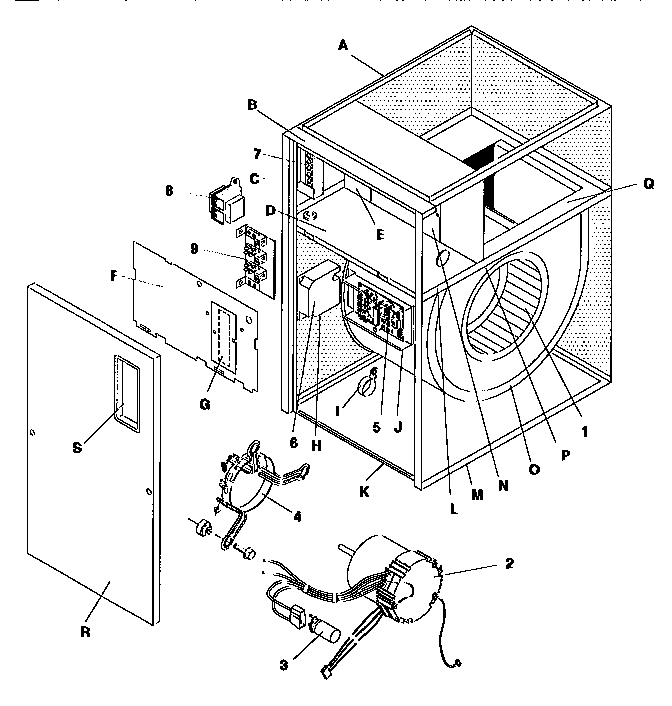

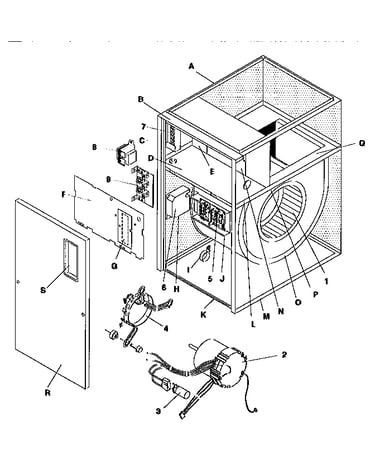

Functional replacement parts diagram

Terminal board

Part #1820244

$23.29
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#1

Functional replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Drier 1064507

#NI

All parts diagram

Drier

Part #1064507

Replaced by #BFK083S

?
Manufacturer substitution
This part replaces 1064507. Substitute parts can look different from the original.
$90.60 |
6% OFF Phone Price : $96.60
In Stock
Filter Power 1064356
#6

Functional replacement parts diagram

Filter power

Part #1064356

The manufacturer no longer makes this part, and there's no substitute part

Fill In-elem 711030002
#N

Functional replacement parts diagram

Fill in-elem

Part #711030002

The manufacturer no longer makes this part, and there's no substitute part

Panel Cutoff 721020013
#Q

Functional replacement parts diagram

Panel cutoff

Part #721020013

The manufacturer no longer makes this part, and there's no substitute part

Terminal Board 1055193
#9

Functional replacement parts diagram

Terminal board

Part #1055193

The manufacturer no longer makes this part, and there's no substitute part

Slide Blr 57266
#L

Functional replacement parts diagram

Slide blr

Part #57266

The manufacturer no longer makes this part, and there's no substitute part

Bracket Line 1064327
#H

Functional replacement parts diagram

Bracket line

Part #1064327

The manufacturer no longer makes this part, and there's no substitute part

Blower Partition 1069118
#D

Functional replacement parts diagram

Blower partition

Part #1069118

The manufacturer no longer makes this part, and there's no substitute part
