Frigidaire
Electric Cooktop

Model # FFEC3005USA Official Frigidaire electric counter unit

Here are the diagrams and repair parts for Official Frigidaire FFEC3005USA electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

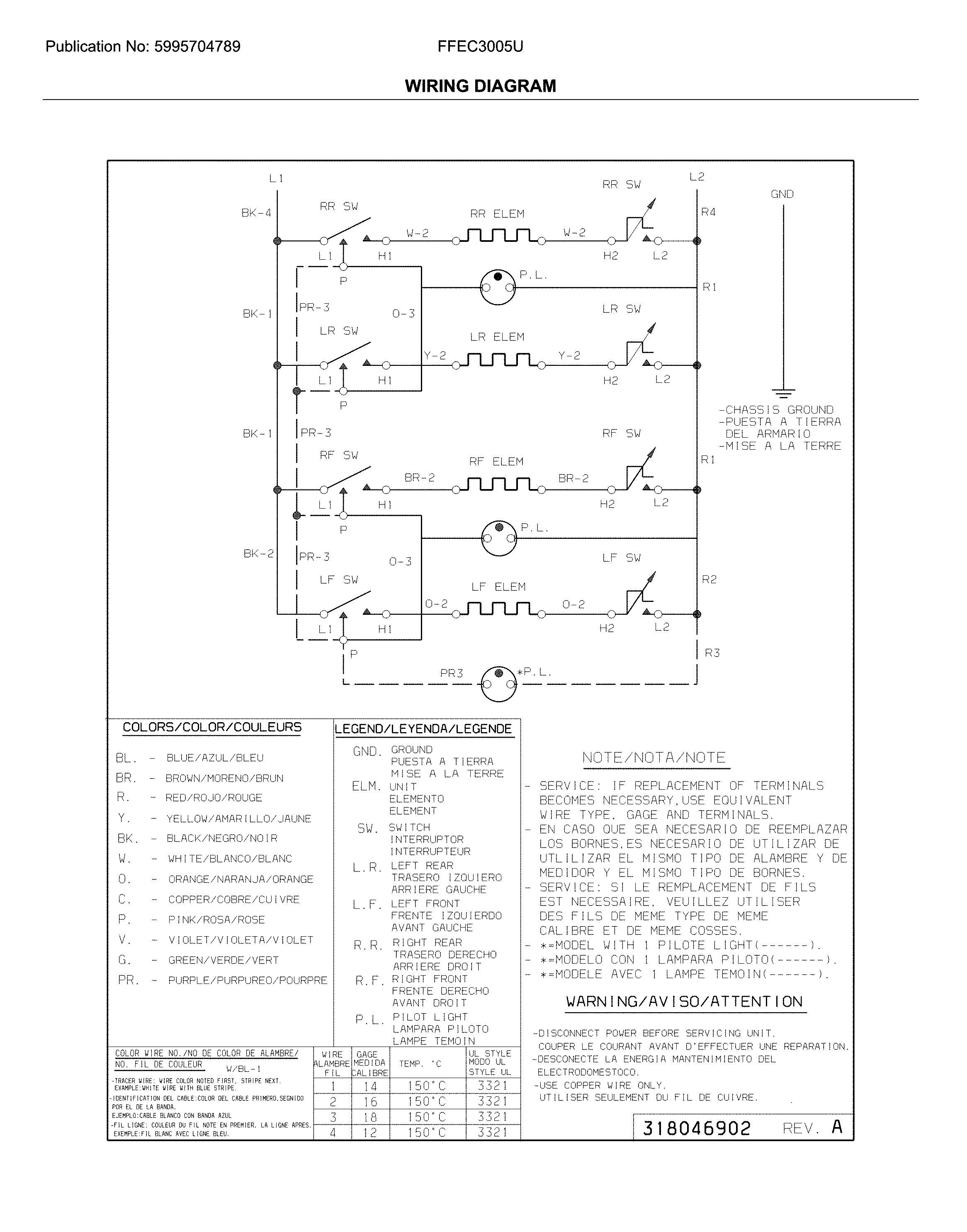

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Kelvinator Cooking Appliance Surface Element (replaces A13197401) 5304516159
#15

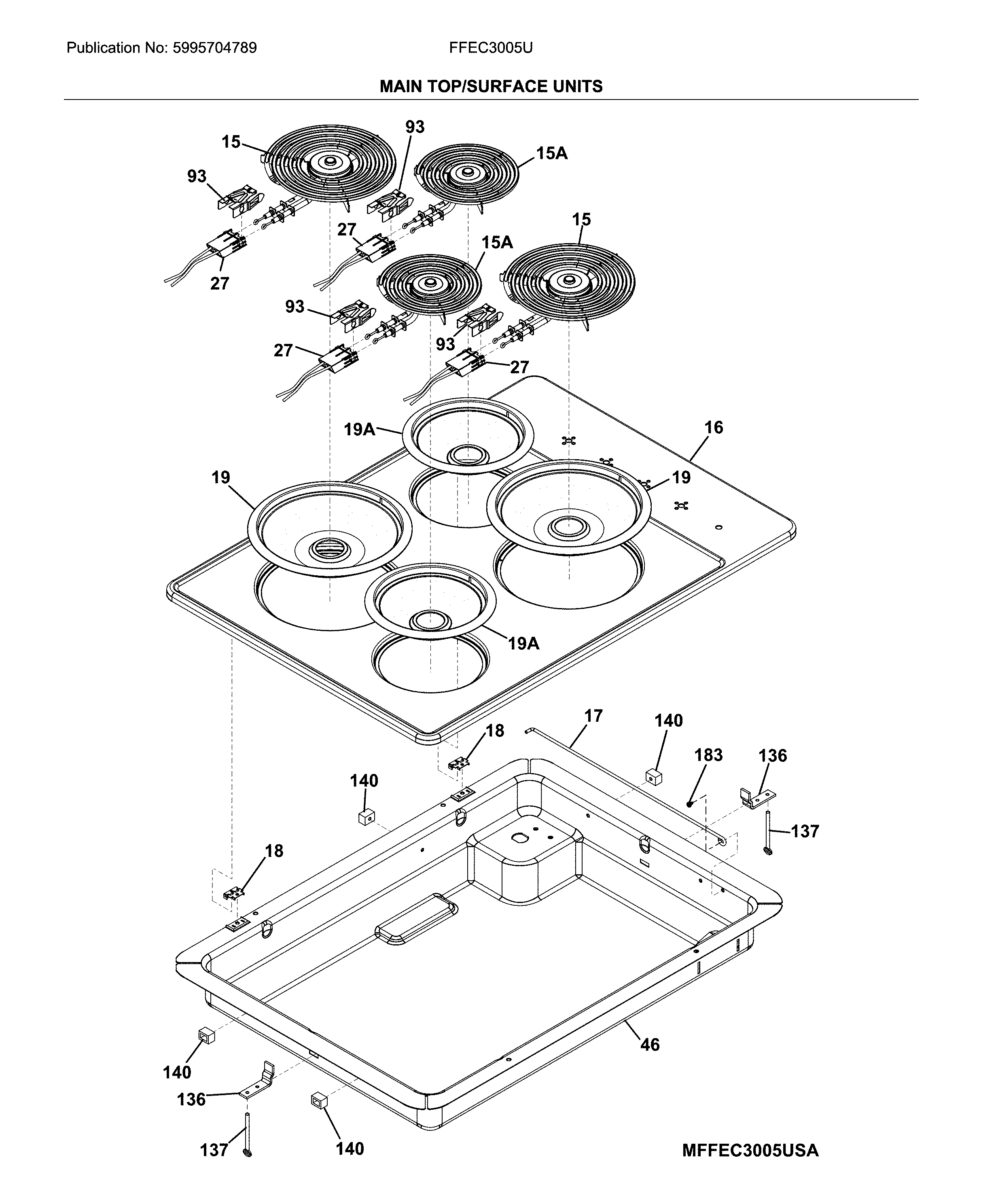

Main top/surface units diagram

Kelvinator cooking appliance surface element (replaces a13197401)

Part #5304516159

BEST SELLER
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Cooktop Element Control Switch (replaces 318293918, 318369612) 318293818
#54

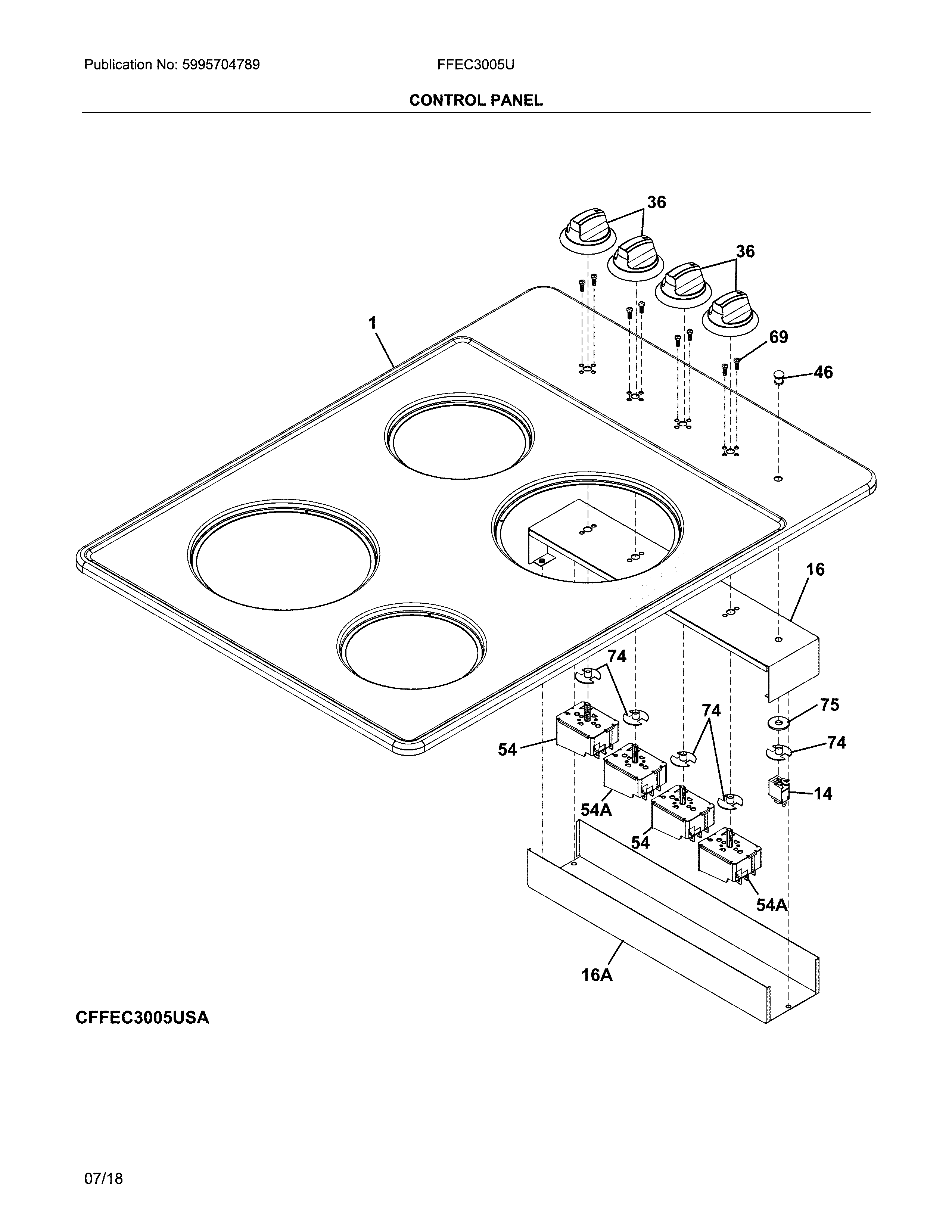

Control panel diagram

Cooktop element control switch (replaces 318293918, 318369612)

Part #318293818

$63.74 |
9% OFF Phone Price : $69.74
In Stock
Cooktop Screw 305452400
#137

Main top/surface units diagram

Cooktop screw

Part #305452400

This item is not returnable
$11.89
In Stock
Cooktop Element Control Knob Bushing 318146010
#74

Control panel diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Screw 305338604
#NI

Main top/surface units diagram

Screw

Part #305338604

This item is not returnable
$2.16
In Stock
Main Wiring Harness 5304518287
#NI

Main top/surface units diagram

Main wiring harness

Part #5304518287

$22.67
In Stock
Teminal Block,surface Element ,21" ,white Leads 5304518283
#27

Main top/surface units diagram

Teminal block,surface element ,21" ,white leads

Part #5304518283

$32.11
In Stock
Screw 305376105
#NI

Main top/surface units diagram

Screw

Part #305376105

This item is not returnable
$3.49
In Stock
Ikea Holder 202855101
#NI

Main top/surface units diagram

Ikea holder

Part #202855101

This item is not returnable
$2.16
In Stock
Screw 305452800
#NI

Main top/surface units diagram

Screw

Part #305452800

$9.09
In Stock
