Whirlpool
Top-Mount Refrigerator

Model # GR9FHTXTQ00 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool GR9FHTXTQ00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

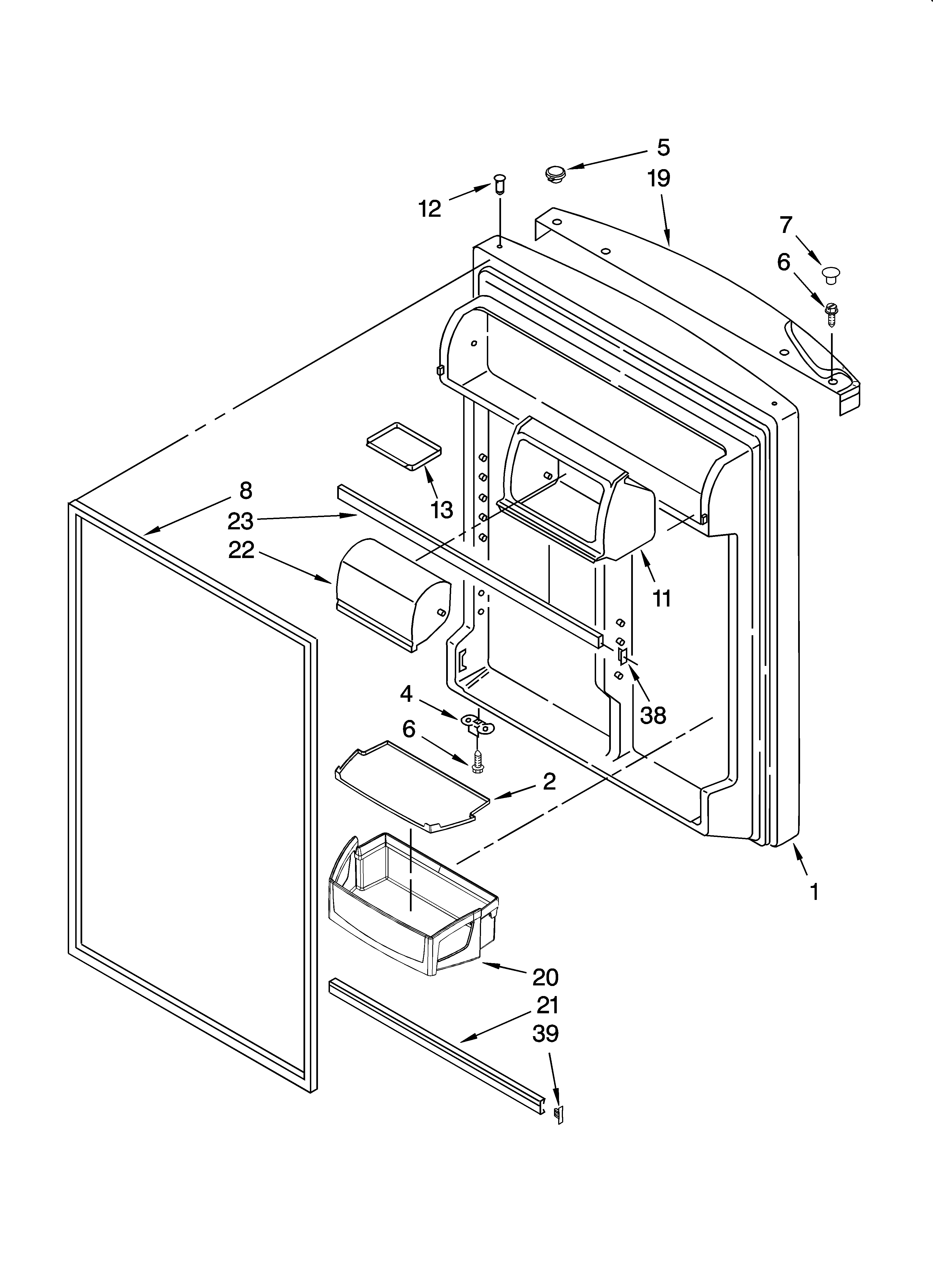

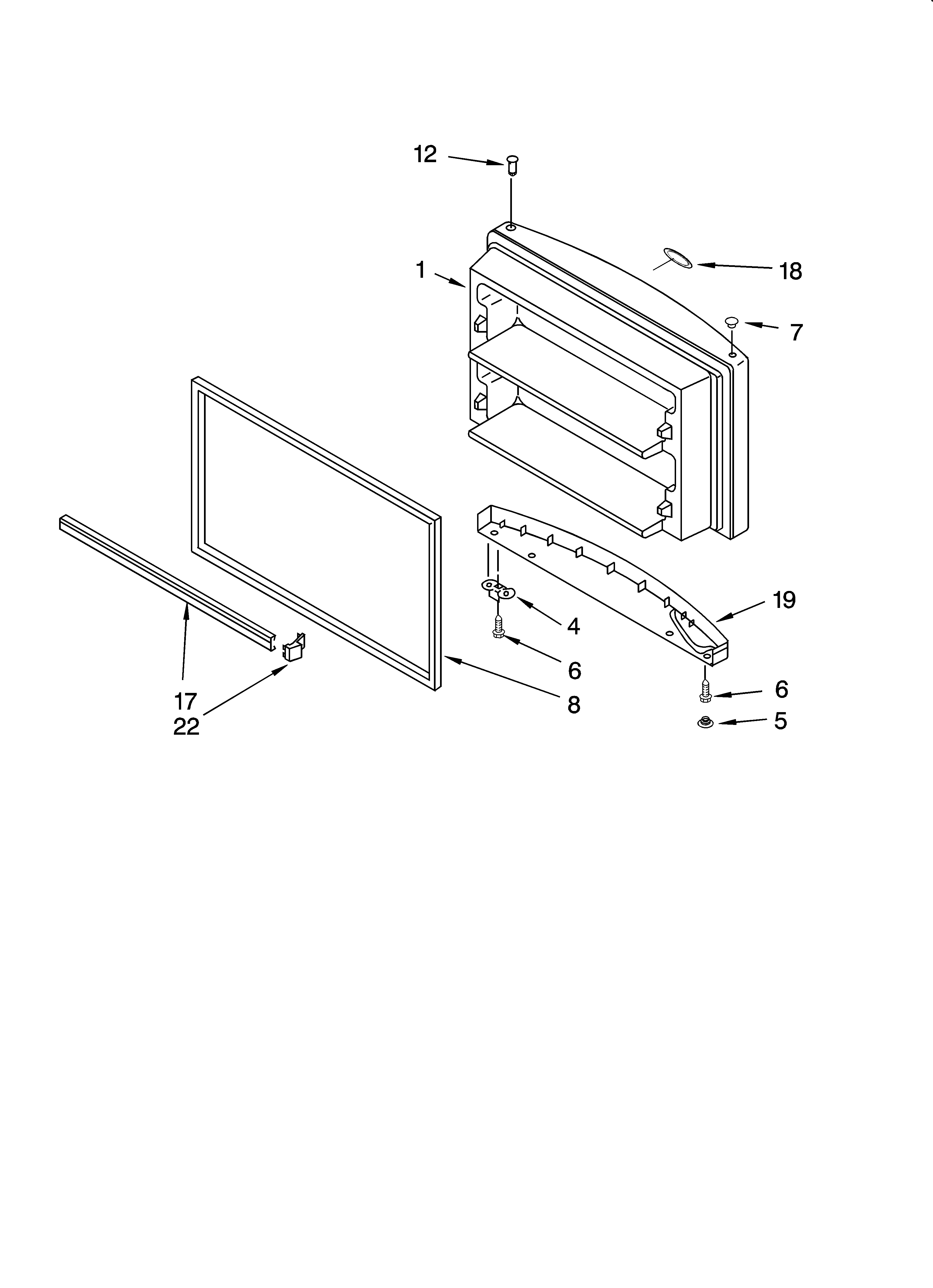

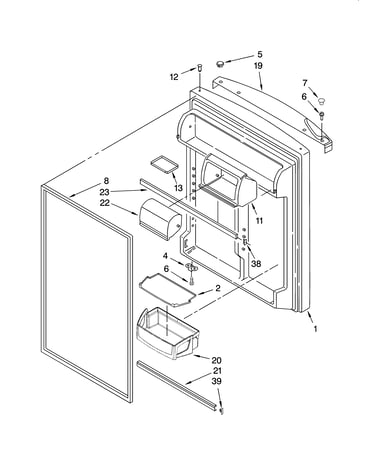

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Refrigerator Filter 2301705
#19

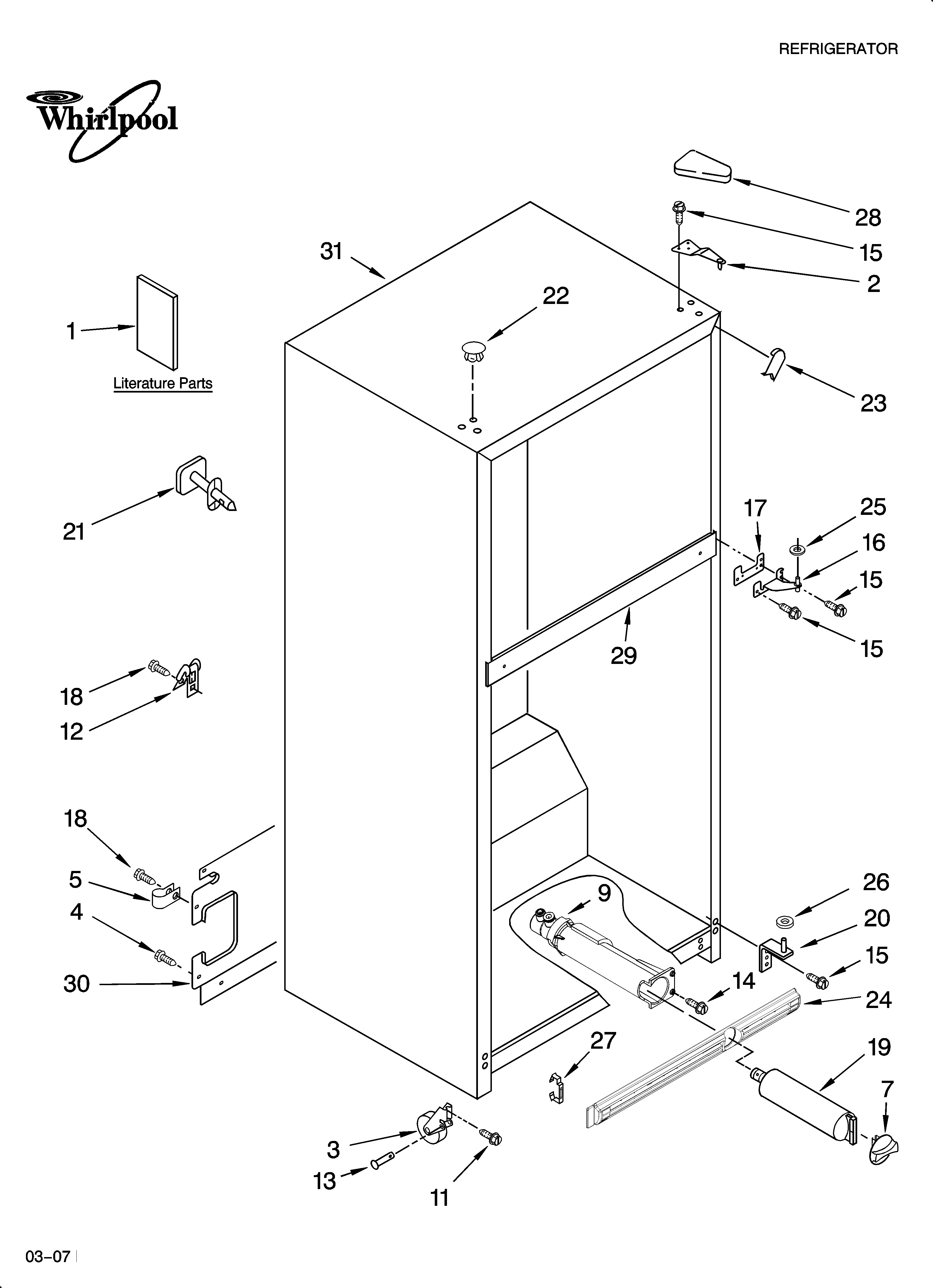

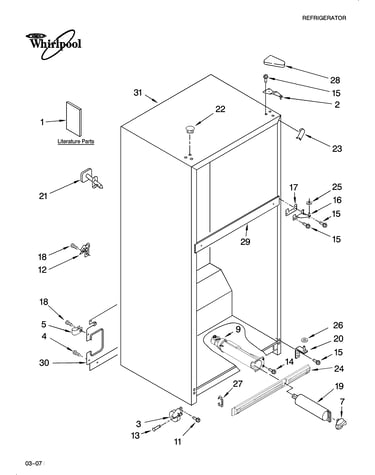

Cabinet parts diagram

Refrigerator filter

Part #2301705

Replaced by #EDR6D1

?
Manufacturer substitution
This part replaces 2301705. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Drier W/dye 2317845
#29

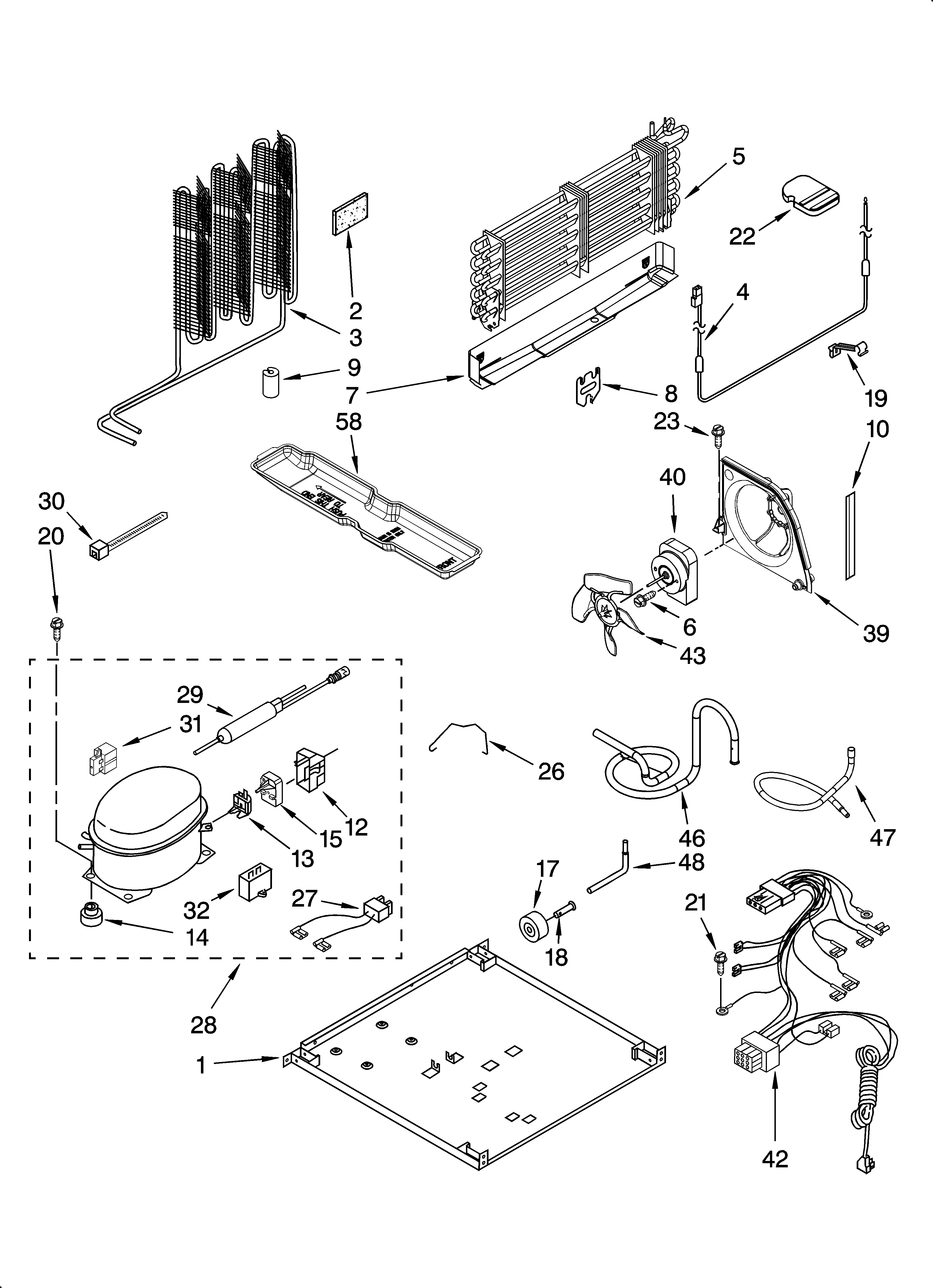

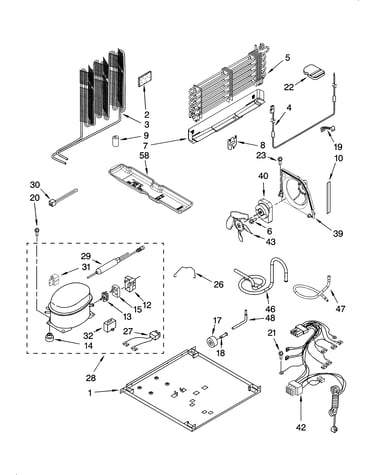

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker 626636
#100

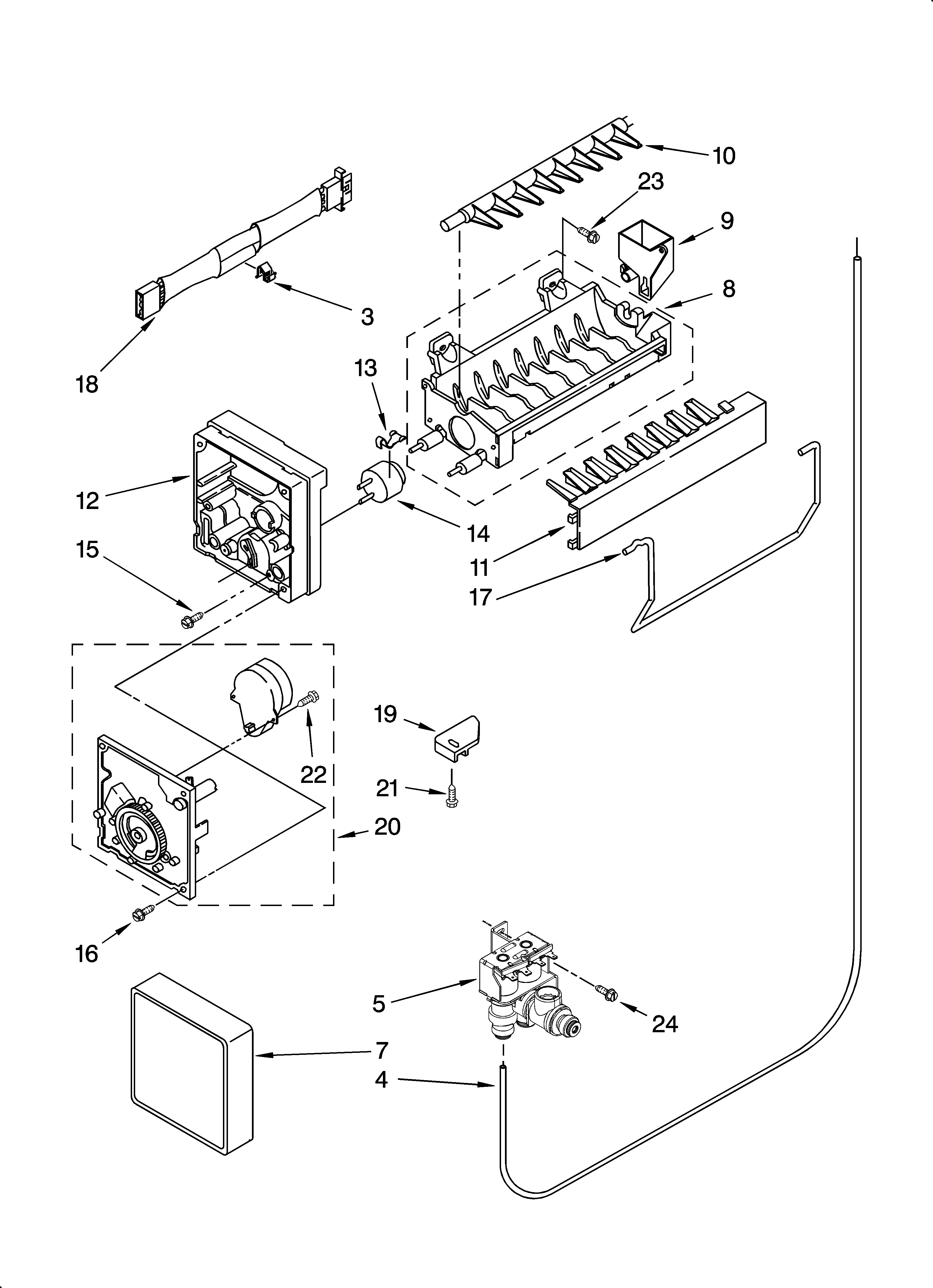

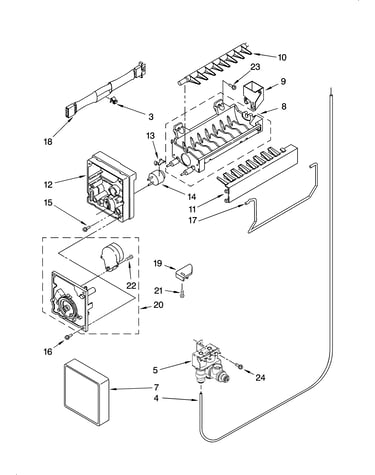

Icemaker parts diagram

Refrigerator ice maker

Part #626636

Replaced by #4317943

?
Manufacturer substitution
This part replaces 626636. Substitute parts can look different from the original.
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Light Bulb 2255743
#17

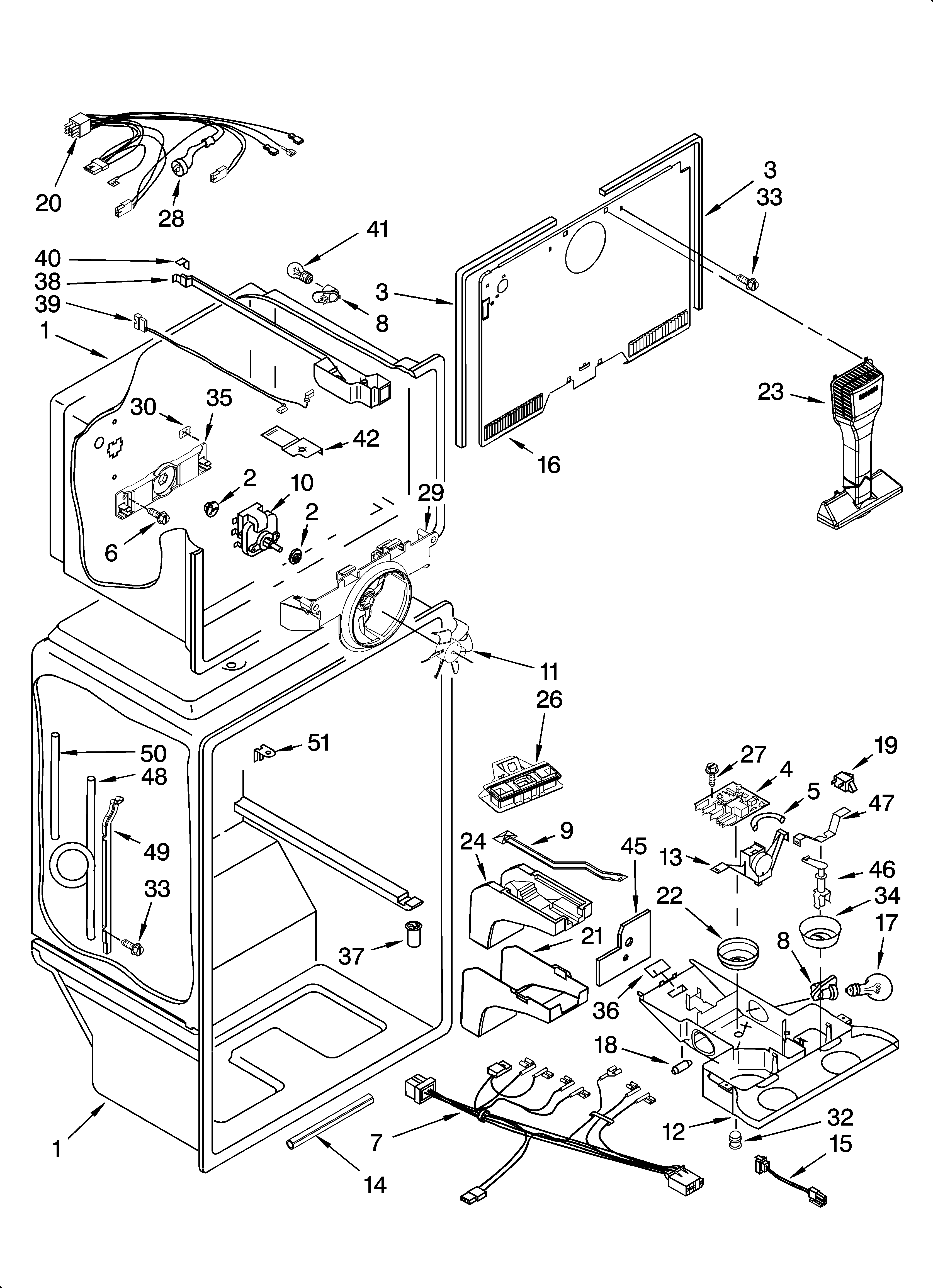

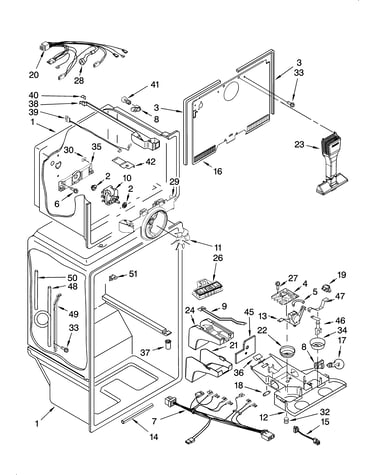

Liner parts diagram

Refrigerator light bulb

Part #2255743

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2255743. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Water Tube 2210514
#4

Icemaker parts diagram

Refrigerator water tube

Part #2210514

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2210514. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Water Tube 2319867
#48

Liner parts diagram

Refrigerator water tube

Part #2319867

Replaced by #8201597

?
Manufacturer substitution
This part replaces 2319867. Substitute parts can look different from the original.
BEST SELLER
$36.48 |
14% OFF Phone Price : $42.48
In Stock
Refrigerator Crisper Pan 2218139
#19

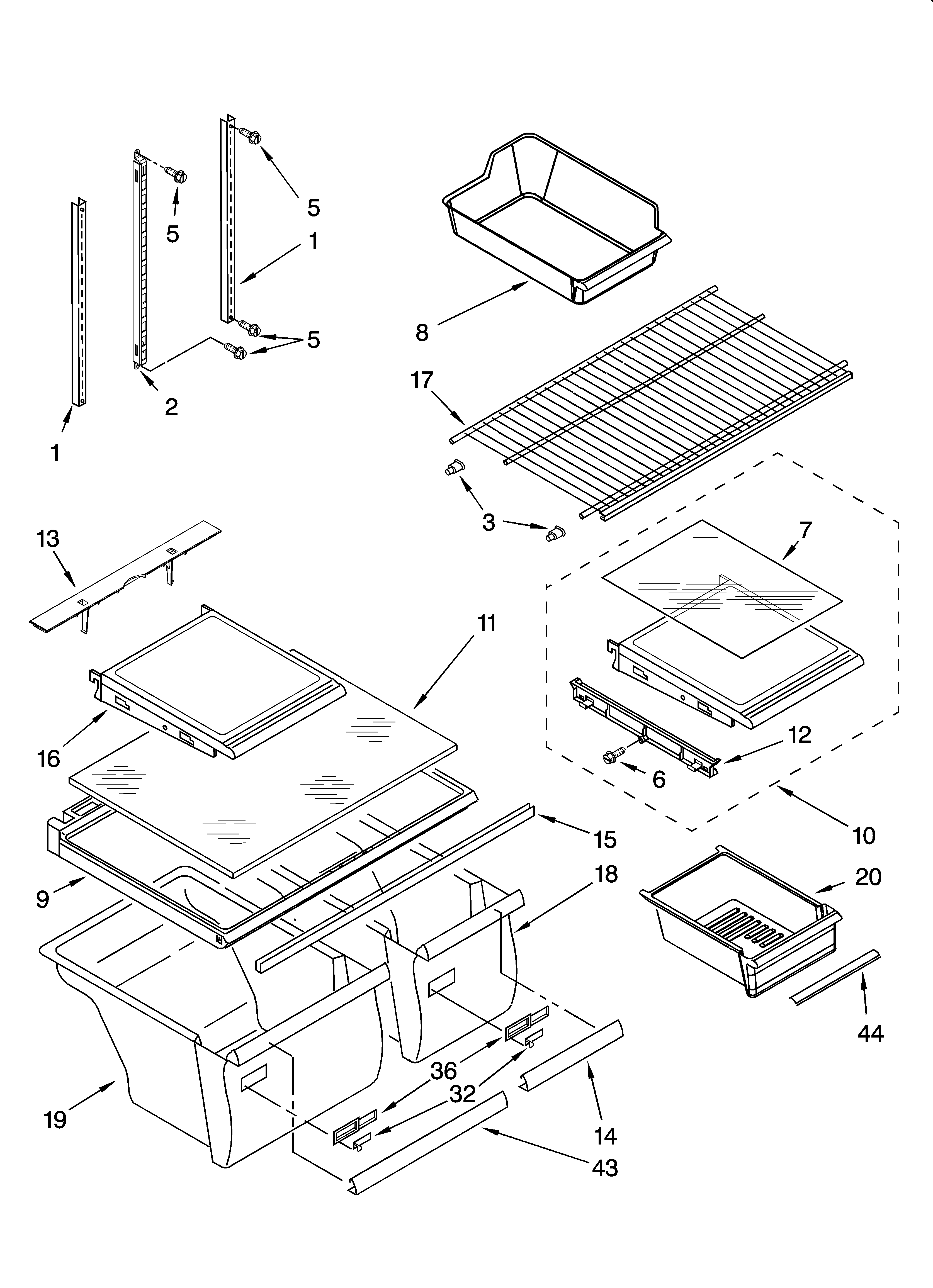

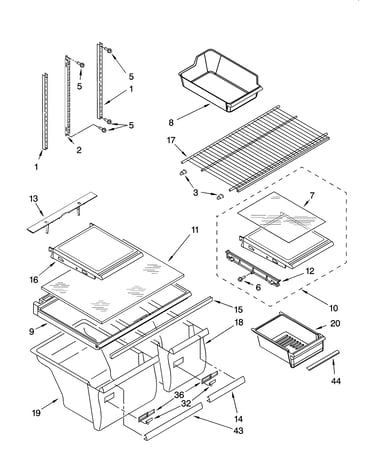

Shelf parts diagram

Refrigerator crisper pan

Part #2218139

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2218139. Substitute parts can look different from the original.
BEST SELLER
$79.65 |
7% OFF Phone Price : $85.65
In Stock
Refrigerator Compressor 2218968
#28

Unit parts diagram

Refrigerator compressor

Part #2218968

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2218968. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Refrigerator Dispenser Switch 2162361
#6

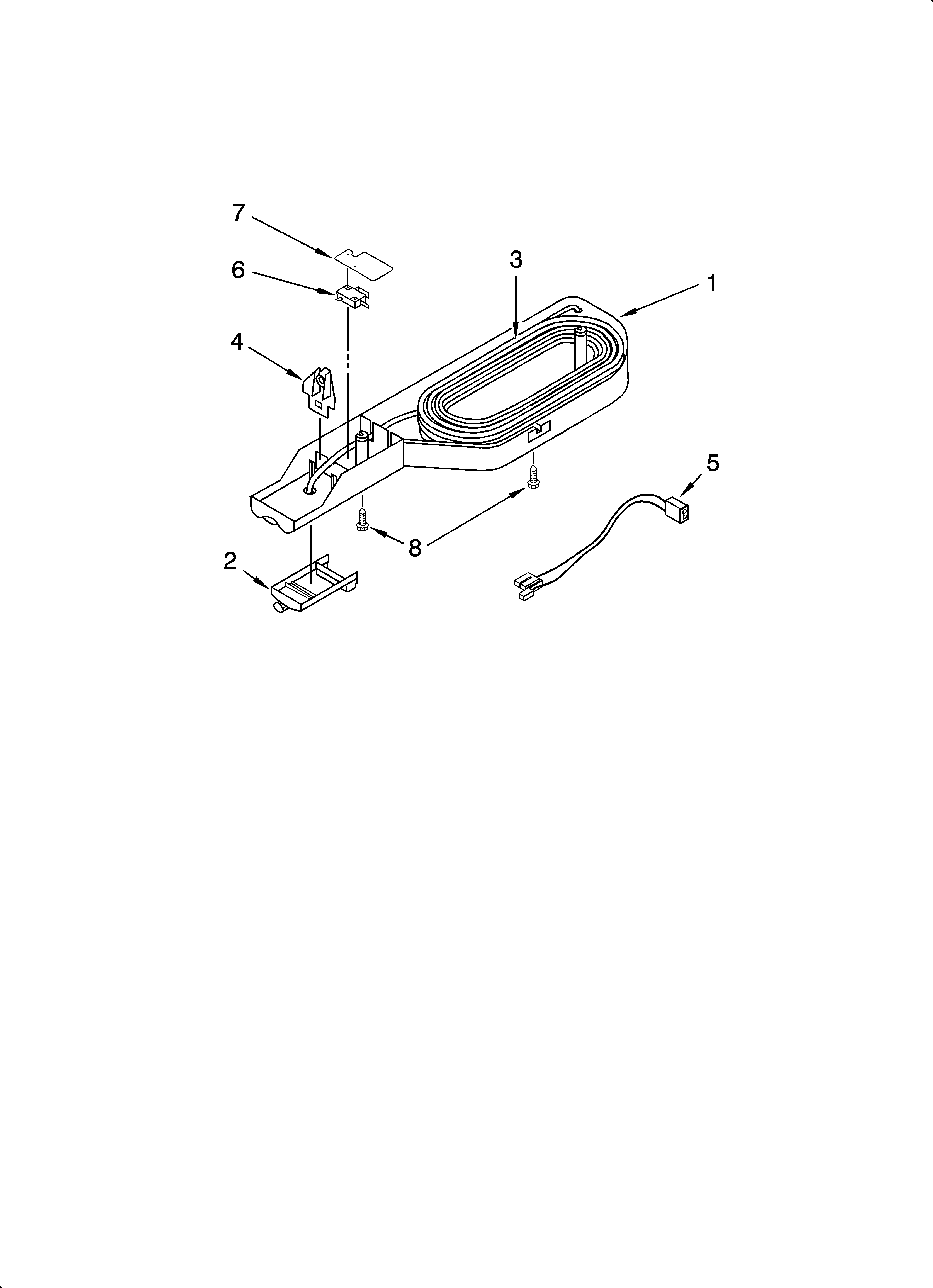

Water dispenser parts, optional parts diagram

Refrigerator dispenser switch

Part #2162361

Replaced by #WP2162361

?
Manufacturer substitution
This part replaces 2162361. Substitute parts can look different from the original.
BEST SELLER
$19.03 |
10% OFF Phone Price : $21.03
In Stock
