Model # 137229130 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 137229130 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

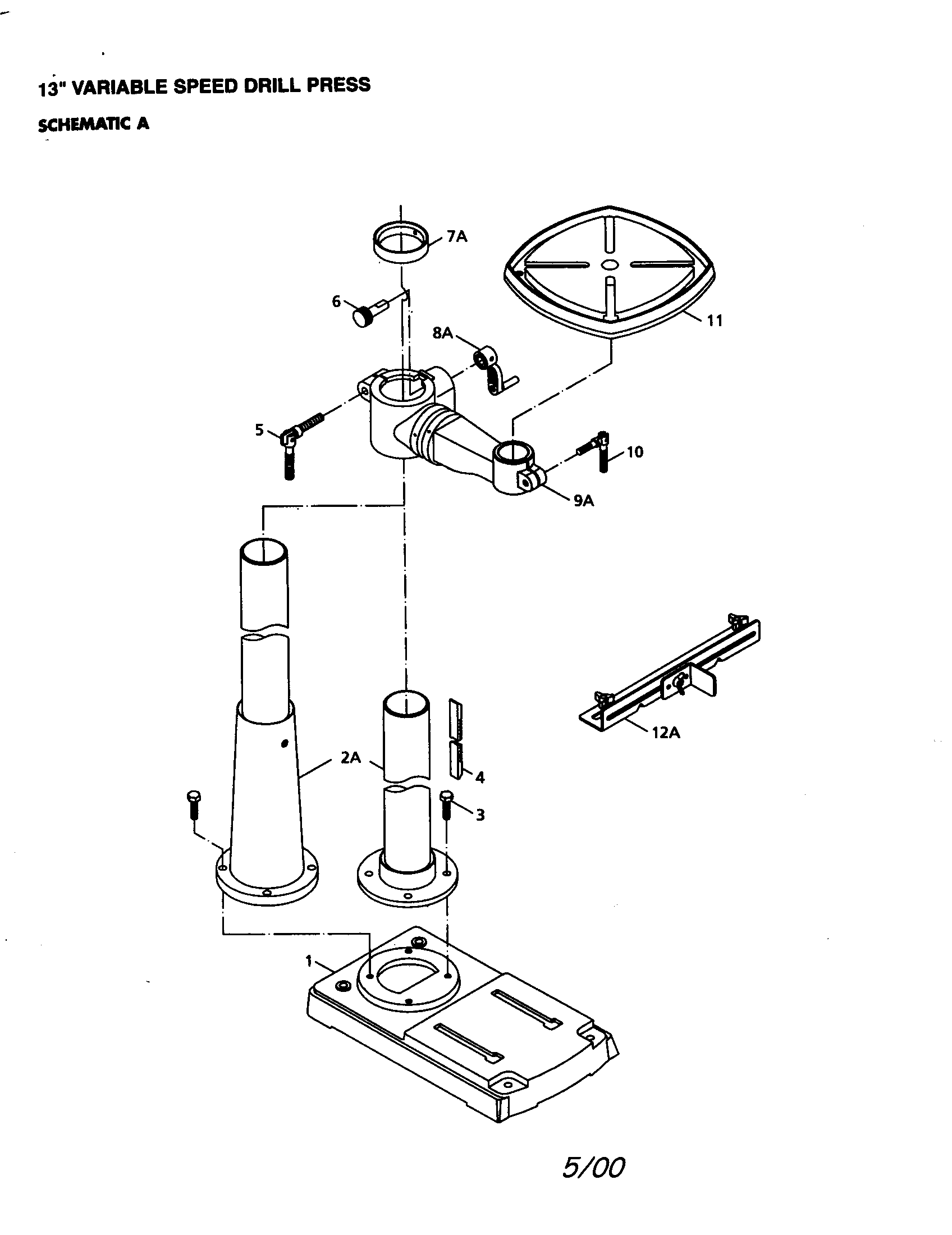

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Bearing 2001ZZ6202
#17

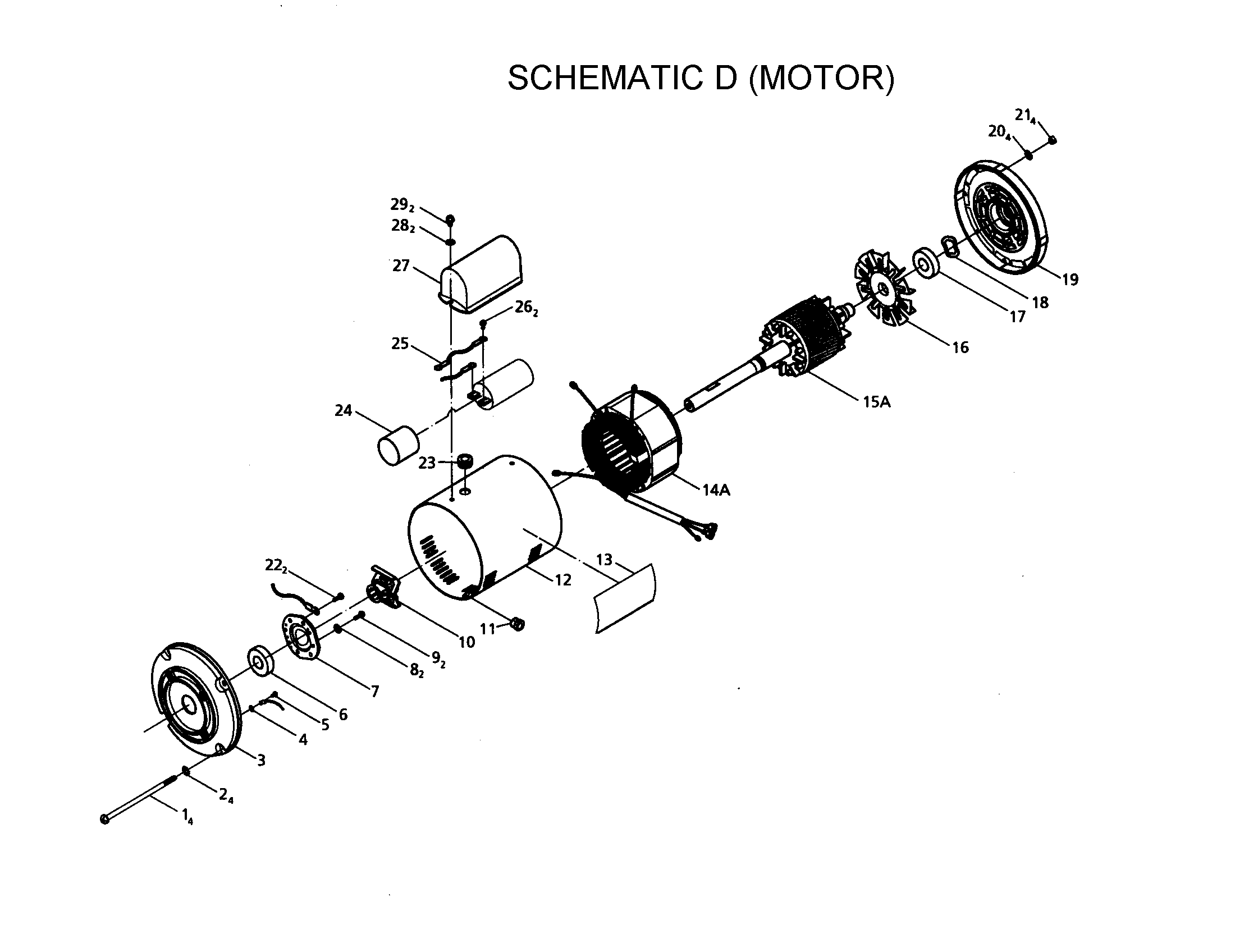

Motor housing diagram

Bearing

Part #2001ZZ6202

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Round Neck Screw M6 X 1.0-18 2677BBDAA5
#42

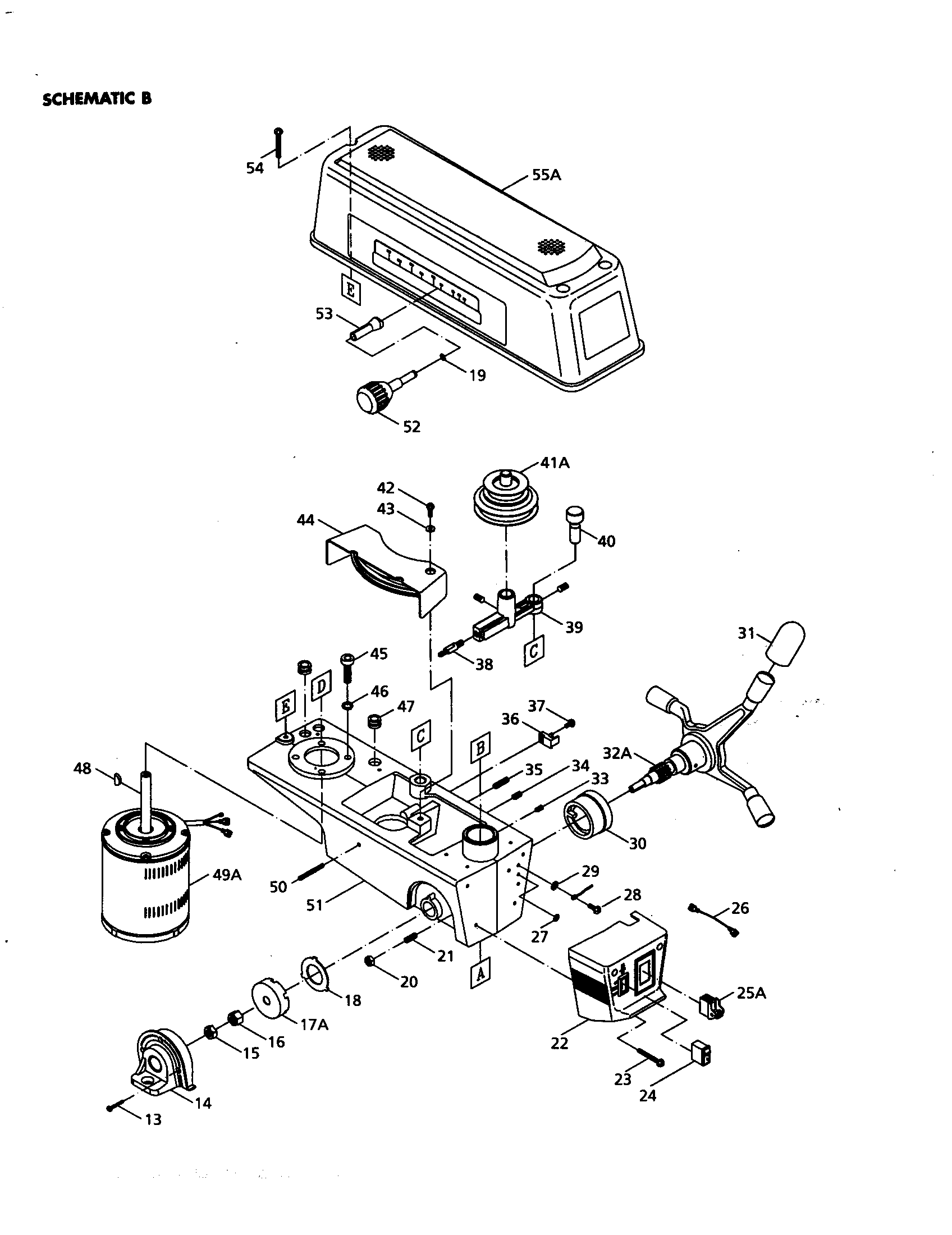

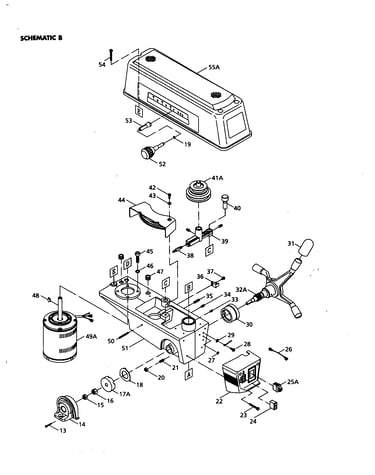

Motor and hood diagram

Pan head round neck screw m6 x 1.0-18

Part #2677BBDAA5

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer Bww6202 2506MBN662
#18

Motor housing diagram

Wave washer bww6202

Part #2506MBN662

The manufacturer no longer makes this part, and there's no substitute part

C-ring B-42 2570ABN142
#62

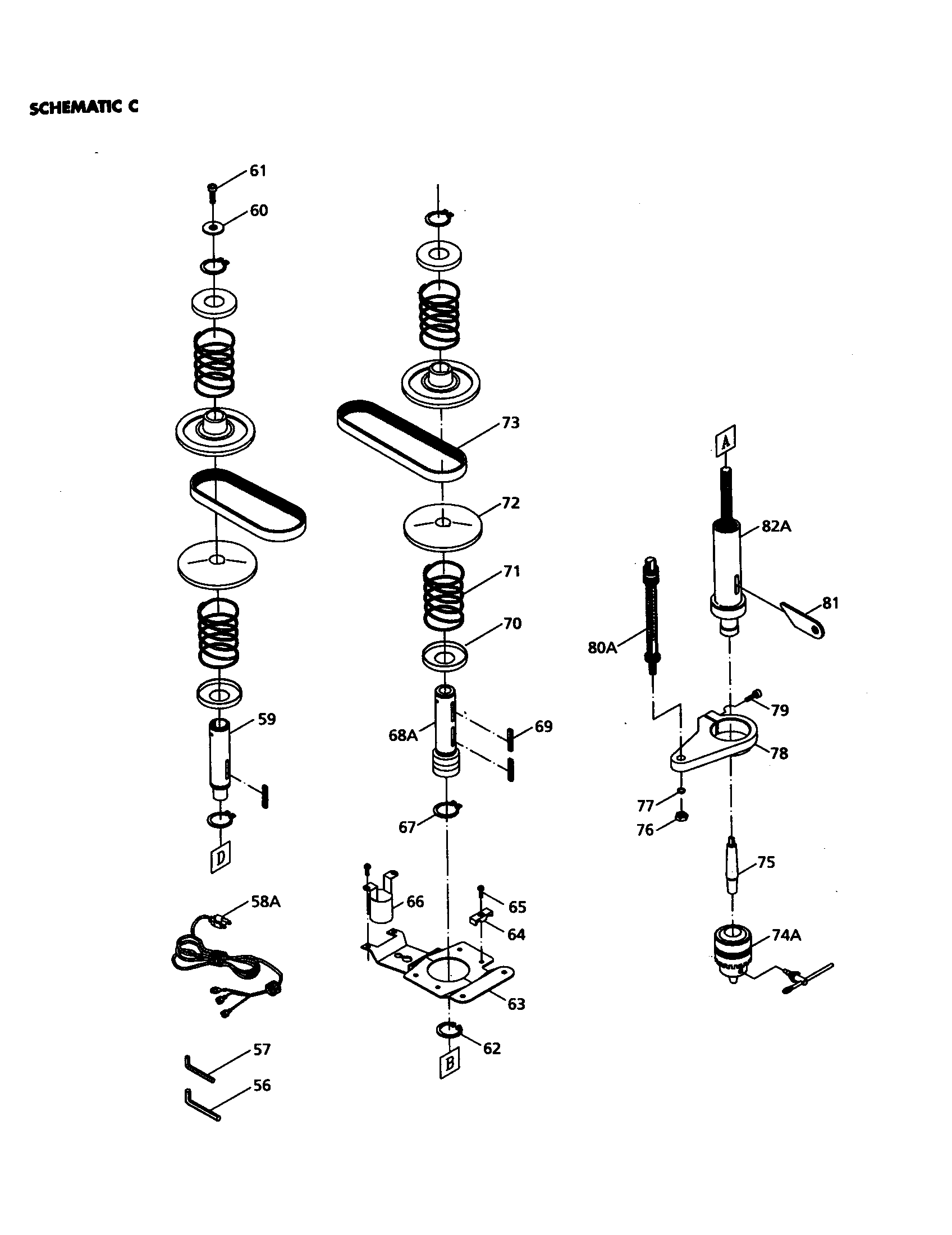

Belt/spindle-quill assembly diagram

C-ring b-42

Part #2570ABN142

The manufacturer no longer makes this part, and there's no substitute part

Screw 2668QBDK25
#9

Motor housing diagram

Screw

Part #2668QBDK25

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin (2) 2536MBE617
#50

Motor and hood diagram

Spring pin (2)

Part #2536MBE617

The manufacturer no longer makes this part, and there's no substitute part

Wrench 2138MBL704
#57

Belt/spindle-quill assembly diagram

Wrench

Part #2138MBL704

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench 2138MBL703
#56

Belt/spindle-quill assembly diagram

Hex wrench

Part #2138MBL703

The manufacturer no longer makes this part, and there's no substitute part

Plunger Housing 10461101
#14

Motor and hood diagram

Plunger housing

Part #10461101

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Terminal Cover 82061291
#24

Motor housing diagram

Capacitor terminal cover

Part #82061291

The manufacturer no longer makes this part, and there's no substitute part
