Char-Broil
Gas Grill

Model # 463227315 Official Char-Broil gas grill

Here are the diagrams and repair parts for Official Char-Broil 463227315 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Gas Grill Door Hinge (replaces G411-0054-w2) G411-0054-W1
#64

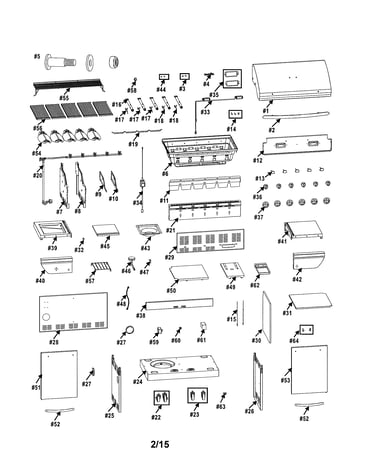

Gas grill diagram

Gas grill door hinge (replaces g411-0054-w2)

Part #G411-0054-W1

This item is not returnable
$2.99
In Stock
Gas Grill Igniter (replaces G515-0067-9000) G515-0067-W1
#18

Gas grill diagram

Gas grill igniter (replaces g515-0067-9000)

Part #G515-0067-W1

This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Char-broil Burner G523-0058-W2
#46

Gas grill diagram

Char-broil burner

Part #G523-0058-W2

$37.99
In Stock
Char-broil Gas Grill Flame Tamer G614-00C6-W1
#54

Gas grill diagram

Char-broil gas grill flame tamer

Part #G614-00C6-W1

This item is not returnable
$14.26
In Stock
Door Handle G614-0088-W1
#52

Gas grill diagram

Door handle

Part #G614-0088-W1

$8.99
In Stock
Char-broil Lid G614-B100-W1
#1

Gas grill diagram

Char-broil lid

Part #G614-B100-W1

$99.99
In Stock
Char-broil Left Door G614-4700-W1
#51

Gas grill diagram

Char-broil left door

Part #G614-4700-W1

$39.99
In Stock
Char-broil Hose Valve Regulator G614-6600-W1
#20

Gas grill diagram

Char-broil hose valve regulator

Part #G614-6600-W1

$90.99
In Stock
Char-broil Rear Upper P G614-00B4-W1
#12

Gas grill diagram

Char-broil rear upper p

Part #G614-00B4-W1

$10.99
In Stock
Char-broil Brace G614-8600-W1
#38

Gas grill diagram

Char-broil brace

Part #G614-8600-W1

$8.99
In Stock
