Ryobi
Angle Grinder

Model # G-600C Official Ryobi die grinder

Here are the diagrams and repair parts for Official Ryobi G-600C die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Ball Bearing 9840626
#20

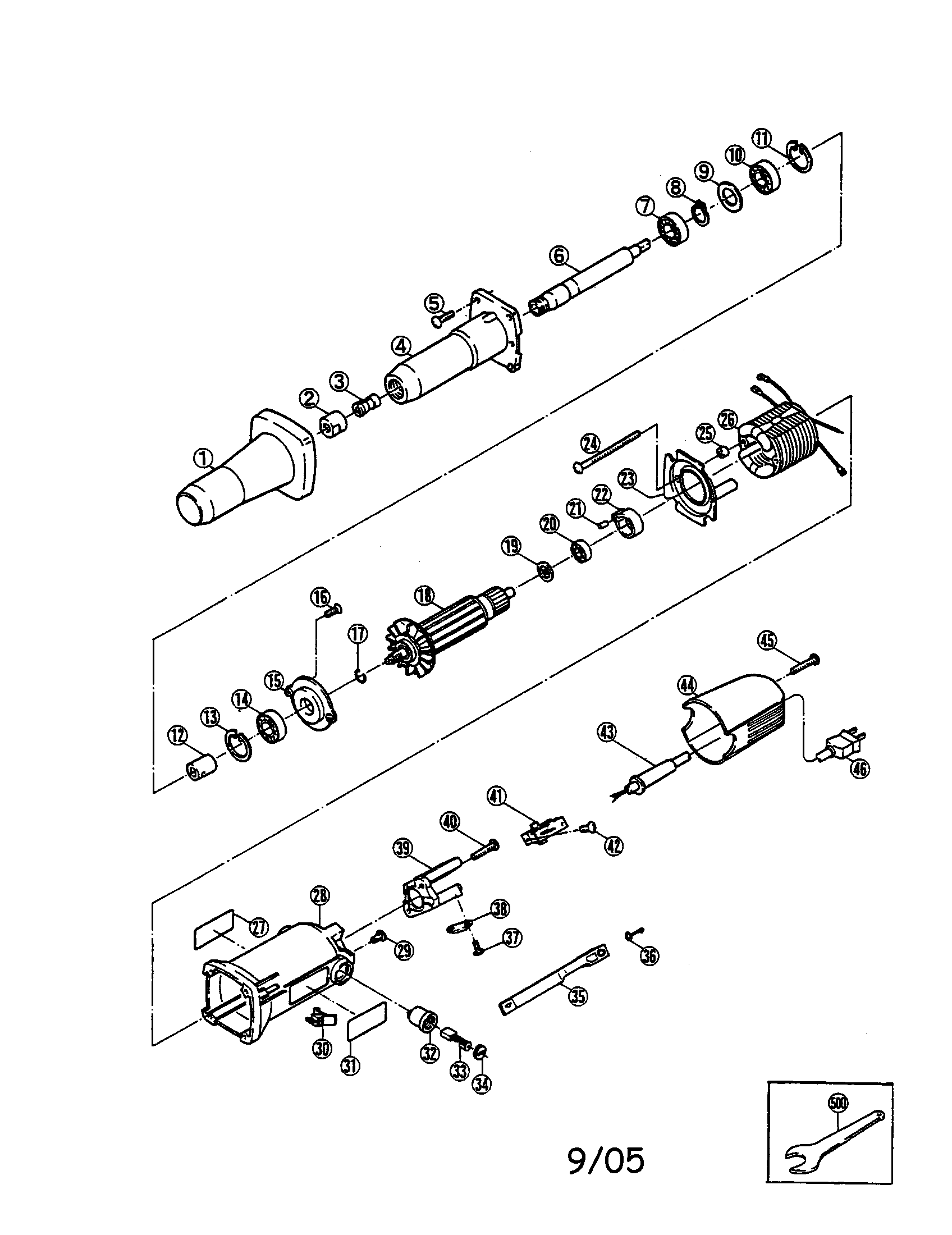

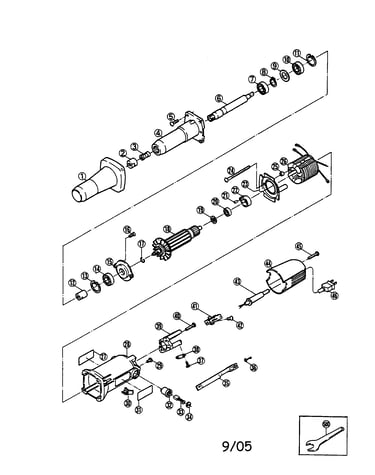

Grinder assembly diagram

Ball bearing

Part #9840626

The manufacturer no longer makes this part, and there's no substitute part

Switch 6550216
#41

Grinder assembly diagram

Switch

Part #6550216

The manufacturer no longer makes this part, and there's no substitute part

Lever 6360132
#35

Grinder assembly diagram

Lever

Part #6360132

The manufacturer no longer makes this part, and there's no substitute part

Bearing Clamp 6153982
#15

Grinder assembly diagram

Bearing clamp

Part #6153982

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 9846200
Ball bearing

Part #9846200

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 6802355
#44

Grinder assembly diagram

Motor cover

Part #6802355

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 6131025
#2

Grinder assembly diagram

Collet nut

Part #6131025

The manufacturer no longer makes this part, and there's no substitute part

Collet Sleeve 6940510
#3

Grinder assembly diagram

Collet sleeve

Part #6940510

The manufacturer no longer makes this part, and there's no substitute part

Field Coil 6501671
#26

Grinder assembly diagram

Field coil

Part #6501671

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #6001llb 9846001
#7

Grinder assembly diagram

Ball bearing #6001llb

Part #9846001

The manufacturer no longer makes this part, and there's no substitute part
