Model # PWX-5VNG2 Official Dunkirk boiler

Here are the diagrams and repair parts for Official Dunkirk PWX-5VNG2 boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Boiler Burner Roll-out Limit Switch (replaces 146-29-002-60) 146-29-002
#NI

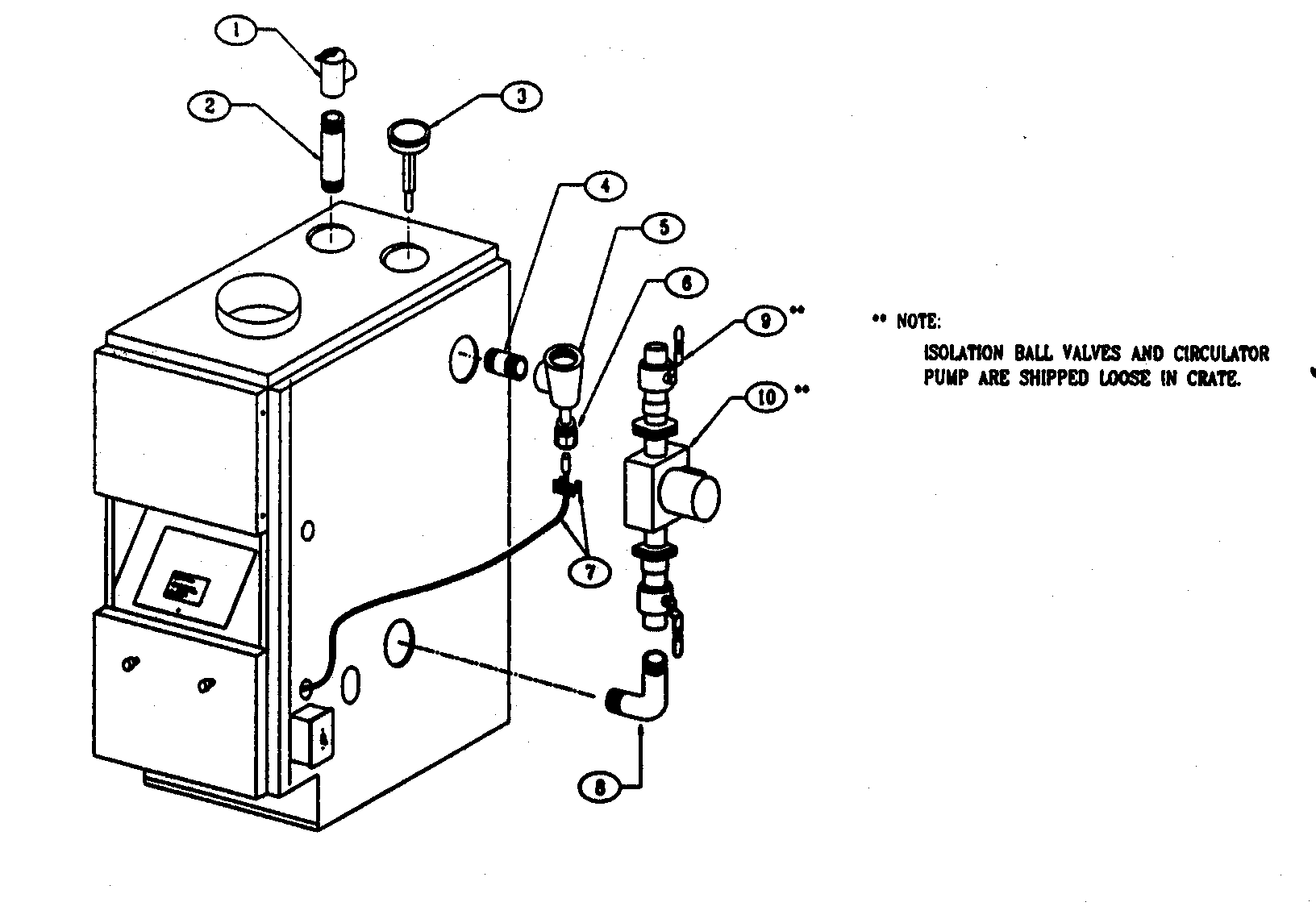

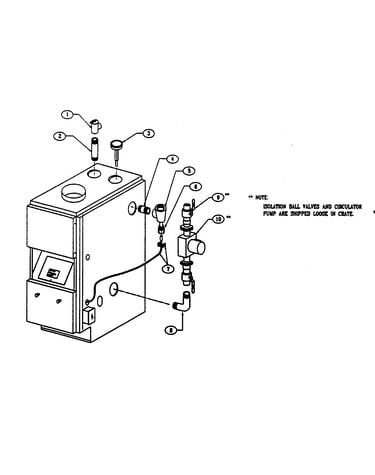

Boiler controls/piping diagram

Boiler burner roll-out limit switch (replaces 146-29-002-60)

Part #146-29-002

This item is not returnable
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Boiler Gas Valve (replaces 14662051) 146-62-051
#1

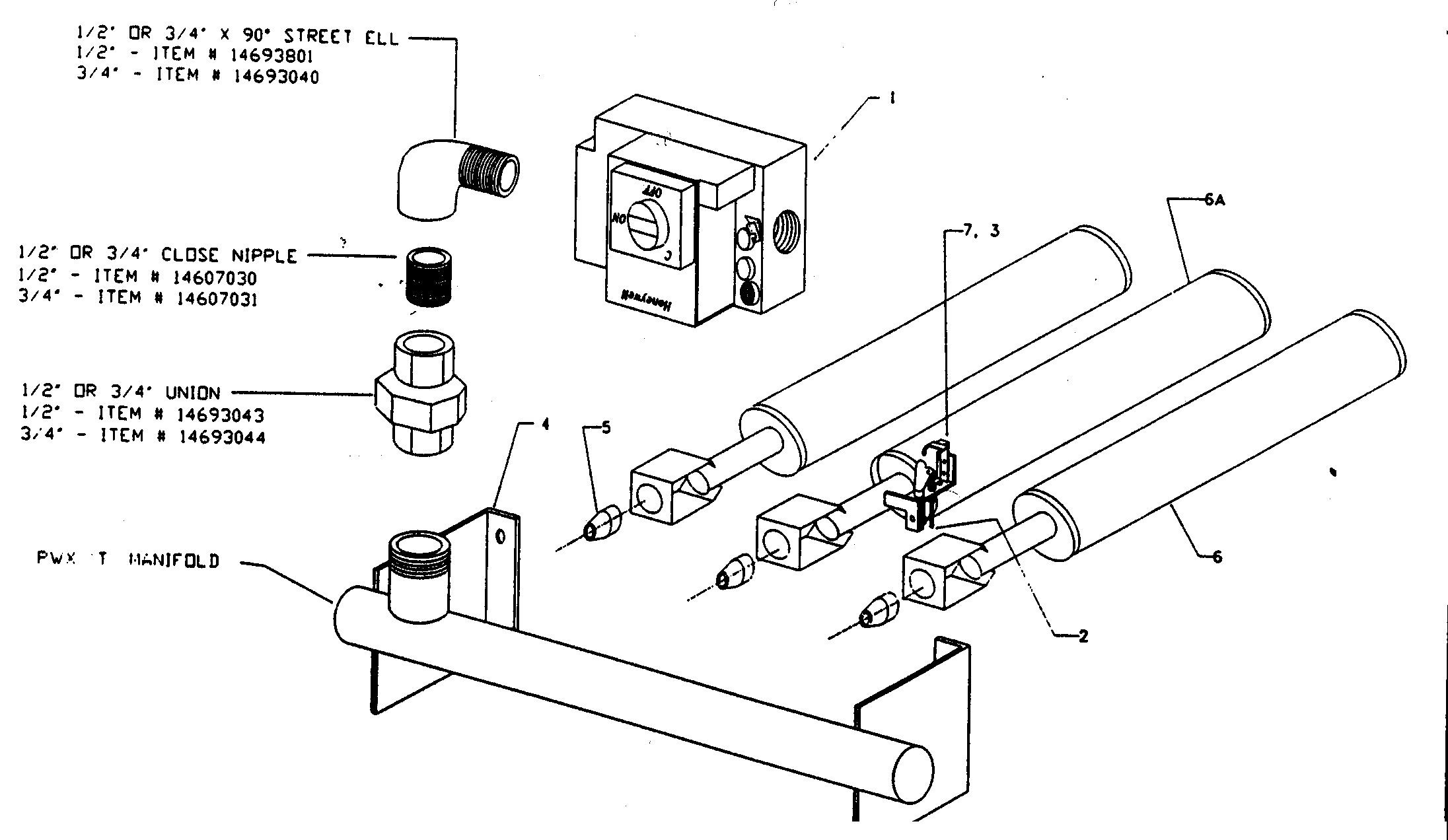

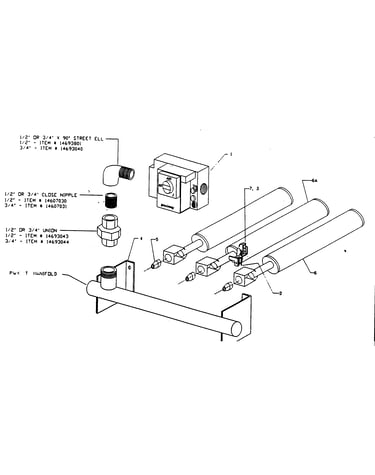

Natural gas burner/manifold assy diagram

Boiler gas valve (replaces 14662051)

Part #146-62-051

The manufacturer no longer makes this part, and there's no substitute part

Circulator 146-26-045
#NI

Boiler controls/piping diagram

Circulator

Part #146-26-045

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
Circulator 146-26-043
#9

Boiler controls/piping diagram

Circulator

Part #146-26-043

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-043. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
Relief Valve 146-22-011
#1

Boiler controls/piping diagram

Relief valve

Part #146-22-011

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
Dunkirk 5 Sec Block 410-00-513
#NI

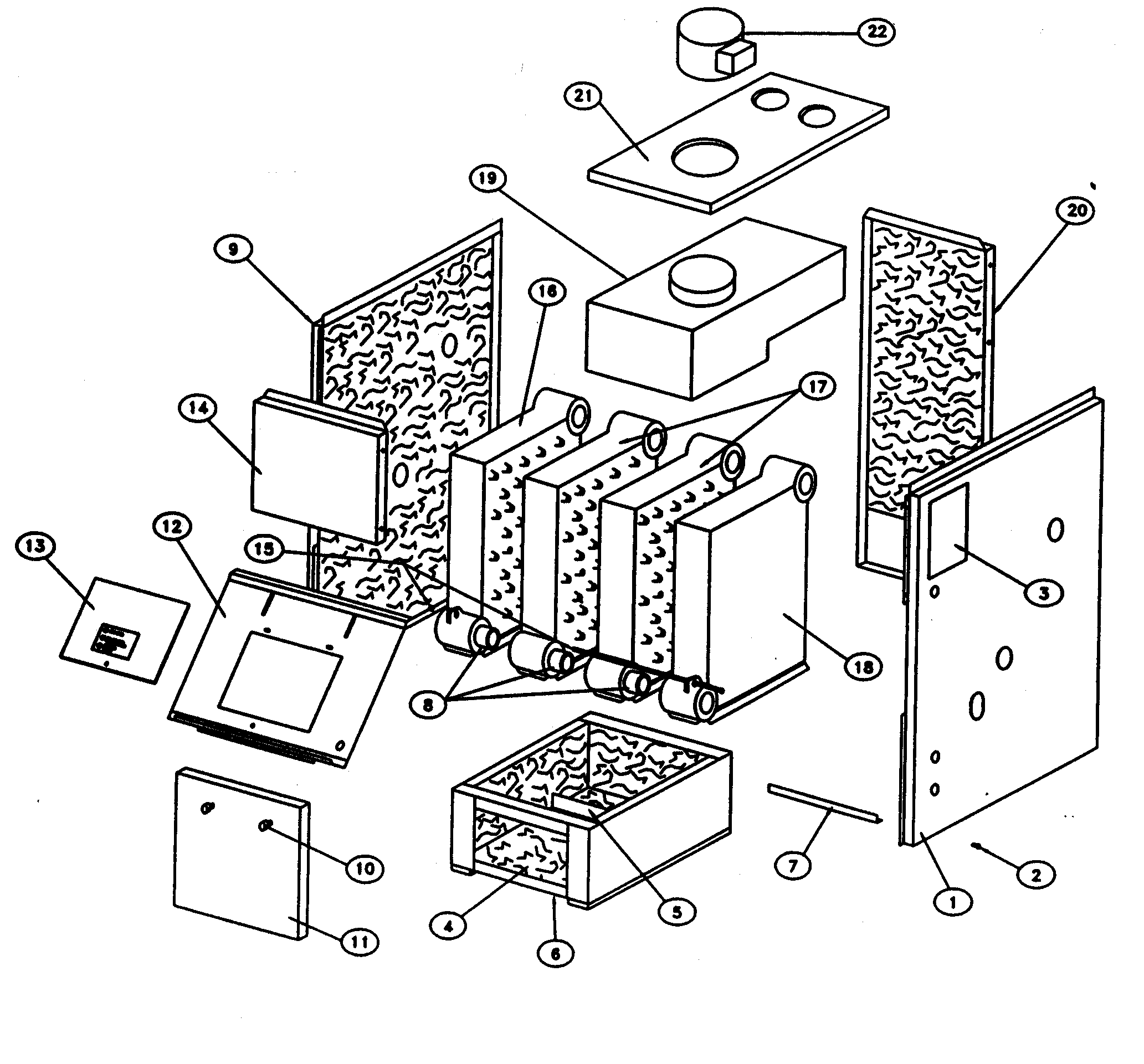

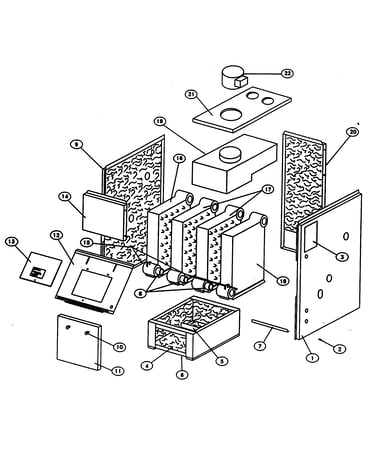

Jacket/base parts diagram

Dunkirk 5 sec block

Part #410-00-513

$1985.95
In Stock
Boiler Thermocouple 146-62-039
#NI

Natural gas burner/manifold assy diagram

Boiler thermocouple

Part #146-62-039

The manufacturer no longer makes this part, and there's no substitute part

Metal Screw 146-95-074
#2

Jacket/base parts diagram

Metal screw

Part #146-95-074

The manufacturer no longer makes this part, and there's no substitute part

Board 146-62-025
#12B

Jacket/base parts diagram

Board

Part #146-62-025

Replaced by #550002858

?
Manufacturer substitution
This part replaces 146-62-025. Substitute parts can look different from the original.
$468.50 |
$12.00 OFF Phone Price : $480.50
In Stock
Insert 146-62-017
#6

Boiler controls/piping diagram

Insert

Part #146-62-017

The manufacturer no longer makes this part, and there's no substitute part
