Model # 917299362 Official Craftsman 6-hp tiller with reverse

Here are the diagrams and repair parts for Official Craftsman 917299362 6-hp tiller with reverse, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Spring Retainer 3146R
#64

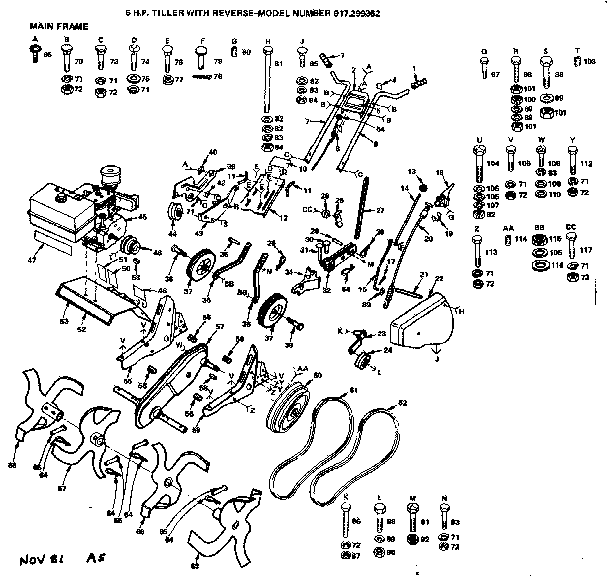

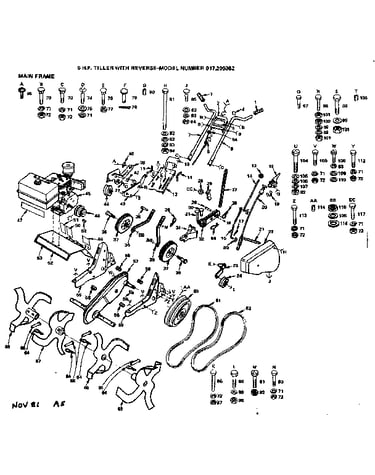

Main frame diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Shldr Bolt 4898H
#38

Main frame diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Gripco Nut 7810H
#92

Main frame diagram

Gripco nut

Part #7810H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 7810H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Cbl/cltch T 3066J
#20

Main frame diagram

Cbl/cltch t

Part #3066J

Replaced by #583731701

?
Manufacturer substitution
This part replaces 3066J. Substitute parts can look different from the original.
BEST SELLER
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Tiller Reverse Drive Belt 2614J
#62

Main frame diagram

Tiller reverse drive belt

Part #2614J

Replaced by #599385301

?
Manufacturer substitution
This part replaces 2614J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$19.98 |
9% OFF Phone Price : $21.98
In Stock
Handle 674H157
#7

Main frame diagram

Handle

Part #674H157

Replaced by #583730501

?
Manufacturer substitution
This part replaces 674H157. Substitute parts can look different from the original.
$33.31
In Stock
Spring 5388J
#25

Main frame diagram

Spring

Part #5388J

Replaced by #532446063

?
Manufacturer substitution
This part replaces 5388J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Tiller Clevis Pin 9194R
#35

Main frame diagram

Tiller clevis pin

Part #9194R

Replaced by #532443676

?
Manufacturer substitution
This part replaces 9194R. Substitute parts can look different from the original.
$20.54
In Stock
Nut 2628J
#11

Main frame diagram

Nut

Part #2628J

Replaced by #532183724

?
Manufacturer substitution
This part replaces 2628J. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lawn & Garden Equipment Cable Bracket 9484R
#40

Main frame diagram

Lawn & garden equipment cable bracket

Part #9484R

Replaced by #532009484

?
Manufacturer substitution
This part replaces 9484R. Substitute parts can look different from the original.
$8.54
In Stock
