Model # C3151 Official Porter Cable air compressor

Here are the diagrams and repair parts for Official Porter Cable C3151 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 63 parts |

#72

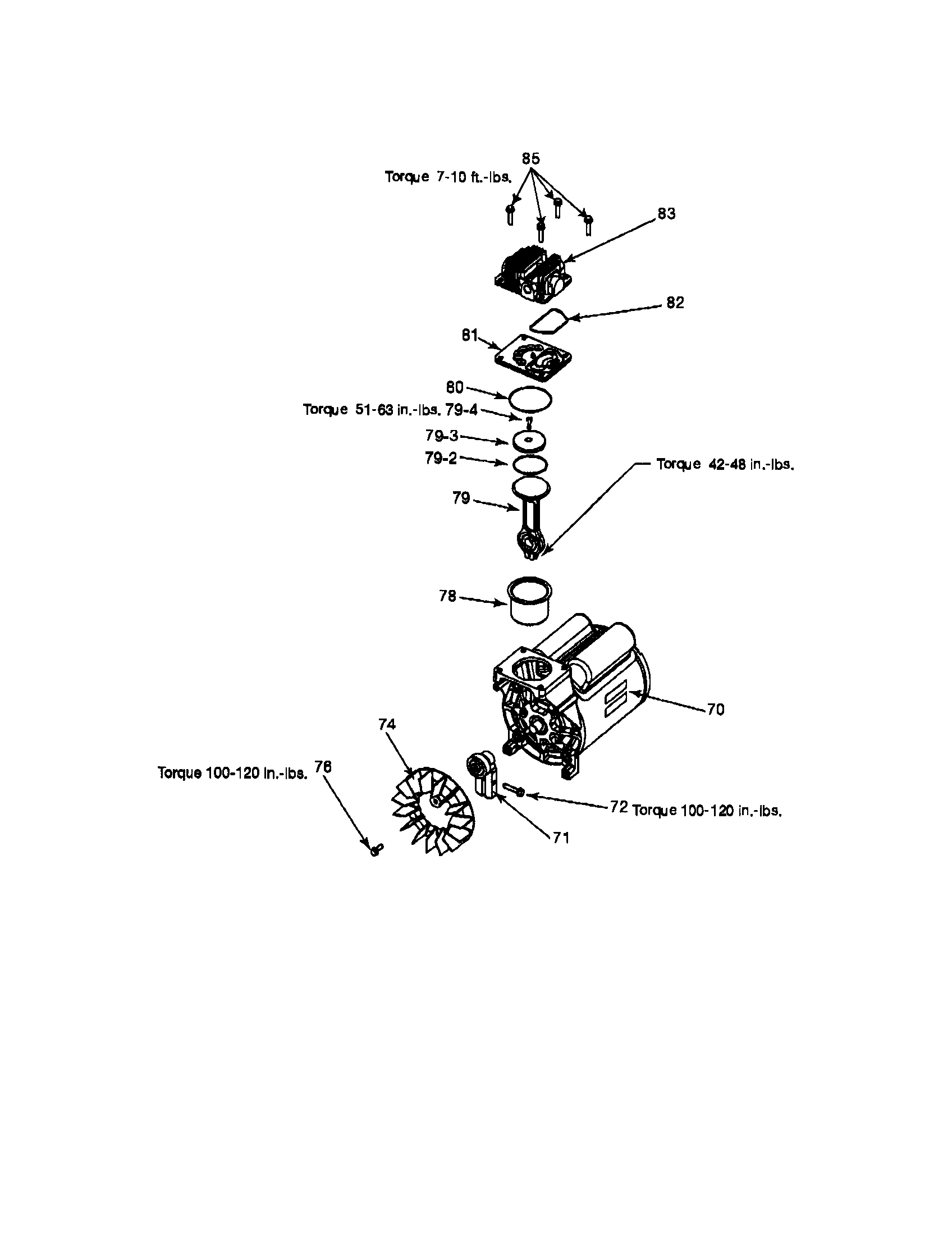

Motor/fan/head diagram

Screw

Part #SSF-615

The manufacturer no longer makes this part, and there's no substitute part

#33

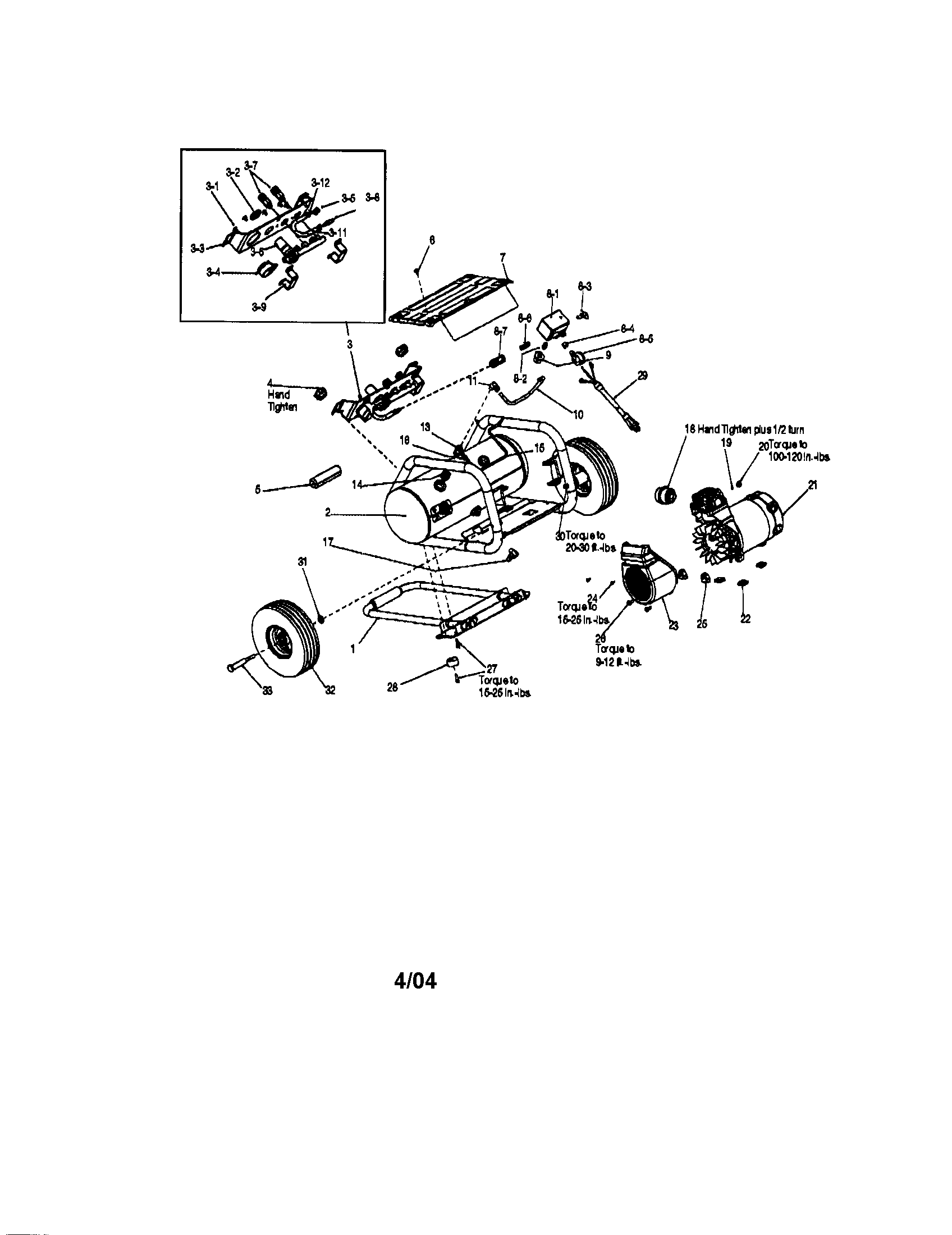

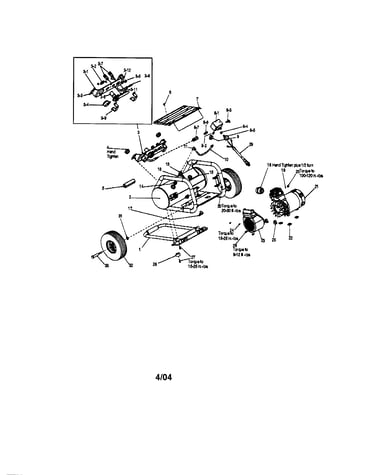

Tank/wheels/drain valve diagram

Porter cable axle

Part #D28105

The manufacturer no longer makes this part, and there's no substitute part

#3-04

Tank/wheels/drain valve diagram

Porter cable gauge 2

Part #Z-D28274

The manufacturer no longer makes this part, and there's no substitute part

Tank/wheels/drain valve diagram

Porter cable air compressor drain petcock bushing reducer

Part #SSP-491

The manufacturer no longer makes this part, and there's no substitute part

#85

Motor/fan/head diagram

Unknown brand name #696 air compressor screw

Part #SSF-927

The manufacturer no longer makes this part, and there's no substitute part

#29

Tank/wheels/drain valve diagram

Air compressor power cord

Part #D26615

The manufacturer no longer makes this part, and there's no substitute part

#30

Tank/wheels/drain valve diagram

Lock nut

Part #SSF-8111-ZN

The manufacturer no longer makes this part, and there's no substitute part

#8-06

Tank/wheels/drain valve diagram

Nipple

Part #SS-2071

The manufacturer no longer makes this part, and there's no substitute part

#82

Motor/fan/head diagram

O-ring

Part #ACG-45

The manufacturer no longer makes this part, and there's no substitute part

#3-06

Tank/wheels/drain valve diagram

Regulator

Part #Z-D24044

The manufacturer no longer makes this part, and there's no substitute part
