Model # 11082294700 Official Kenmore electric washer

Here are the diagrams and repair parts for Official Kenmore 11082294700 electric washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

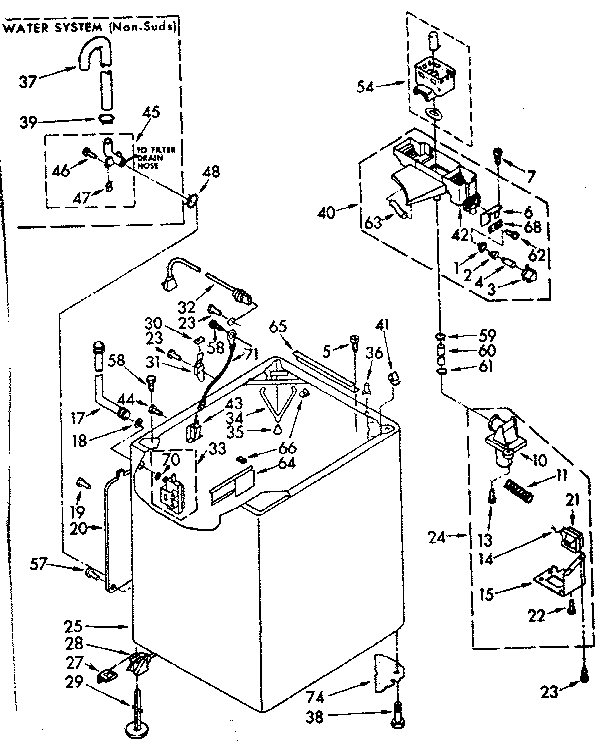

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 344 parts  |
Block 357782
#12

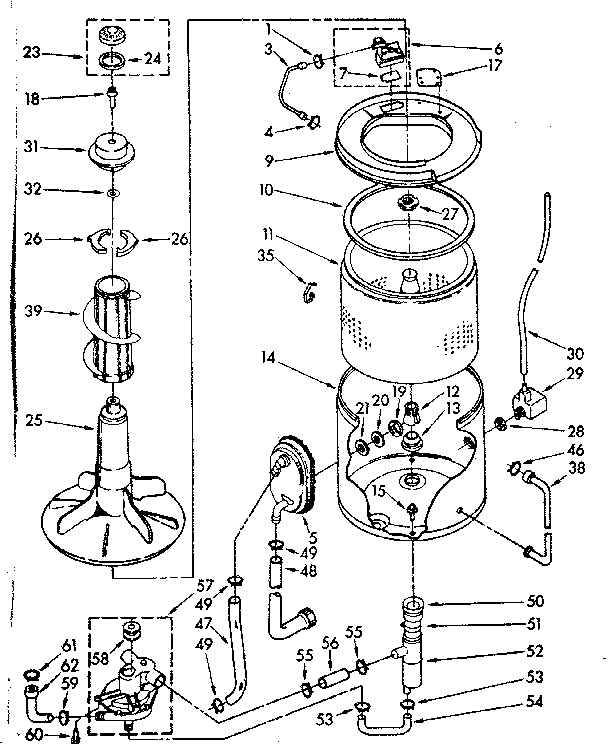

Limited edition tub and basket parts diagram

Block

Part #357782

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 357782. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Spanner Nut 21366
#27

Limited edition tub and basket parts diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Agitator Bolt 358237
#18

Limited edition tub and basket parts diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.75 |
15% OFF Phone Price : $6.75
In Stock
Gasket 96690
#13

Limited edition tub and basket parts diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Capacitor 357021
#47

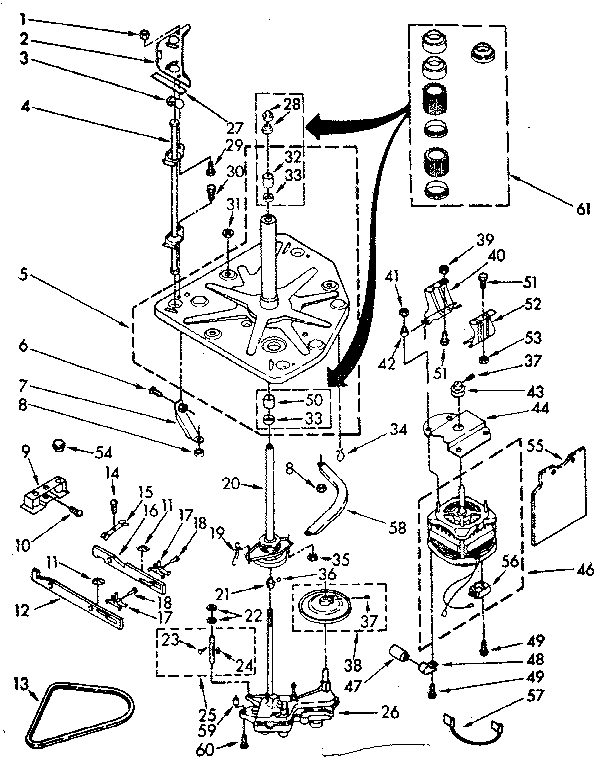

Limited edition drive parts diagram

Capacitor

Part #357021

Replaced by #WP8572717

?
Manufacturer substitution
This part replaces 357021. Substitute parts can look different from the original.
BEST SELLER
$47.30 |
11% OFF Phone Price : $53.30
In Stock
Hose 379883
#30

Limited edition tub and basket parts diagram

Hose

Part #379883

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 379883. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Screw 18724
#36

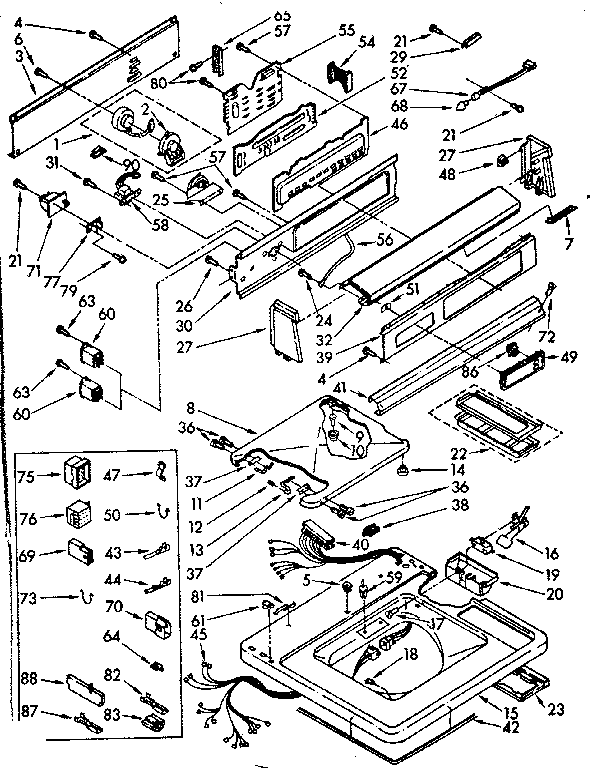

Limited edition top and console parts diagram

Screw

Part #18724

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 18724. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Shaft Seal 356427
#18

Limited edition basket drive and brake parts diagram

Shaft seal

Part #356427

Replaced by #WP356427

?
Manufacturer substitution
This part replaces 356427. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Screw 98062
#6

Limited edition drive parts diagram

Screw

Part #98062

Replaced by #WP3400516

?
Manufacturer substitution
This part replaces 98062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 97787
#6

Limited edition top and console parts diagram

Screw

Part #97787

Replaced by #WPW10109200

?
Manufacturer substitution
This part replaces 97787. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
