Craftsman
Gas Walk-Behind Mower

Model # 917380093 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380093 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Washer 61537
#54

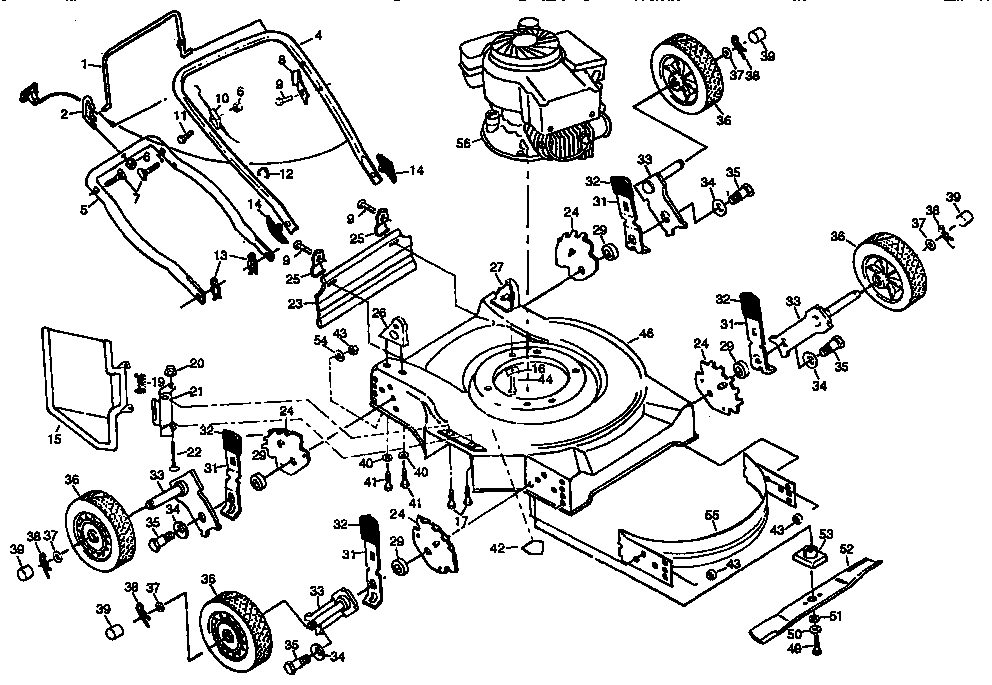

Repair parts diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Handle Knob 136376
#14

Repair parts diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#7

Repair parts diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 751592
#43

Repair parts diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Line 34357
#290

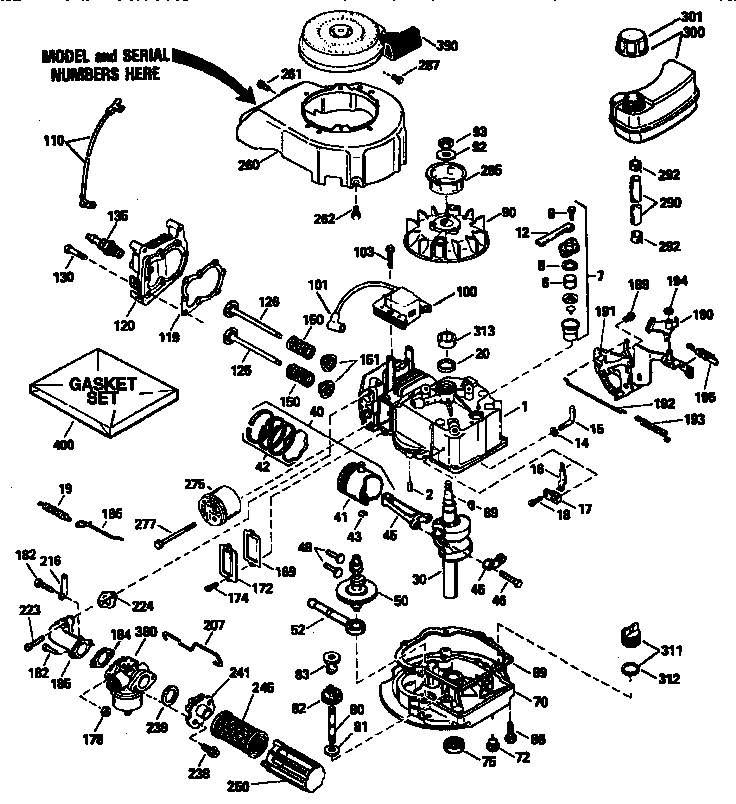

4-cycle engine diagram

Line

Part #34357

Replaced by #29774

?
Manufacturer substitution
This part replaces 34357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Troybilt Lawn & Garden Equipment Engine Air Filter Collar Gasket 34338
#239

4-cycle engine diagram

Troybilt lawn & garden equipment engine air filter collar gasket

Part #34338

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gas Cap 35355
#301

4-cycle engine diagram

Gas cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Troybilt Lawn & Garden Equipment Engine Flywheel Key (replaces 02-403) 611004
#89

4-cycle engine diagram

Troybilt lawn & garden equipment engine flywheel key (replaces 02-403)

Part #611004

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Stop Wire Terminal 610973
#195

4-cycle engine diagram

Generac lawn & garden equipment engine stop wire terminal

Part #610973

This item is not returnable
$4.11 |
20% OFF Phone Price : $5.11
In Stock
Washer 52160
#37

Repair parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
