Amana
Electric Cooktop

Model # AK2H35-P1131547N Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana AK2H35-P1131547N electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Start Assembly D8603106
#13

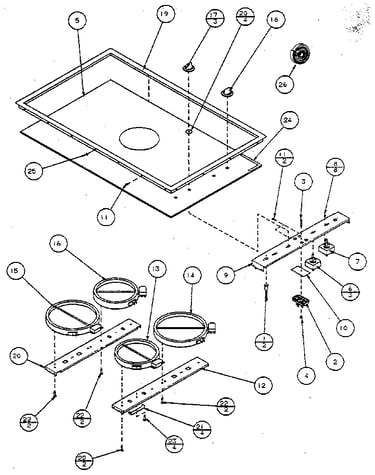

Cooktop diagram

Start assembly

Part #D8603106

Replaced by #W10823699

?
Manufacturer substitution
This part replaces D8603106. Substitute parts can look different from the original.
$74.52 |
7% OFF Phone Price : $80.52
In Stock
Eyelet M0571201
#17

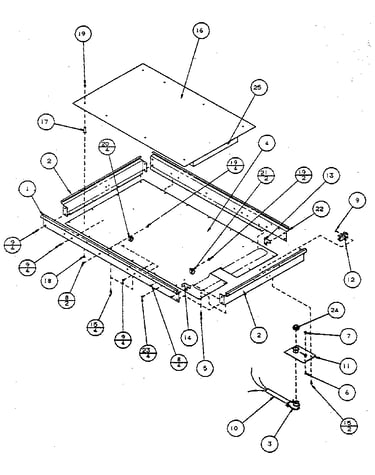

Frame diagram

Eyelet

Part #M0571201

Replaced by #M0571201

?
Manufacturer substitution
This part replaces M0571201. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0202321
#8

Cooktop diagram

Screw

Part #M0202321

Replaced by #W11214483

?
Manufacturer substitution
This part replaces M0202321. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0234029
#9

Frame diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Torx Screw M0234016
#5

Frame diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282005
#19

Frame diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Surface Control 10027901
#6

Cooktop diagram

Surface control

Part #10027901

Replaced by #W11122012

?
Manufacturer substitution
This part replaces 10027901. Substitute parts can look different from the original.
$93.70 |
6% OFF Phone Price : $99.70
In Stock
Screw M0234422
#23

Frame diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Terminal Block B5677203
#12

Frame diagram

Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Control Knob D8598001
#17

Cooktop diagram

Control knob

Part #D8598001

The manufacturer no longer makes this part, and there's no substitute part
