Hardwick
Gas Range

Model # H1100PRA Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick H1100PRA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

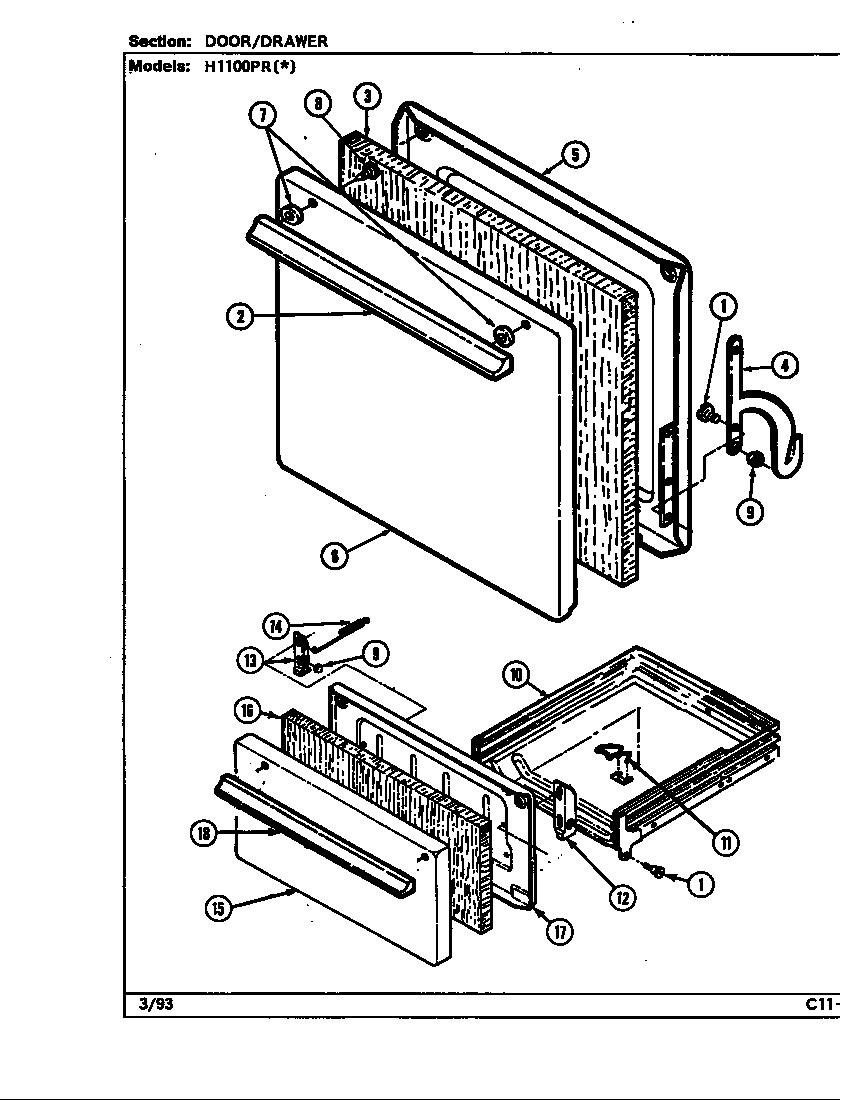

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Oven Igniter 7432P076-60
#8

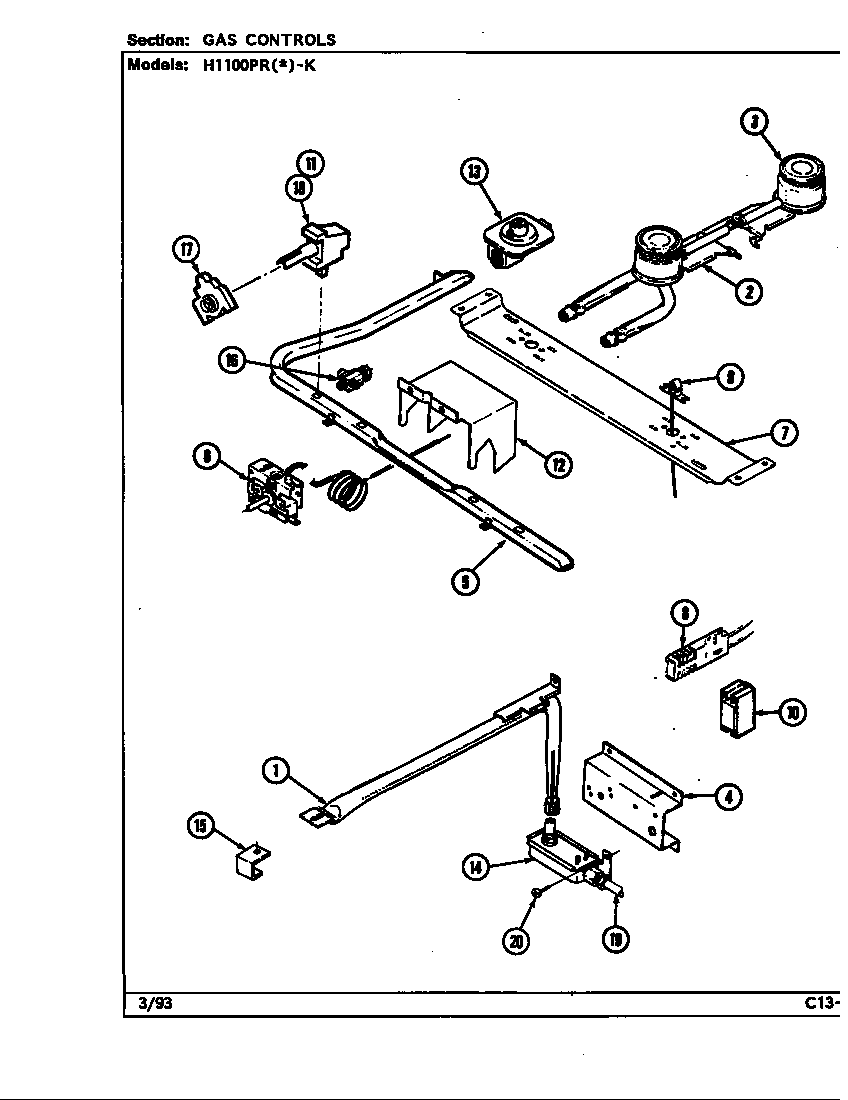

Gas controls (h1100pr*-k) (h1100pra-k) (h1100prw-k) diagram

Oven igniter

Part #7432P076-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Screw 7101P115-60
#20

Gas controls (h1100pr*-k) (h1100pra-k) (h1100prw-k) diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7118P004-60
#10

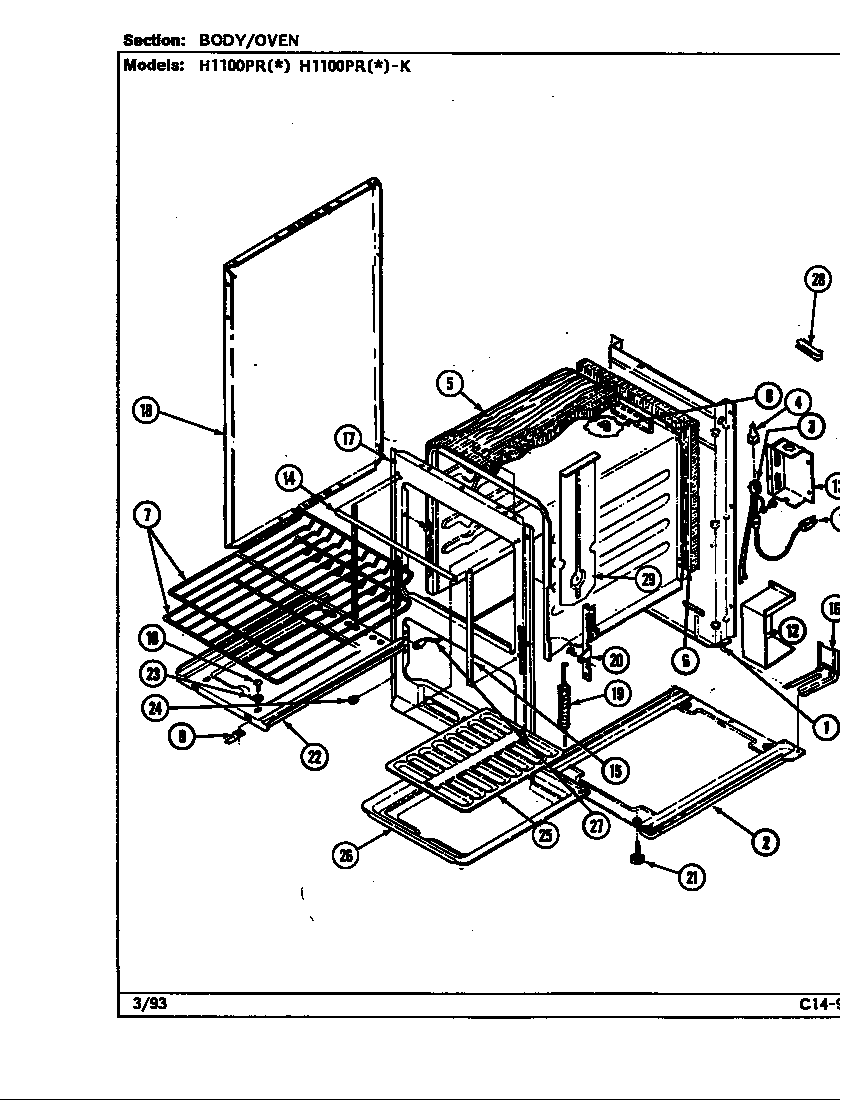

Body diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
"bracket, Ant" 3801F218-51
#16

Body diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P061-60
Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Hinge Screw 7101P270-60
#6A

Gas controls (h1100pr*-k) (h1100pra-k) (h1100prw-k) diagram

Hinge screw

Part #7101P270-60

Replaced by #W10828565

?
Manufacturer substitution
This part replaces 7101P270-60. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Screw With Washer 7101P188-60
#20C

Body diagram

Screw with washer

Part #7101P188-60

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 7101P188-60. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Strike Nut 7103P105-60
#3

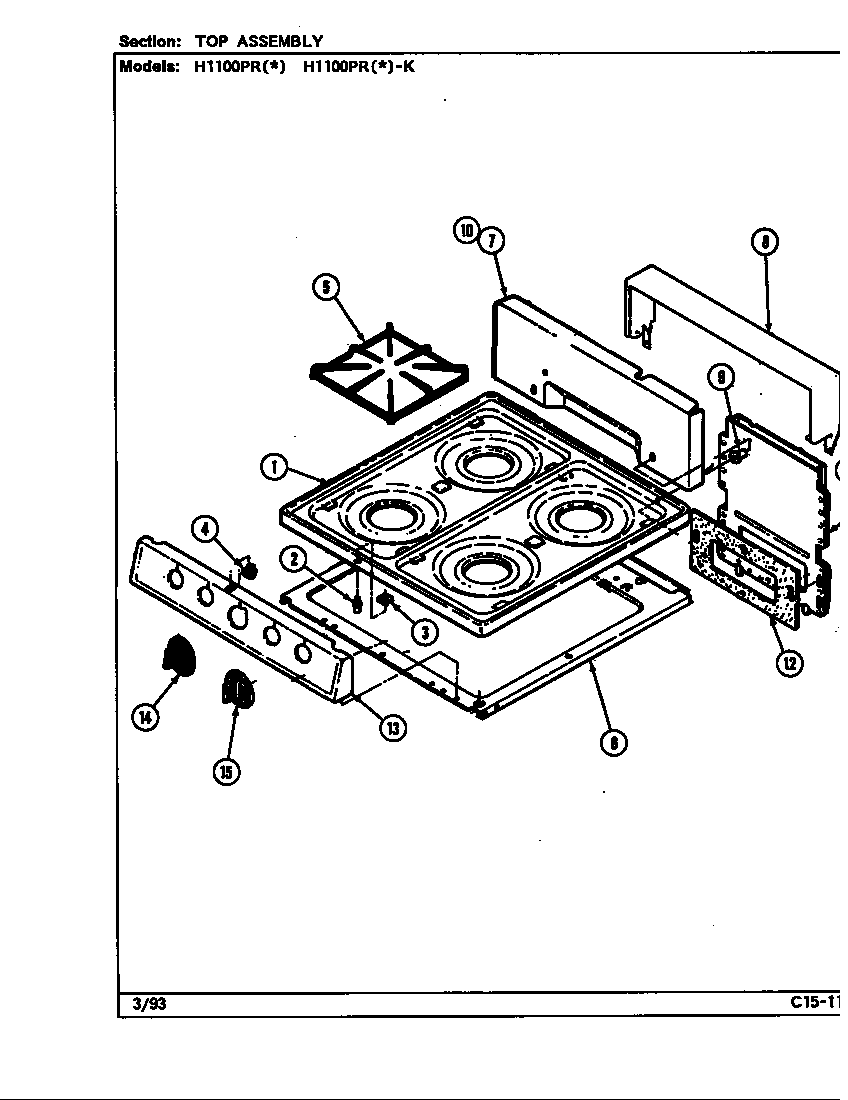

Top assembly diagram

Strike nut

Part #7103P105-60

Replaced by #WP486255

?
Manufacturer substitution
This part replaces 7103P105-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw (black) 7101P072-60
Screw (black)

Part #7101P072-60

Replaced by #WP7101P072-60

?
Manufacturer substitution
This part replaces 7101P072-60. Substitute parts can look different from the original.
This item is not returnable
$2.78
In Stock
Screw, #10 7101P062-60
#17

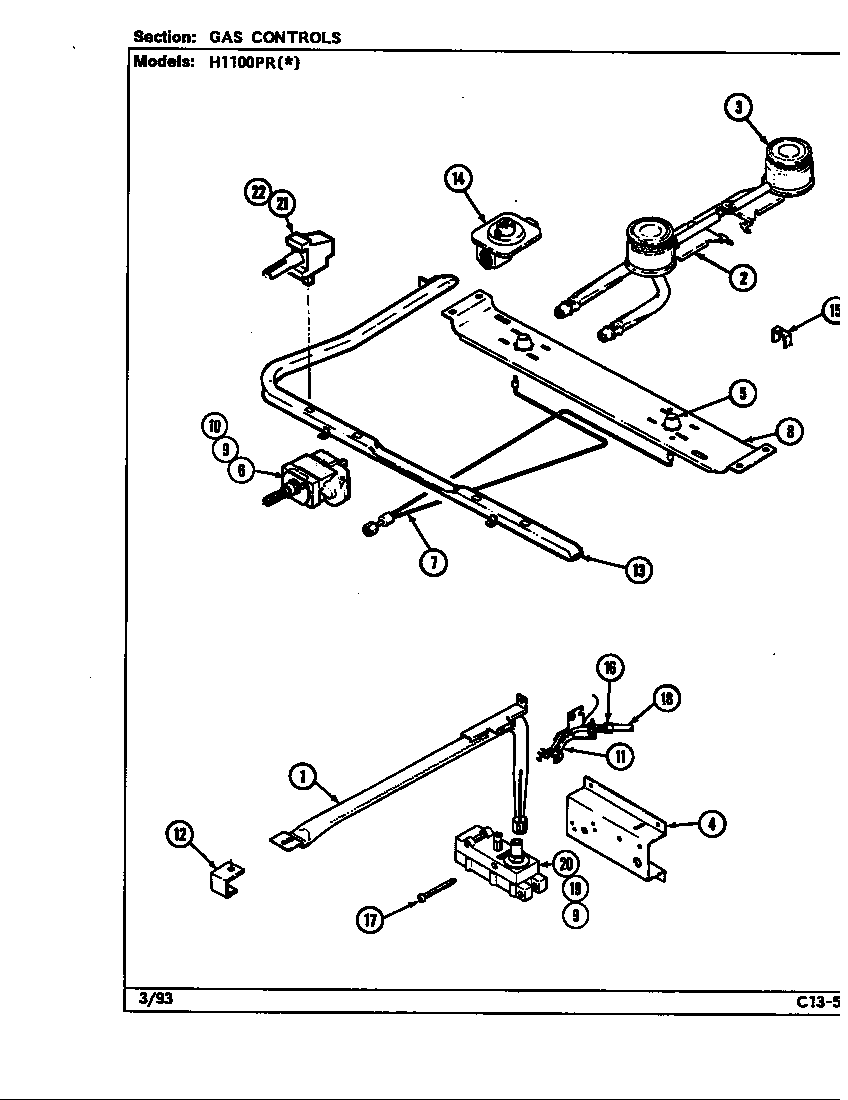

Gas controls (h1100pr*) (h1100pra) (h1100prw) diagram

Screw, #10

Part #7101P062-60

Replaced by #WP7101P062-60

?
Manufacturer substitution
This part replaces 7101P062-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
