Room Air Conditioner

Model # FAH126J2T2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH126J2T2 air conditioner, as well as links to manuals and error code tables, if available.

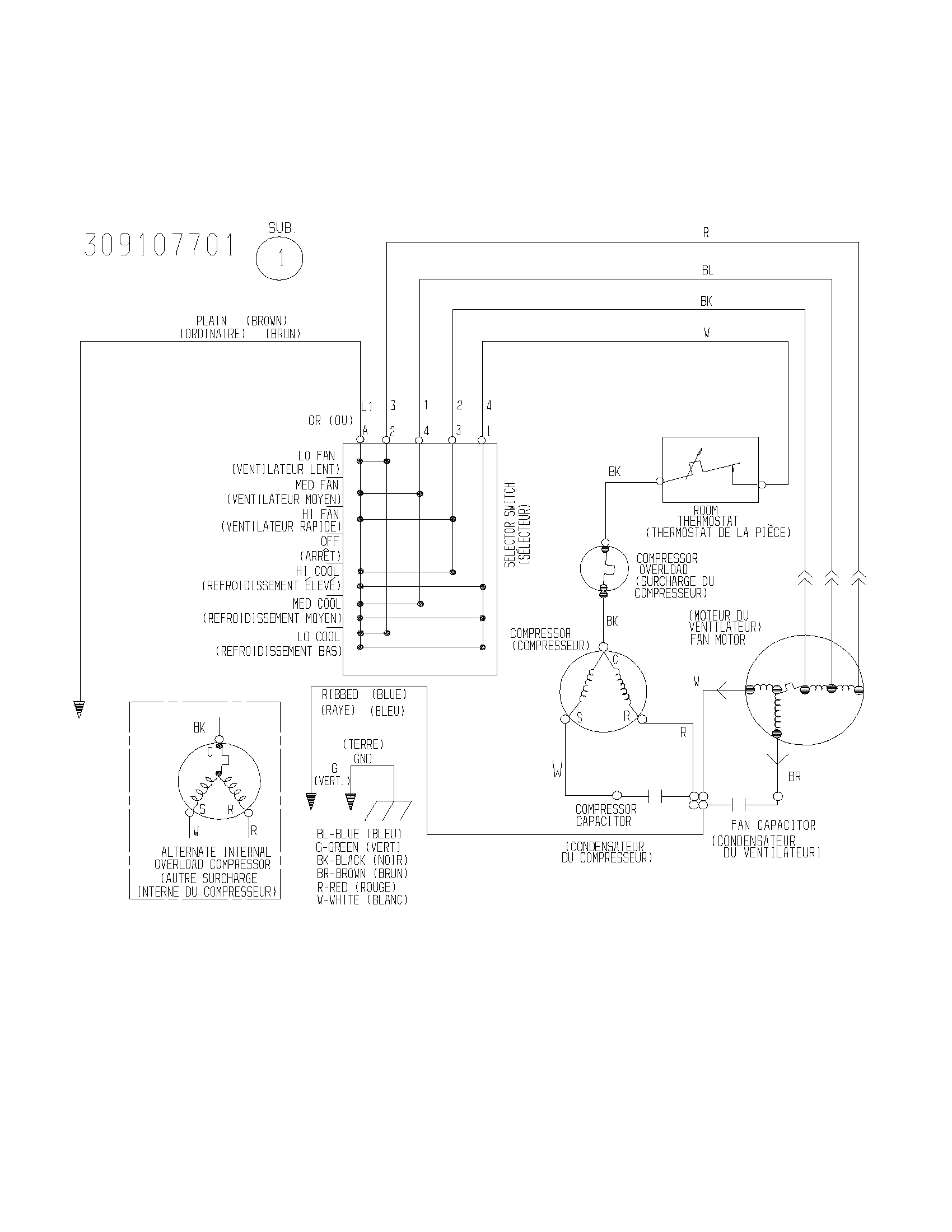

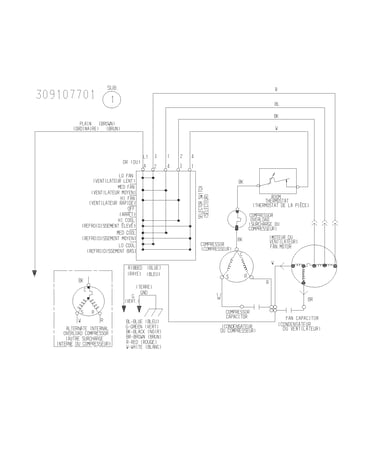

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FAH126J2T2 Air Conditioner
Screw 5303303691
#18

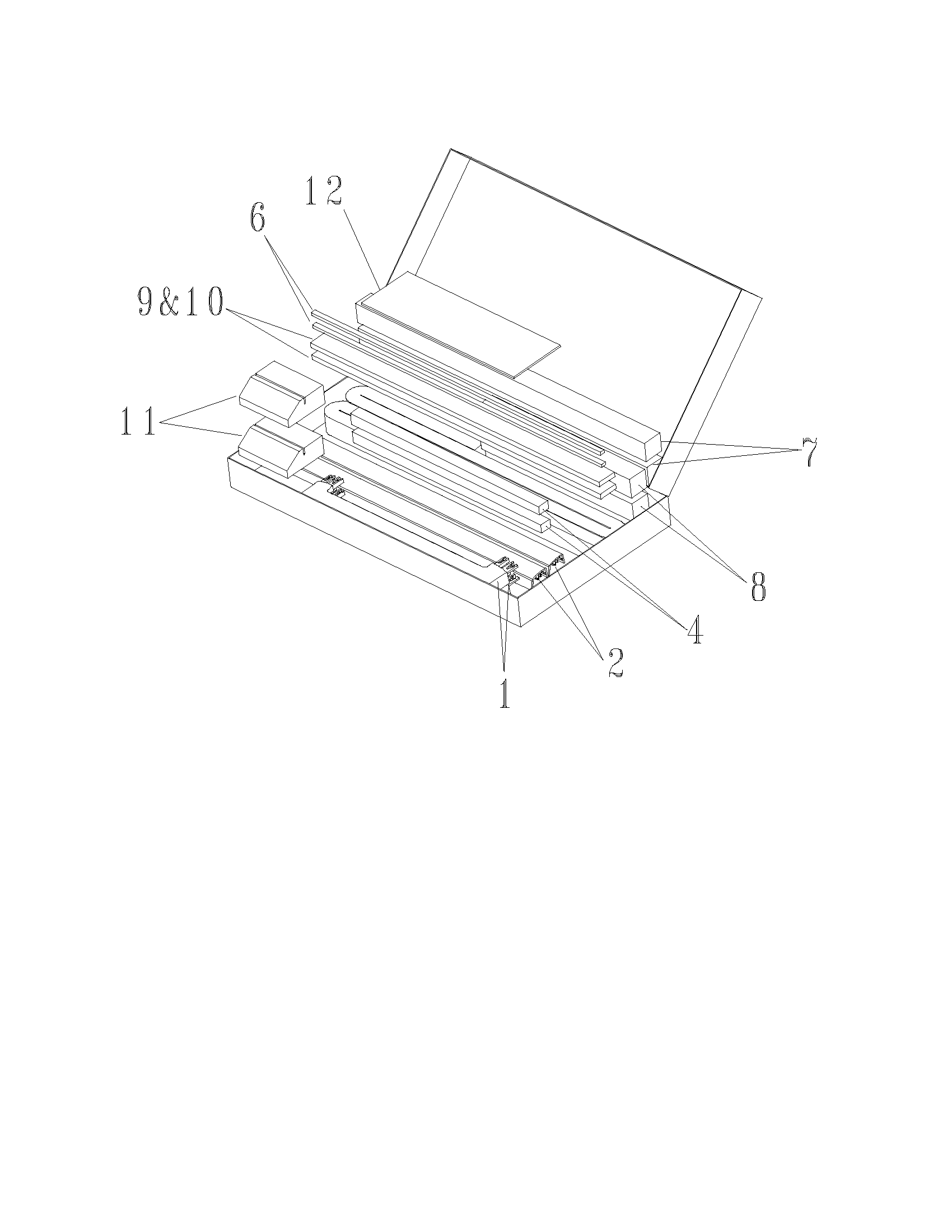

Window mounting parts diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
In Stock
Screw 3202975
#2

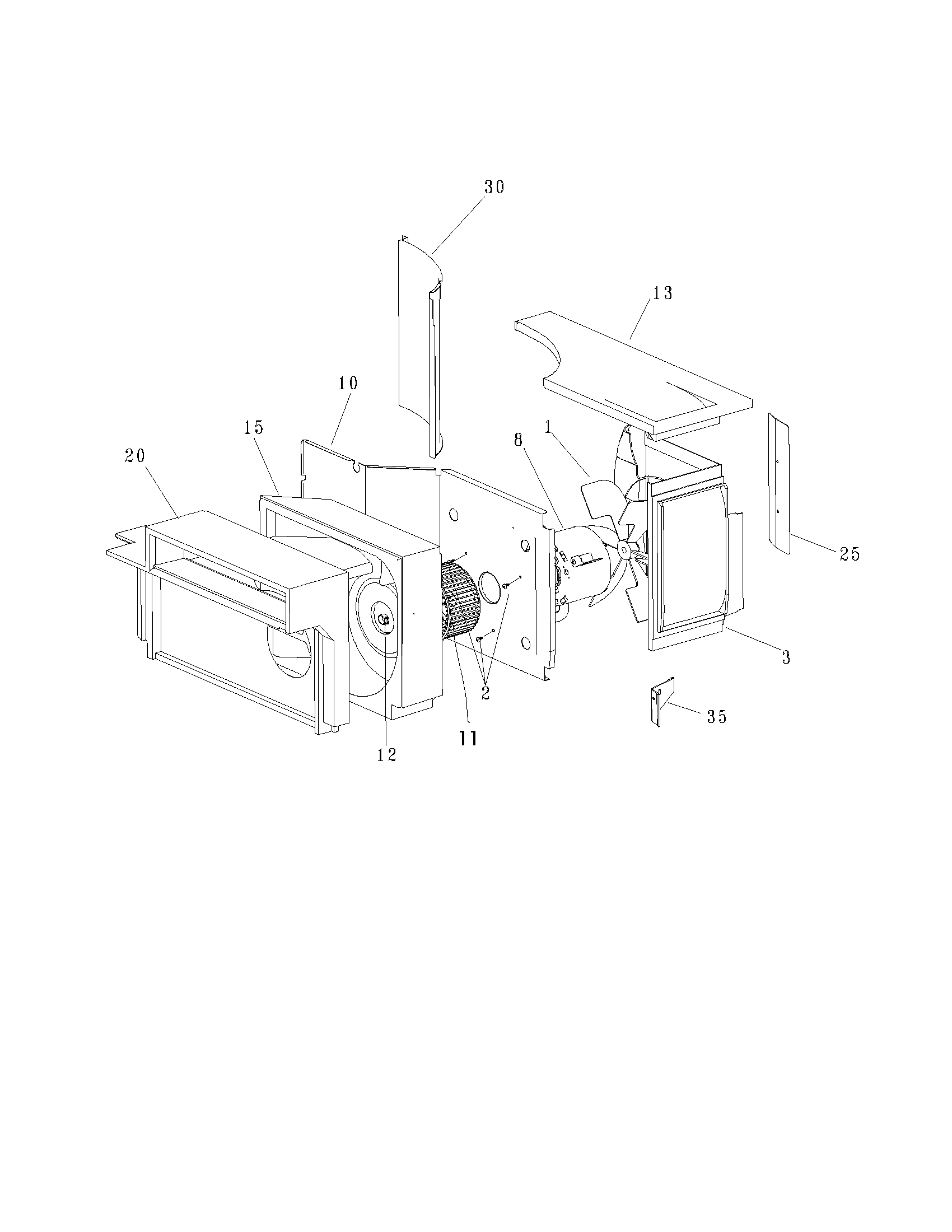

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Fan Blade 309629102
#1

Air handling parts diagram

Fan blade

Part #309629102

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5303291330
#6

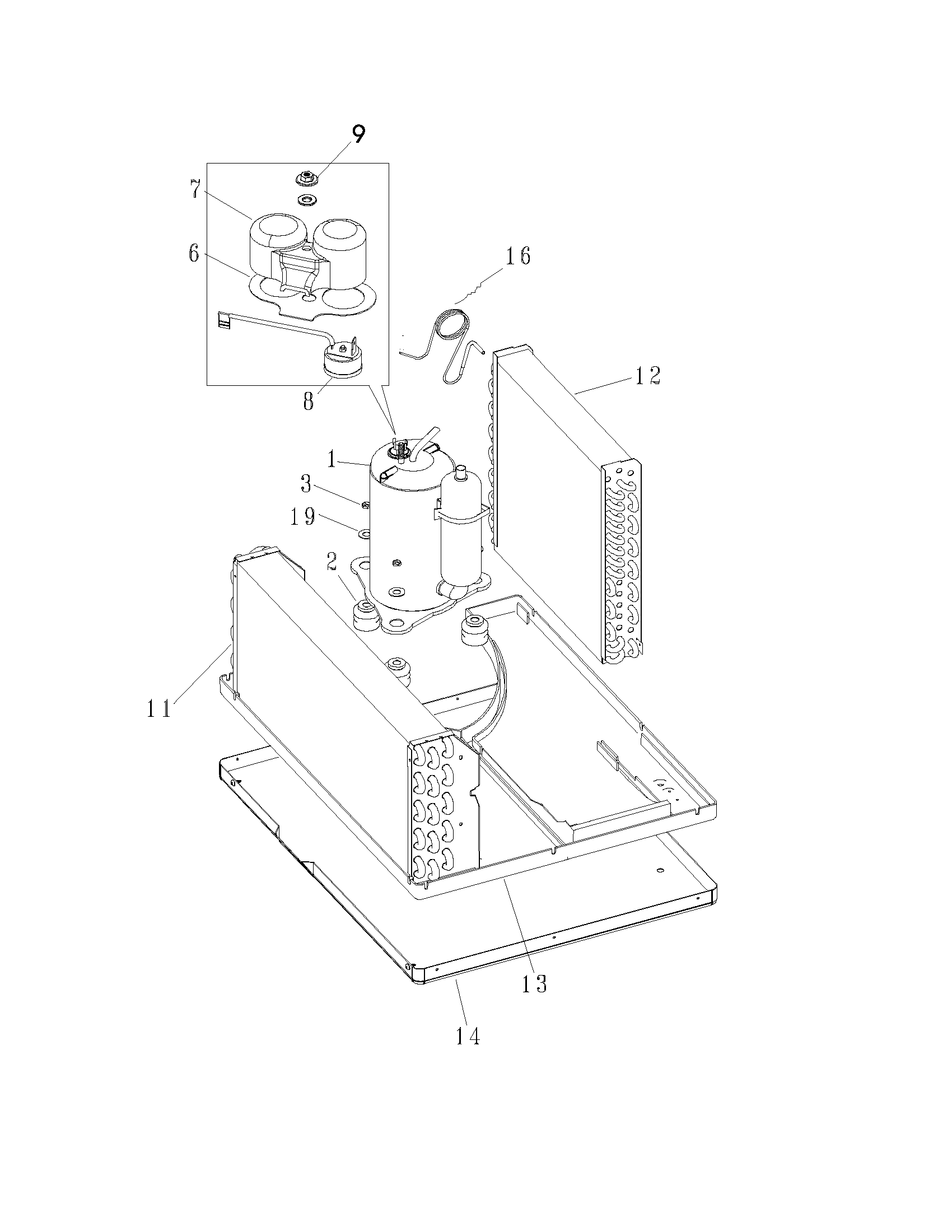

Compressor parts diagram

Gasket

Part #5303291330

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 309632403
#11

Compressor parts diagram

Evaporator

Part #309632403

The manufacturer no longer makes this part, and there's no substitute part

Trim Frme/tb 309628604
#2

Window mounting parts diagram

Trim frme/tb

Part #309628604

The manufacturer no longer makes this part, and there's no substitute part

Baffle Condenser 309335001
#35

Air handling parts diagram

Baffle condenser

Part #309335001

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5303317672
#13

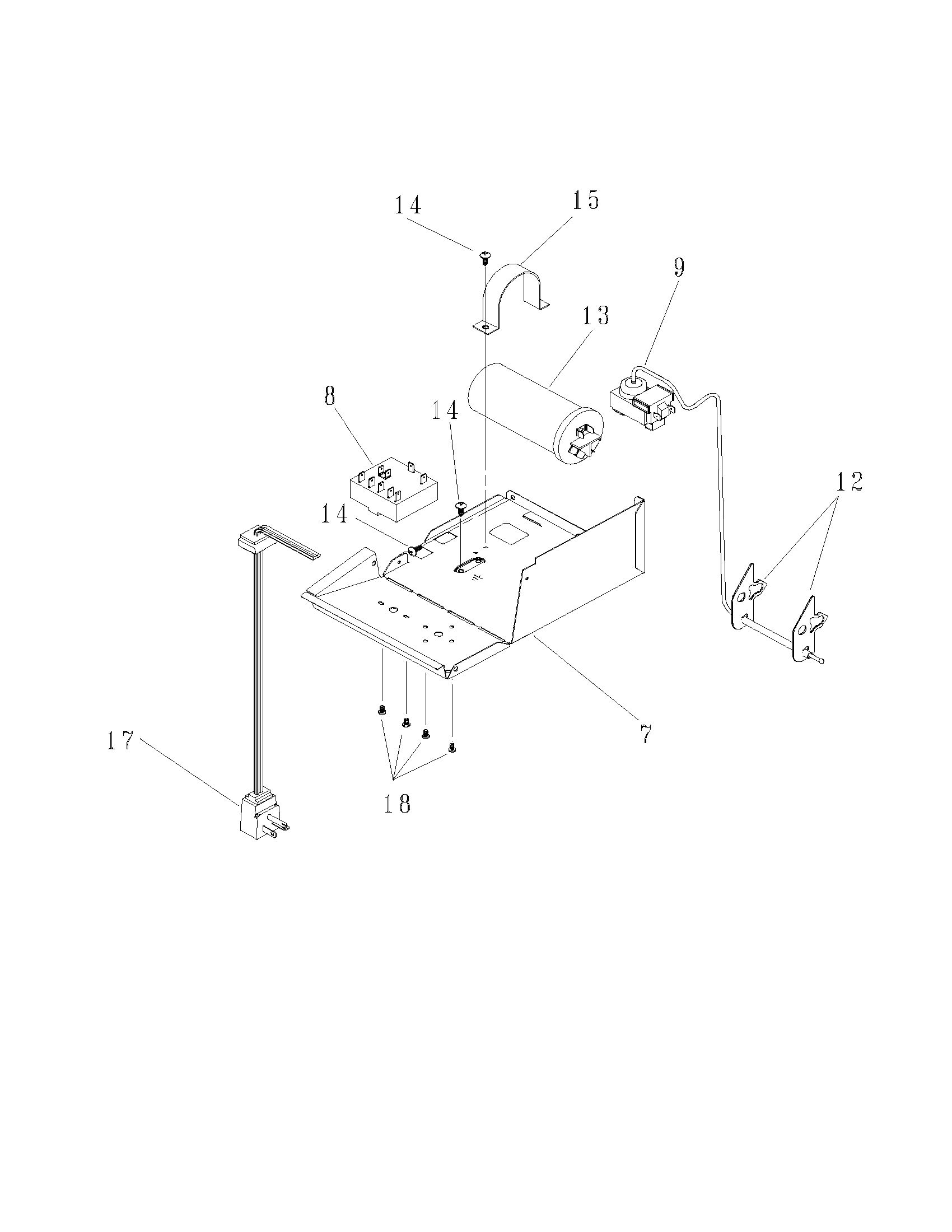

Controls diagram

Capacitor

Part #5303317672

The manufacturer no longer makes this part, and there's no substitute part

Safety Scren 309636101
#2

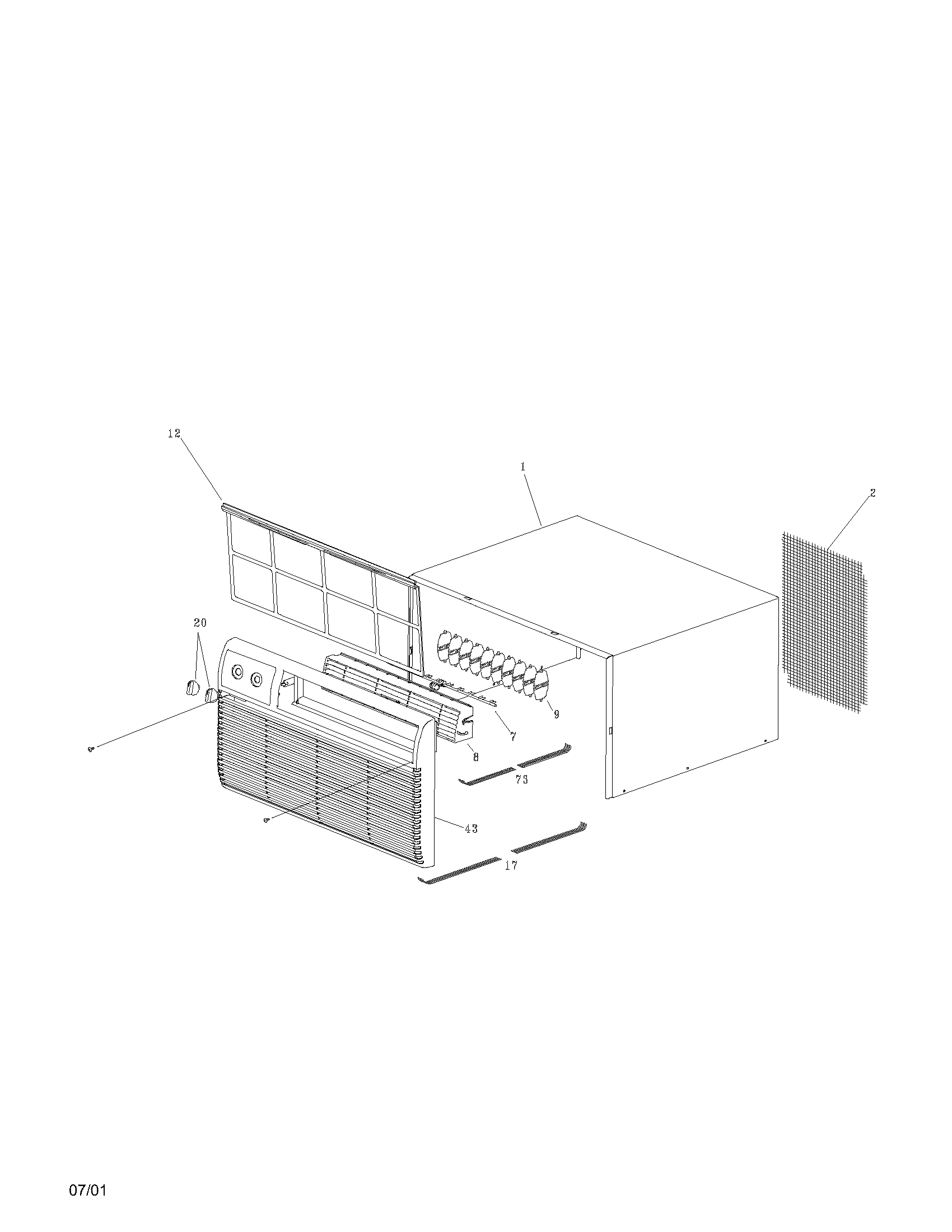

Cabinet front & wrapper diagram

Safety scren

Part #309636101

The manufacturer no longer makes this part, and there's no substitute part
