Model # 39719310 Official Craftsman bench grinder with 5" wheel

Here are the diagrams and repair parts for Official Craftsman 39719310 bench grinder with 5" wheel, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Flange 22014716
#8

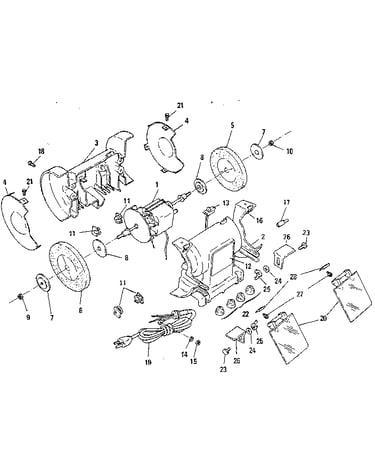

Unit parts diagram

Flange

Part #22014716

The manufacturer no longer makes this part, and there's no substitute part

Screw 9437826
#27

Unit parts diagram

Screw

Part #9437826

The manufacturer no longer makes this part, and there's no substitute part

Guard 22013910
#4

Unit parts diagram

Guard

Part #22013910

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut, 1/4-20 STD541625
#25

Unit parts diagram

Wing nut, 1/4-20

Part #STD541625

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 22013909
#11

Unit parts diagram

Motor mount

Part #22013909

The manufacturer no longer makes this part, and there's no substitute part

Rr Housing 22013287
#3

Unit parts diagram

Rr housing

Part #22013287

The manufacturer no longer makes this part, and there's no substitute part

Motor 22013915
#1

Unit parts diagram

Motor

Part #22013915

The manufacturer no longer makes this part, and there's no substitute part

Clip 22013905
#28

Unit parts diagram

Clip

Part #22013905

The manufacturer no longer makes this part, and there's no substitute part

Wheel 22013916
#5

Unit parts diagram

Wheel

Part #22013916

The manufacturer no longer makes this part, and there's no substitute part

Switch 22015112
#13

Unit parts diagram

Switch

Part #22015112

The manufacturer no longer makes this part, and there's no substitute part
