Model # 113175570 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113175570 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Vacuum Motor Cover 831012
#25

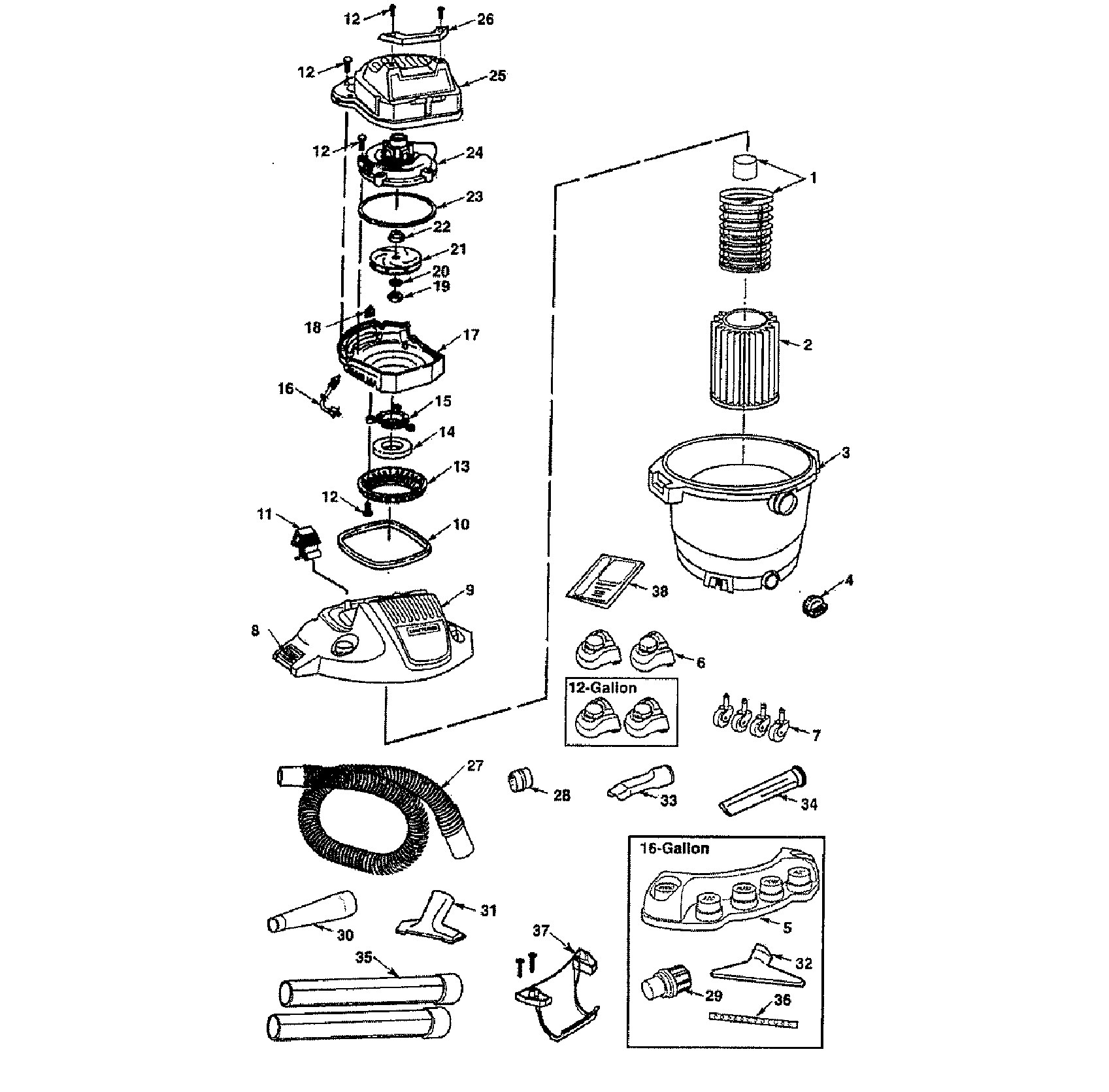

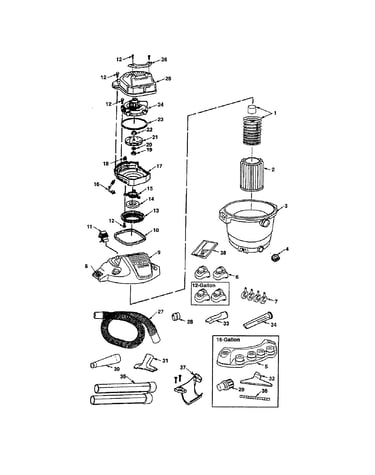

Wet/dry vacuum diagram

Vacuum motor cover

Part #831012

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Motor Filter 826411
#14

Wet/dry vacuum diagram

Shop vacuum motor filter

Part #826411

The manufacturer no longer makes this part, and there's no substitute part

Foam Pad Holder 826389
#15

Wet/dry vacuum diagram

Foam pad holder

Part #826389

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Inner Lid And Motor Support 826403-3
#17

Wet/dry vacuum diagram

Shop vacuum inner lid and motor support

Part #826403-3

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Cage Assembly 823201-2
#1

Wet/dry vacuum diagram

Shop vacuum filter cage assembly

Part #823201-2

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Power Cord 829718-12
#16

Wet/dry vacuum diagram

Shop vacuum power cord

Part #829718-12

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lid 509865-2
#9

Wet/dry vacuum diagram

Craftsman lid

Part #509865-2

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Blower Wheel 832804-1
#21

Wet/dry vacuum diagram

Craftsman blower wheel

Part #832804-1

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap (replaces 73107, 817465, 825881) 73185
#4

Wet/dry vacuum diagram

Shop vacuum drain cap (replaces 73107, 817465, 825881)

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Owner's Manual SP6776
#38

Wet/dry vacuum diagram

Craftsman owner's manual

Part #SP6776

The manufacturer no longer makes this part, and there's no substitute part
