Craftsman
Front-Engine Lawn Tractor

Model # 502255172 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 502255172 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 425 parts  |
E-ring STD581075
#72

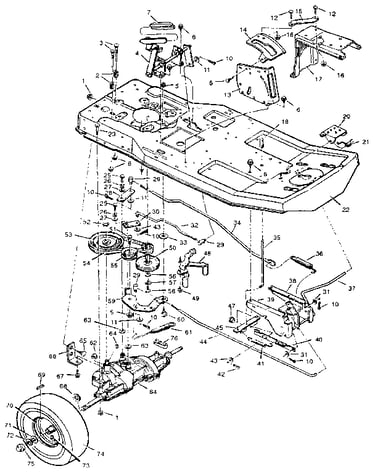

Drive system diagram

E-ring

Part #STD581075

Replaced by #812000029

?
Manufacturer substitution
This part replaces STD581075. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Ignition Switch 21064
#4

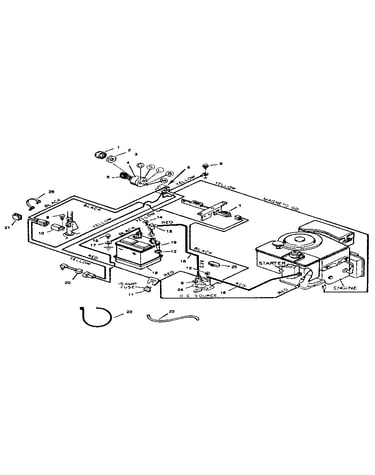

Electrical system diagram

Ignition switch

Part #21064

Replaced by #532365402

?
Manufacturer substitution
This part replaces 21064. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Battery 92196
#19

Electrical system diagram

Battery

Part #92196

The manufacturer no longer makes this part, and there's no substitute part

Belt 37X57
#1

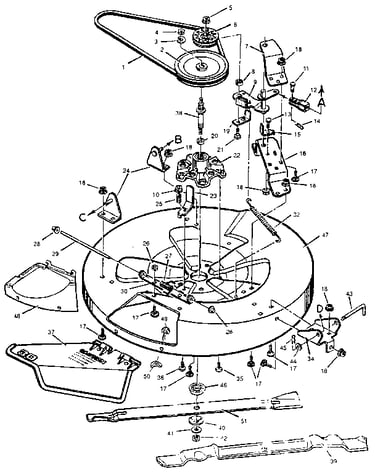

Mower housing diagram

Belt

Part #37X57

Replaced by #37X57MA

?
Manufacturer substitution
This part replaces 37X57. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$36.81 |
14% OFF Phone Price : $42.81
In Stock
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Hairpin Pin 31X4
#23

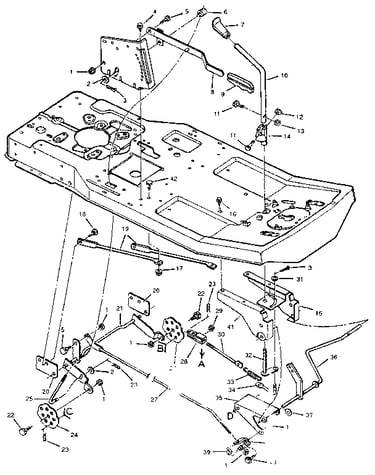

Mower housing suspension diagram

Hairpin pin

Part #31X4

Replaced by #703300

?
Manufacturer substitution
This part replaces 31X4. Substitute parts can look different from the original.
This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Key 91275
#5

Electrical system diagram

Key

Part #91275

Replaced by #691959

?
Manufacturer substitution
This part replaces 91275. Substitute parts can look different from the original.
This item is not returnable
$11.16 |
15% OFF Phone Price : $13.16
In Stock
Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 55962E700
#22

Mower housing diagram

Housing assembly

Part #55962E700

Replaced by #455962MA

?
Manufacturer substitution
This part replaces 55962E700. Substitute parts can look different from the original.
$102.19 |
11% OFF Phone Price : $114.19
In Stock
Idler Pulley 91178
#6

Mower housing diagram

Idler pulley

Part #91178

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 91178. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
