Model # GBS279PVB02 Official Whirlpool 27" electric wall oven
Here are the diagrams and repair parts for Official Whirlpool GBS279PVB02 27" electric wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

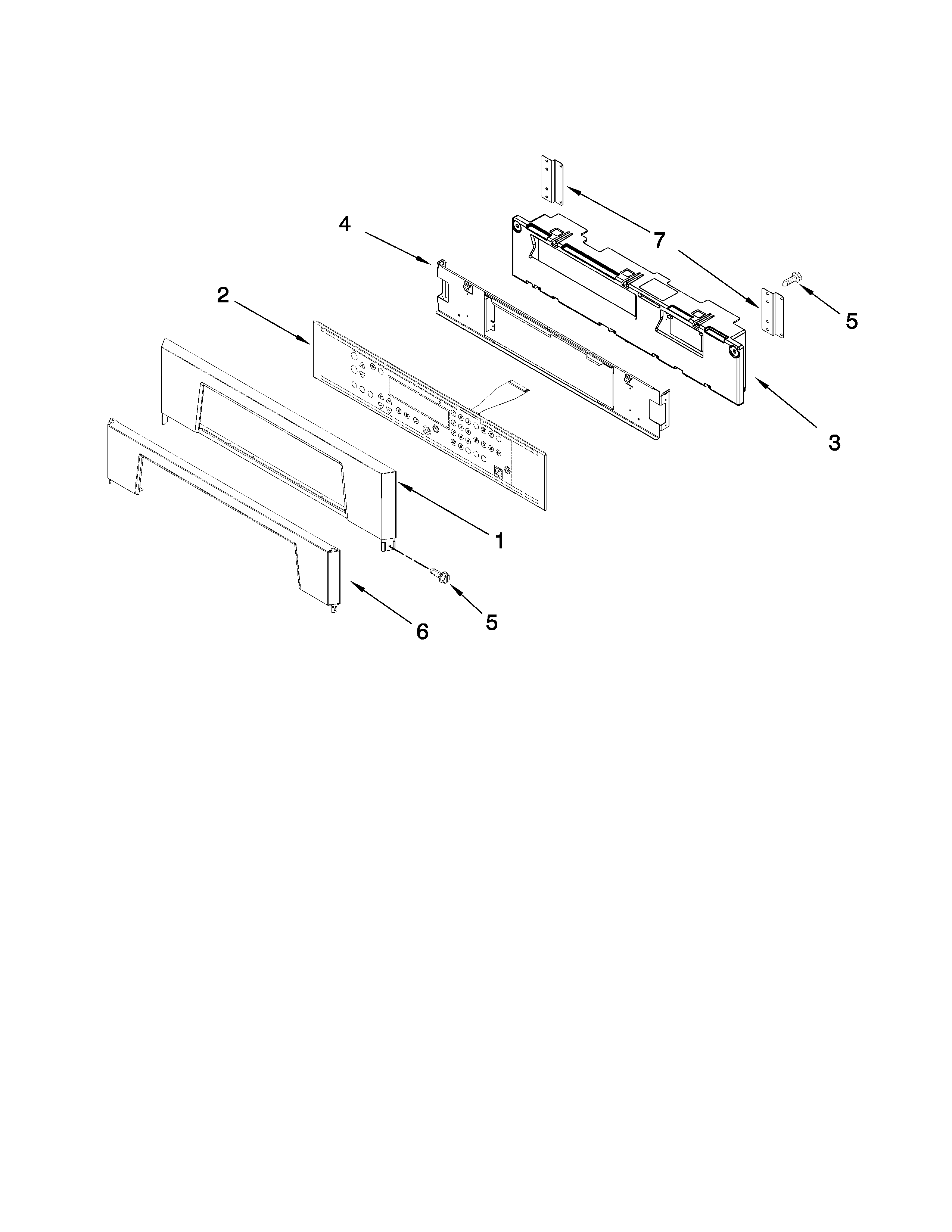

SELECT DIAGRAM
Browse Parts forGBS279PVB02 Wall Ovens
- #10

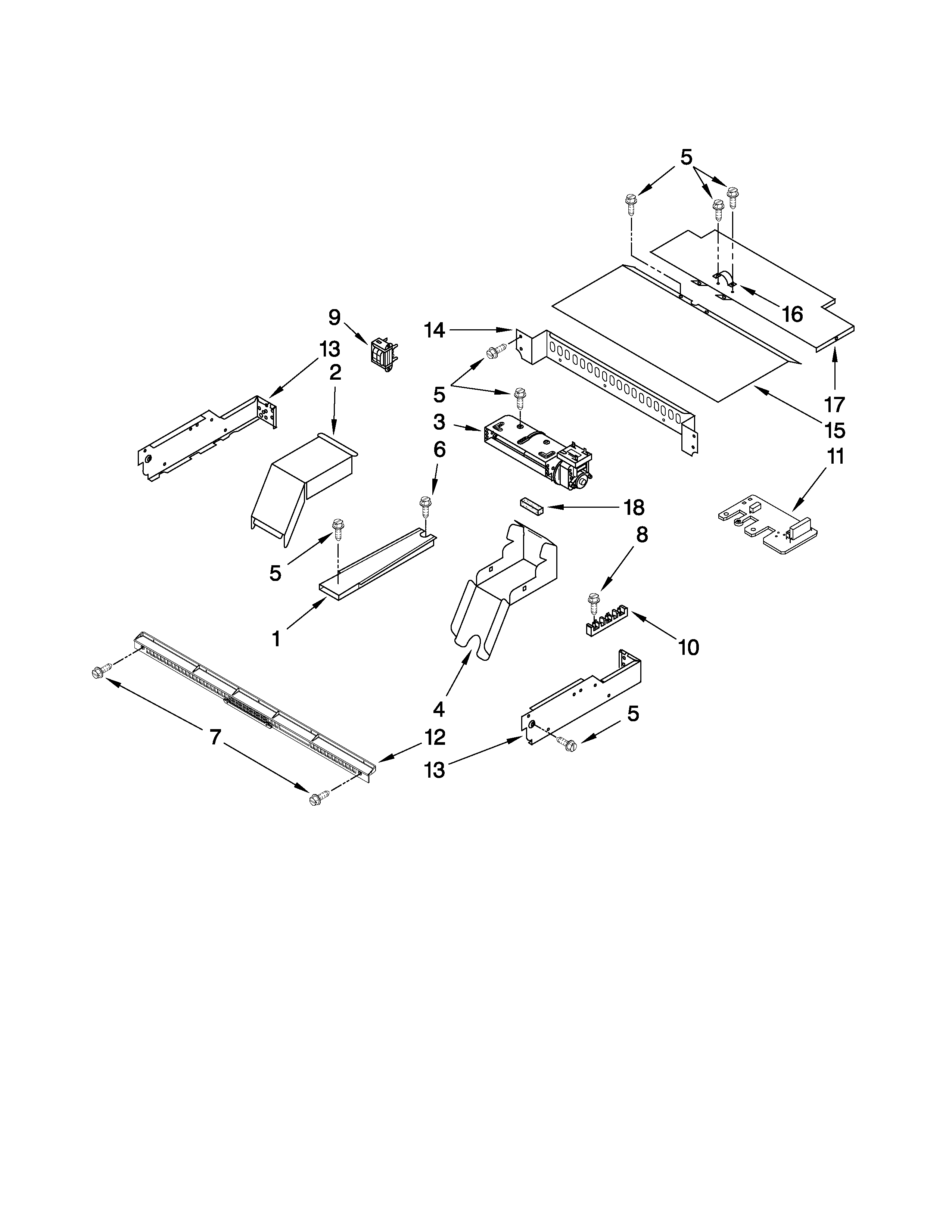

Top venting parts diagram
Terminal blockPart #7401P038-60
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces 7401P038-60. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #30

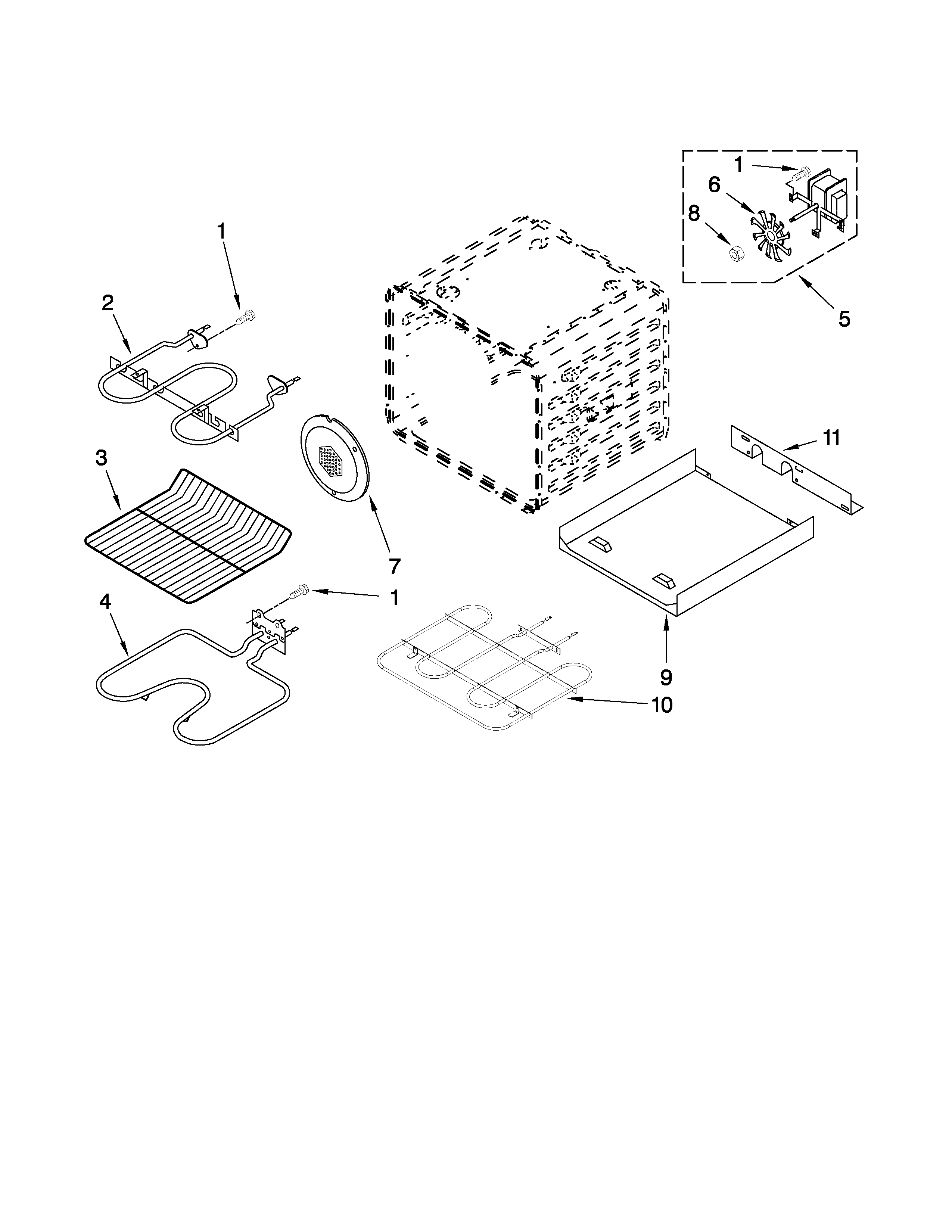

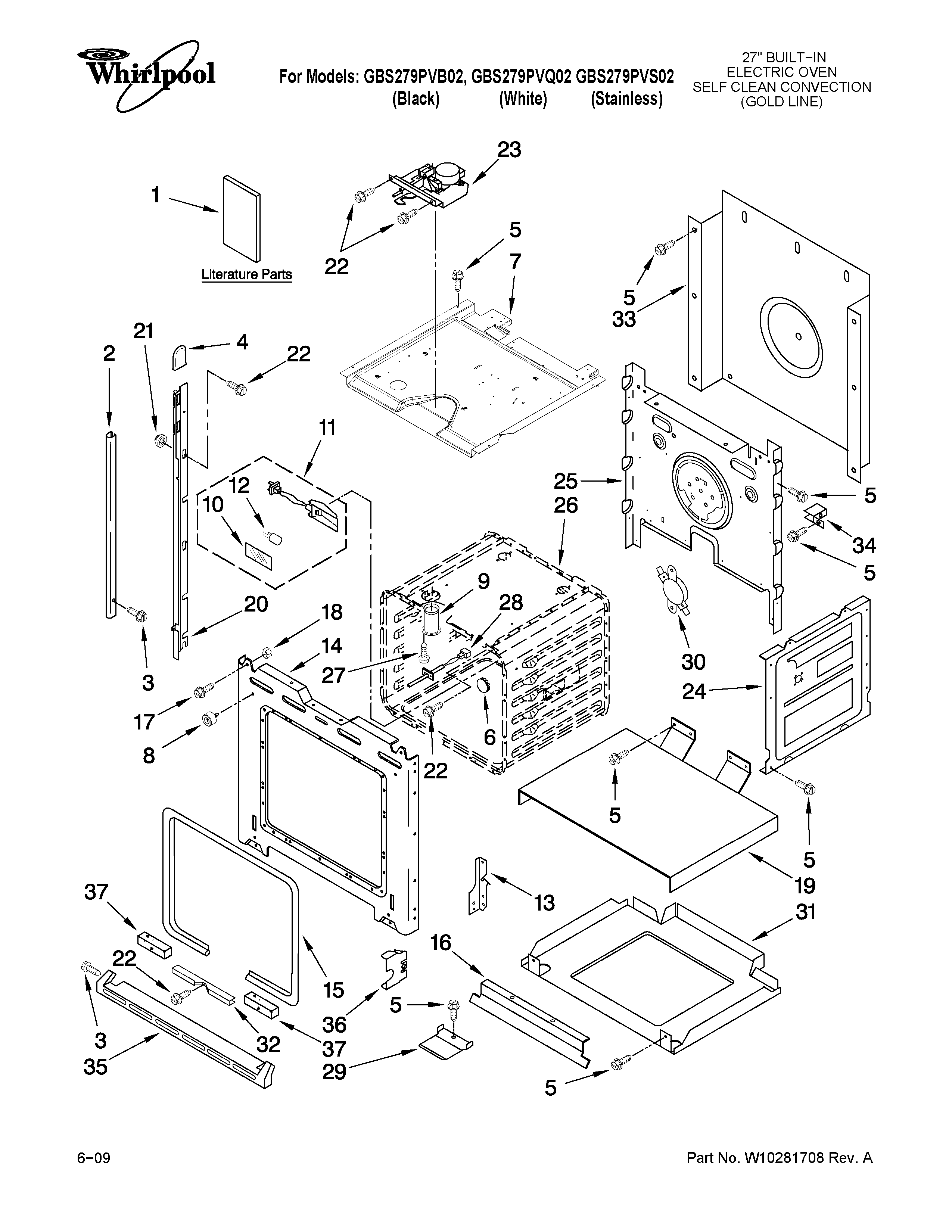

Oven parts diagram
Range high-limit thermostatPart #9759242
Replaced by #WP9759242
?Manufacturer substitutionThis part replaces 9759242. Substitute parts can look different from the original.$50.21 |11% OFF Phone Price : $56.21In Stock - #2C

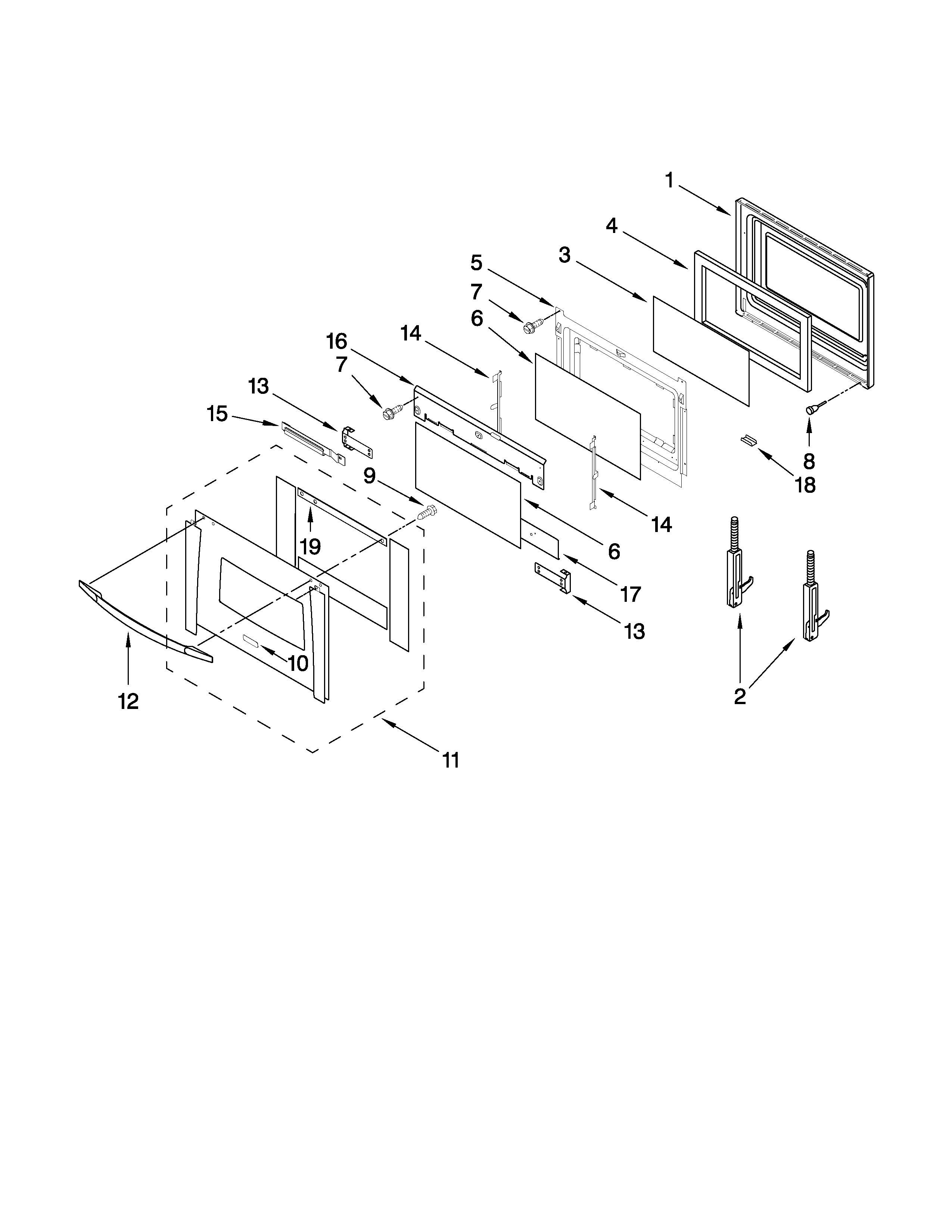

Oven door parts diagram
Oven door hinge (black)Part #9760576
Replaced by #WP9760576
?Manufacturer substitutionThis part replaces 9760576. Substitute parts can look different from the original.$44.12 |12% OFF Phone Price : $50.12In Stock - #23
Oven parts diagram
Range oven door lock assemblyPart #9760888
Replaced by #WP9760889
?Manufacturer substitutionThis part replaces 9760888. Substitute parts can look different from the original.$208.13 |5% OFF Phone Price : $220.13In Stock - #27
Oven parts diagram
ScrewPart #3196176
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196176. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #3
Top venting parts diagram
Oven blower assemblyPart #W10176670
Replaced by #WPW10176670
?Manufacturer substitutionThis part replaces W10176670. Substitute parts can look different from the original.$168.89 |7% OFF Phone Price : $180.89In Stock - #5
Internal oven parts diagram
Fan motorPart #W10196895
Replaced by #W10794022
?Manufacturer substitutionThis part replaces W10196895. Substitute parts can look different from the original.$171.91 |7% OFF Phone Price : $183.91In Stock - #3
Oven parts diagram
ScrewPart #3400832
Replaced by #WP3400832
?Manufacturer substitutionThis part replaces 3400832. Substitute parts can look different from the original.This item is not returnable$4.41 |18% OFF Phone Price : $5.41In Stock - #12
Oven parts diagram
Wall oven light bulbPart #W10169757
Replaced by #WPW10169757
?Manufacturer substitutionThis part replaces W10169757. Substitute parts can look different from the original.This item is not returnable$38.29 |45% OFF Was : $69.17In Stock - #NI
Optional parts diagram
Terminal nutPart #7103P027-60
Replaced by #WP7103P027-60
?Manufacturer substitutionThis part replaces 7103P027-60. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock
