Samsung
Bottom-Mount Refrigerator

Model # RF197ABPN/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF197ABPN-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

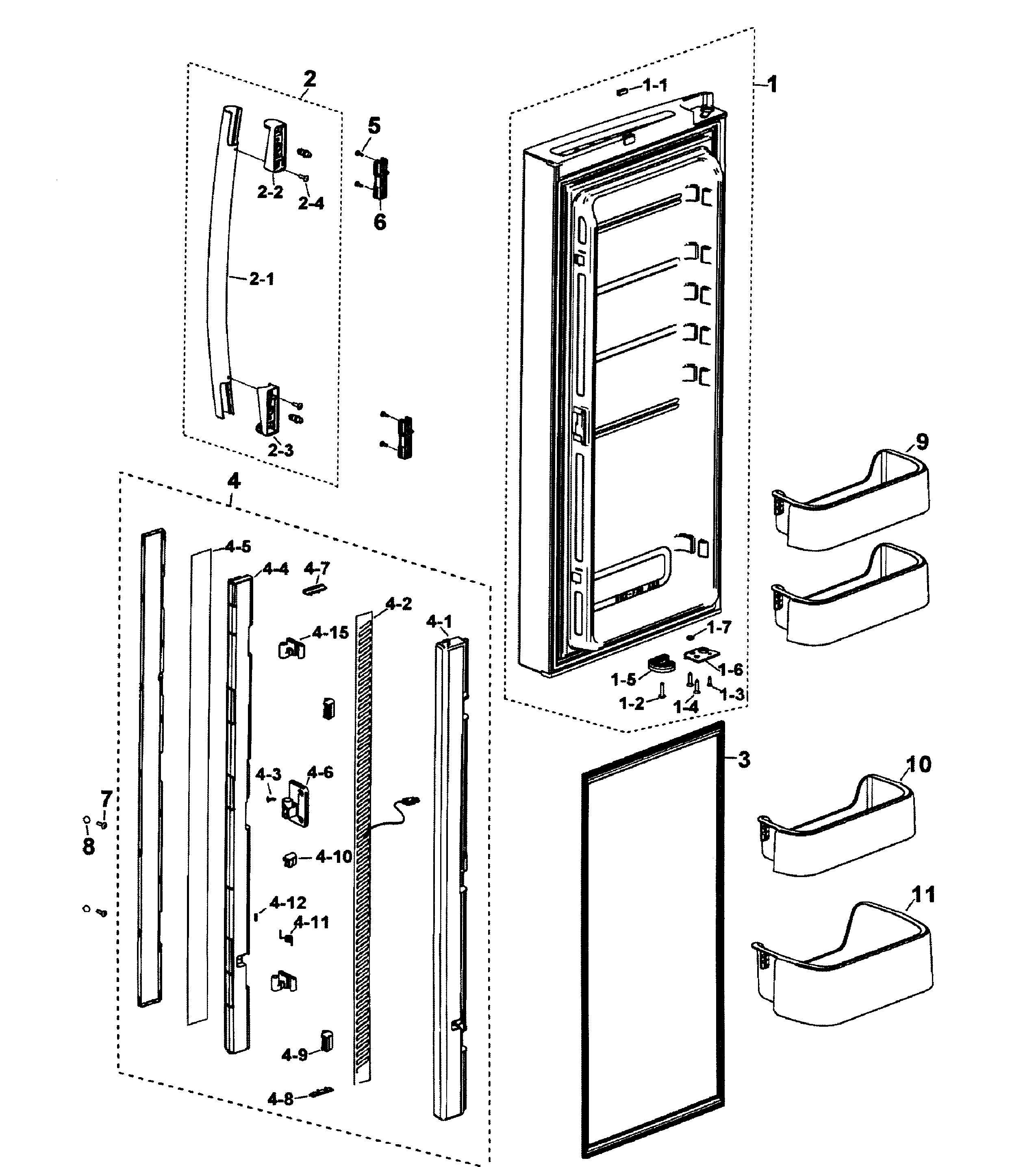

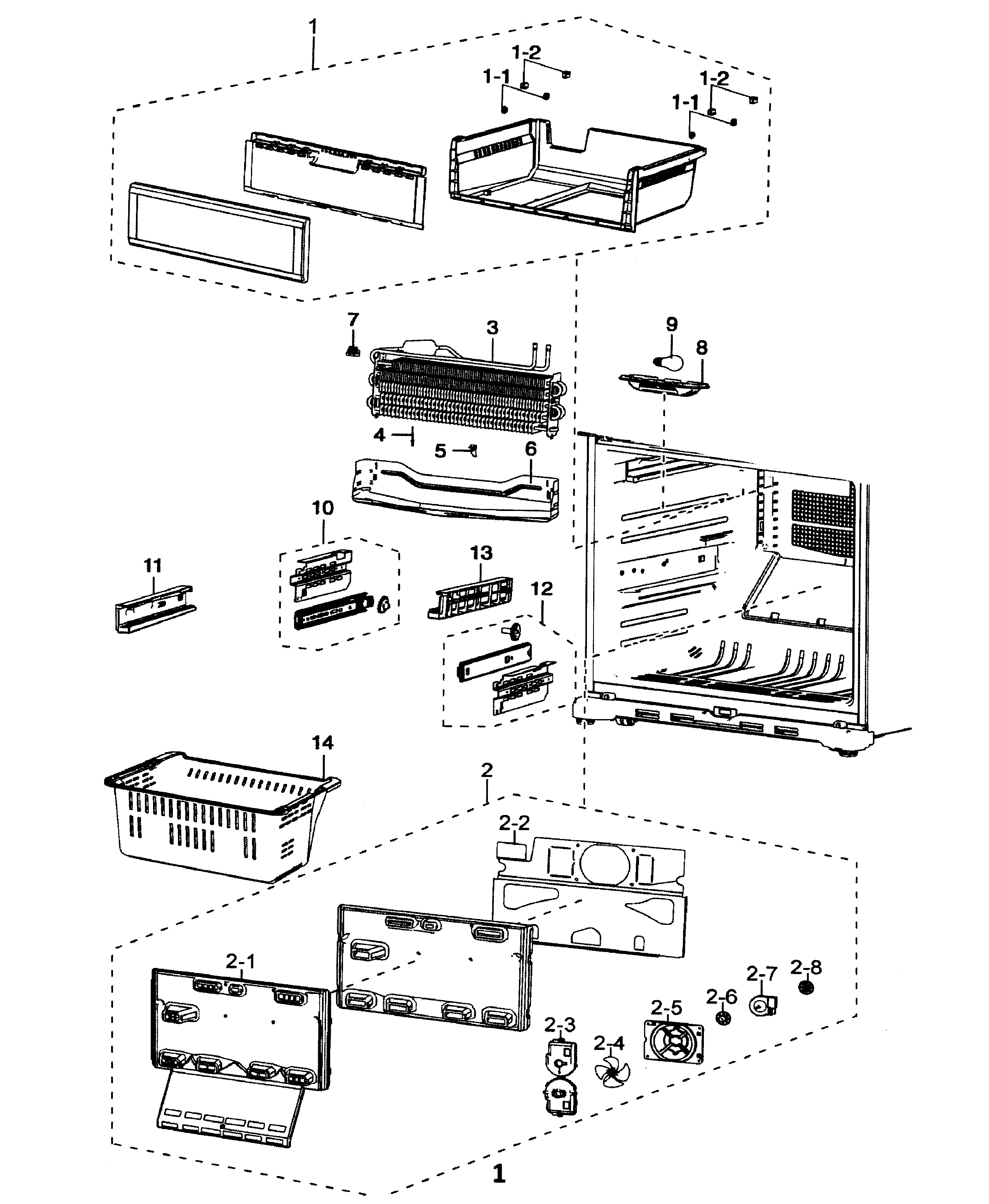

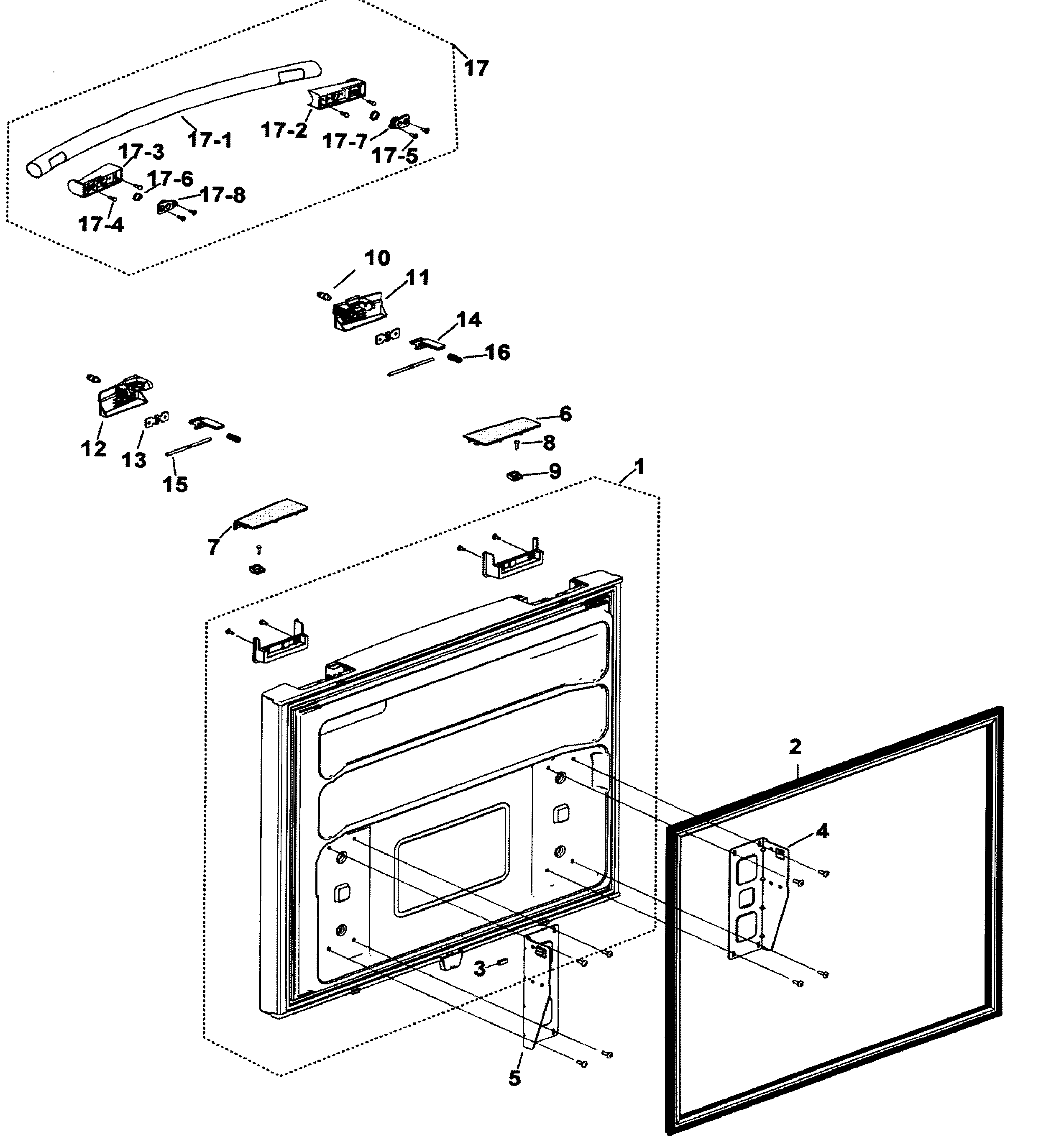

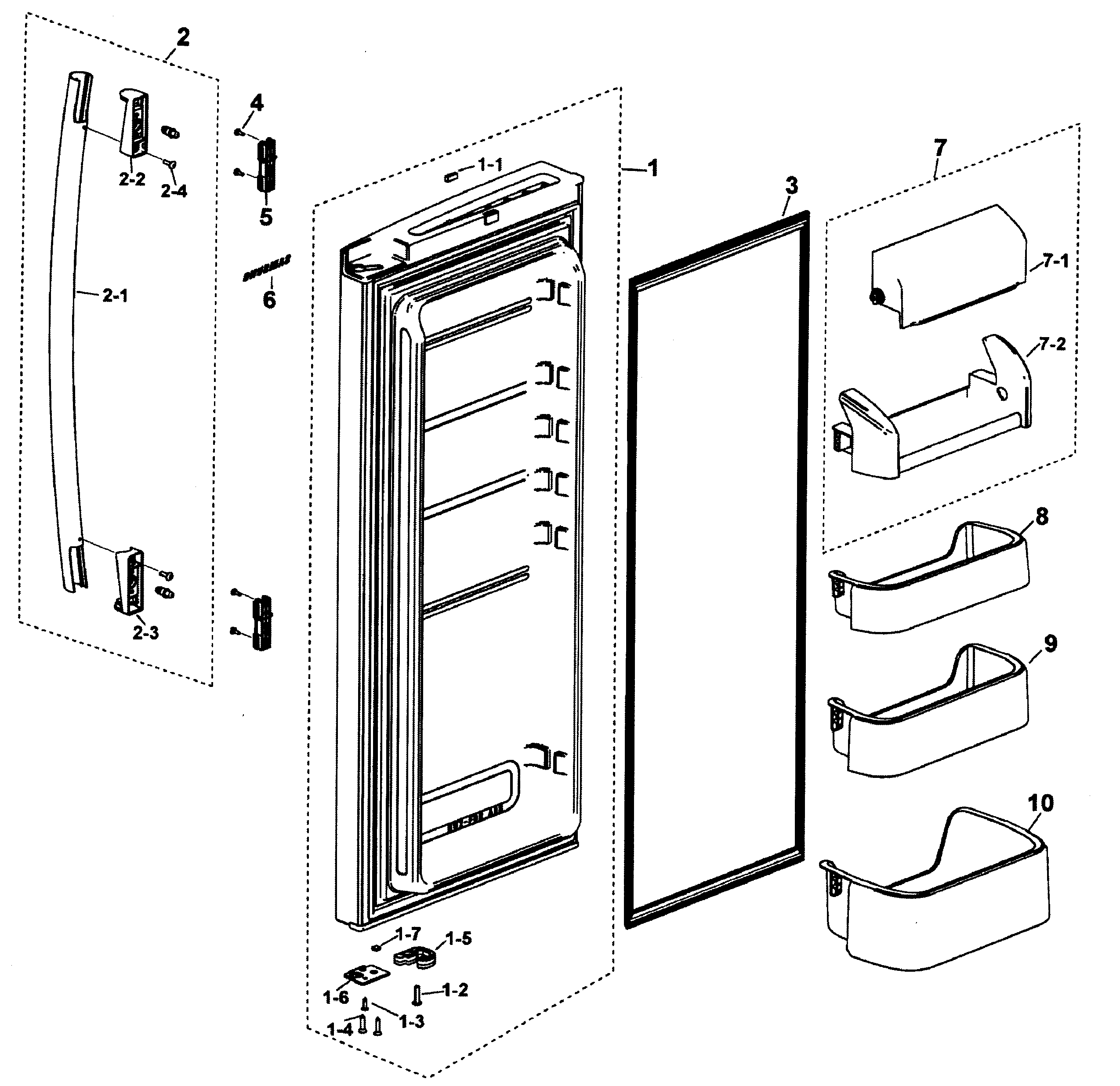

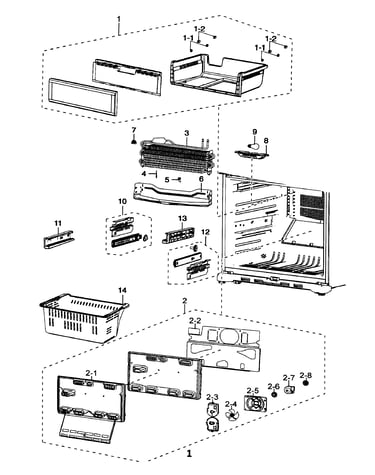

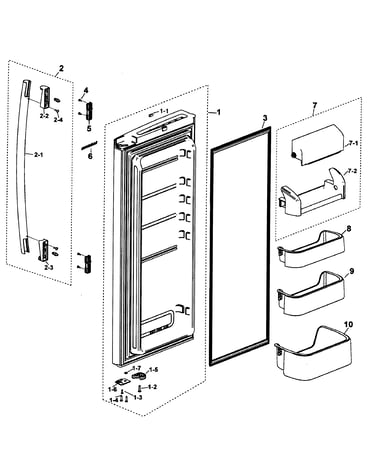

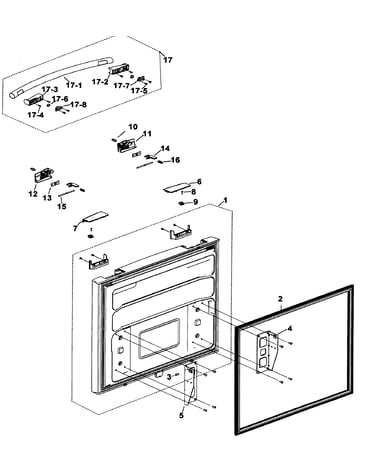

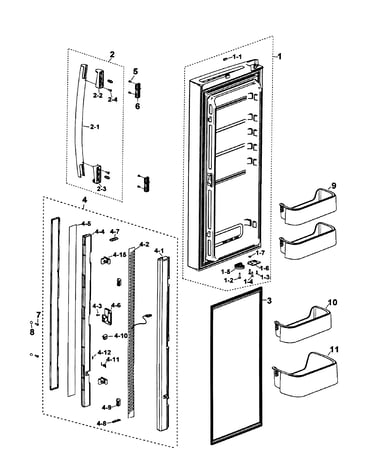

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Refrigerator Evaporator Cover DA97-06656A
#4

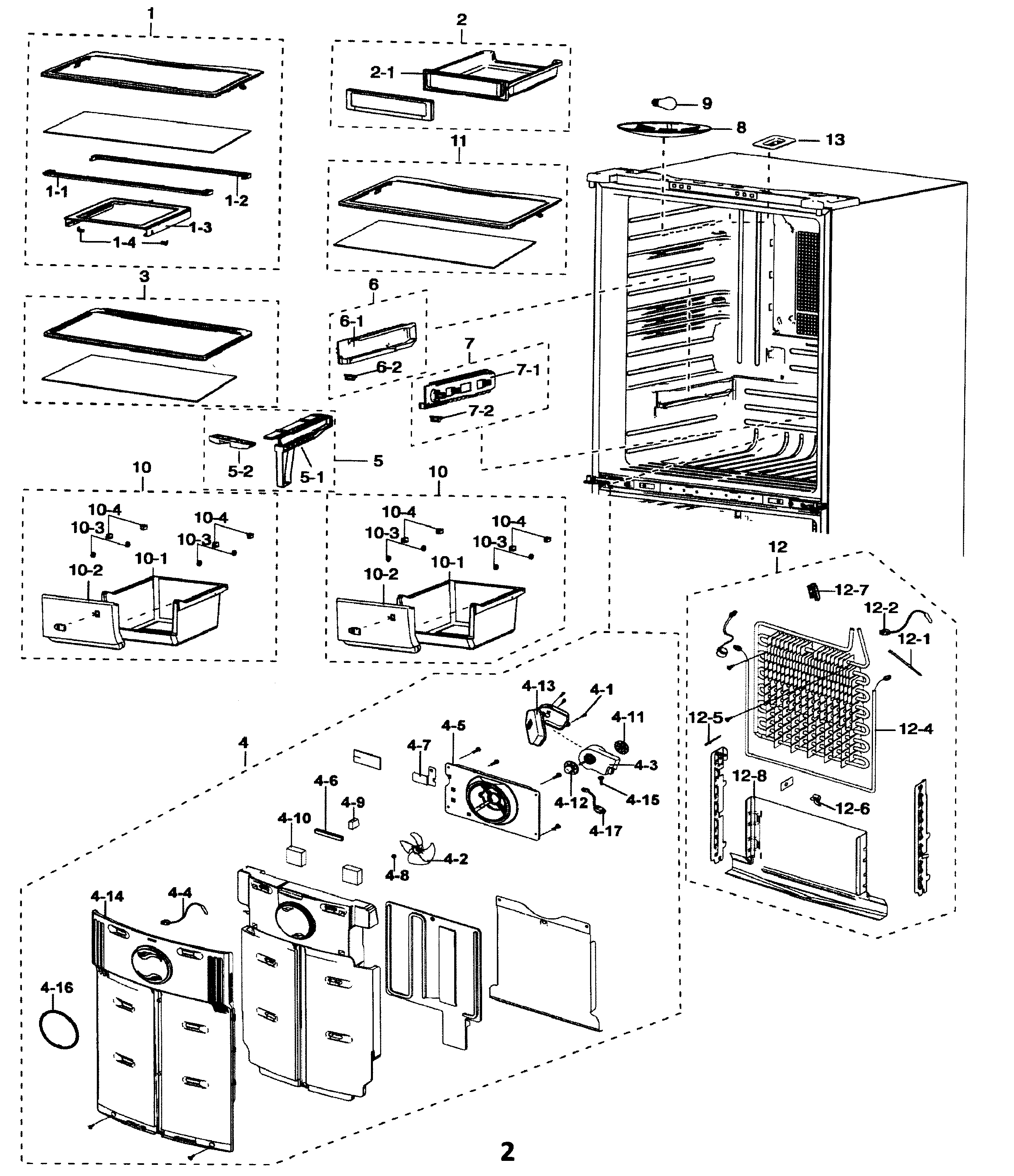

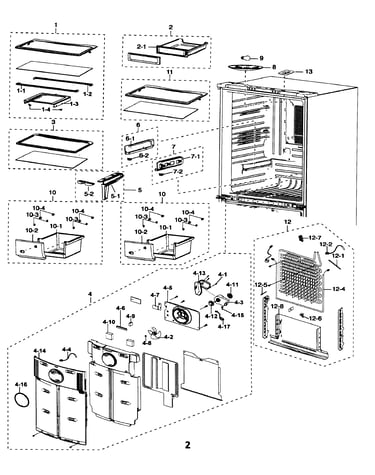

Refrigerator diagram

Refrigerator evaporator cover

Part #DA97-06656A

Replaced by #DA97-11823A

?
Manufacturer substitution
This part replaces DA97-06656A. Substitute parts can look different from the original.
BEST SELLER
$155.36 |
7% OFF Phone Price : $167.36
In Stock
Refrigerator Protector DA47-00243C
Refrigerator protector

Part #DA47-00243C

Replaced by #DA47-00243K

?
Manufacturer substitution
This part replaces DA47-00243C. Substitute parts can look different from the original.
BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Evaporator Fan Motor (replaces Da31-00146c) DA31-00146H
Refrigerator evaporator fan motor (replaces da31-00146c)

Part #DA31-00146H

BEST SELLER
$96.97 |
11% OFF Phone Price : $108.97
In Stock
Refrigerator Drain Cap DA97-04049A
#12

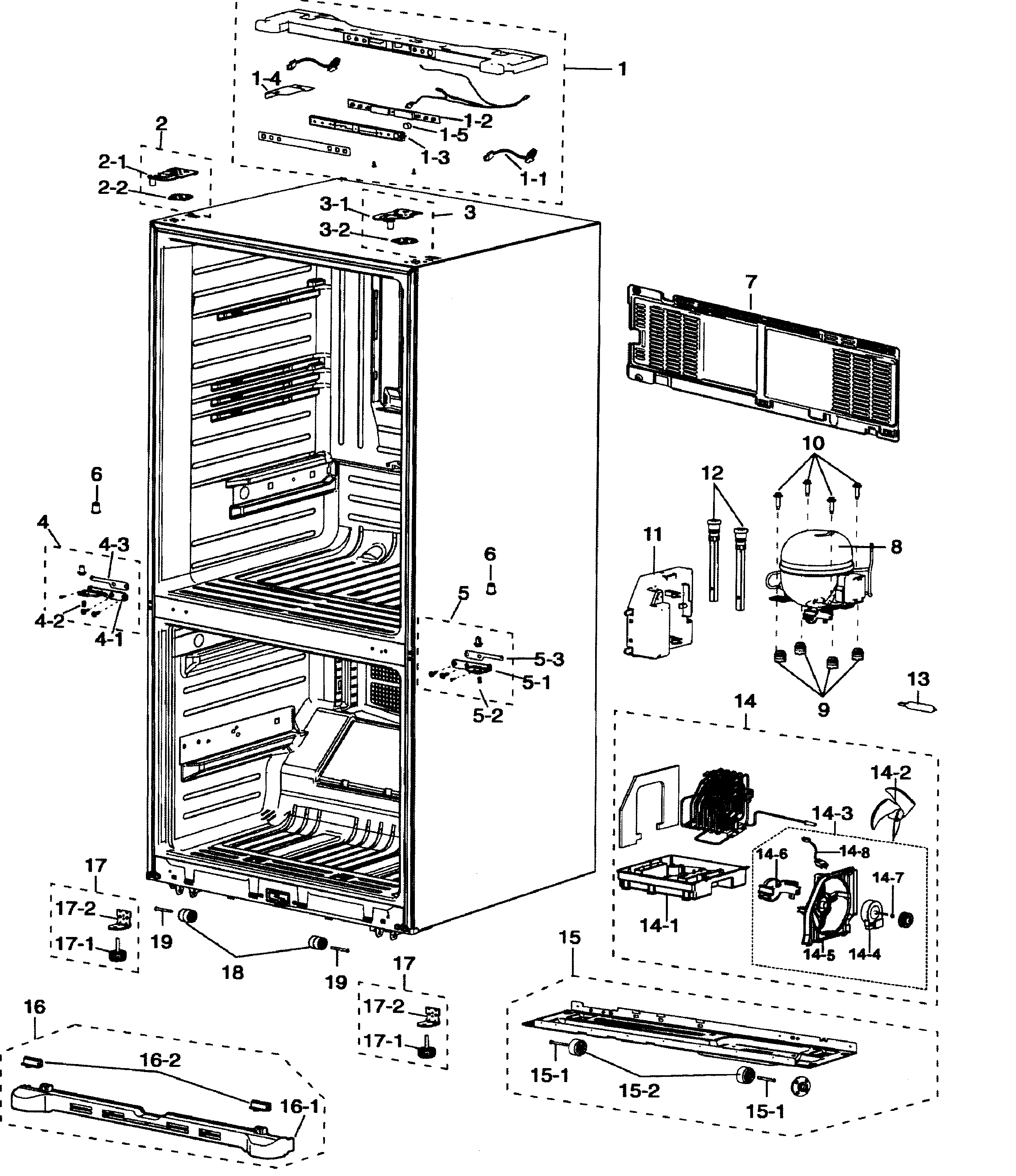

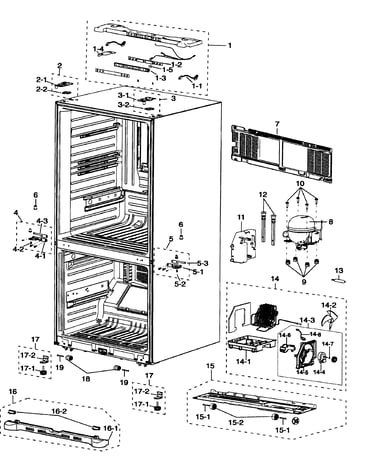

Cabinet diagram

Refrigerator drain cap

Part #DA97-04049A

Replaced by #DA97-04049D

?
Manufacturer substitution
This part replaces DA97-04049A. Substitute parts can look different from the original.
BEST SELLER
$28.75 |
17% OFF Phone Price : $34.75
In Stock
Refrigerator Case Assembly DA97-06725A
#10

Refrigerator diagram

Refrigerator case assembly

Part #DA97-06725A

Replaced by #DA97-11620B

?
Manufacturer substitution
This part replaces DA97-06725A. Substitute parts can look different from the original.
BEST SELLER
$103.95 |
10% OFF Phone Price : $115.95
Back Order
Refrigerator Dryer DA62-01514A
#13

Cabinet diagram

Refrigerator dryer

Part #DA62-01514A

Replaced by #DA81-06007A

?
Manufacturer substitution
This part replaces DA62-01514A. Substitute parts can look different from the original.
BEST SELLER
$65.48 |
8% OFF Phone Price : $71.48
In Stock
Refrigerator Condenser Fan (replaces Da31-00220a) DA31-00146B
#14-4

Cabinet diagram

Refrigerator condenser fan (replaces da31-00220a)

Part #DA31-00146B

BEST SELLER
$92.34 |
6% OFF Phone Price : $98.34
In Stock
Refrigerator Screw (replaces 6002-000231, 6002-000494) 6002-000213
Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213

BEST SELLER
This item is not returnable
$2.26
In Stock
Refrigerator Door Closer Cam (replaces Da61-05001a) DA61-02383E
Refrigerator door closer cam (replaces da61-05001a)

Part #DA61-02383E

This item is not returnable
$5.64 |
15% OFF Phone Price : $6.64
In Stock
Refrigerator Door Reed Switch DA34-00043A
#1-1

Cabinet diagram

Refrigerator door reed switch

Part #DA34-00043A

Replaced by #DA34-00043J

?
Manufacturer substitution
This part replaces DA34-00043A. Substitute parts can look different from the original.
$22.11 |
21% OFF Phone Price : $28.11
In Stock
