Model # RS34BFW1 Official Frigidaire electric range - lf32089340

Here are the diagrams and repair parts for Official Frigidaire RS34BFW1 electric range - lf32089340, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

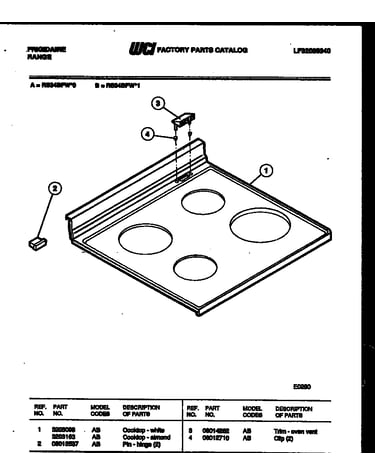

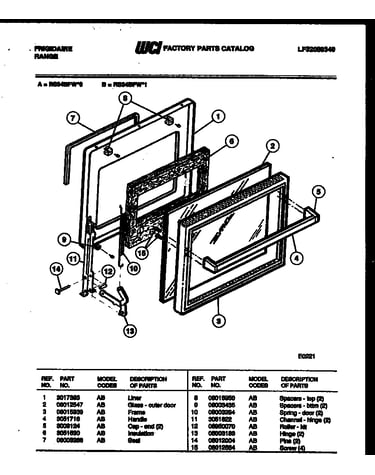

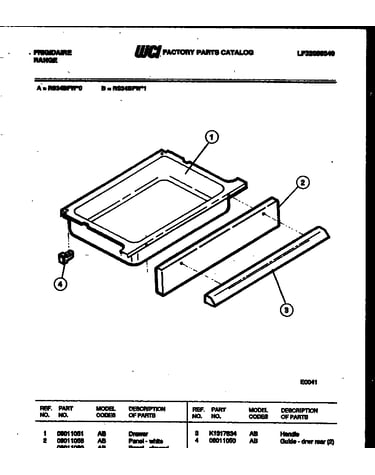

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Light 3013071
#12

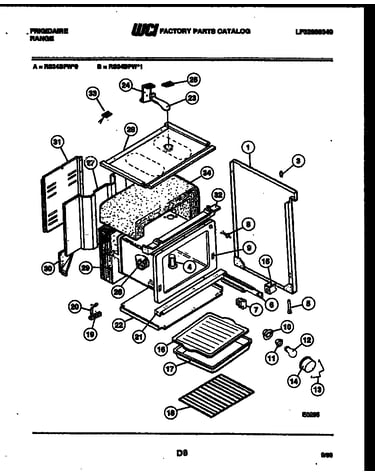

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 3051098
#19

Body parts diagram

Block

Part #3051098

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 3051098. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Element 3051519
#5

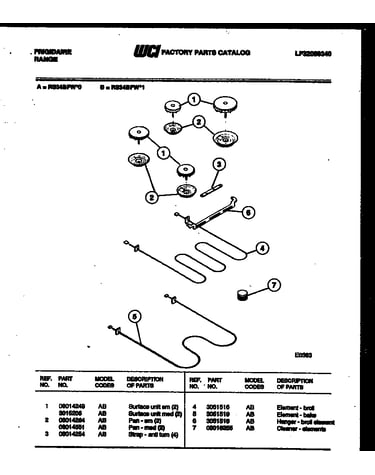

Broiler parts diagram

Element

Part #3051519

Replaced by #5303051519

?
Manufacturer substitution
This part replaces 3051519. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Receptacle 08011085
#11

Body parts diagram

Receptacle

Part #08011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 08011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Rack 3131973
#18

Body parts diagram

Oven rack

Part #3131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
Back Order
Insert Broil 3205234
#16

Body parts diagram

Insert broil

Part #3205234

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3205234. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Switch 08015948
#8

Body parts diagram

Switch

Part #08015948

Replaced by #5301314211

?
Manufacturer substitution
This part replaces 08015948. Substitute parts can look different from the original.
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Support 08012539
#15

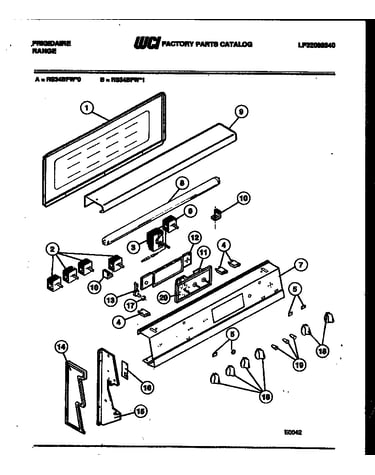

Backguard diagram

Support

Part #08012539

This item is not returnable
$3.99
In Stock
Pan 08005315
#17

Body parts diagram

Pan

Part #08005315

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 08005315. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Element 3051516
#4

Broiler parts diagram

Element

Part #3051516

Replaced by #5303051516

?
Manufacturer substitution
This part replaces 3051516. Substitute parts can look different from the original.
$138.69 |
8% OFF Phone Price : $150.69
In Stock
