Craftsman
Gas Walk-Behind Mower

Model # 917974321 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 917974321 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

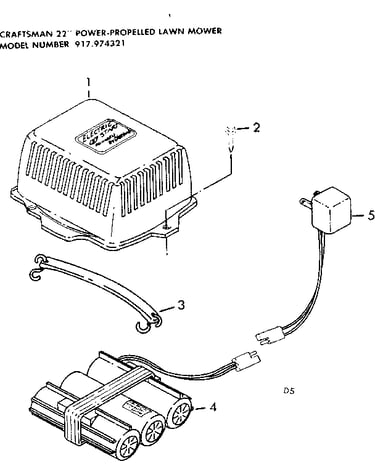

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Blade 69334
#58

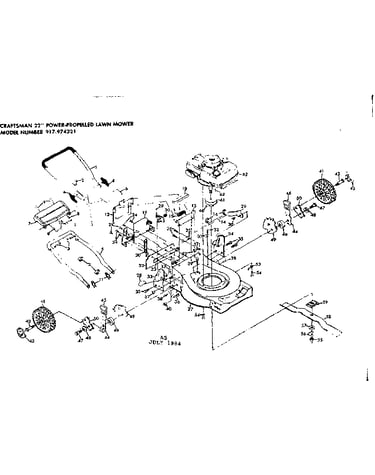

Main frame diagram

Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Keps Nut STD541431
#37

Main frame diagram

Keps nut

Part #STD541431

Replaced by #596040501

?
Manufacturer substitution
This part replaces STD541431. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Washer 52160
#22

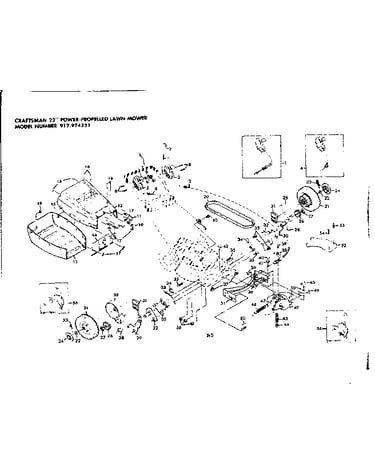

Drive assembly diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Spacer 84920
#46

Main frame diagram

Spacer

Part #84920

Replaced by #532401629

?
Manufacturer substitution
This part replaces 84920. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Shoulder Bolt 84921
#47

Main frame diagram

Shoulder bolt

Part #84921

Replaced by #532174719

?
Manufacturer substitution
This part replaces 84921. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
Screw 55187
#35

Main frame diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Husqvarna Lawn & Garden Equipment Washer (replaces 532057079, 5320570-79) 57079
#14

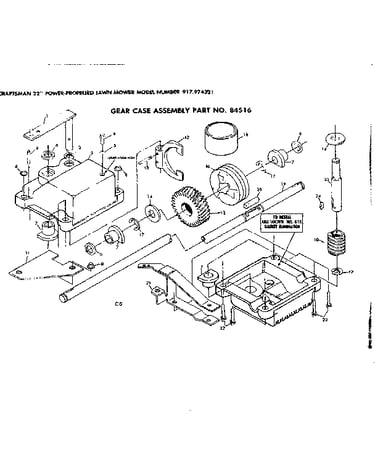

Gear case assembly diagram

Husqvarna lawn & garden equipment washer (replaces 532057079, 5320570-79)

Part #57079

Replaced by #532057079

?
Manufacturer substitution
This part replaces 57079. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Decal 78850
#28

Main frame diagram

Decal

Part #78850

Replaced by #539913010

?
Manufacturer substitution
This part replaces 78850. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Clamp 83553
#19

Drive assembly diagram

Clamp

Part #83553

Replaced by #582027401

?
Manufacturer substitution
This part replaces 83553. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Engine Pulley 83121
#61

Main frame diagram

Engine pulley

Part #83121

Replaced by #532084596

?
Manufacturer substitution
This part replaces 83121. Substitute parts can look different from the original.
$27.98 |
18% OFF Phone Price : $33.98
In Stock
