Model # LDF9810ST Official LG dishwasher

Here are the diagrams and repair parts for Official LG LDF9810ST dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

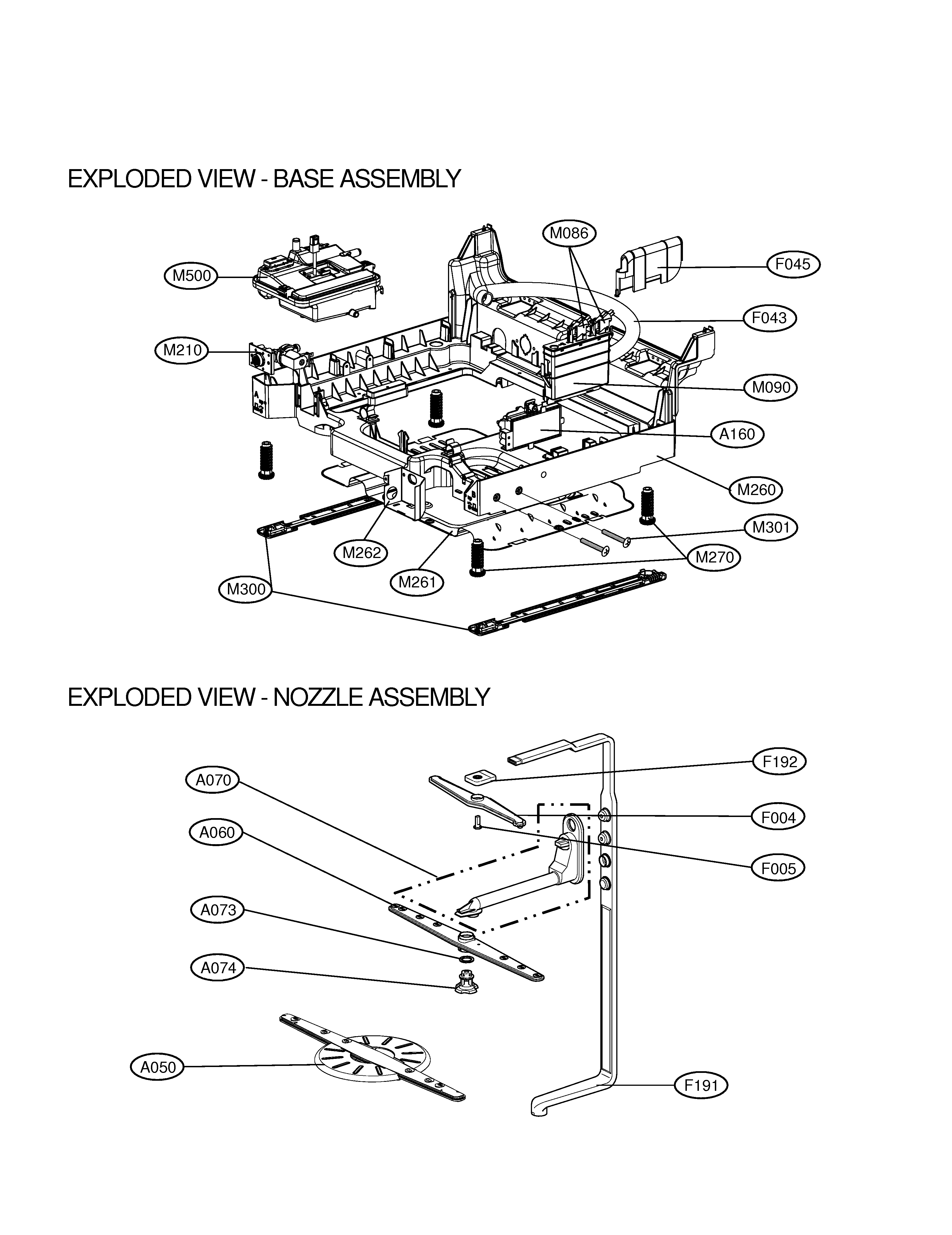

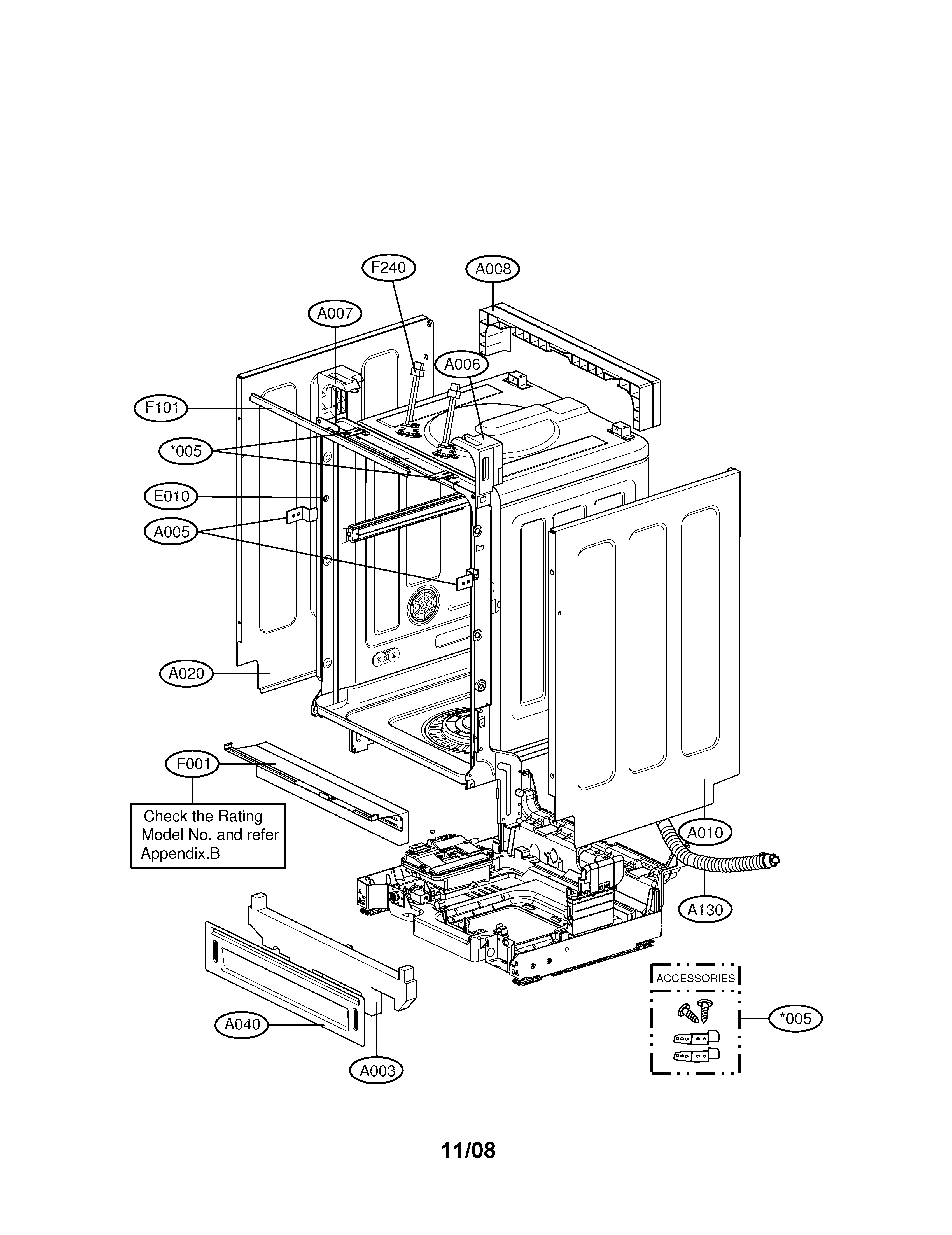

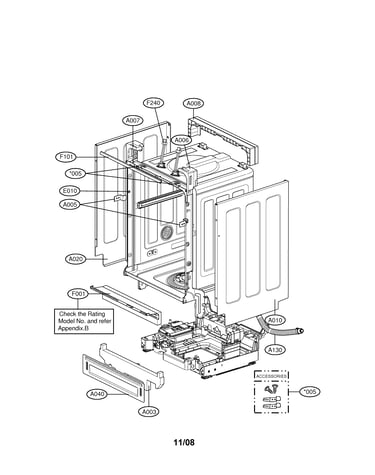

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Motor Assembly 4681ED3001B
#M026

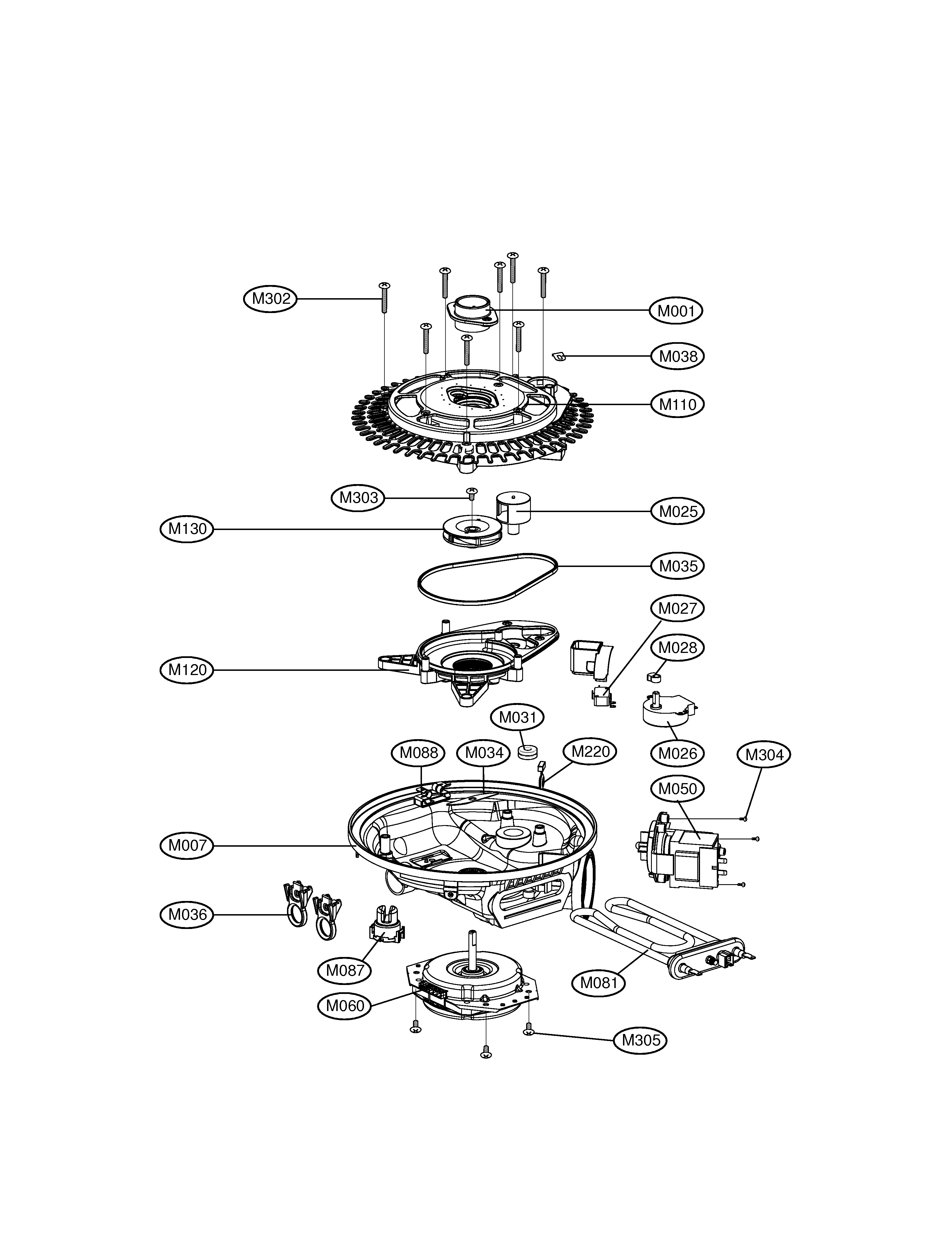

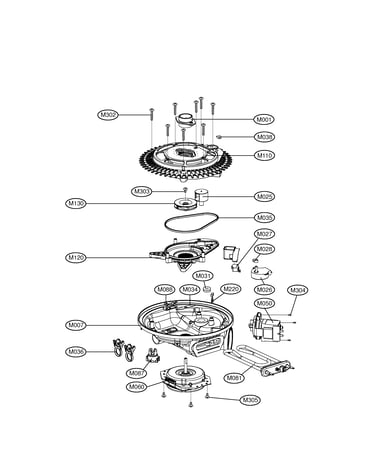

Sump assembly diagram

Motor assembly

Part #4681ED3001B

Replaced by #4681ED3001D

?
Manufacturer substitution
This part replaces 4681ED3001B. Substitute parts can look different from the original.
BEST SELLER
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Dishwasher Door Cable (replaces 4933dd3001a) 4933DD3001B
#F013

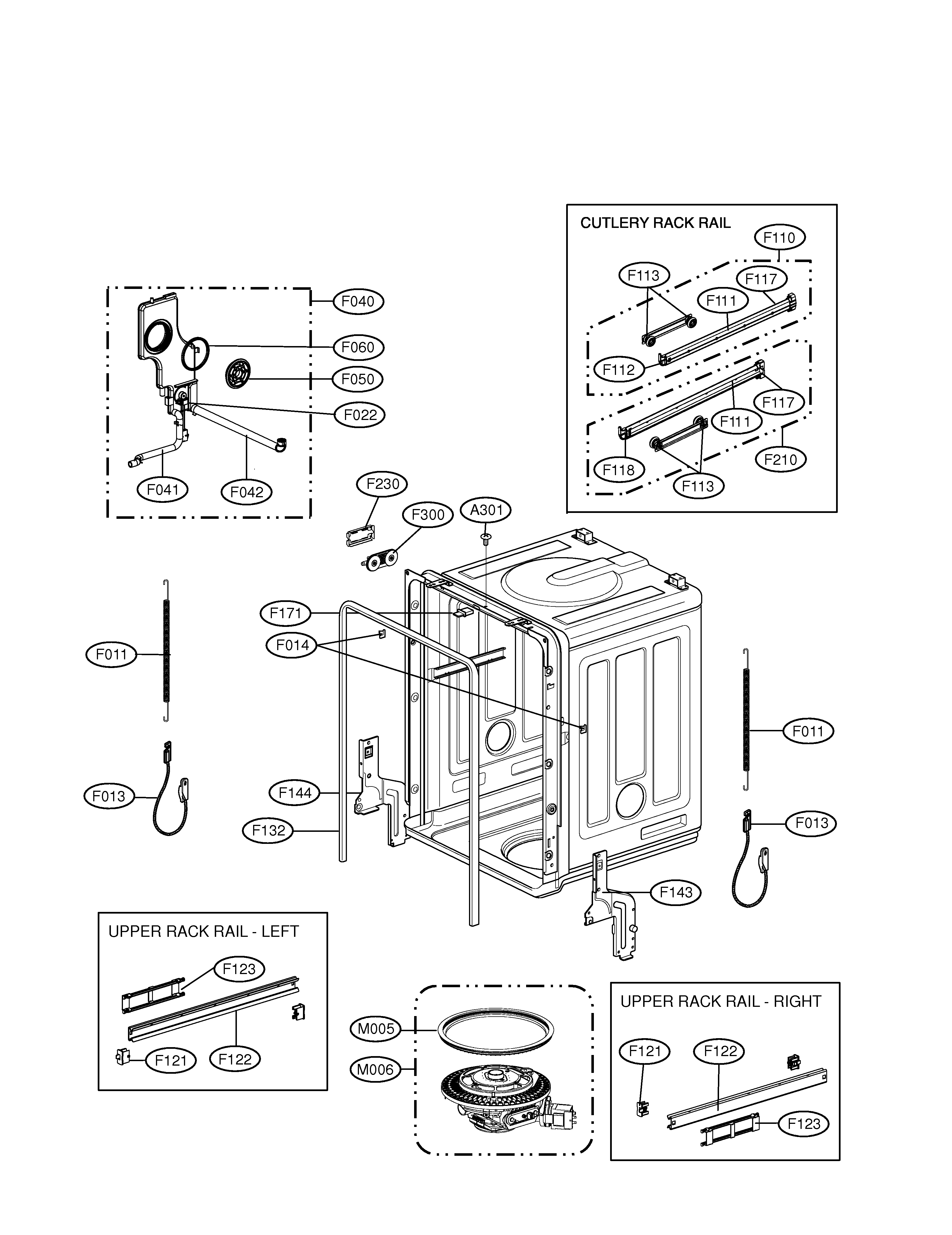

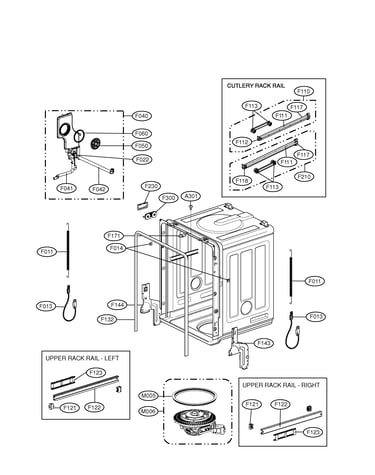

Tub assembly diagram

Dishwasher door cable (replaces 4933dd3001a)

Part #4933DD3001B

BEST SELLER
$14.56 |
12% OFF Phone Price : $16.56
In Stock
Complete Sump Assembly AJH31248603
Complete sump assembly

Part #AJH31248603

Replaced by #AJH31248608

?
Manufacturer substitution
This part replaces AJH31248603. Substitute parts can look different from the original.
BEST SELLER
$262.85 |
$12.00 OFF Phone Price : $274.85
In Stock
Dishwasher Diverter Motor Seal 3920ED4009B
#M031

Sump assembly diagram

Dishwasher diverter motor seal

Part #3920ED4009B

This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
Dishwasher Door Vent Blower Motor Assembly (replaces Abt35083802) ABT35083801
#NI

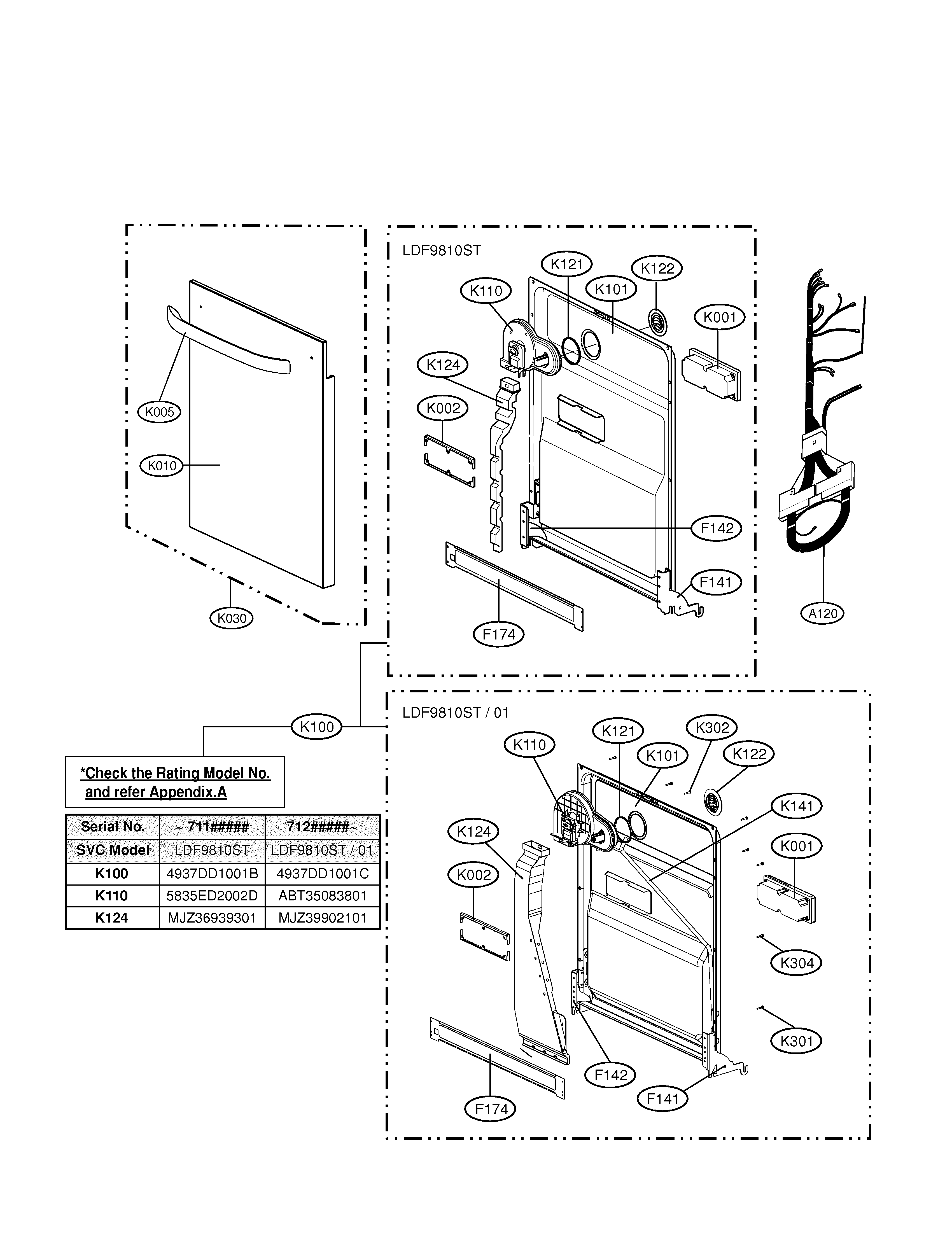

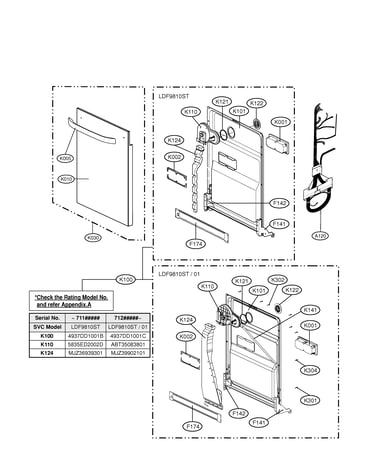

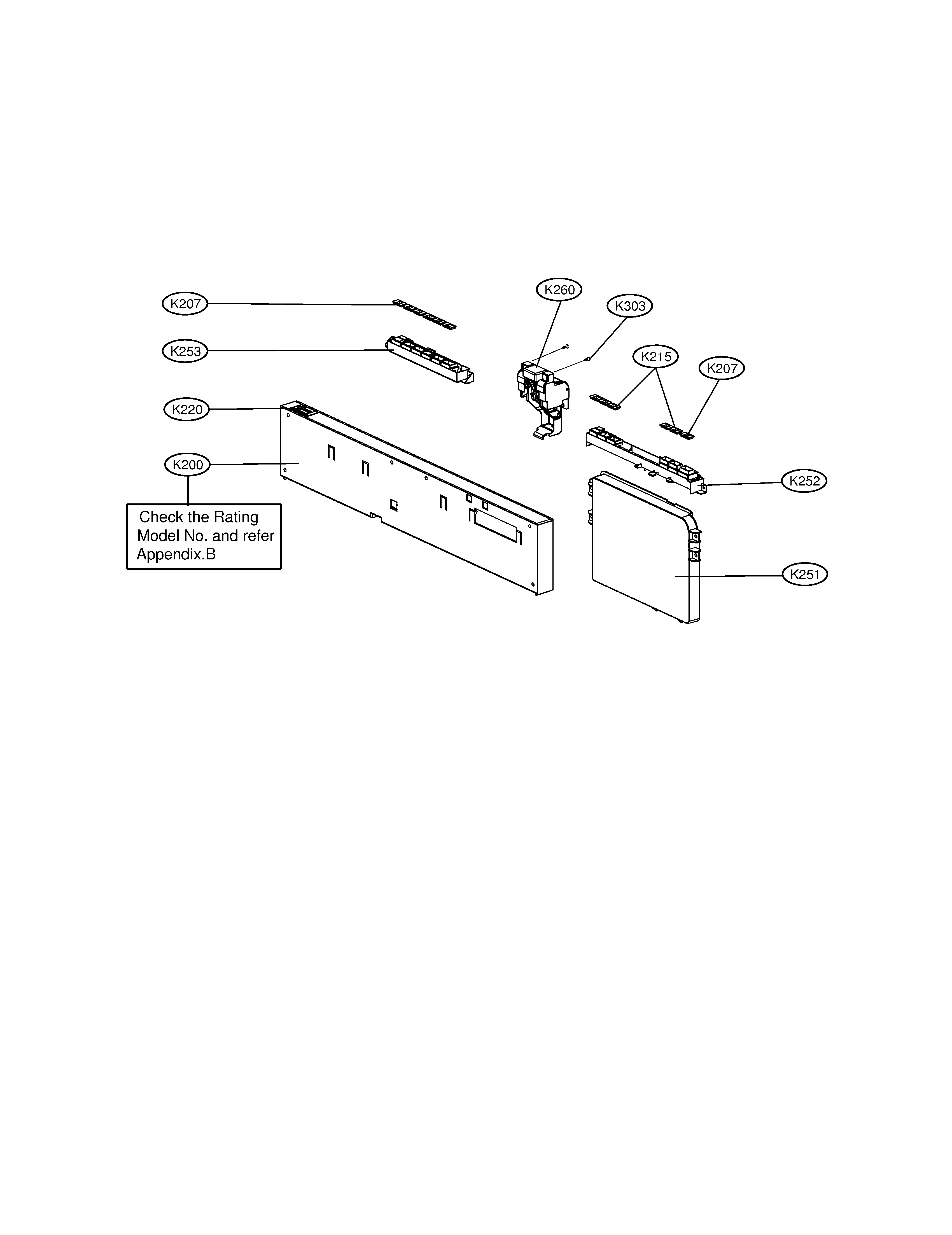

Door diagram

Dishwasher door vent blower motor assembly (replaces abt35083802)

Part #ABT35083801

$90.75 |
6% OFF Phone Price : $96.75
In Stock
Dishwasher Pump Housing Seal MFZ32863101
#M035

Sump assembly diagram

Dishwasher pump housing seal

Part #MFZ32863101

This item is not returnable
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Dishwasher Water Heating Element 5301DD1001A
#M081

Sump assembly diagram

Dishwasher water heating element

Part #5301DD1001A

Replaced by #5301DD1001G

?
Manufacturer substitution
This part replaces 5301DD1001A. Substitute parts can look different from the original.
$93.39 |
6% OFF Phone Price : $99.39
In Stock
Dishwasher Door Vent Blower Gasket 4986DD3003A
#K121

Door diagram

Dishwasher door vent blower gasket

Part #4986DD3003A

This item is not returnable
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Dishwasher Dishrack Roller, Lower (replaces 4581dd9002b) 4581DD3003B
Dishwasher dishrack roller, lower (replaces 4581dd9002b)

Part #4581DD3003B

This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Dishwasher Silverware Basket (replaces 5005dd1001a) 5005DD1001B
#A110

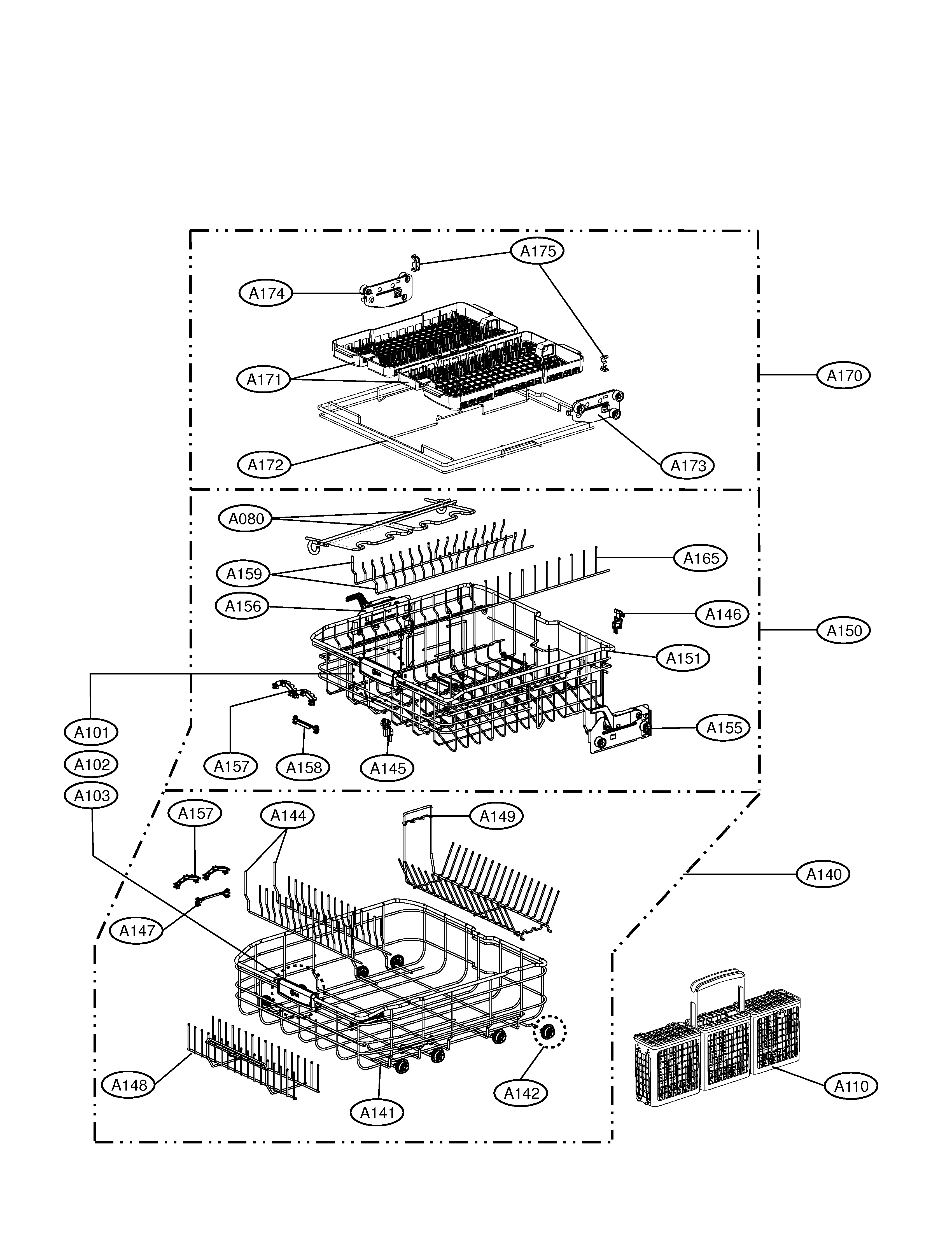

Racks diagram

Dishwasher silverware basket (replaces 5005dd1001a)

Part #5005DD1001B

$28.51 |
17% OFF Phone Price : $34.51
In Stock
