Model # EBU2X18BA1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EBU2X18BA1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Grommet 1173158
#M

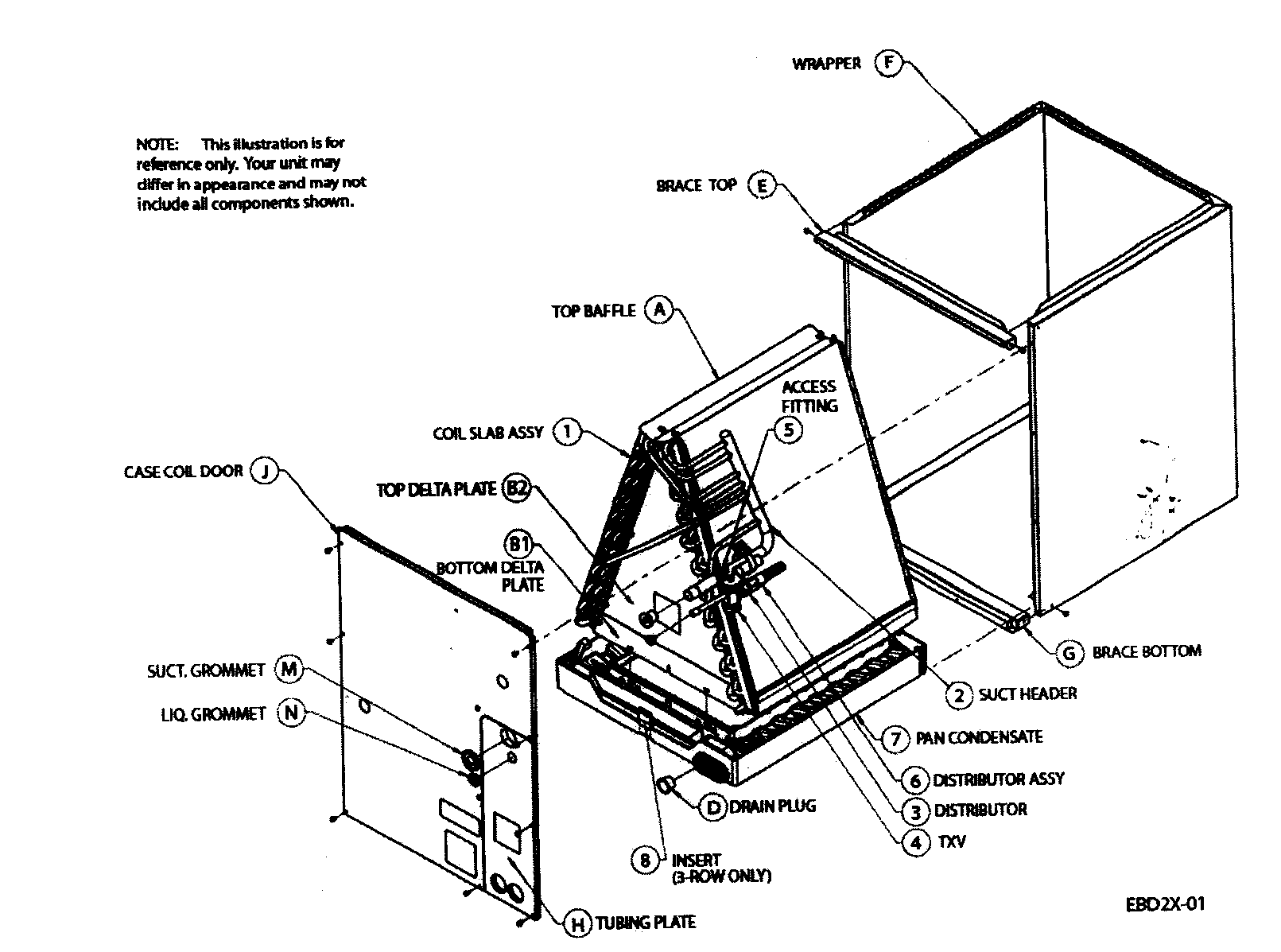

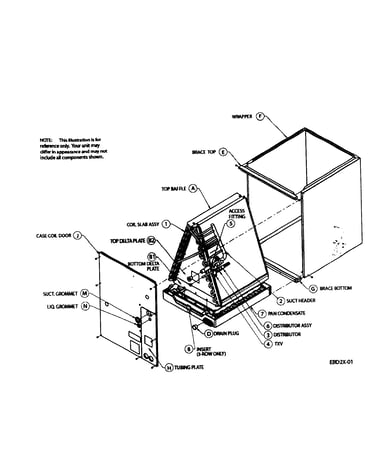

Cabinet parts diagram

Grommet

Part #1173158

This item is not returnable
$2.86
In Stock
Adapter 1085010
#D

Cabinet parts diagram

Adapter

Part #1085010

$10.20
In Stock
Pan Conden 1173096
#7

Cabinet parts diagram

Pan conden

Part #1173096

$185.78
In Stock
Fitting 1171507
#5

Cabinet parts diagram

Fitting

Part #1171507

This item is not returnable
$4.51
In Stock
Grommet 1173157
#N

Cabinet parts diagram

Grommet

Part #1173157

This item is not returnable
$2.16
In Stock
Evap A Coil Slab Asy 1173128
#1

Cabinet parts diagram

Evap a coil slab asy

Part #1173128

The manufacturer no longer makes this part, and there's no substitute part

Brace, Top 1173202
#E

Cabinet parts diagram

Brace, top

Part #1173202

The manufacturer no longer makes this part, and there's no substitute part

Strainer 1171740
#NI

Cabinet parts diagram

Strainer

Part #1171740

The manufacturer no longer makes this part, and there's no substitute part

Valve Txv 1174458
#4A

Cabinet parts diagram

Valve txv

Part #1174458

The manufacturer no longer makes this part, and there's no substitute part

Plate Tubing 1173223
#H

Cabinet parts diagram

Plate tubing

Part #1173223

The manufacturer no longer makes this part, and there's no substitute part
