Kenmore
Wall Oven/Microwave Combo

Model # 79047843400 Official Kenmore wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 79047843400 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

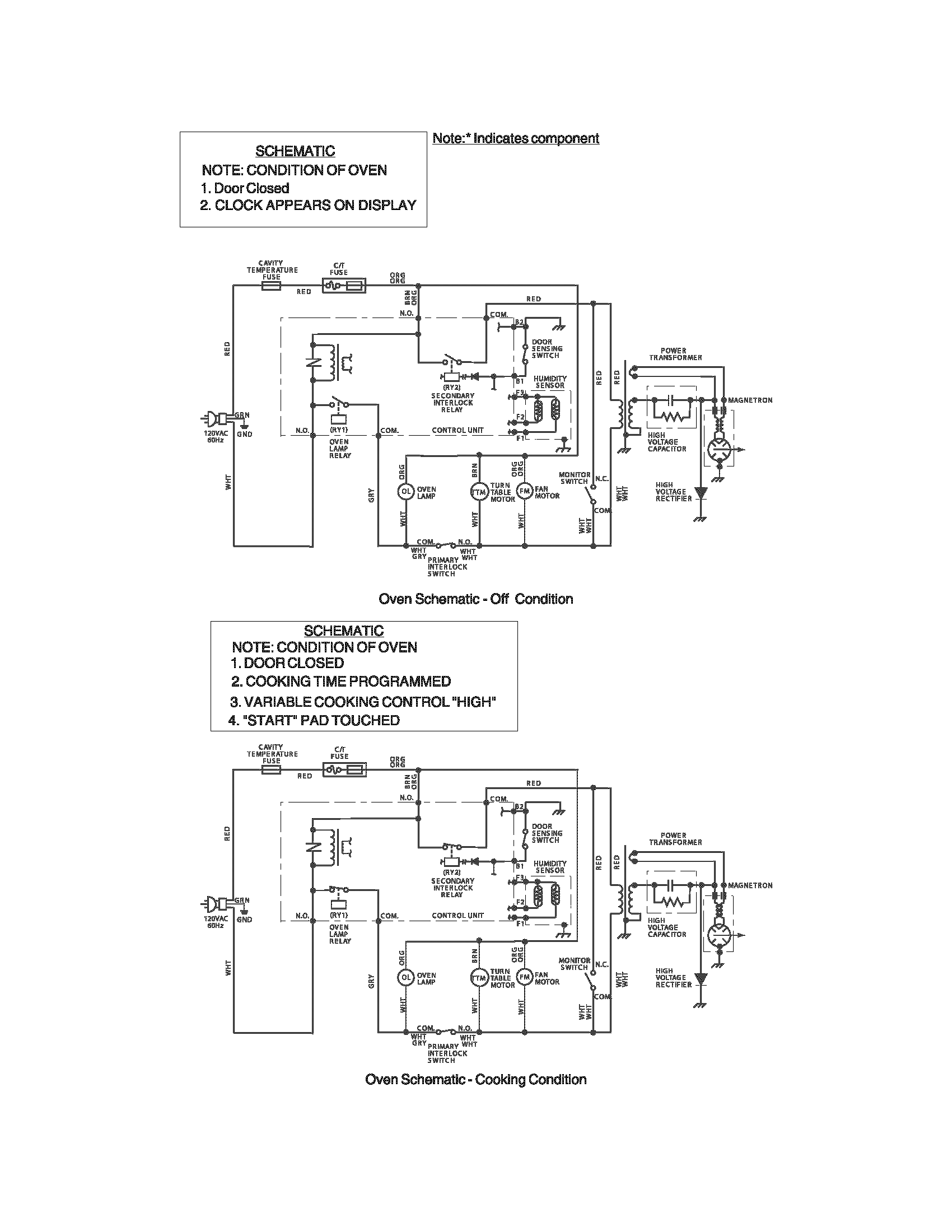

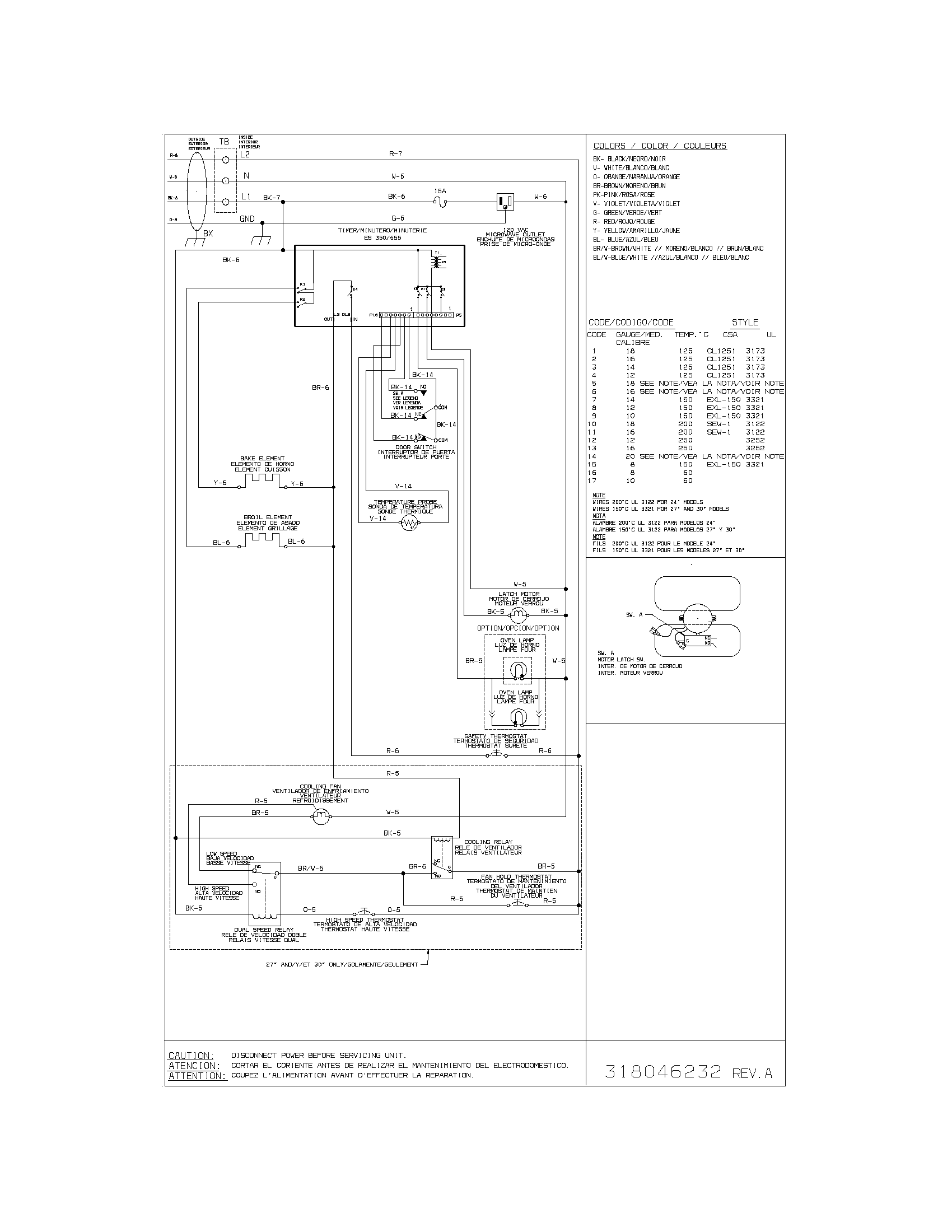

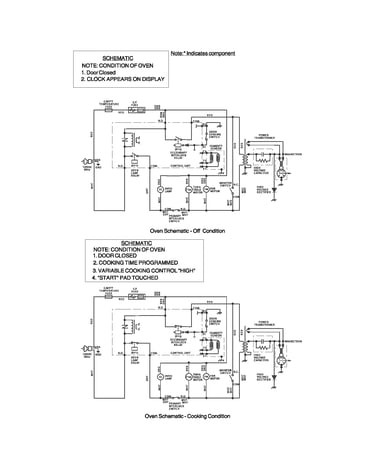

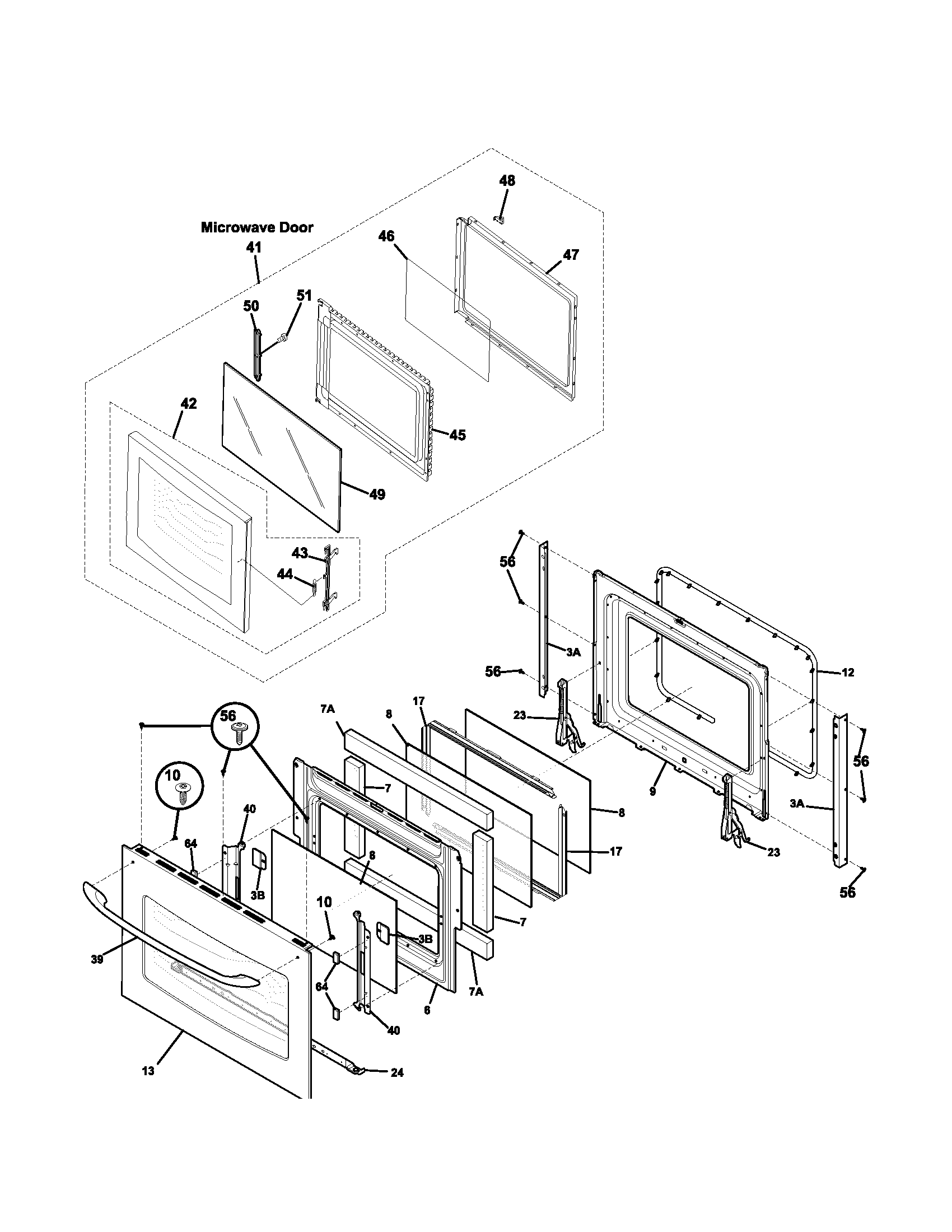

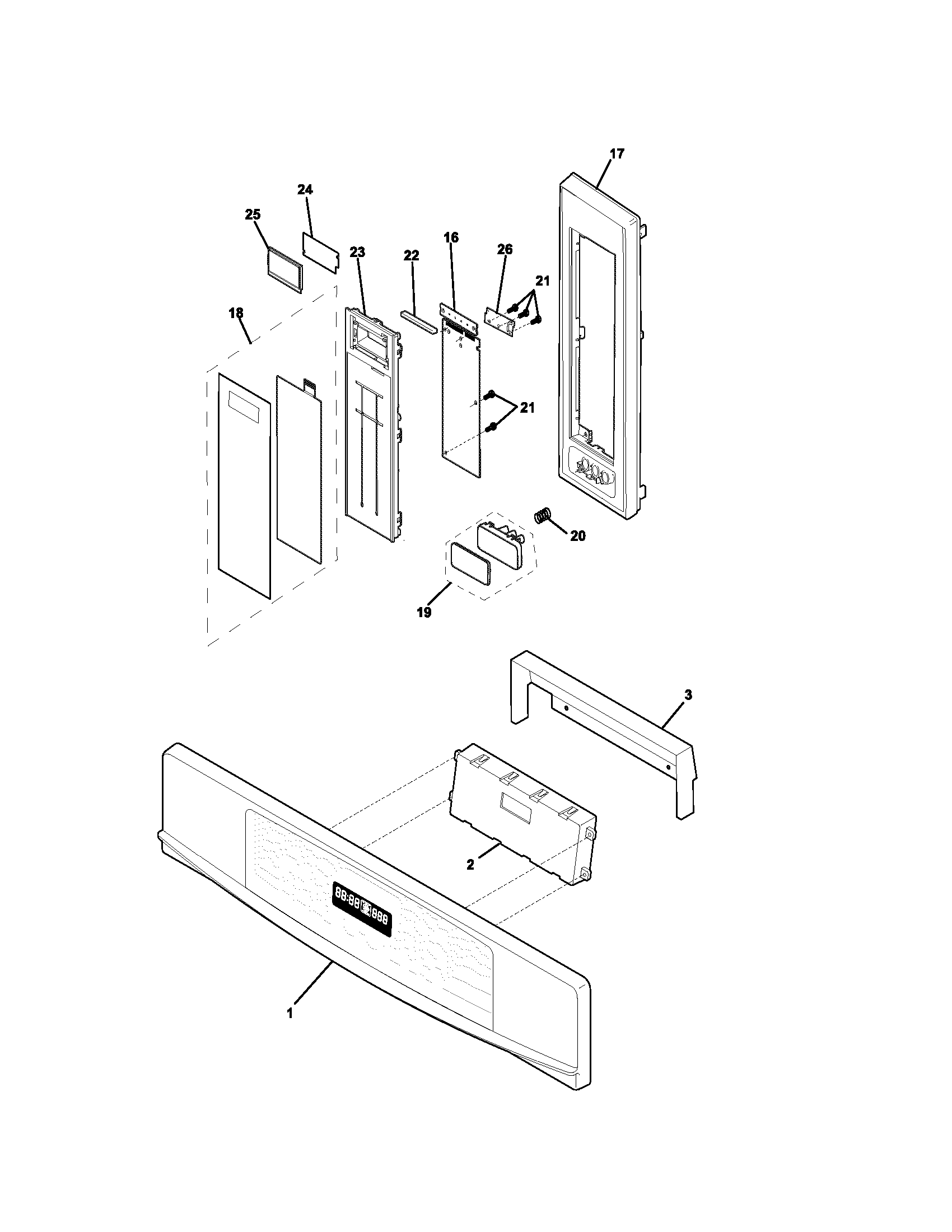

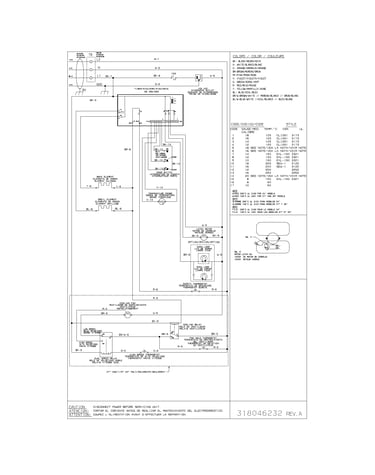

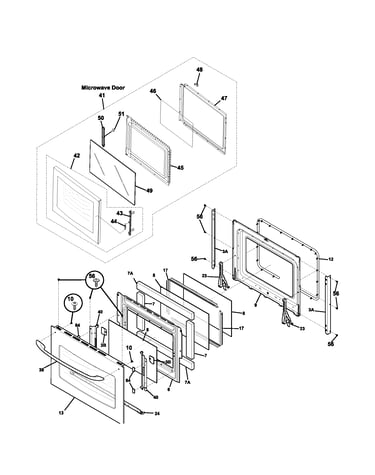

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Range Oven Light Bulb 5303013071
#15

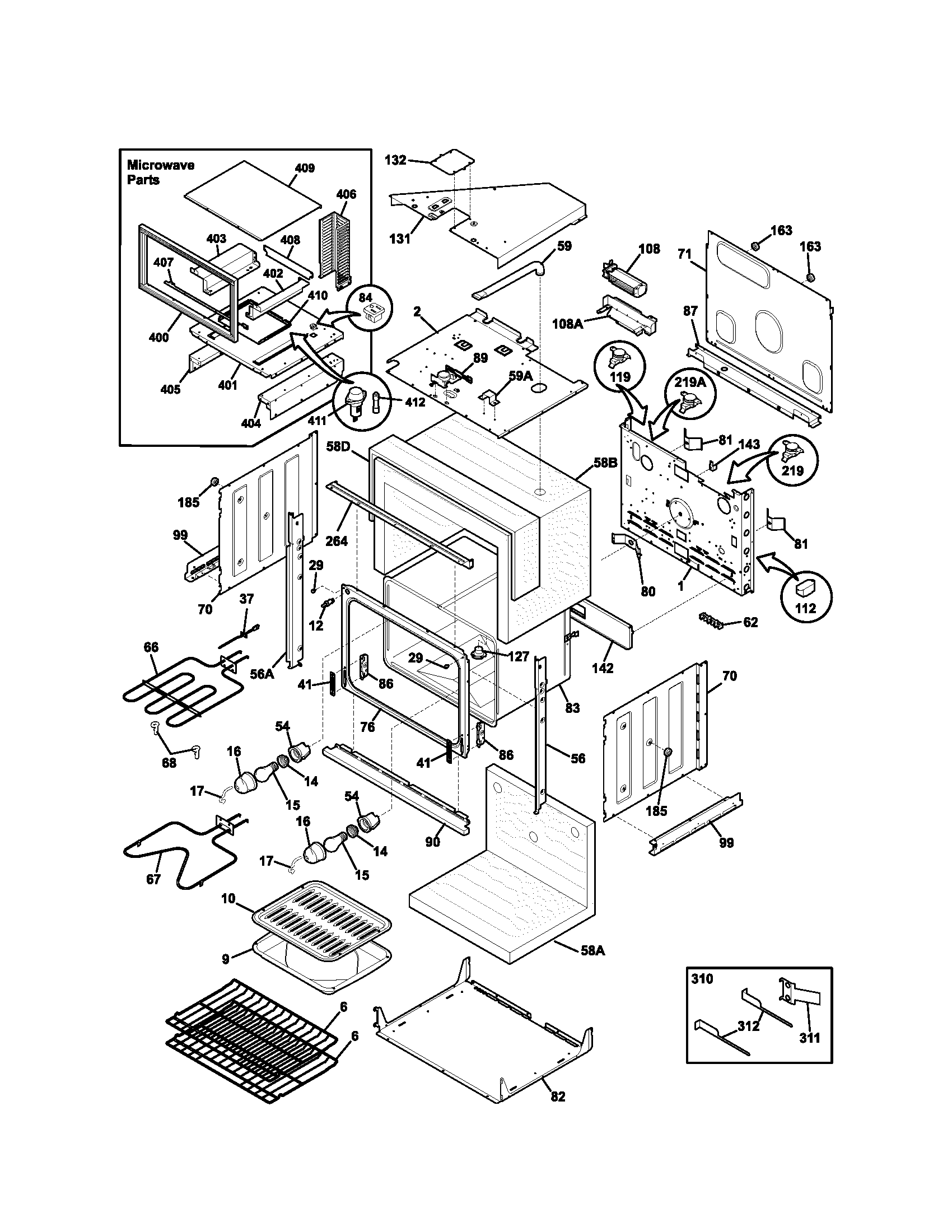

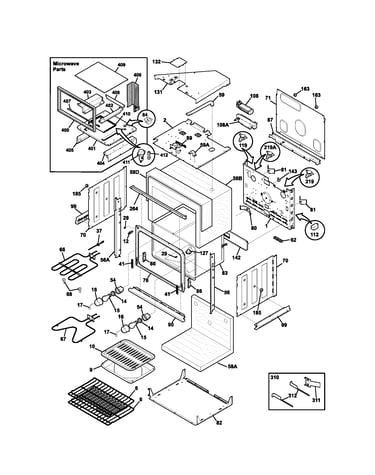

Oven body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Oven body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Fuse 5304442353
#412

Oven body diagram

Fuse

Part #5304442353

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442353. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Holder 5304442354
#411

Oven body diagram

Holder

Part #5304442354

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442354. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Latch 5304440840
#30

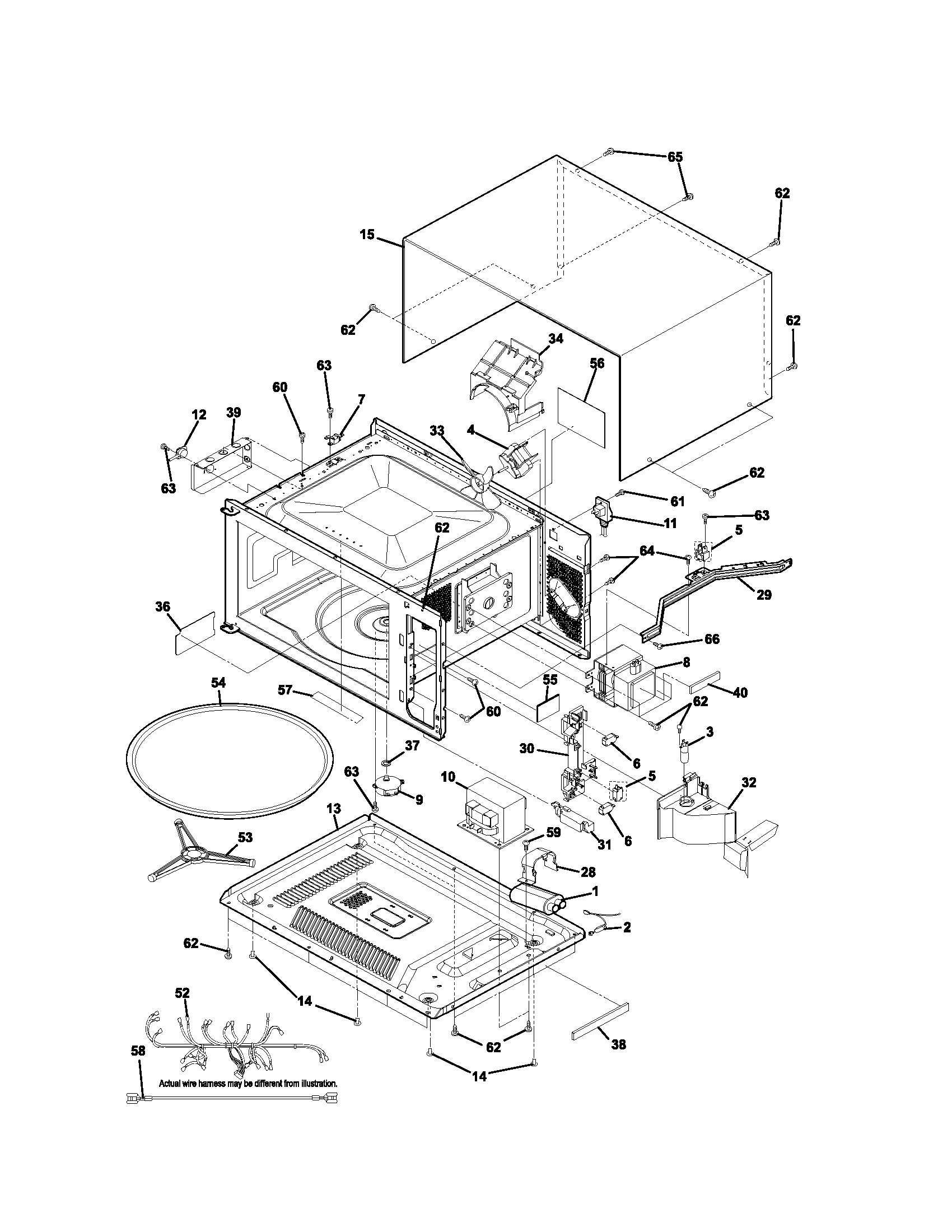

Microwave diagram

Latch

Part #5304440840

Replaced by #5304503439

?
Manufacturer substitution
This part replaces 5304440840. Substitute parts can look different from the original.
BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Switch 5304440027
#5

Microwave diagram

Switch

Part #5304440027

Replaced by #5304468224

?
Manufacturer substitution
This part replaces 5304440027. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Switch 5304440841
#31

Microwave diagram

Switch

Part #5304440841

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304440841. Substitute parts can look different from the original.
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Wall Oven Removal Tool, Right (replaces 318246700, 7318246702) 318246702
#312

Oven body diagram

Wall oven removal tool, right (replaces 318246700, 7318246702)

Part #318246702

BEST SELLER
This item is not returnable
$9.60 |
9% OFF Phone Price : $10.60
In Stock
Wall Oven Light Switch 318089915
#12

Oven body diagram

Wall oven light switch

Part #318089915

Replaced by #316445501

?
Manufacturer substitution
This part replaces 318089915. Substitute parts can look different from the original.
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Broil Element 318255601
#66

Oven body diagram

Range broil element

Part #318255601

Replaced by #318255606

?
Manufacturer substitution
This part replaces 318255601. Substitute parts can look different from the original.
$139.04 |
8% OFF Phone Price : $151.04
In Stock
