Model # PLMVZ169GCC Official Frigidaire microwave/hood combo

Here are the diagrams and repair parts for Official Frigidaire PLMVZ169GCC microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

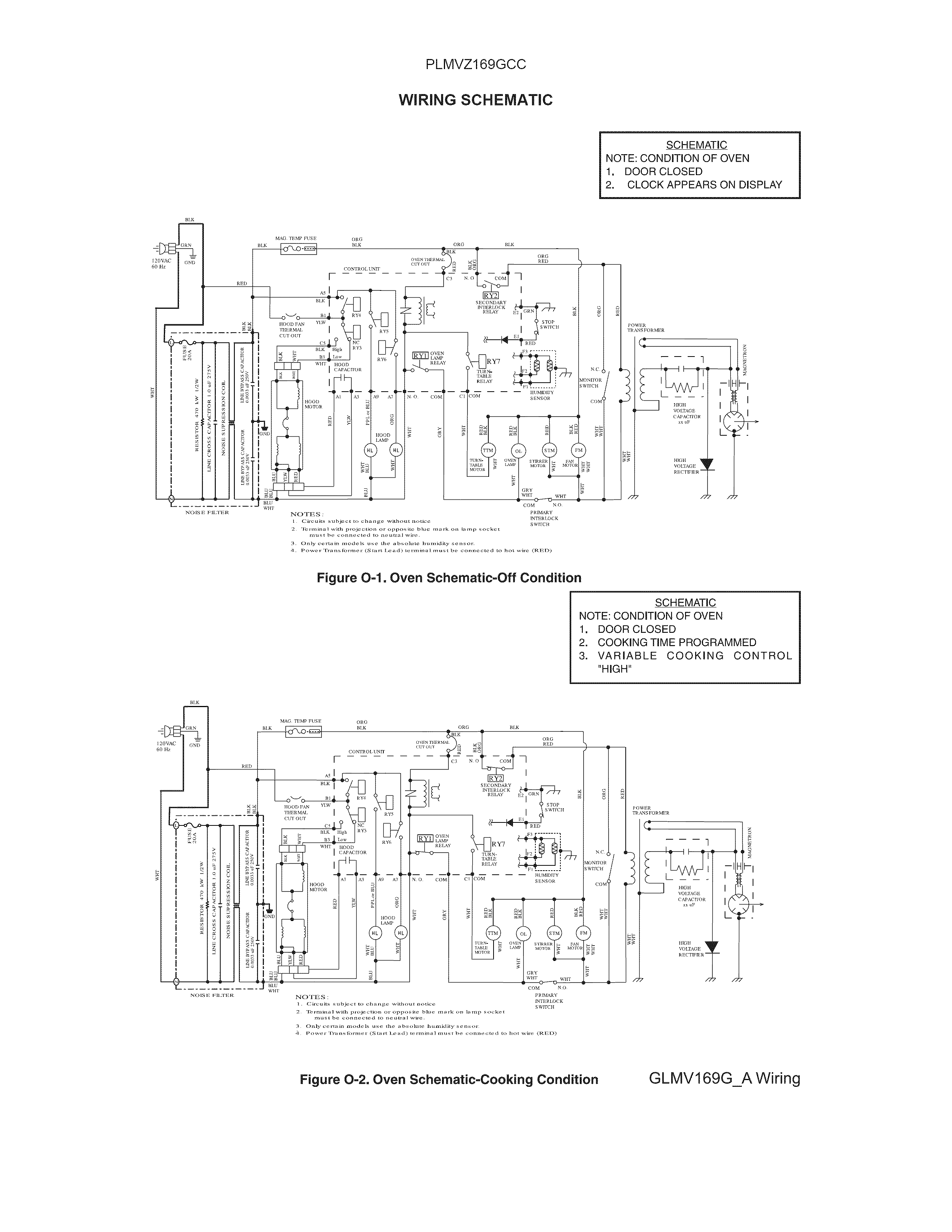

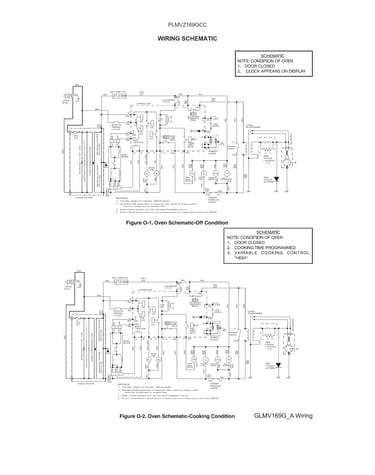

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Capacitor 5304440020
#2

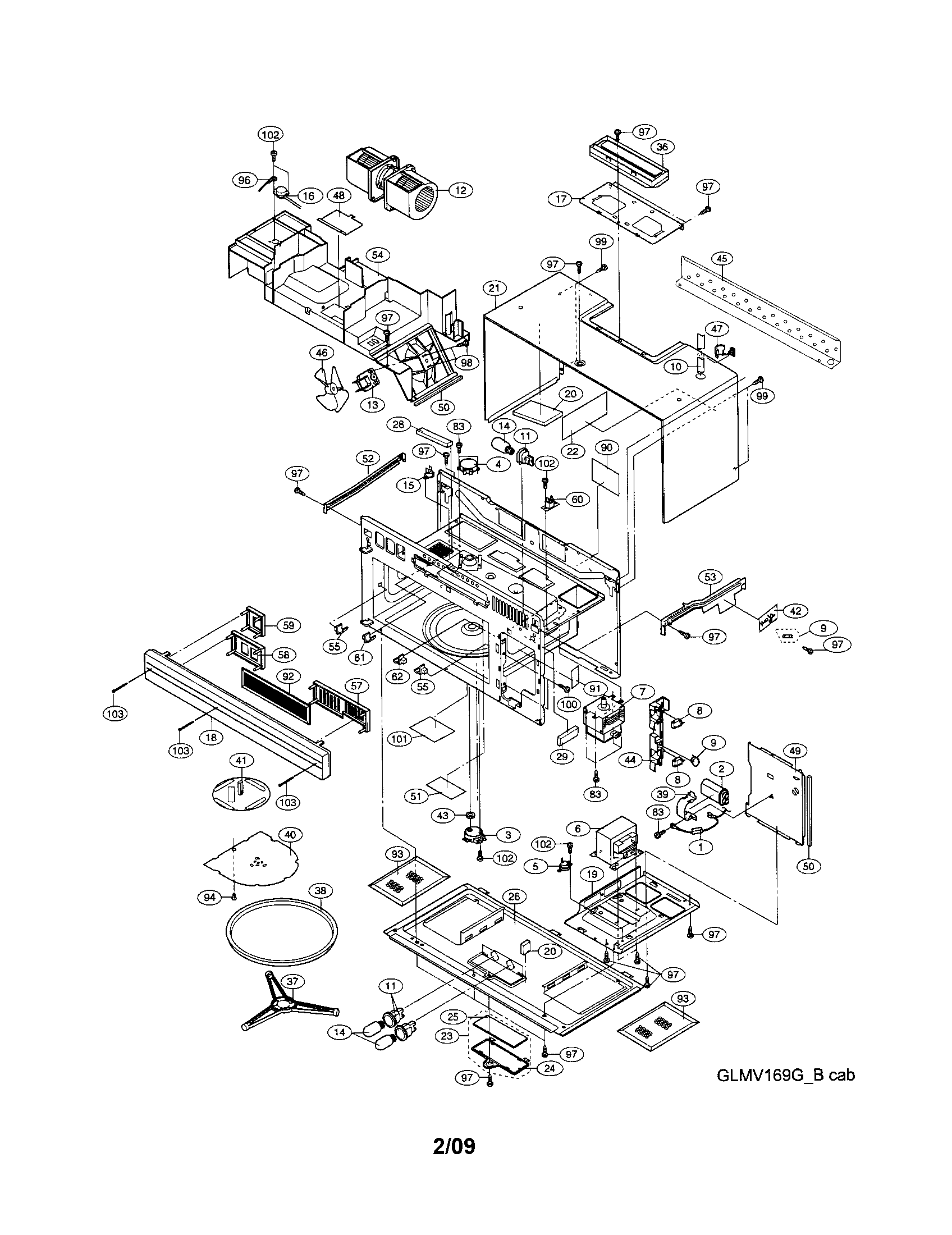

Oven,cabinet diagram

Capacitor

Part #5304440020

Replaced by #5304470539

?
Manufacturer substitution
This part replaces 5304440020. Substitute parts can look different from the original.
BEST SELLER
$115.12 |
9% OFF Phone Price : $127.12
In Stock
Microwave Door Interlock Switch 5304440026
#8

Oven,cabinet diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
13% OFF Phone Price : $45.53
In Stock
Microwave Door Interlock Switch And Fuse (replaces 75303319559) 5303319559
#9

Oven,cabinet diagram

Microwave door interlock switch and fuse (replaces 75303319559)

Part #5303319559

BEST SELLER
$77.69 |
7% OFF Phone Price : $83.69
In Stock
Rectifier 5304461352
#1

Oven,cabinet diagram

Rectifier

Part #5304461352

Replaced by #5304468869

?
Manufacturer substitution
This part replaces 5304461352. Substitute parts can look different from the original.
$75.09 |
7% OFF Phone Price : $81.09
In Stock
Magnetron 5304461353
#7

Oven,cabinet diagram

Magnetron

Part #5304461353

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring (replaces 75304440316) 5304440316
#69

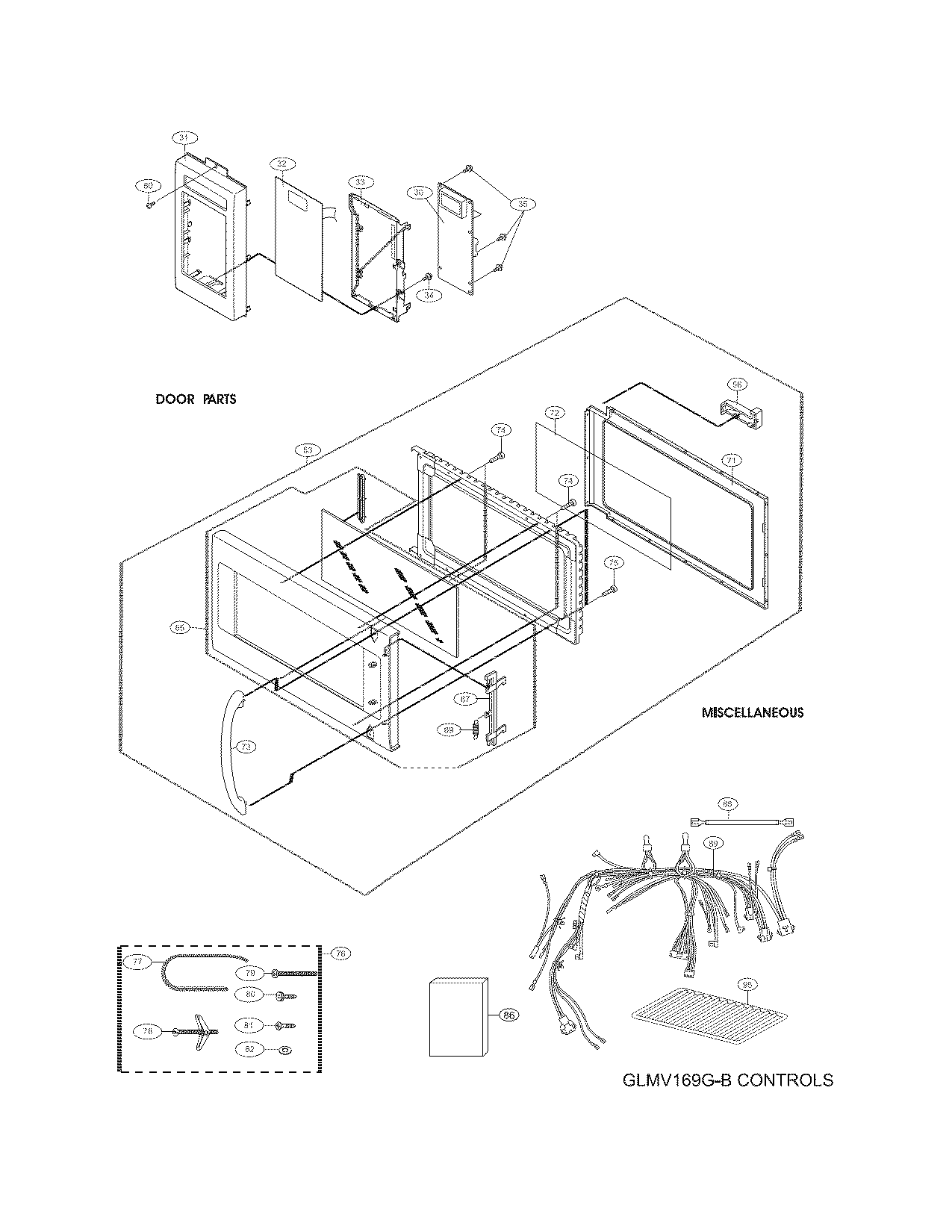

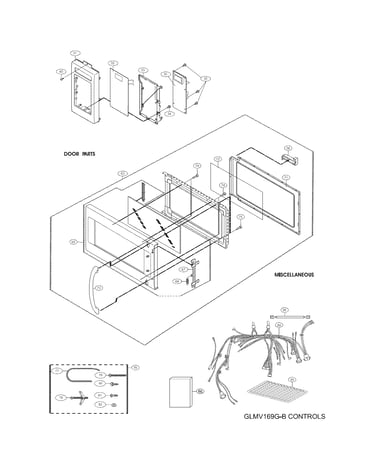

Control panel,door,misc diagram

Microwave door latch spring (replaces 75304440316)

Part #5304440316

$49.59 |
11% OFF Phone Price : $55.59
In Stock
Microwave Light Bulb (replaces 5303319562, 75304440031) 5304440031
#14

Oven,cabinet diagram

Microwave light bulb (replaces 5303319562, 75304440031)

Part #5304440031

This item is not returnable
$14.59 |
12% OFF Phone Price : $16.59
In Stock
Microwave Charcoal Filter 5304440335
#92

Oven,cabinet diagram

Microwave charcoal filter

Part #5304440335

$40.63 |
13% OFF Phone Price : $46.63
In Stock
Microwave Screw, 4 X 8-mm 5304451561
#74

Control panel,door,misc diagram

Microwave screw, 4 x 8-mm

Part #5304451561

This item is not returnable
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Microwave Vent Damper (replaces 5304440283, 75304440283, 75304464343) 5304464343
#36

Oven,cabinet diagram

Microwave vent damper (replaces 5304440283, 75304440283, 75304464343)

Part #5304464343

$46.27
In Stock
