Model # MDB4629AWB0 Official Maytag undercounter dishwasher

Here are the diagrams and repair parts for Official Maytag MDB4629AWB0 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

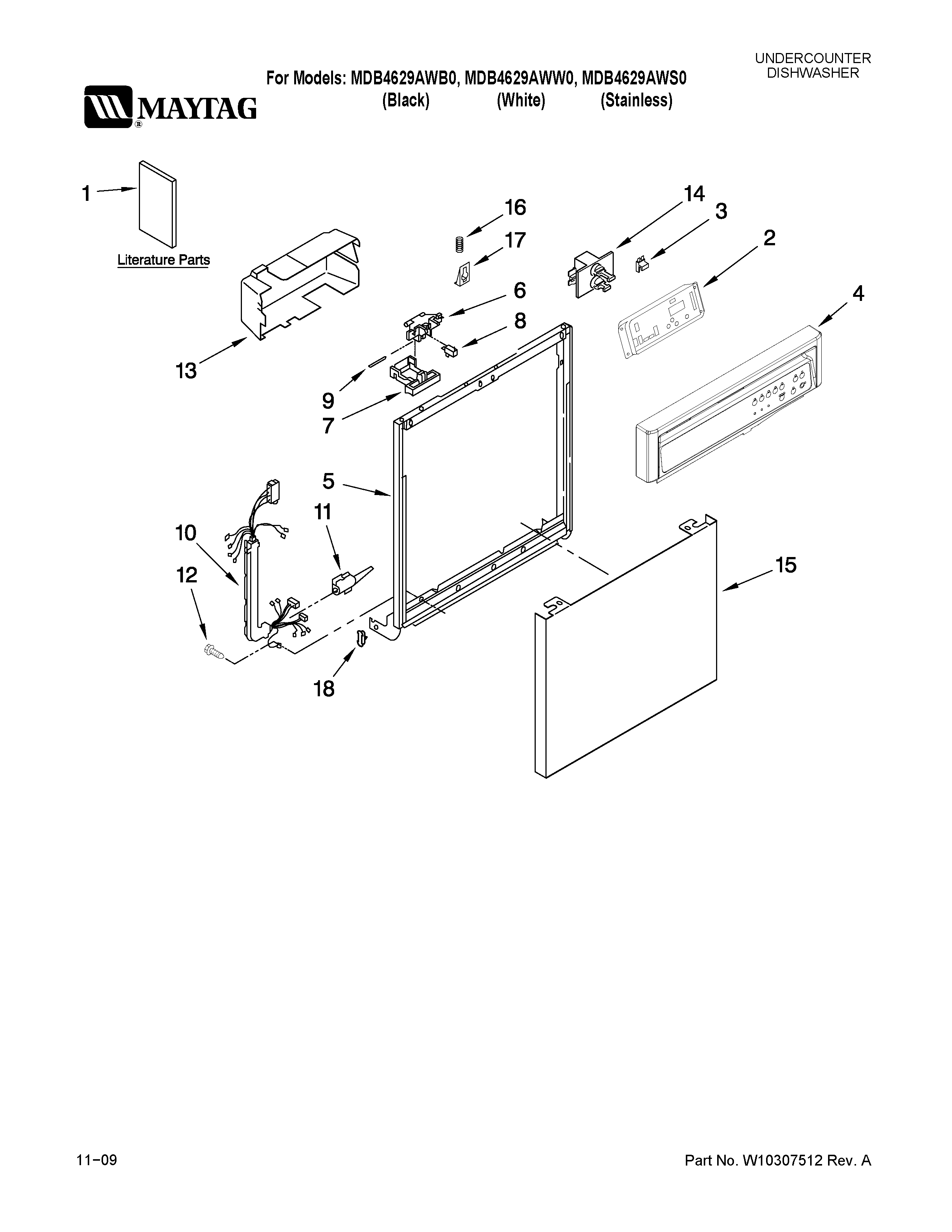

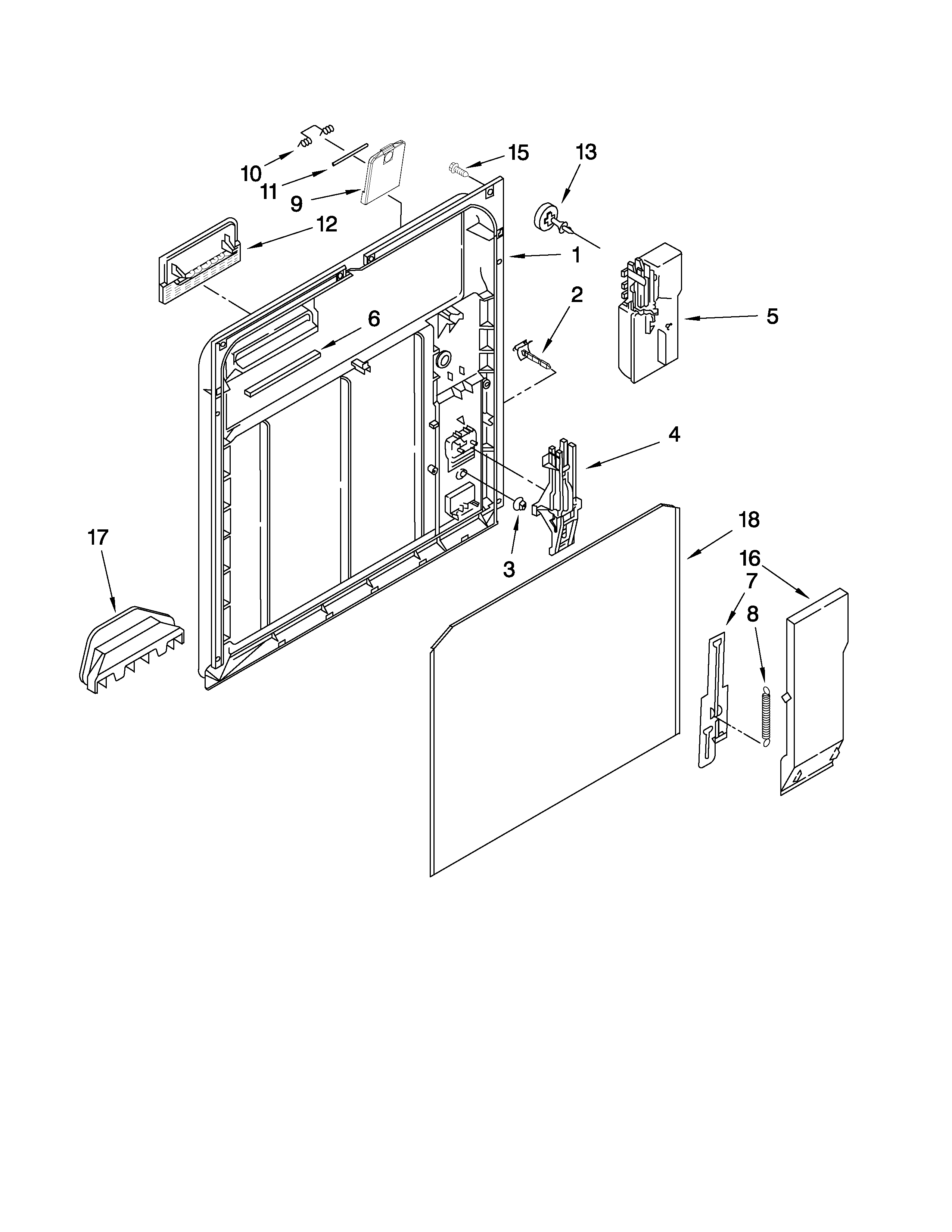

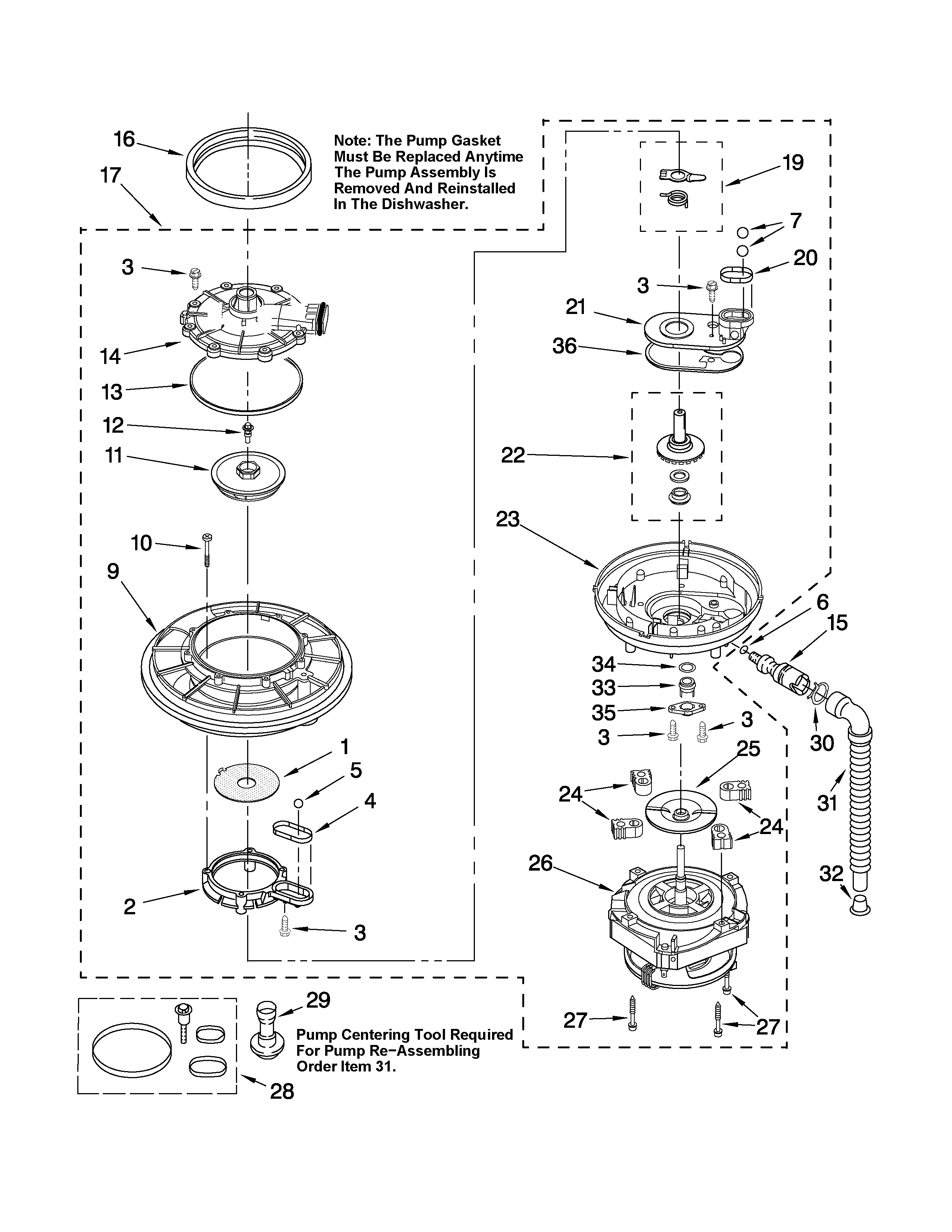

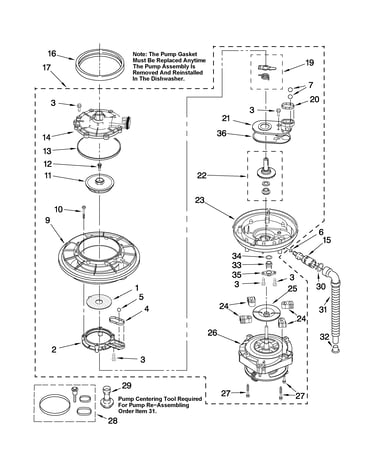

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Stop 8565920
#13

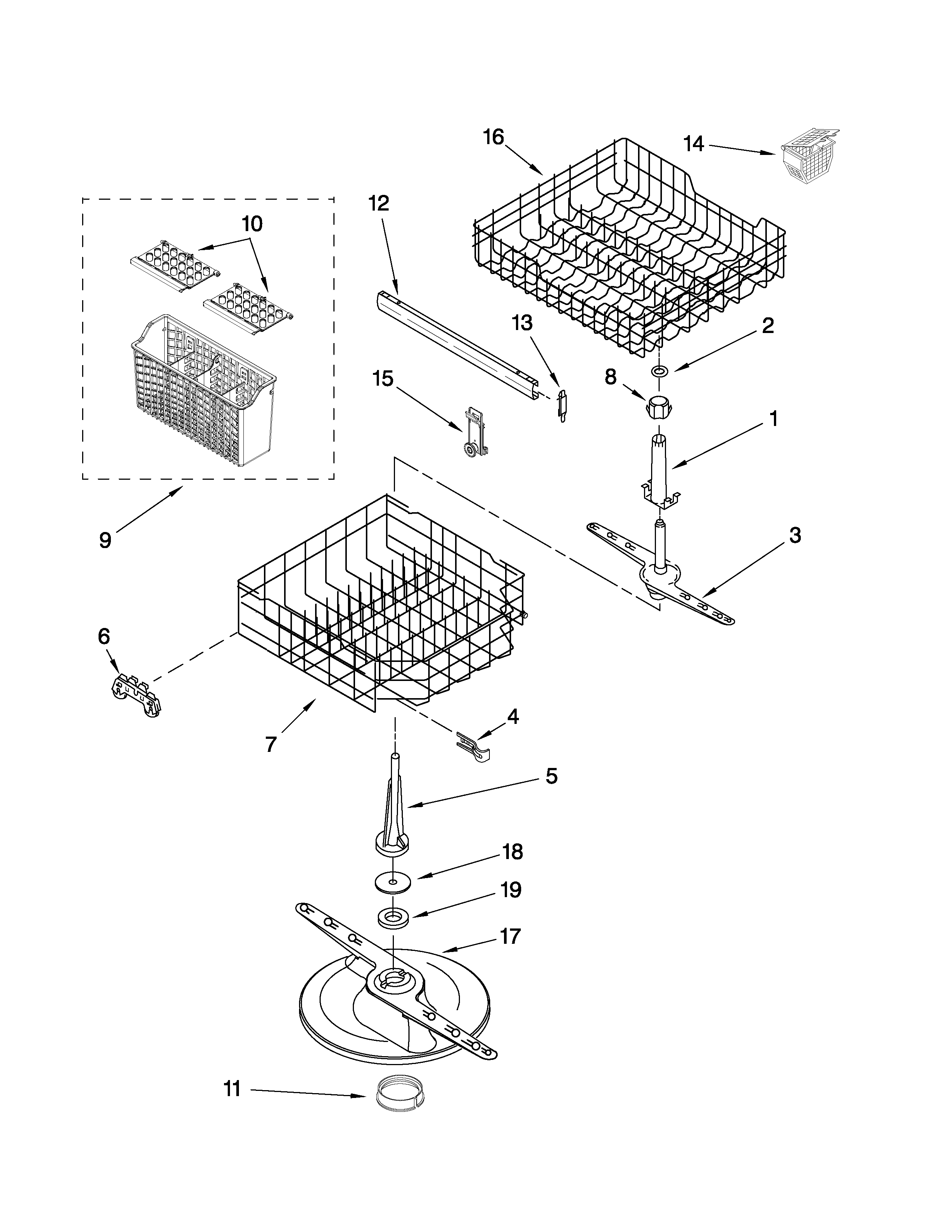

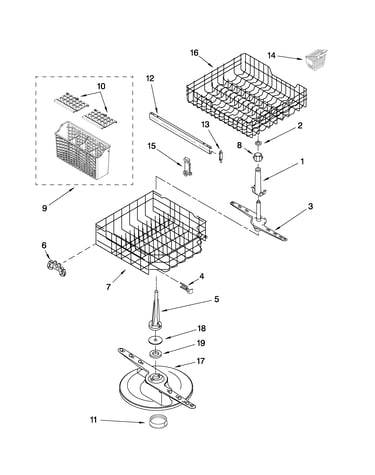

Upper dishrack and water feed parts diagram

Stop

Part #8565920

Replaced by #WP8565925

?
Manufacturer substitution
This part replaces 8565920. Substitute parts can look different from the original.
BEST SELLER
$8.34 |
11% OFF Phone Price : $9.34
In Stock
Dishwasher Door Seal W10082795
#10

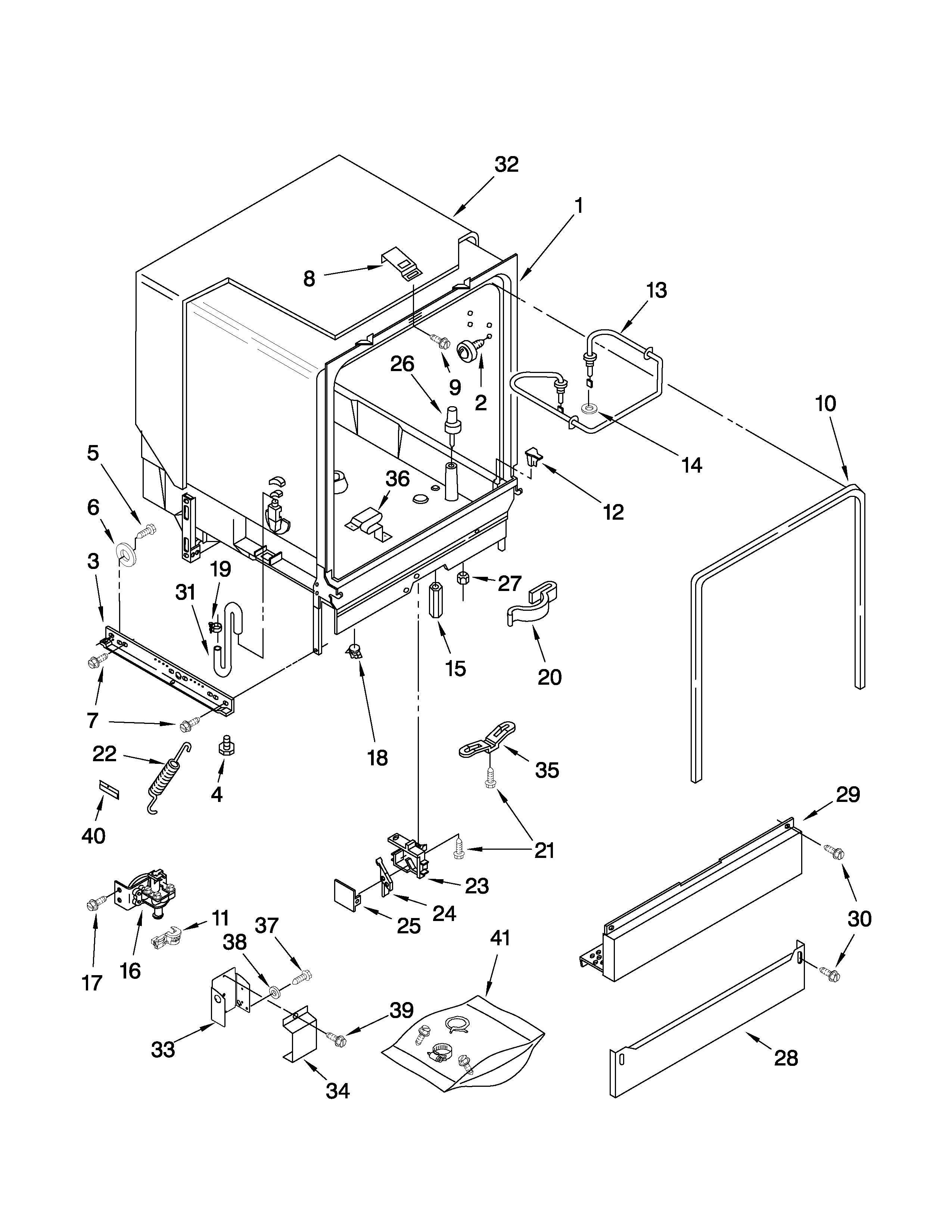

Tub assembly parts diagram

Dishwasher door seal

Part #W10082795

Replaced by #WPW10509257

?
Manufacturer substitution
This part replaces W10082795. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Clamp 301958
#19

Tub assembly parts diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Lower Spray Arm Seal 3376846
#11

Upper dishrack and water feed parts diagram

Dishwasher lower spray arm seal

Part #3376846

Replaced by #WP3376846

?
Manufacturer substitution
This part replaces 3376846. Substitute parts can look different from the original.
BEST SELLER
$11.61 |
15% OFF Phone Price : $13.61
In Stock
Dishwasher Terminal Nut 8268548
#15

Tub assembly parts diagram

Dishwasher terminal nut

Part #8268548

Replaced by #WPW10477552

?
Manufacturer substitution
This part replaces 8268548. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dishrack 8539208
#7

Upper dishrack and water feed parts diagram

Dishrack

Part #8539208

Replaced by #W10833650

?
Manufacturer substitution
This part replaces 8539208. Substitute parts can look different from the original.
BEST SELLER
$203.11 |
6% OFF Phone Price : $215.11
Back Order
Dishwasher Dishrack Slide Rail 3385089
#12

Upper dishrack and water feed parts diagram

Dishwasher dishrack slide rail

Part #3385089

Replaced by #WP3385089

?
Manufacturer substitution
This part replaces 3385089. Substitute parts can look different from the original.
BEST SELLER
$42.97 |
12% OFF Phone Price : $48.97
In Stock
Dishwasher Heating Element Rubber Washer 717273
#14

Tub assembly parts diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Valve-inlt 8283345
#16

Tub assembly parts diagram

Valve-inlt

Part #8283345

Replaced by #W10844024

?
Manufacturer substitution
This part replaces 8283345. Substitute parts can look different from the original.
BEST SELLER
$54.73 |
10% OFF Phone Price : $60.73
In Stock
Dishwasher Dishrack Roller Assembly, Lower 8268645
#6

Upper dishrack and water feed parts diagram

Dishwasher dishrack roller assembly, lower

Part #8268645

Replaced by #WP8268645

?
Manufacturer substitution
This part replaces 8268645. Substitute parts can look different from the original.
BEST SELLER
$30.79 |
16% OFF Phone Price : $36.79
In Stock
