Thermador
Range/Microwave Combo

Model # MCM255 Official Thermador combination oven

Here are the diagrams and repair parts for Official Thermador MCM255 combination oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Element 14-29-579
#42

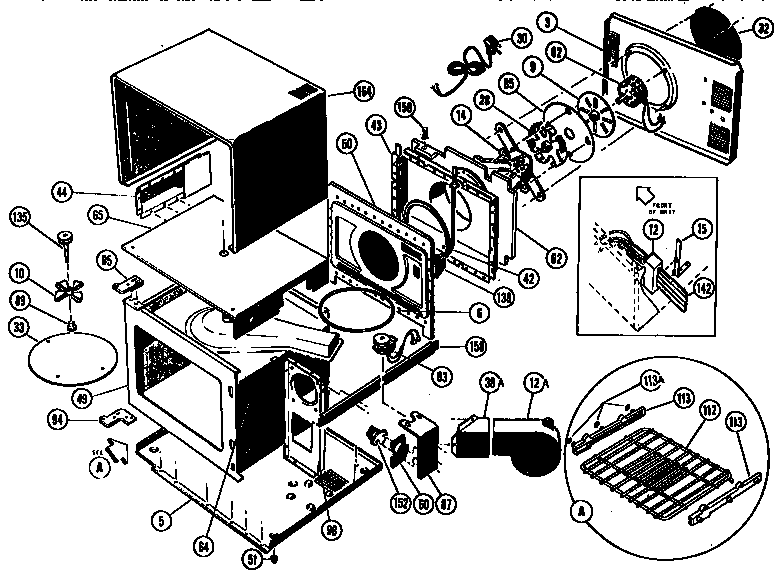

Blower system diagram

Element

Part #14-29-579

$60.99
In Stock
Screw 14-91-010
Screw

Part #14-91-010

This item is not returnable
$2.16
In Stock
Lamp Receptacle 14-36-253
#114A

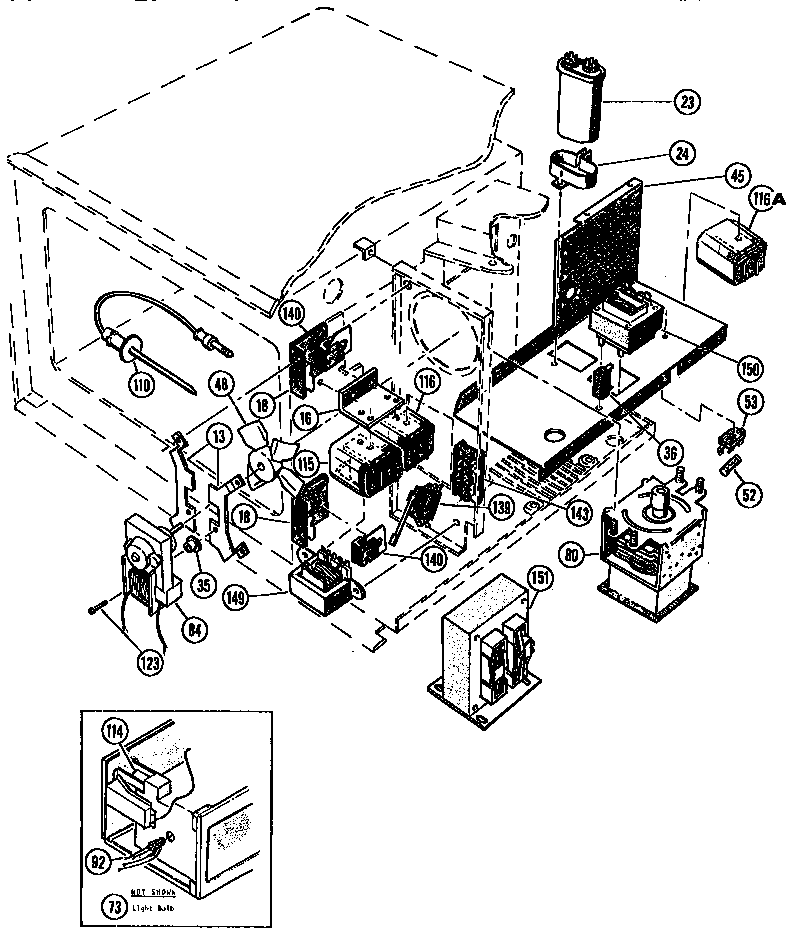

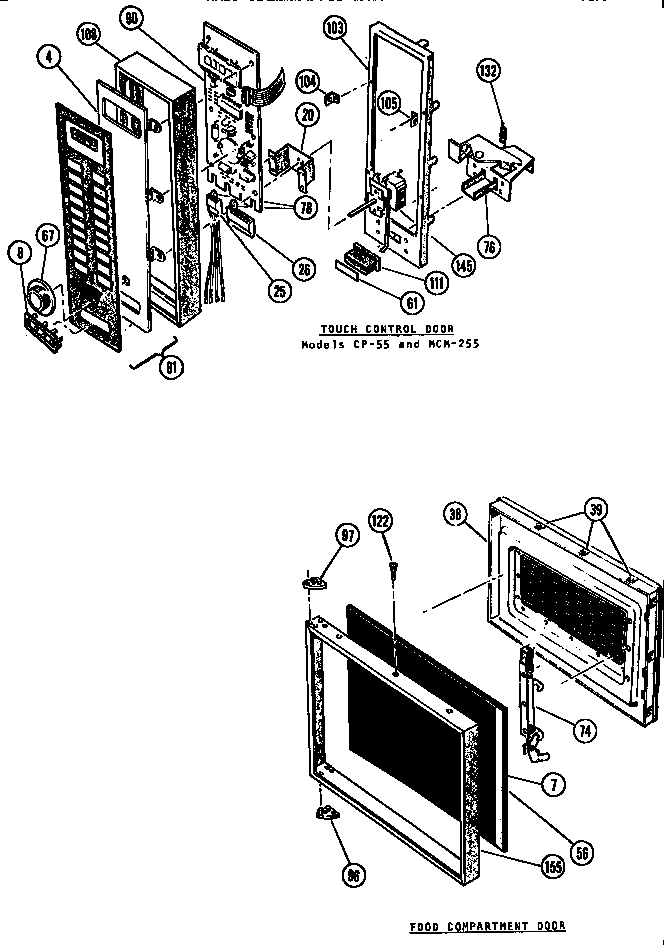

Microwave internal diagram

Lamp receptacle

Part #14-36-253

$61.99
In Stock
Jack Rece 14-36-170
#92

Microwave internal diagram

Jack rece

Part #14-36-170

$68.99
In Stock
Blade 14-36-332
#10

Blower system diagram

Blade

Part #14-36-332

$38.99
In Stock
Sleeve 14-12-891
#111

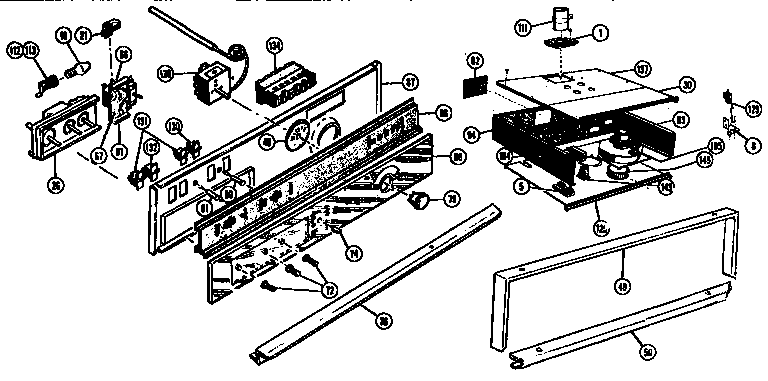

Range control diagram

Sleeve

Part #14-12-891

$27.49
In Stock
Switch 14-19-809
#133

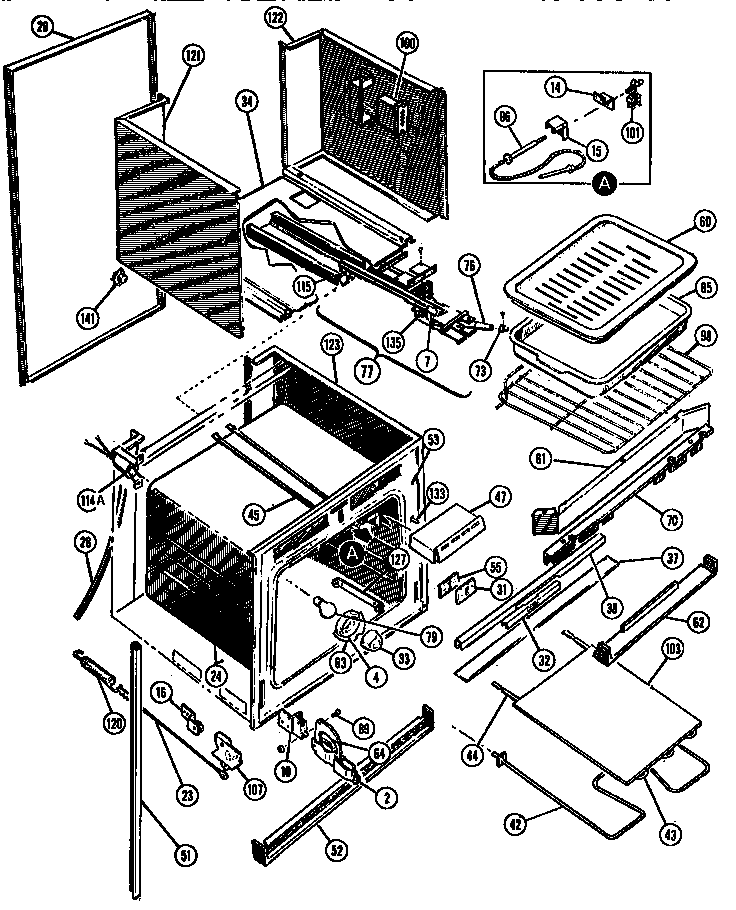

Self-cleaning oven body diagram

Switch

Part #14-19-809

Replaced by #00622858

?
Manufacturer substitution
This part replaces 14-19-809. Substitute parts can look different from the original.
$29.47
In Stock
Oven Rack 14-29-558-14
#98

Self-cleaning oven body diagram

Oven rack

Part #14-29-558-14

Replaced by #00368821

?
Manufacturer substitution
This part replaces 14-29-558-14. Substitute parts can look different from the original.
$145.72
In Stock
Hinge 14-12-863-11
#10A

Self-cleaning oven body diagram

Hinge

Part #14-12-863-11

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Diode 14-29-619
#36

Microwave internal diagram

High-voltage diode

Part #14-29-619

The manufacturer no longer makes this part, and there's no substitute part
