Model # H4A342GKA100 Official ICP air conditioner
Here are the diagrams and repair parts for Official ICP H4A342GKA100 air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
H4A342GKA100 Air Conditioner
#21

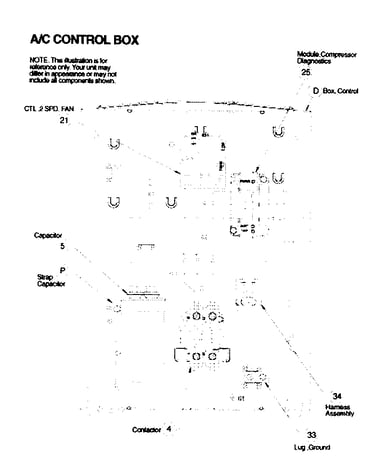

Control box diagram
Central air conditioner condenser electronic control board (replaces 1086071)
Part #1088977
$85.61 |
7% OFF Phone Price : $91.61
In Stock
#10

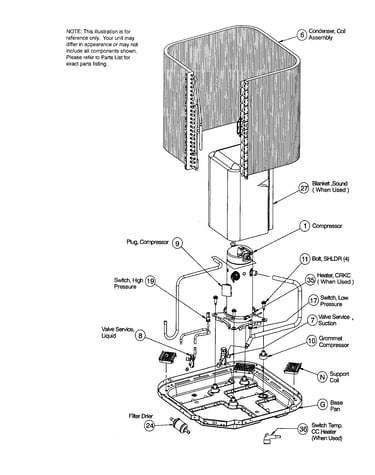

Refrigerant assy diagram
Carrier grommet
Part #1171270
This item is not returnable
$4.00
In Stock
#9
Refrigerant assy diagram
Plug compr
Part #1173963
$35.36
In Stock
#R

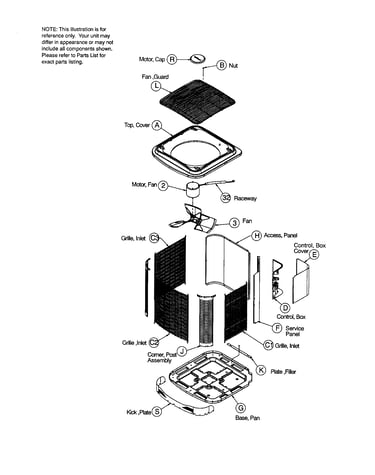

Mainline diagram
Central air conditioner nameplate
Part #1174025
This item is not returnable
$2.16
In Stock
#4
Control box diagram
Central air conditioner contactor
Part #1172472
$61.35 |
9% OFF Phone Price : $67.35
In Stock
#P
Control box diagram
Clamp
Part #1172734
$10.20
In Stock
#2
Mainline diagram
Central air conditioner condenser fan motor
Part #1173776
$402.59 |
$12.00 OFF Phone Price : $414.59
In Stock
#33
Control box diagram
Lug ground
Part #1172300
This item is not returnable
$6.54
In Stock
#34
Control box diagram
Harness ay
Part #1173920
$49.60
In Stock
#19
Refrigerant assy diagram
Switch
Part #1173954
$27.37
In Stock
