Model # EFDG317TIW1 Official Electrolux dryer

Here are the diagrams and repair parts for Official Electrolux EFDG317TIW1 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

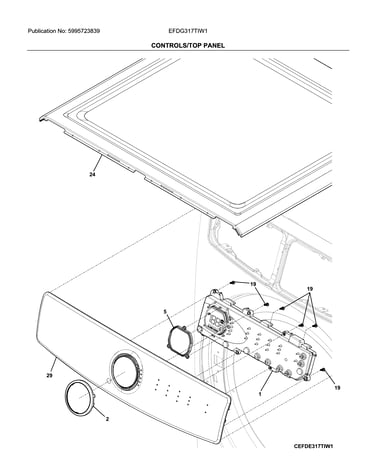

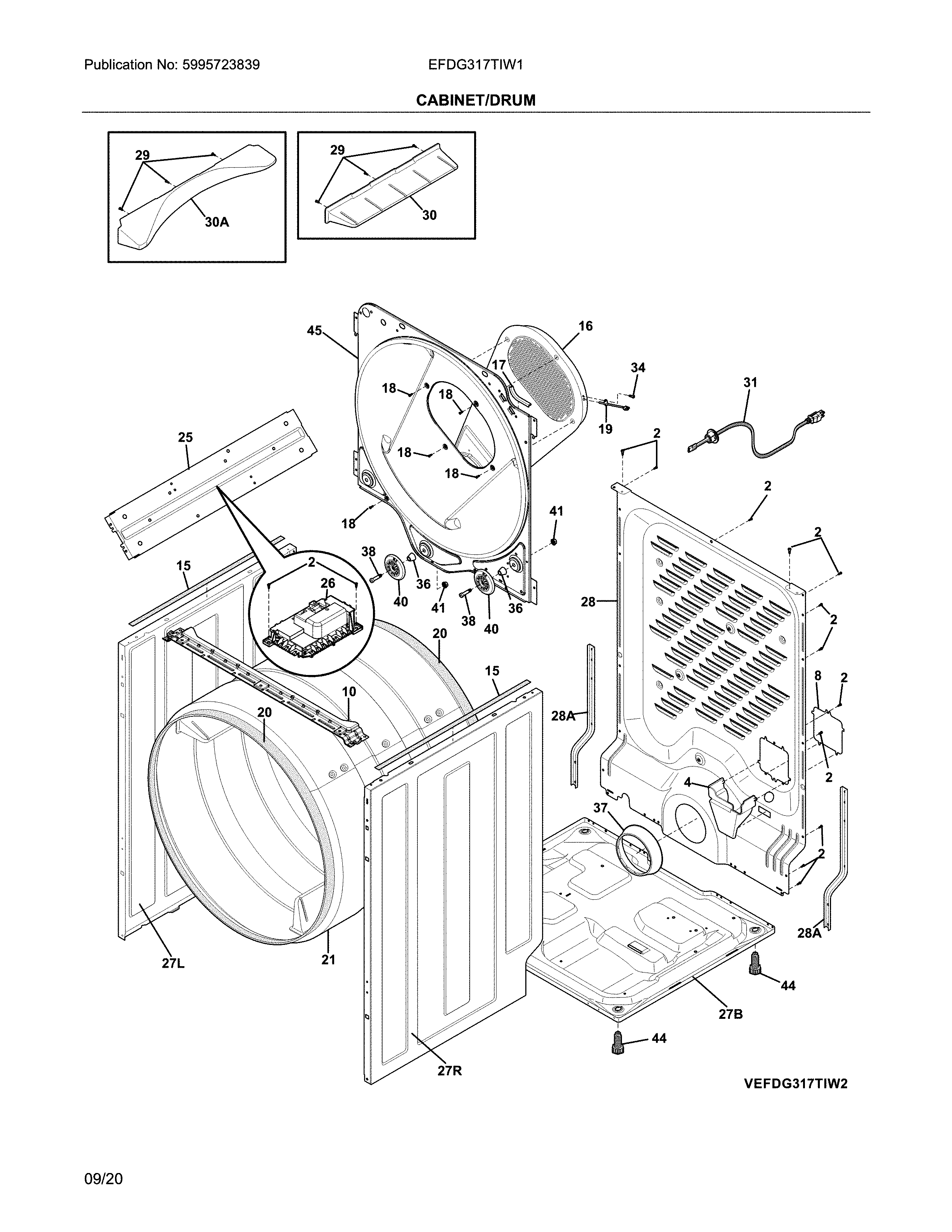

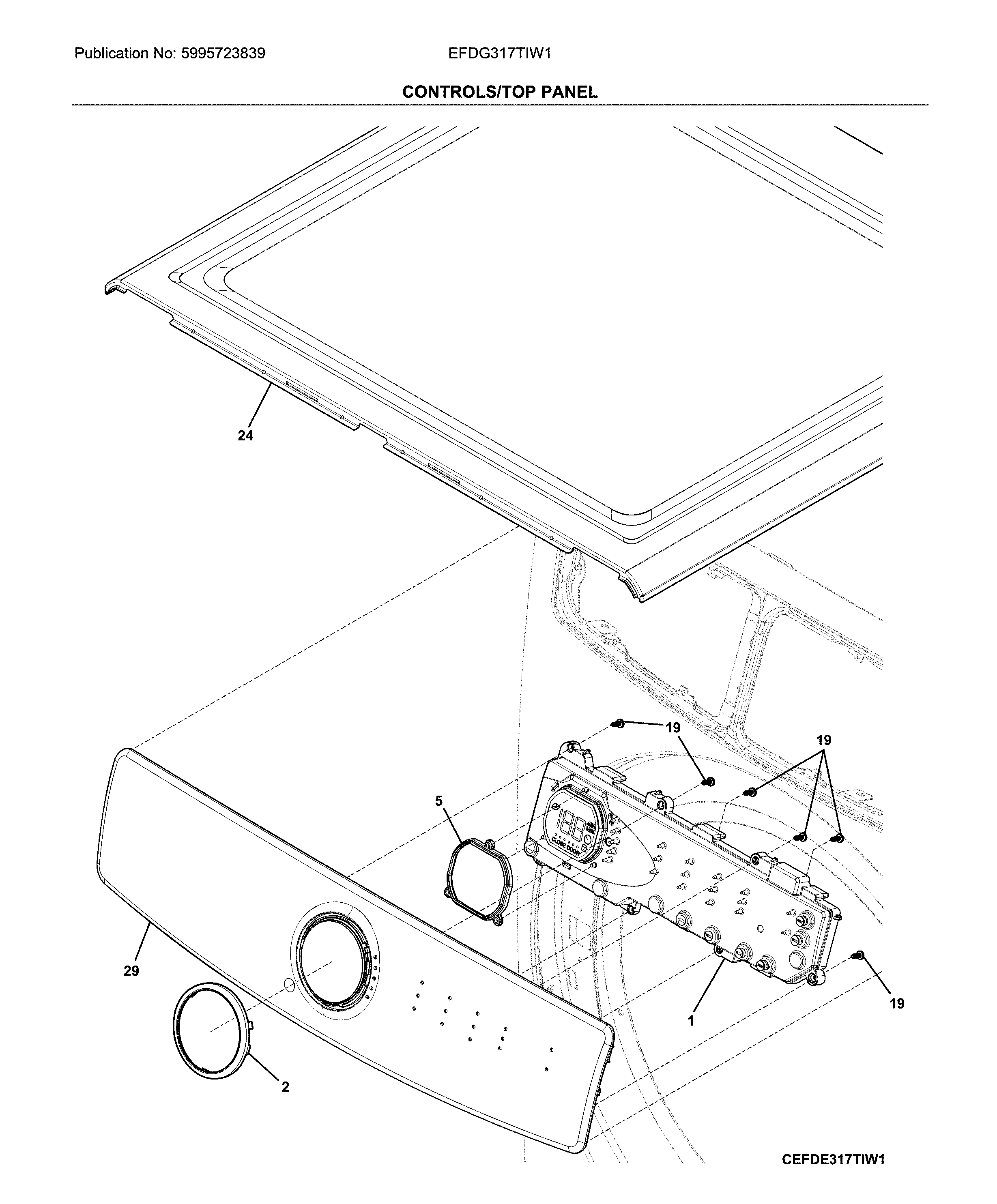

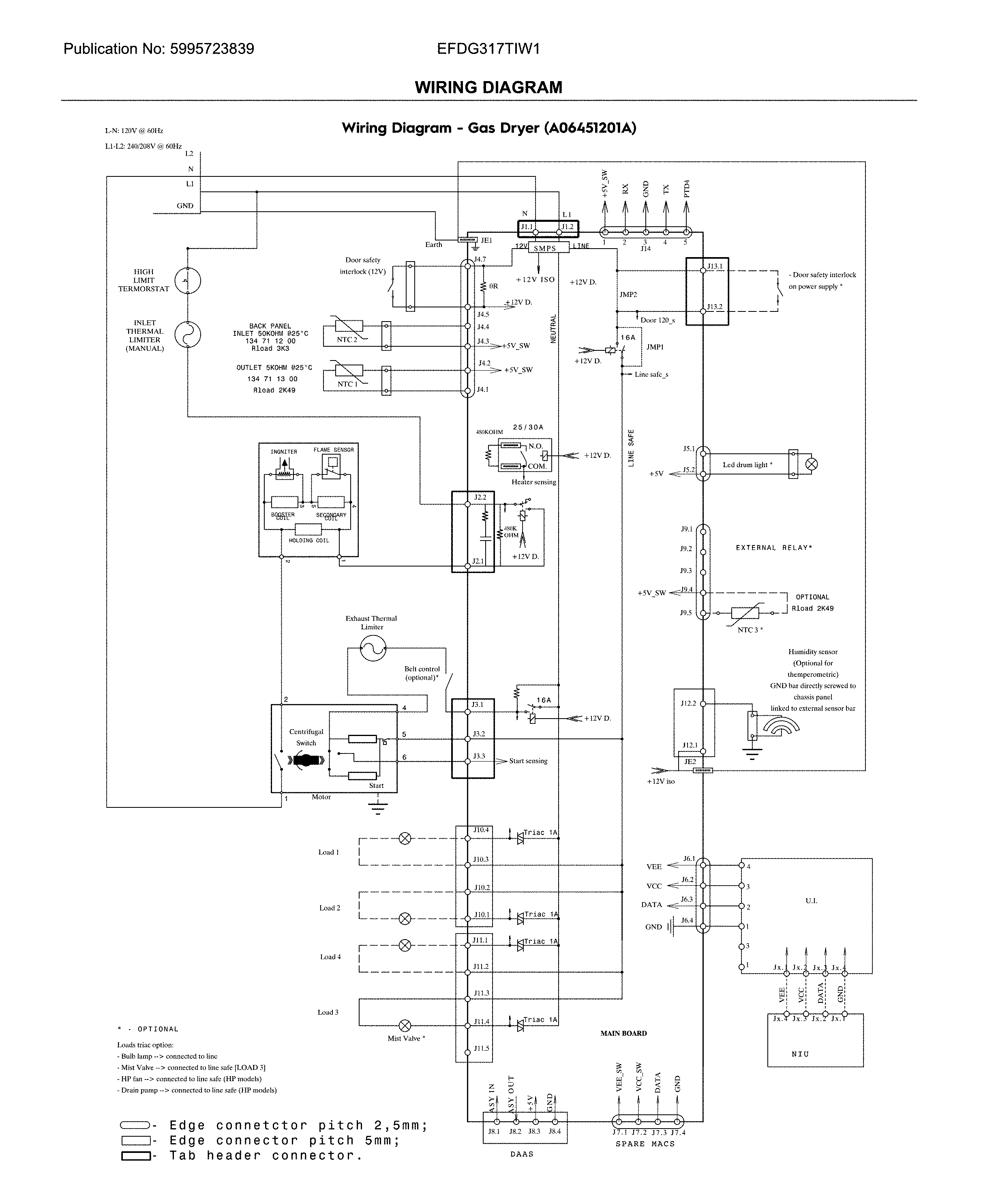

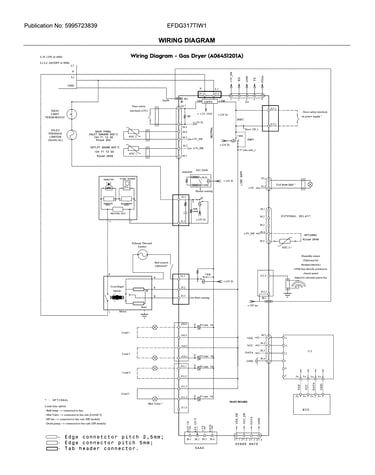

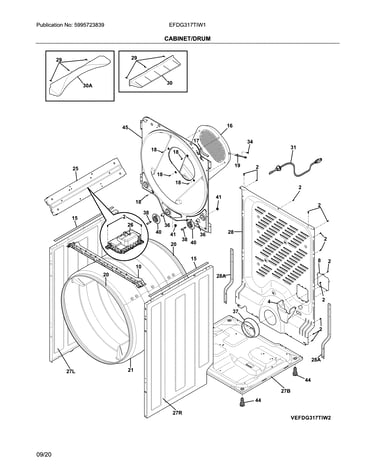

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
White-westinghouse Dryer Drum Belt (replaces 137315300) 134719300
#25

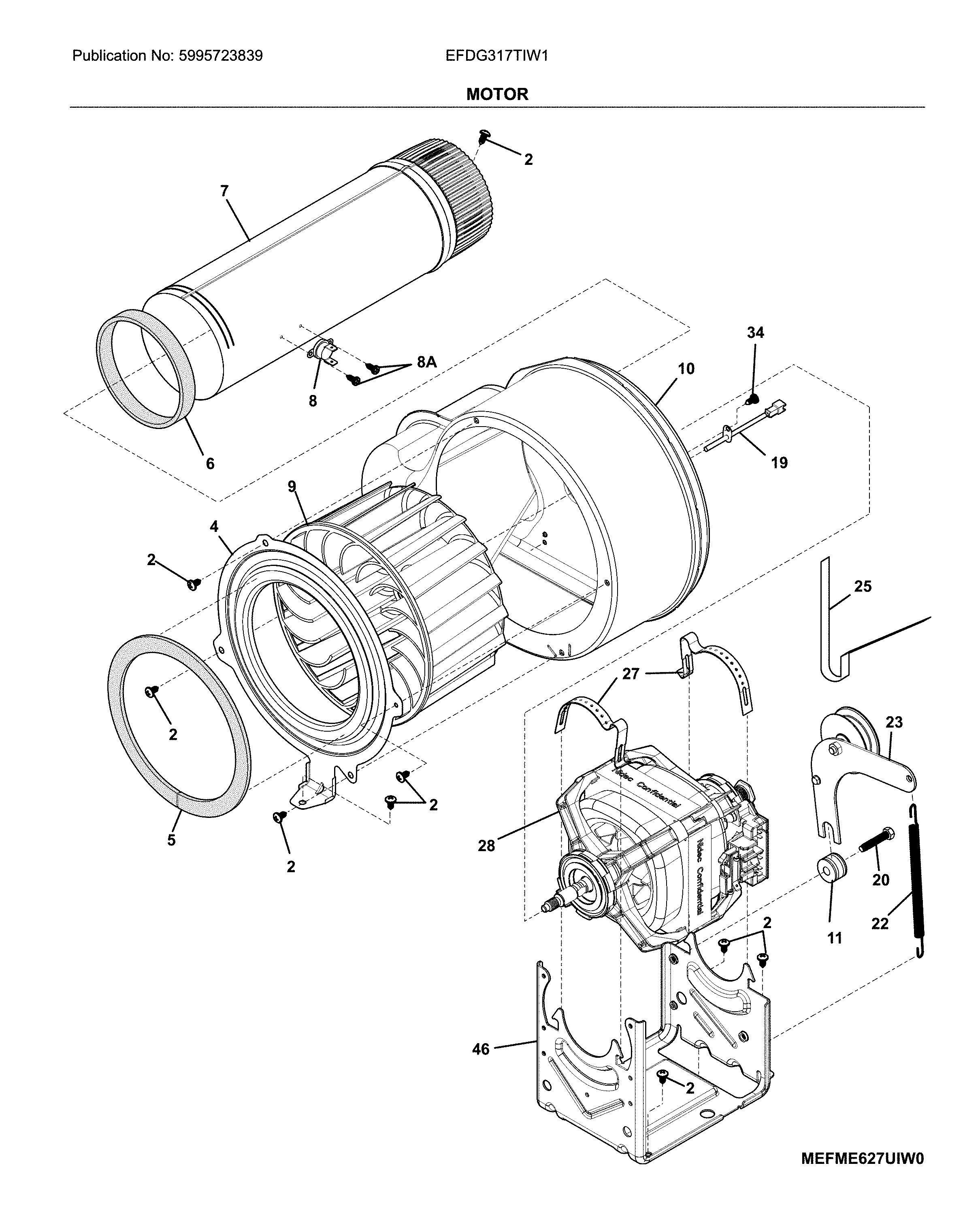

Motor diagram

White-westinghouse dryer drum belt (replaces 137315300)

Part #134719300

BEST SELLER
$54.77 |
10% OFF Phone Price : $60.77
In Stock
Dryer Idler Assembly 134793500
#23

Motor diagram

Dryer idler assembly

Part #134793500

Replaced by #134793511

?
Manufacturer substitution
This part replaces 134793500. Substitute parts can look different from the original.
BEST SELLER
$39.35 |
13% OFF Phone Price : $45.35
In Stock
Dryer Drive Motor And Pulley 134693302
#28

Motor diagram

Dryer drive motor and pulley

Part #134693302

Replaced by #5304529782

?
Manufacturer substitution
This part replaces 134693302. Substitute parts can look different from the original.
BEST SELLER
$180.19 |
6% OFF Phone Price : $192.19
In Stock
Dryer Drum Support Roller Assembly (replaces 134715900) 5304523155
Dryer drum support roller assembly (replaces 134715900)

Part #5304523155

BEST SELLER
$68.42 |
8% OFF Phone Price : $74.42
In Stock
Dryer Drum Support Roller 5304523152
Dryer drum support roller

Part #5304523152

BEST SELLER
$28.80 |
17% OFF Phone Price : $34.80
In Stock
Dryer Lint Screen 5304513574
#27

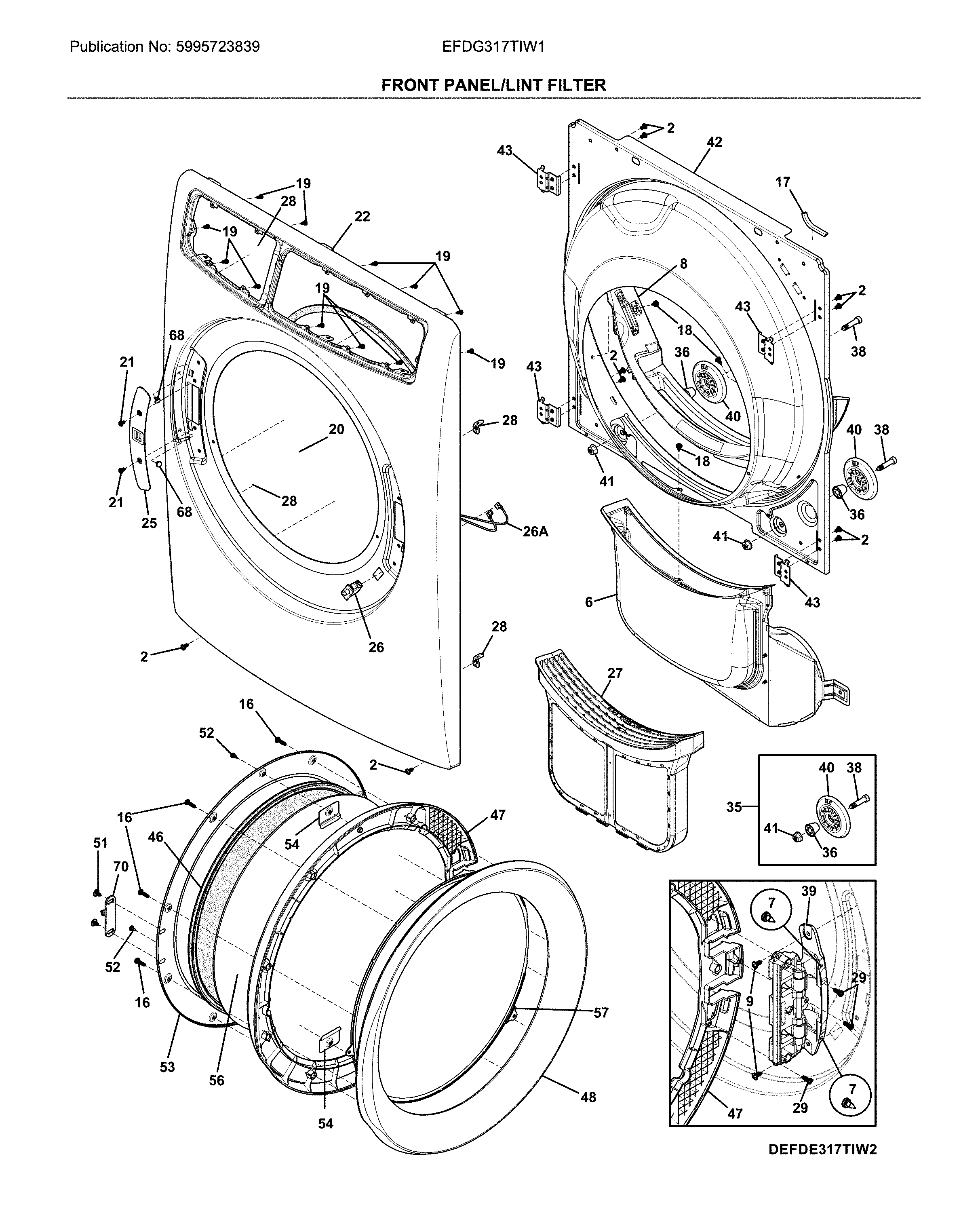

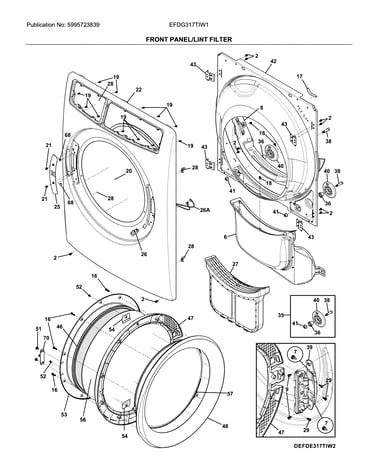

Front panel/lint filter diagram

Dryer lint screen

Part #5304513574

Replaced by #5304529766

?
Manufacturer substitution
This part replaces 5304513574. Substitute parts can look different from the original.
BEST SELLER
$82.68 |
7% OFF Phone Price : $88.68
In Stock
Dryer Exhaust Thermal Limiter (replaces 134711400) 134711401
#8

Motor diagram

Dryer exhaust thermal limiter (replaces 134711400)

Part #134711401

BEST SELLER
$23.51 |
20% OFF Phone Price : $29.51
In Stock
Coil-seconda 5303307291
#71

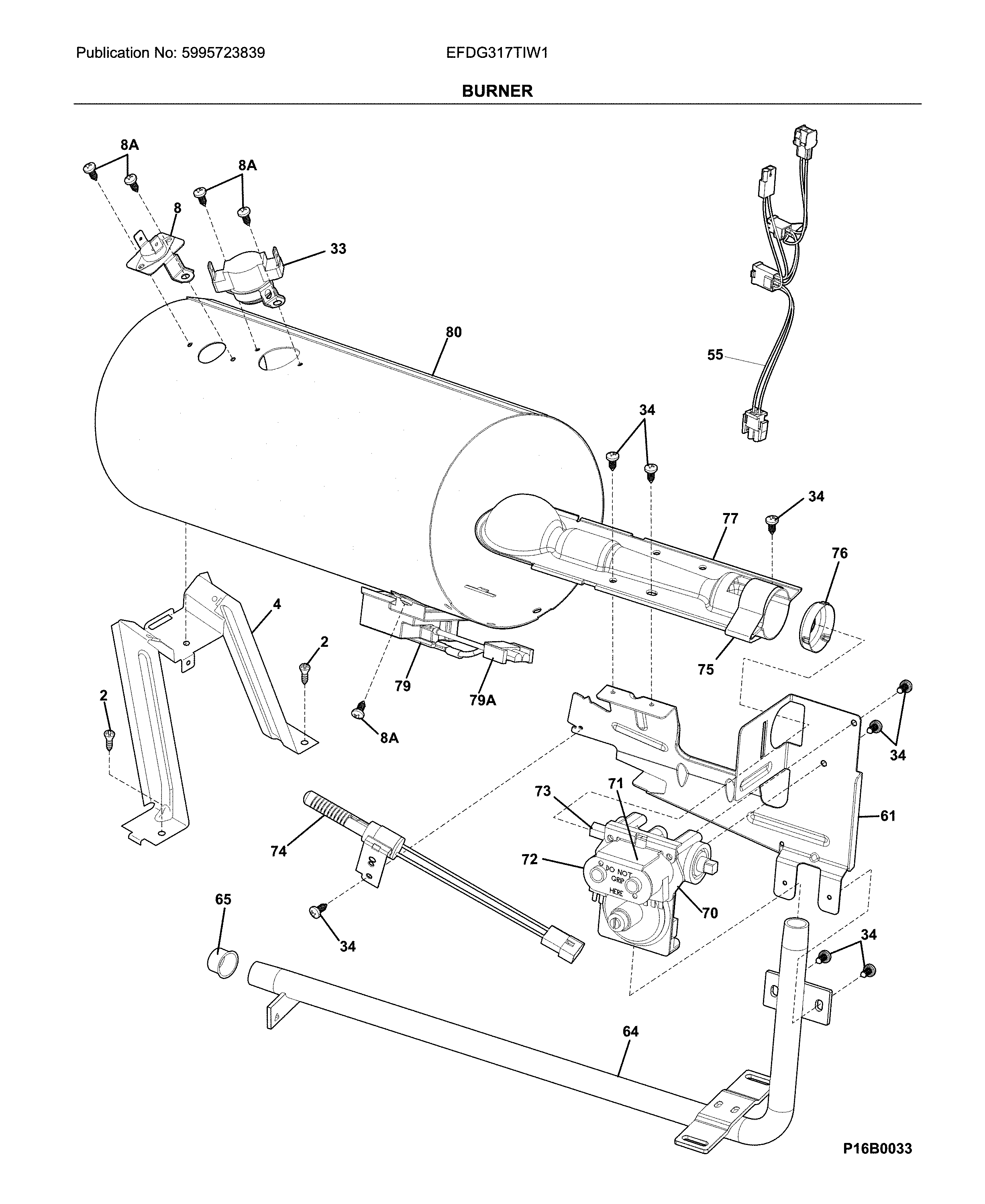

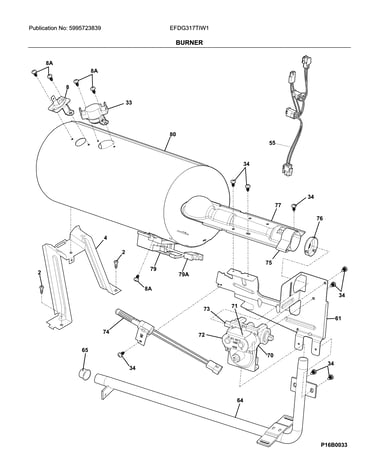

Burner diagram

Coil-seconda

Part #5303307291

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307291. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
14% OFF Phone Price : $43.09
In Stock
Booster Coil 5303307292
#72

Burner diagram

Booster coil

Part #5303307292

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307292. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
14% OFF Phone Price : $43.09
In Stock
Dryer Blower Wheel 5304513609
#9

Motor diagram

Dryer blower wheel

Part #5304513609

BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
