Kenmore
Canister Vacuum

Model # 11626011690 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11626011690 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Muskin Gasket 742968
#8

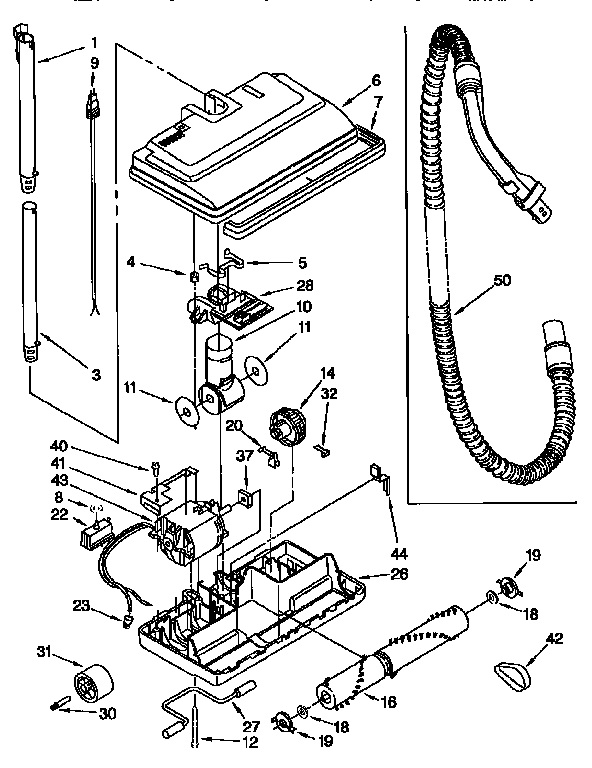

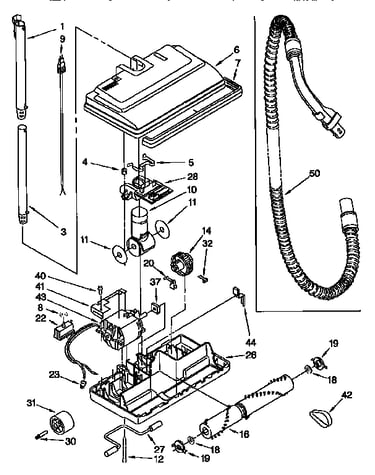

Power-mate diagram

Muskin gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

Muskin Yoke Bearing Seal 741423
#11

Power-mate diagram

Muskin yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag, 2-pack 50557
#31A

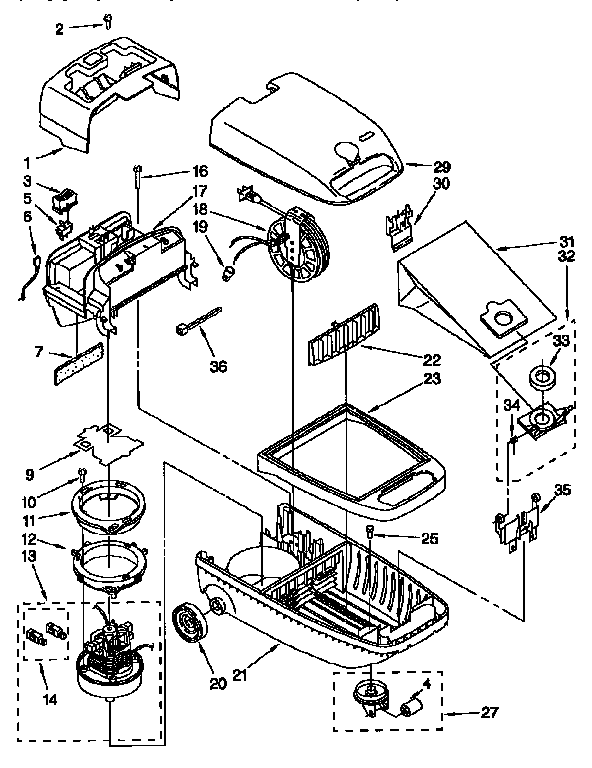

Vacuum cleaner diagram

Vacuum bag, 2-pack

Part #50557

Replaced by #50557

?
Manufacturer substitution
This part replaces 50557. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$28.07 |
18% OFF Phone Price : $34.07
In Stock
Vacuum Screw 4368563
#2

Vacuum cleaner diagram

Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power-mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Hose Adapter (gray) 4370051
#6

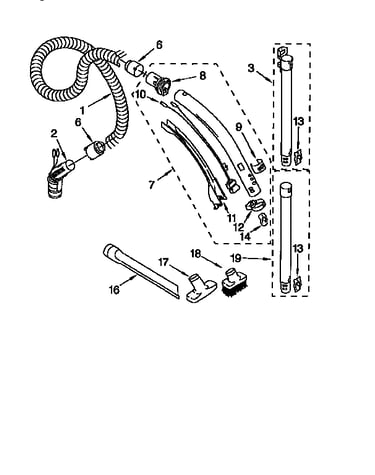

Hose and attachements diagram

Hose adapter (gray)

Part #4370051

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 4152969
#22

Vacuum cleaner diagram

Filtr-sfty

Part #4152969

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4370218
#29

Vacuum cleaner diagram

Canister hood

Part #4370218

The manufacturer no longer makes this part, and there's no substitute part

Indicator Cam 414737
#14

Power-mate diagram

Indicator cam

Part #414737

The manufacturer no longer makes this part, and there's no substitute part
