Model # ZT1436B Official Swisher zero-turn riding lawn mower

Here are the diagrams and repair parts for Official Swisher ZT1436B zero-turn riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

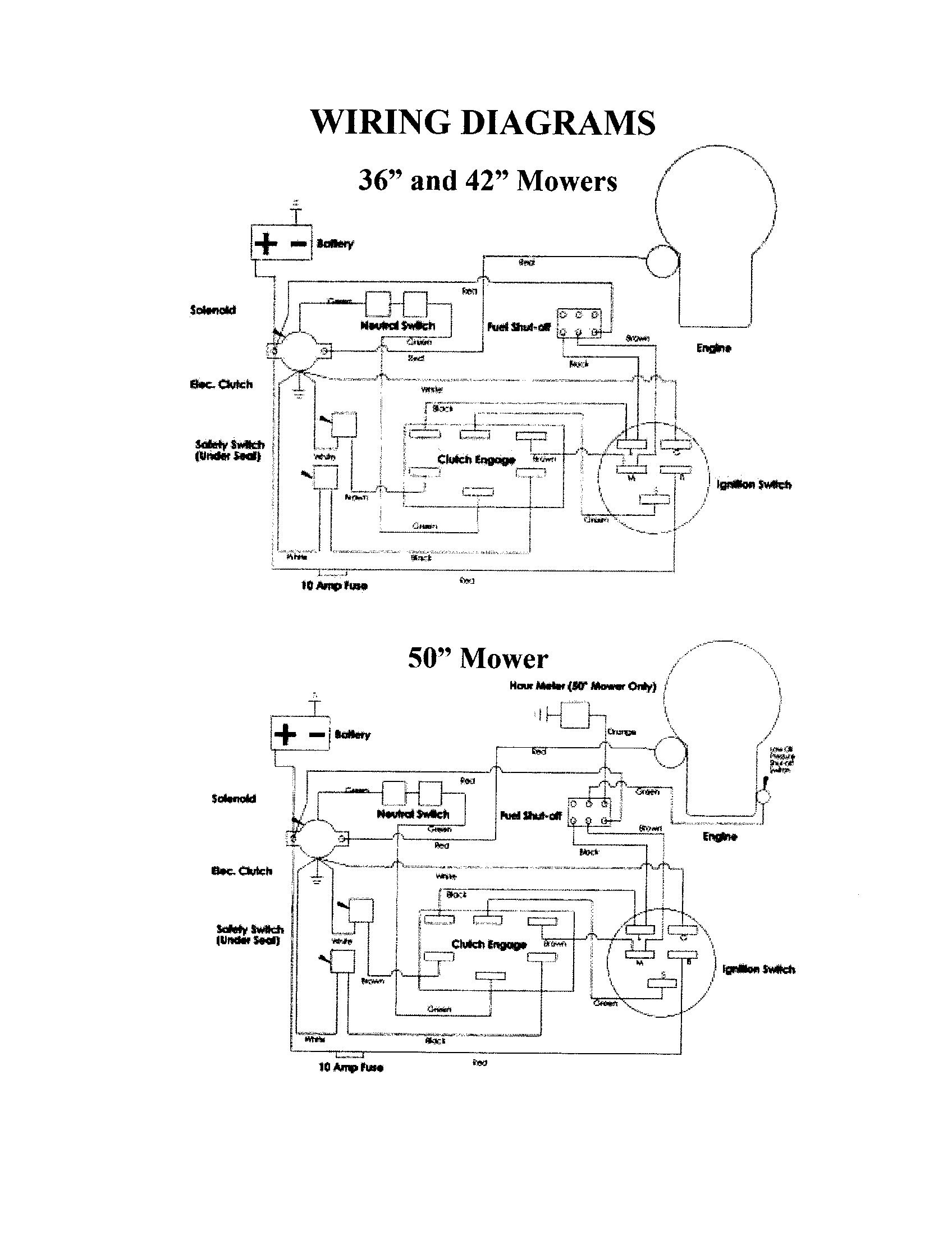

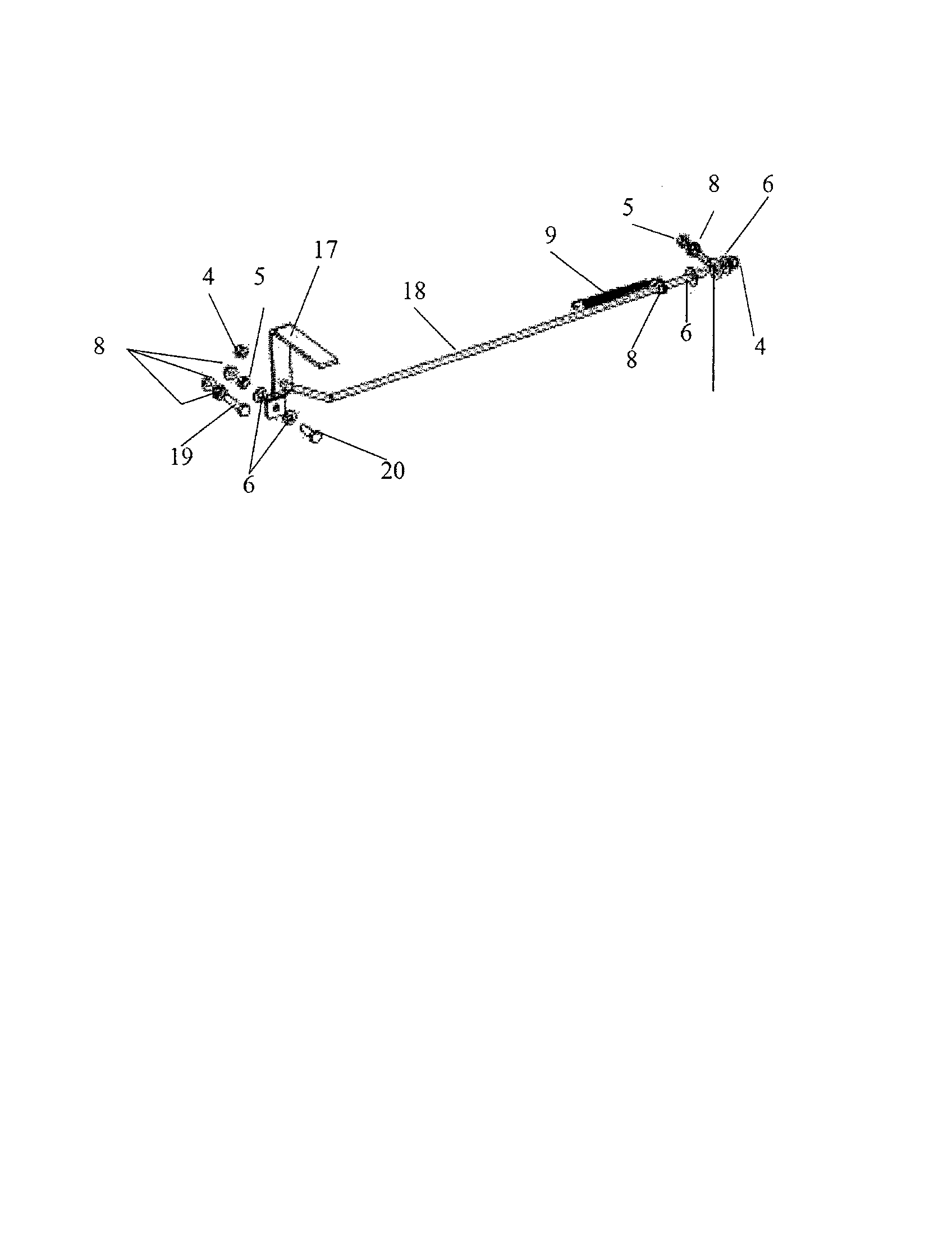

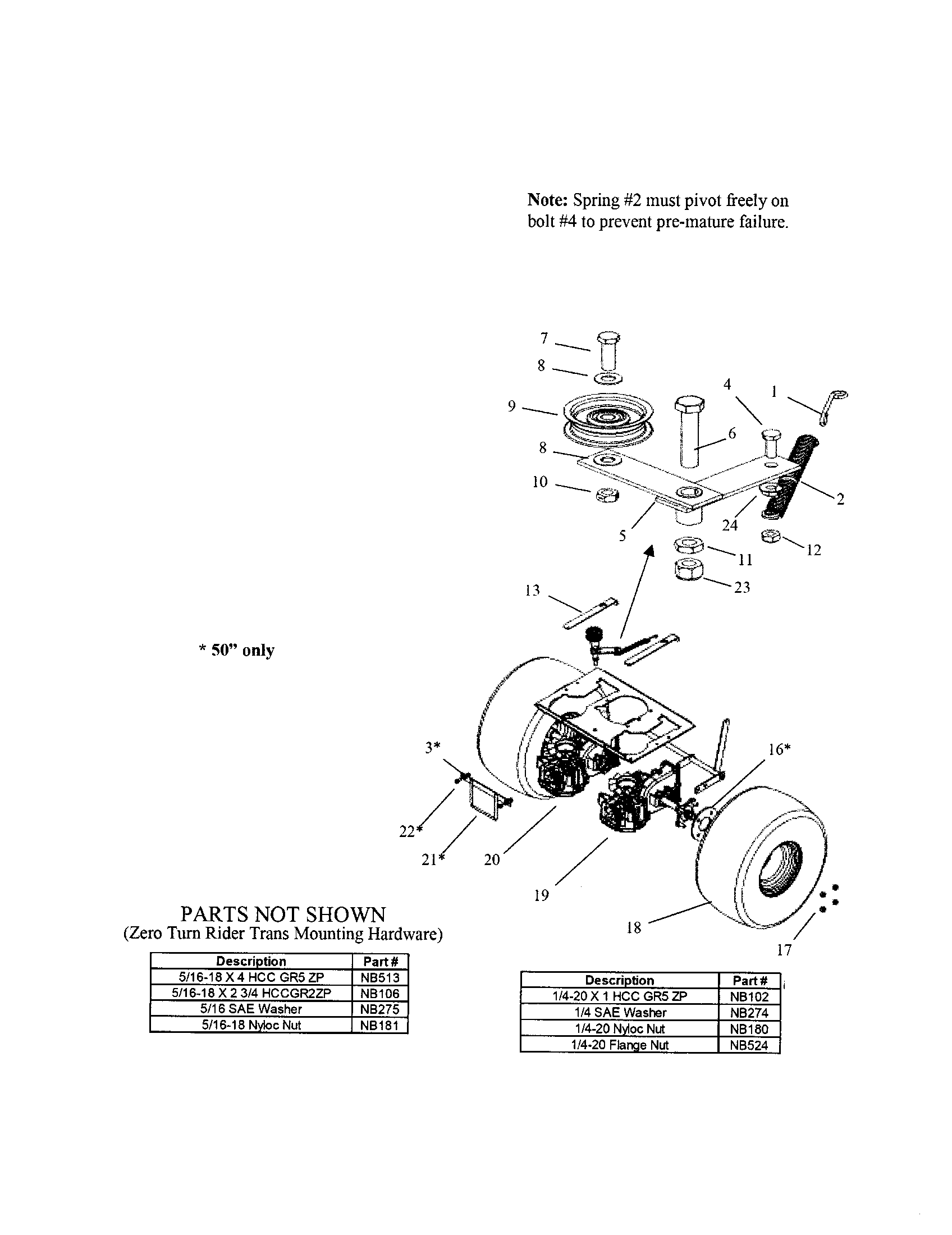

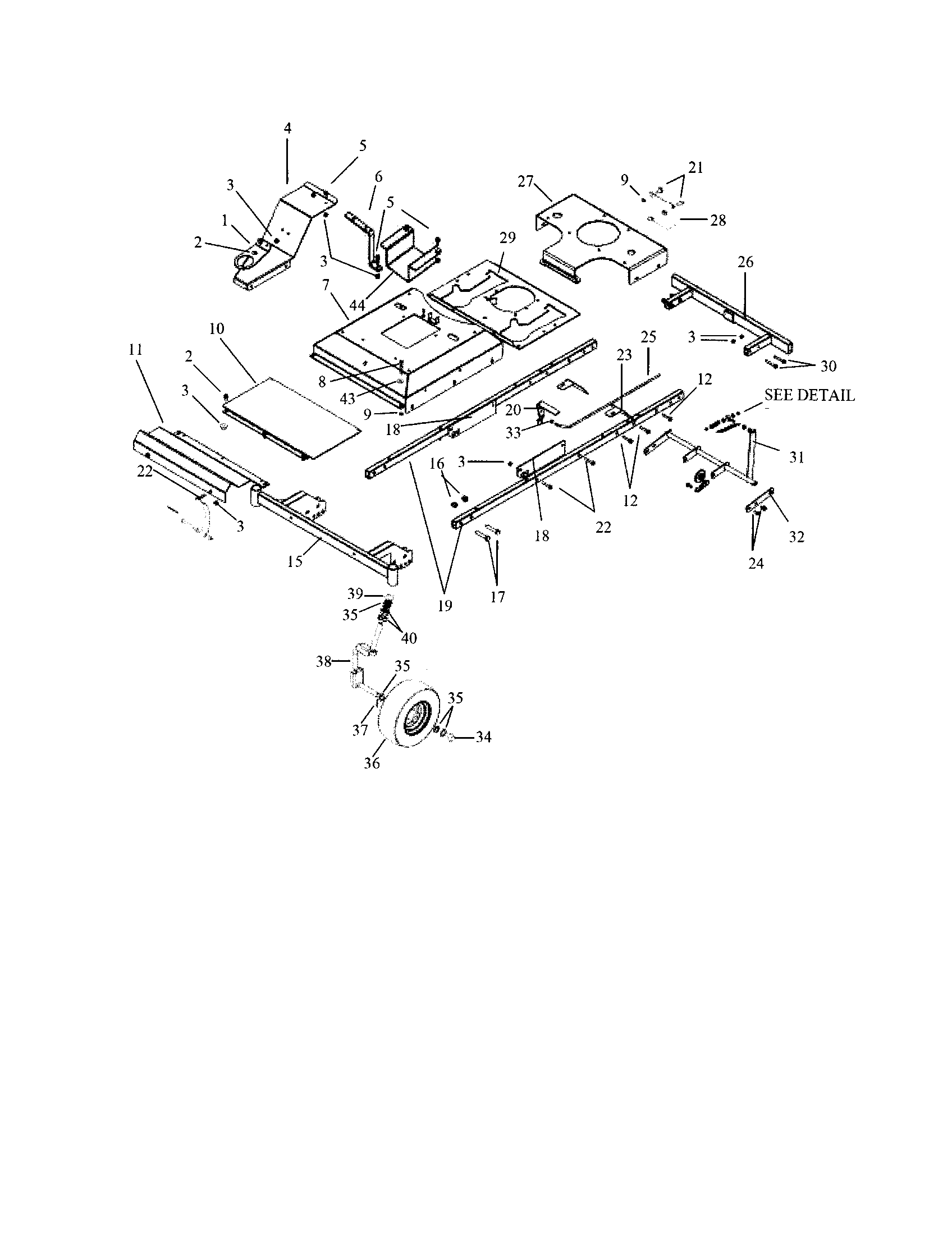

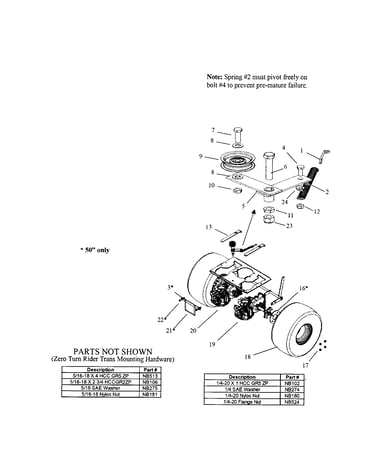

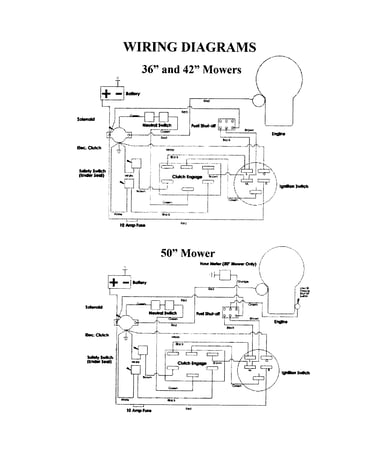

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Torsion - Fr 3683TK
#12

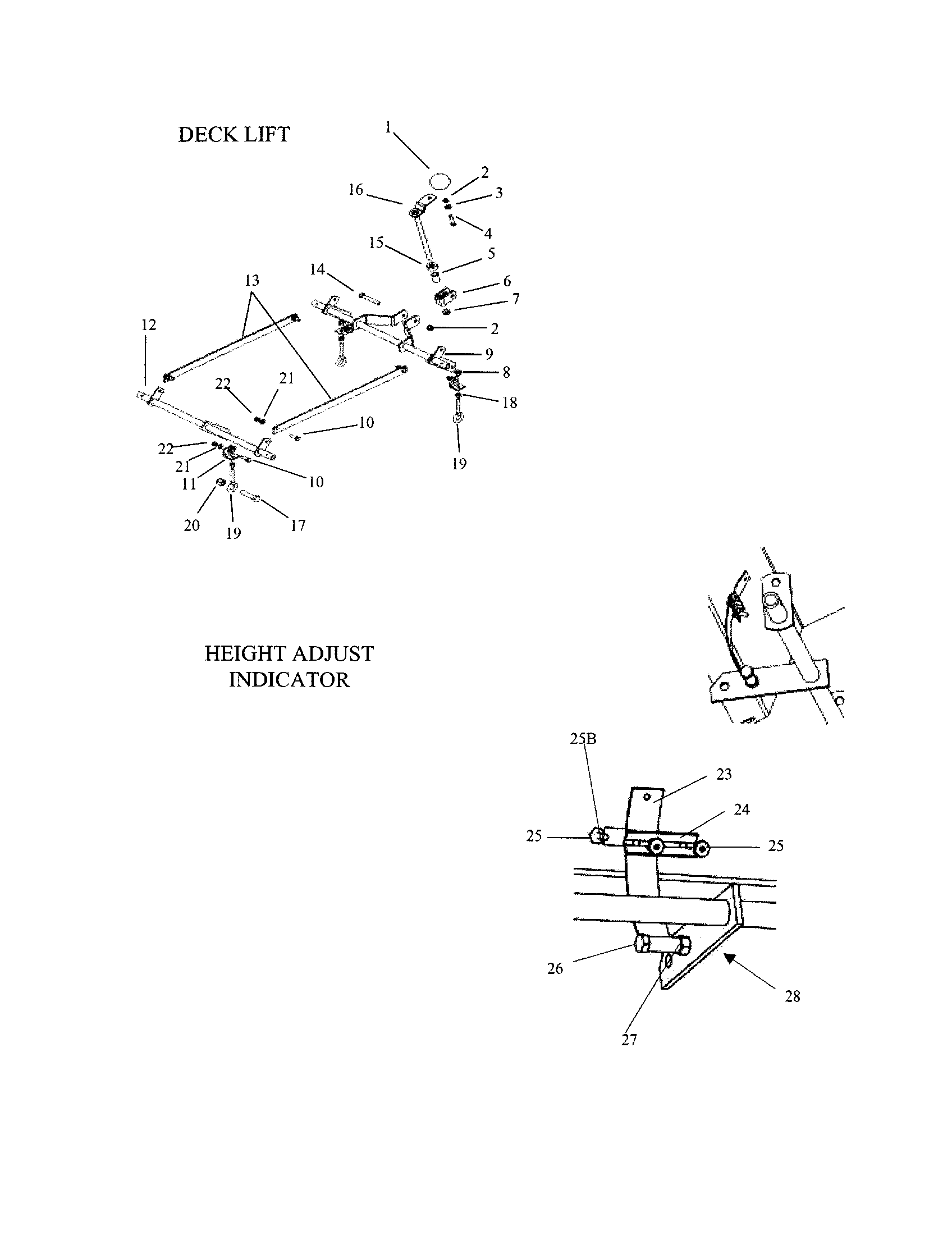

Deck lift/height adj. indicator diagram

Torsion - fr

Part #3683TK

The manufacturer no longer makes this part, and there's no substitute part

Caution No S OD11
#10

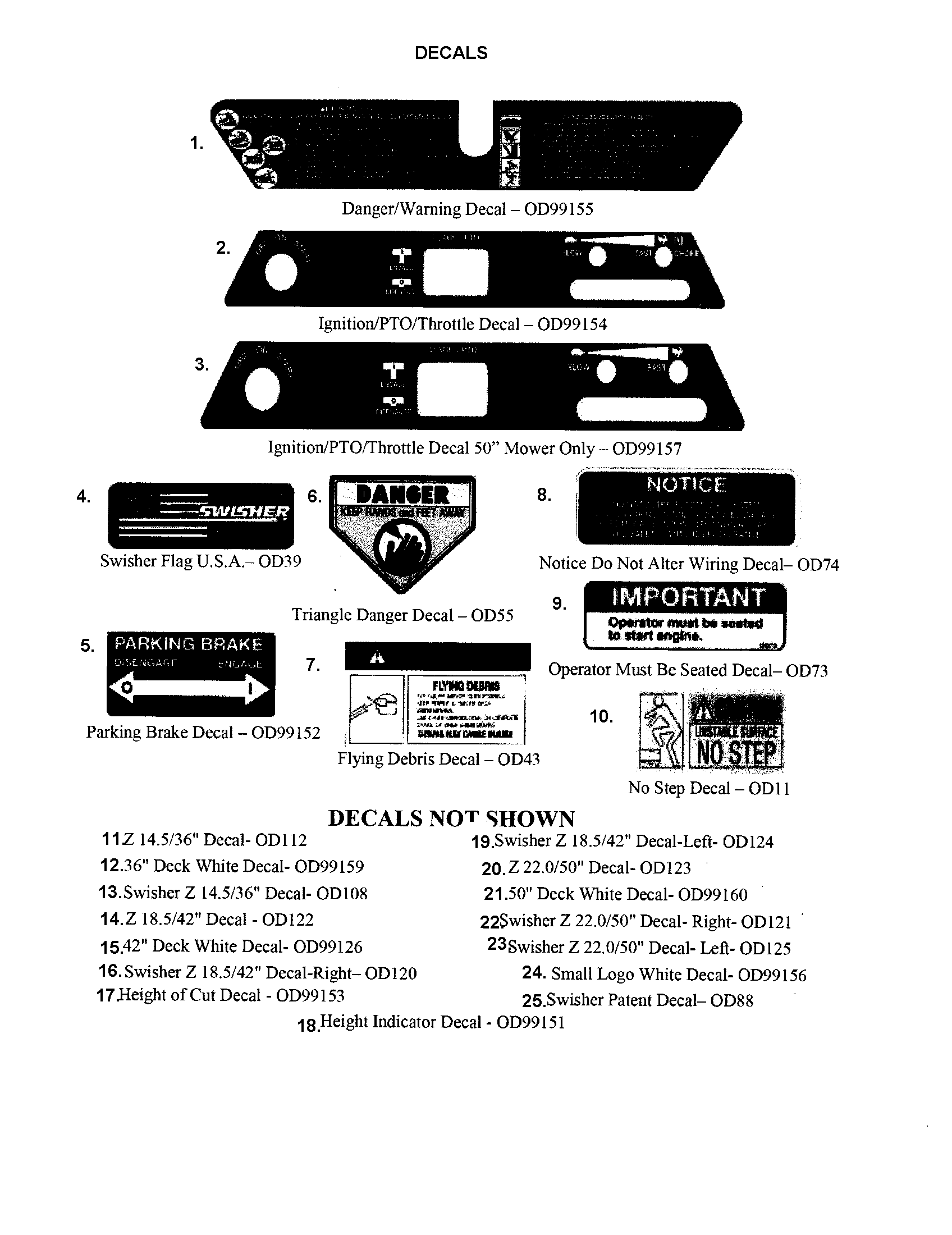

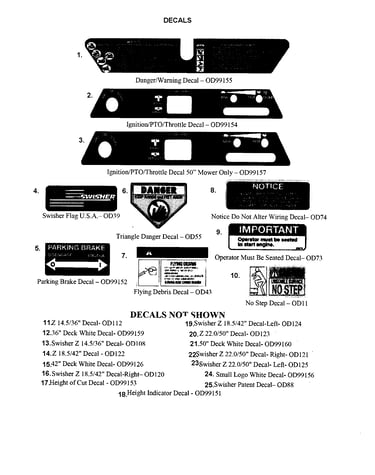

Decals diagram

Caution no s

Part #OD11

The manufacturer no longer makes this part, and there's no substitute part

5/16 Sae Was NB275
5/16 sae was

Part #NB275

The manufacturer no longer makes this part, and there's no substitute part

22 Hp B&s Engine (50" Mower) N/a UNAV1
#1B

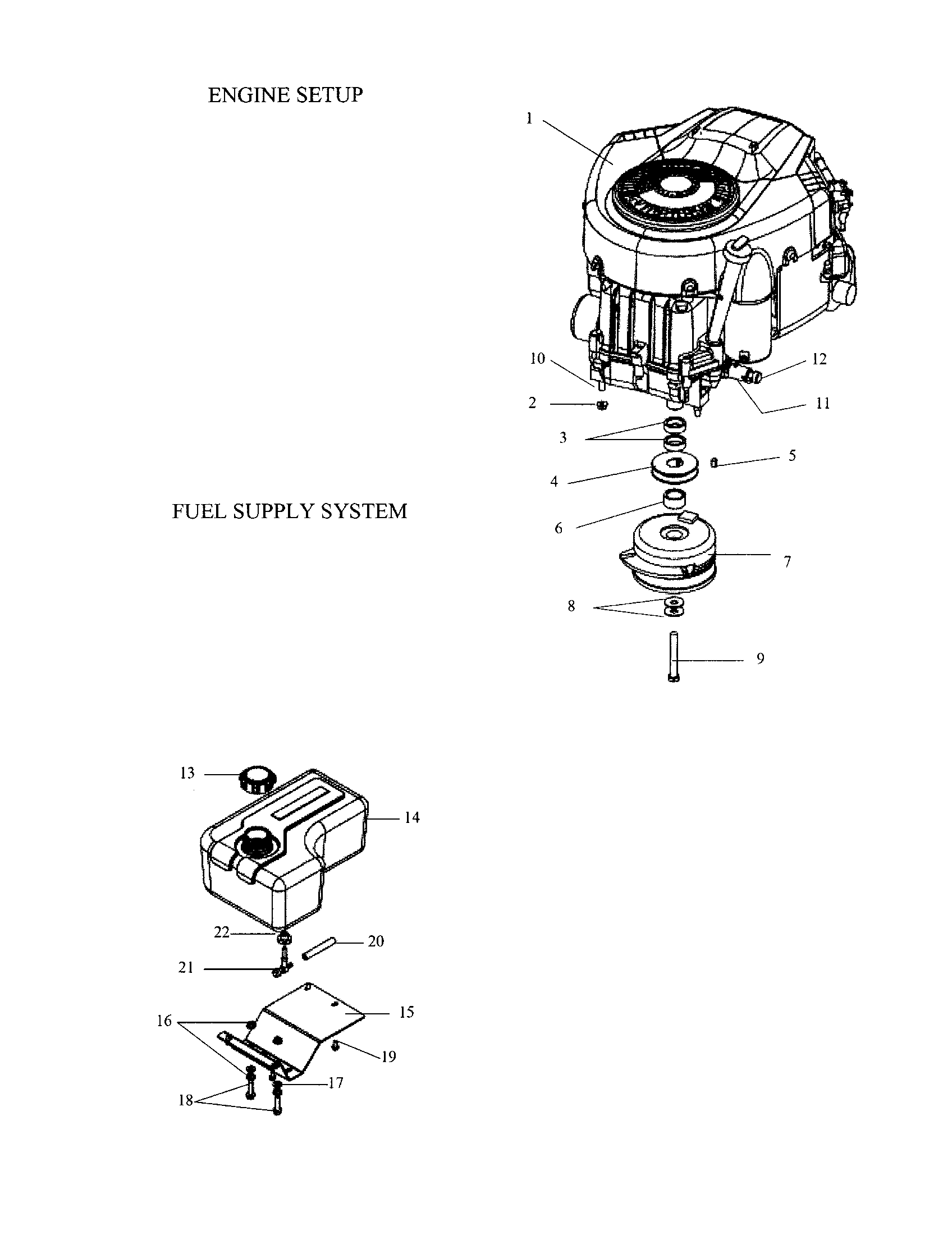

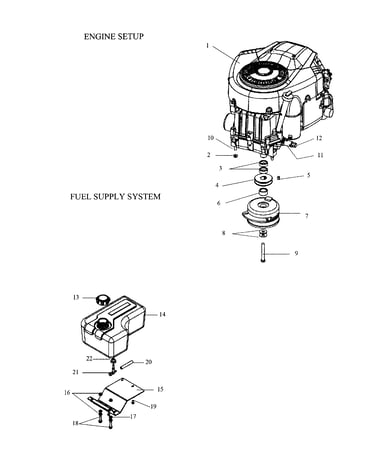

Engine/fuel supply diagram

22 hp b&s engine (50" mower) n/a

Part #UNAV1

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Electric Clutch 3813
#7A

Engine/fuel supply diagram

Lawn tractor electric clutch

Part #3813

The manufacturer no longer makes this part, and there's no substitute part

Cover Pull 3743
#7

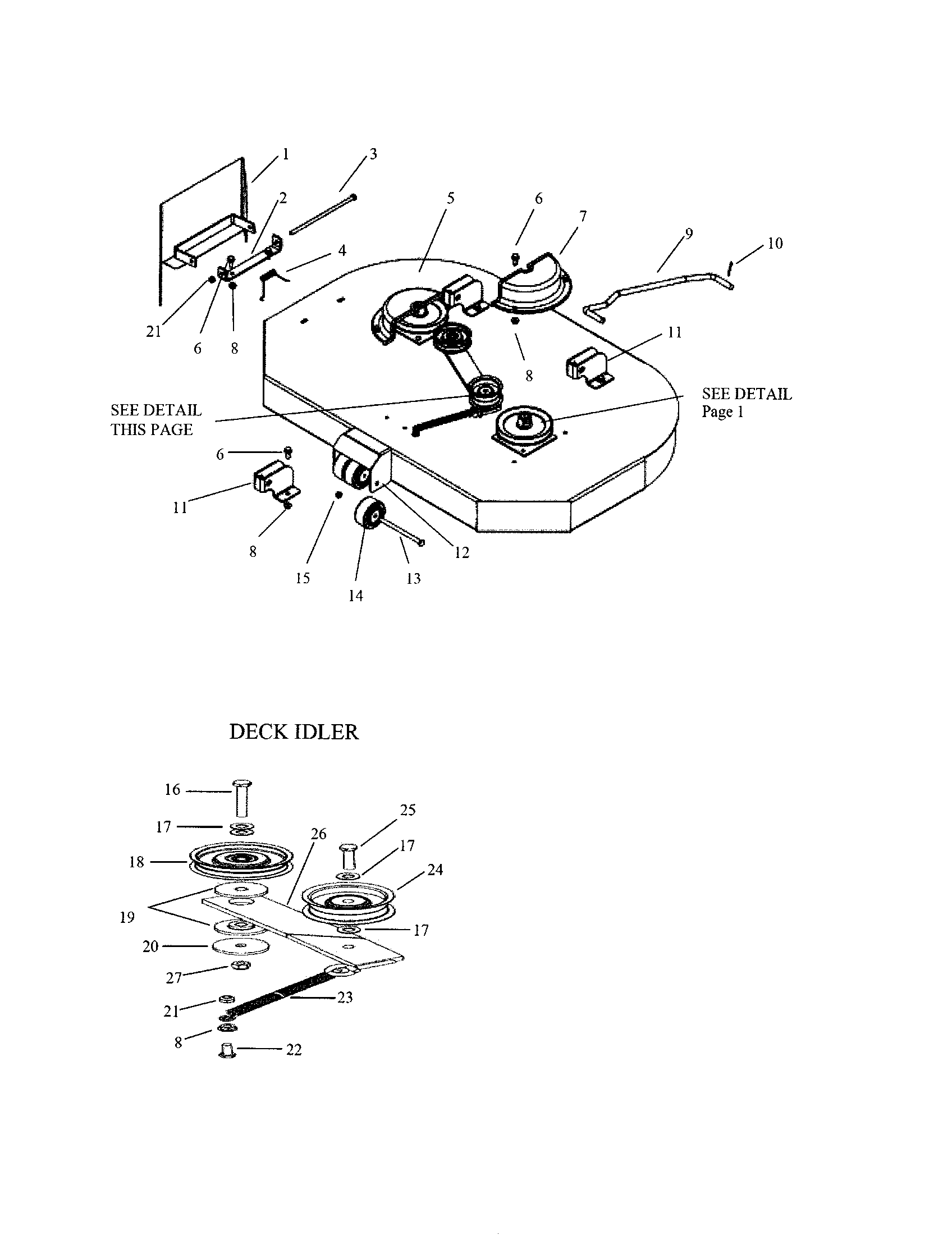

Mowing deck diagram

Cover pull

Part #3743

The manufacturer no longer makes this part, and there's no substitute part

1/4-20 X 1/2 NB114
#20

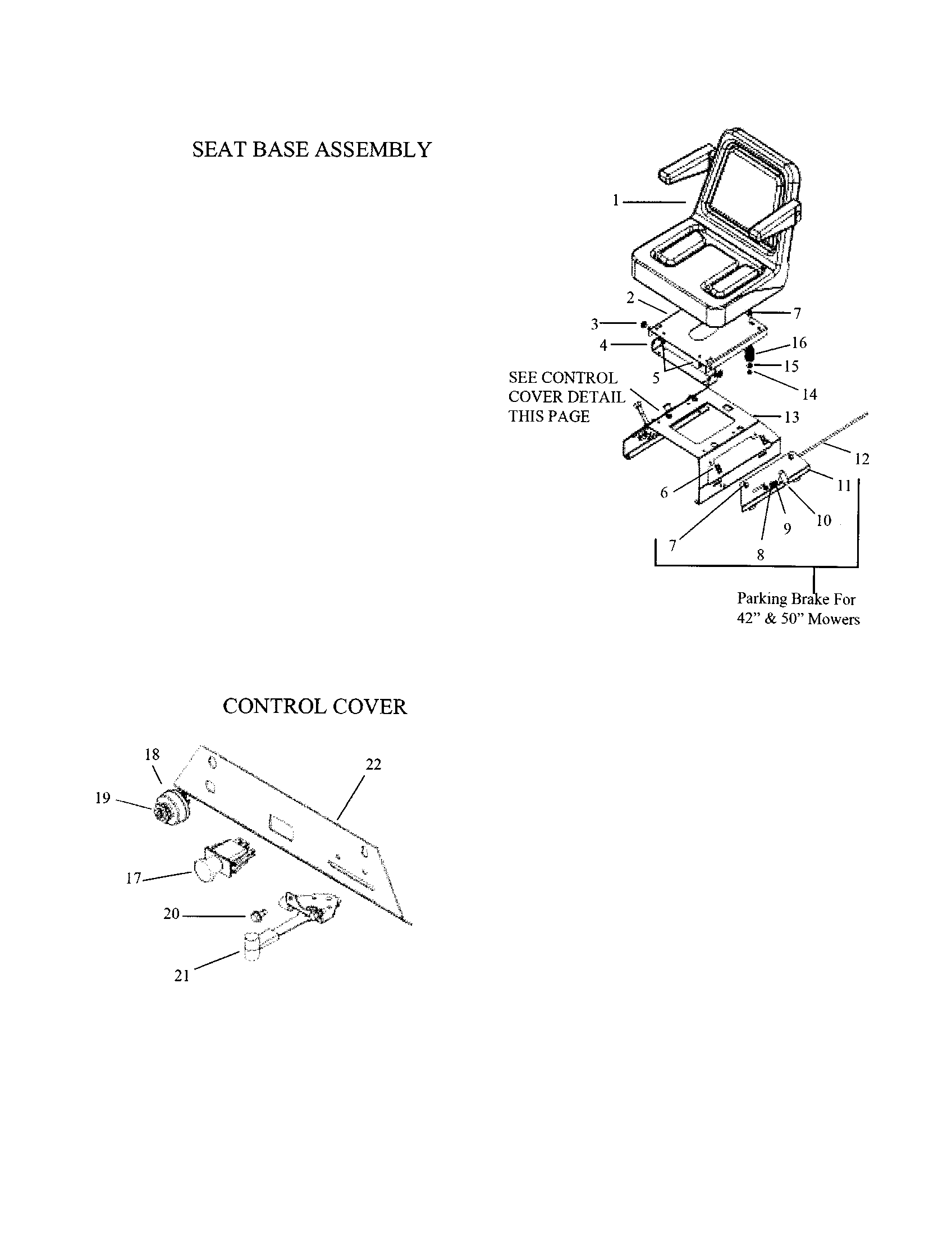

Seat base/control cover diagram

1/4-20 x 1/2

Part #NB114

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Mandrel Pulley B4104TK
#20

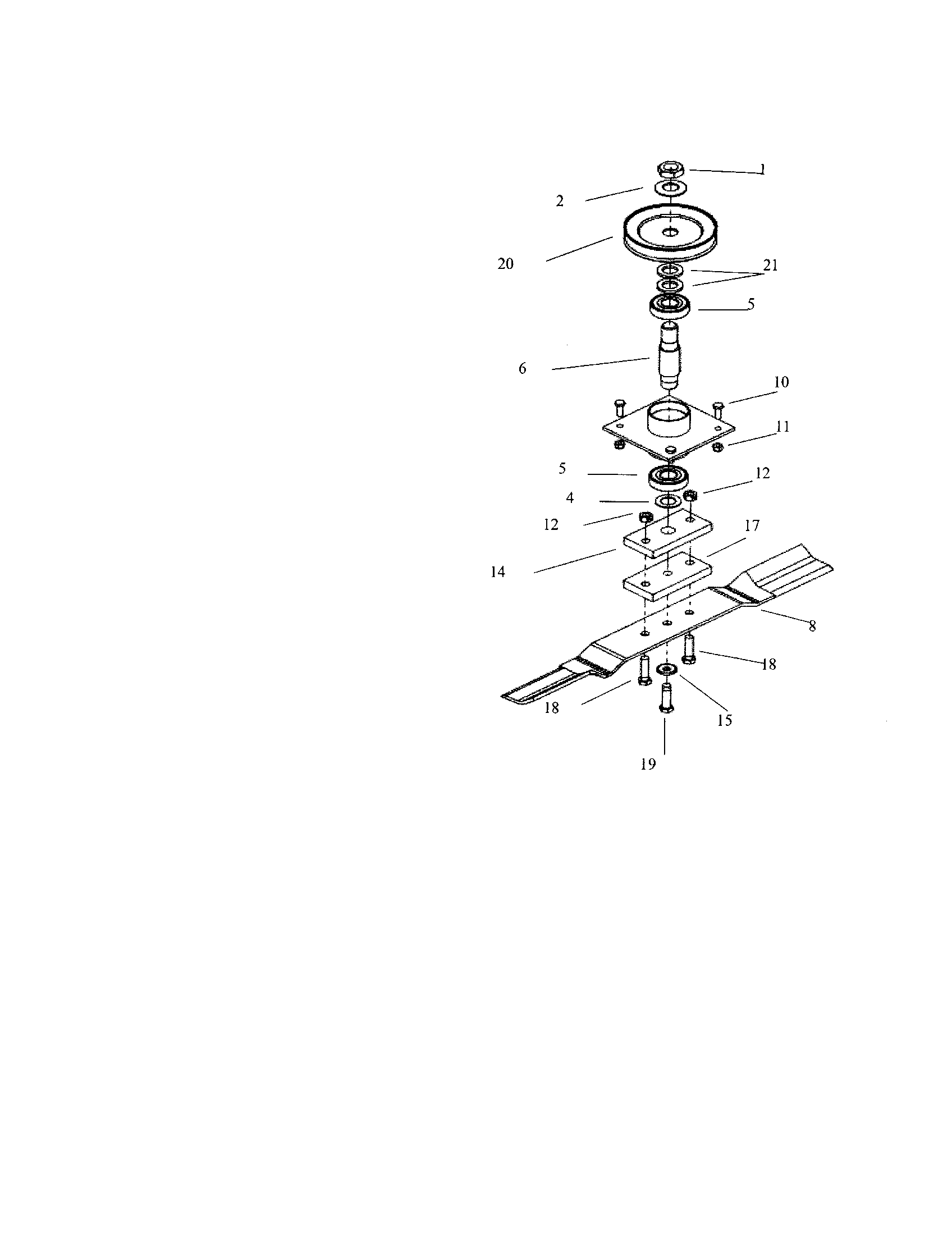

Blade driver diagram

Lawn tractor mandrel pulley

Part #B4104TK

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Blade Adapter 9008
#14

Blade driver diagram

Lawn tractor blade adapter

Part #9008

The manufacturer no longer makes this part, and there's no substitute part

Nut - Jam 5/ NB190
#30

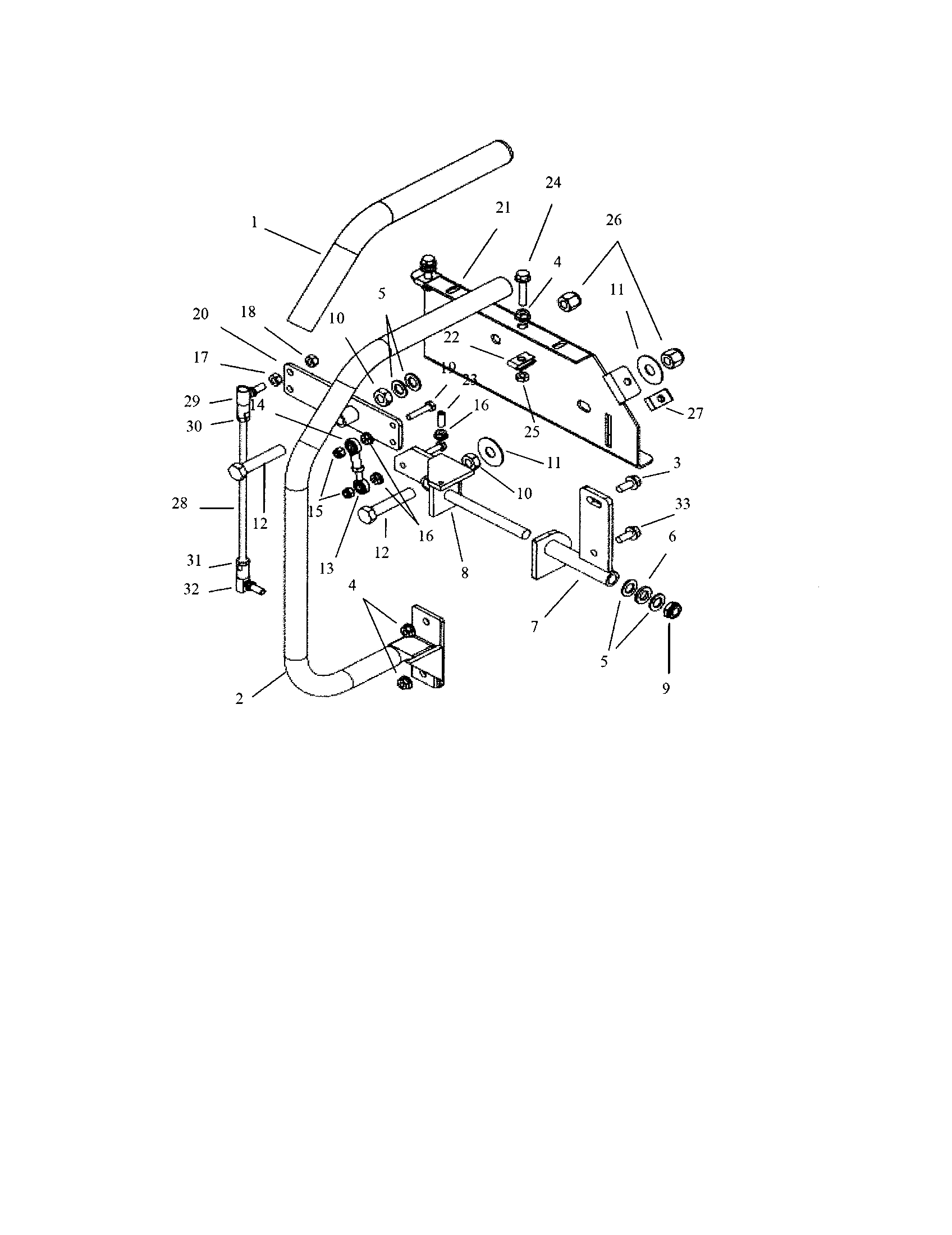

Steering diagram

Nut - jam 5/

Part #NB190

The manufacturer no longer makes this part, and there's no substitute part
