Model # AZ32H15D3DM2 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ32H15D3DM2 zoneline air conditioner, as well as links to manuals and error code tables, if available.

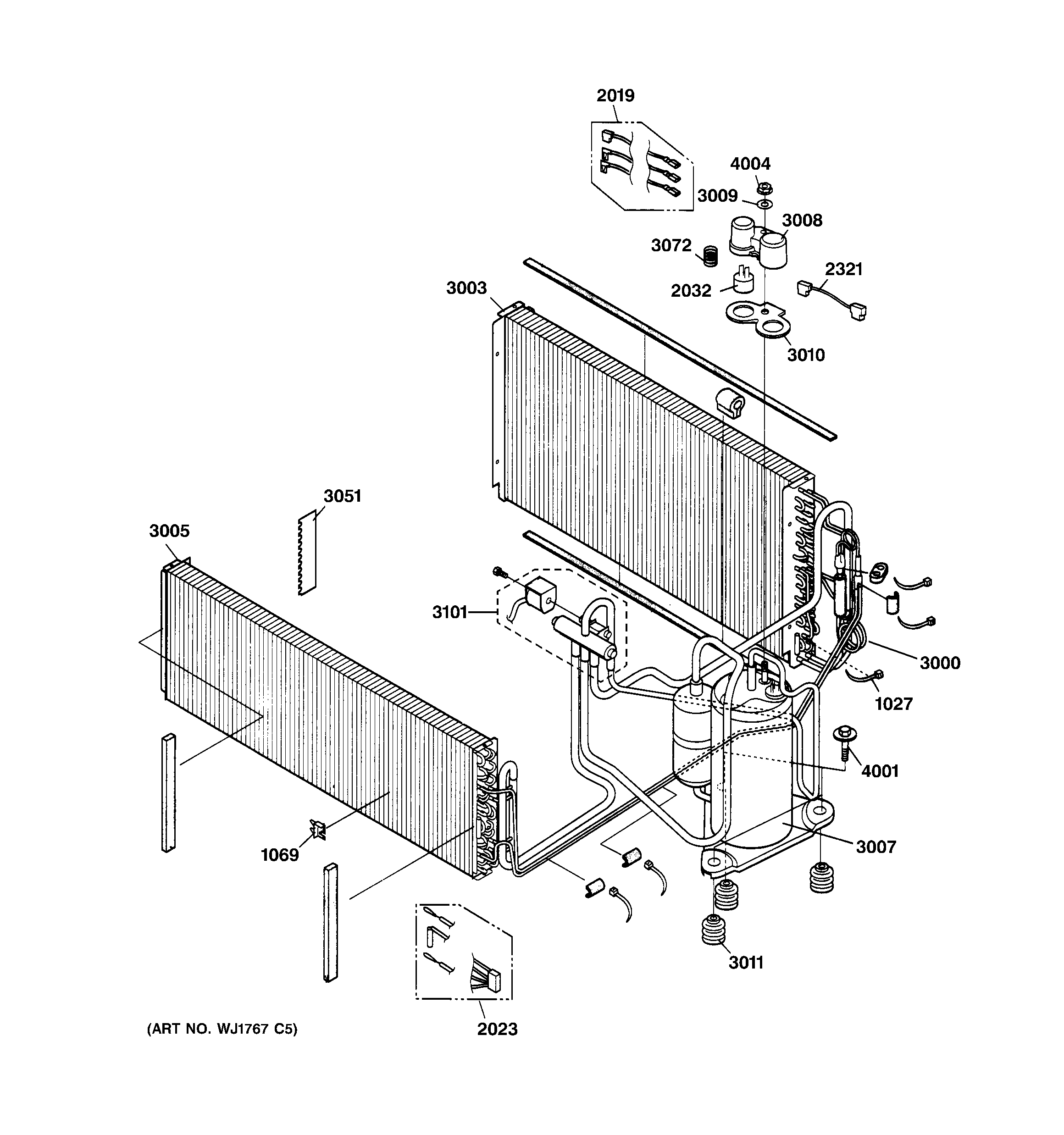

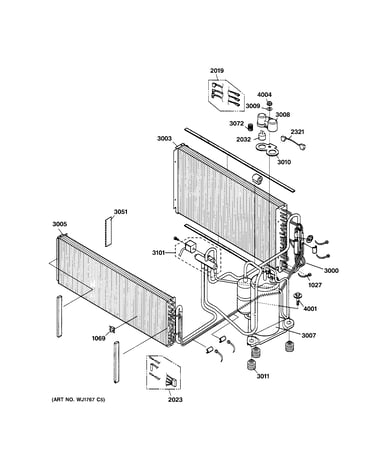

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AZ32H15D3DM2 Zoneline Air Conditioner
Room Air Conditioner Heater High-limit Thermostat WP28X10005
#2027

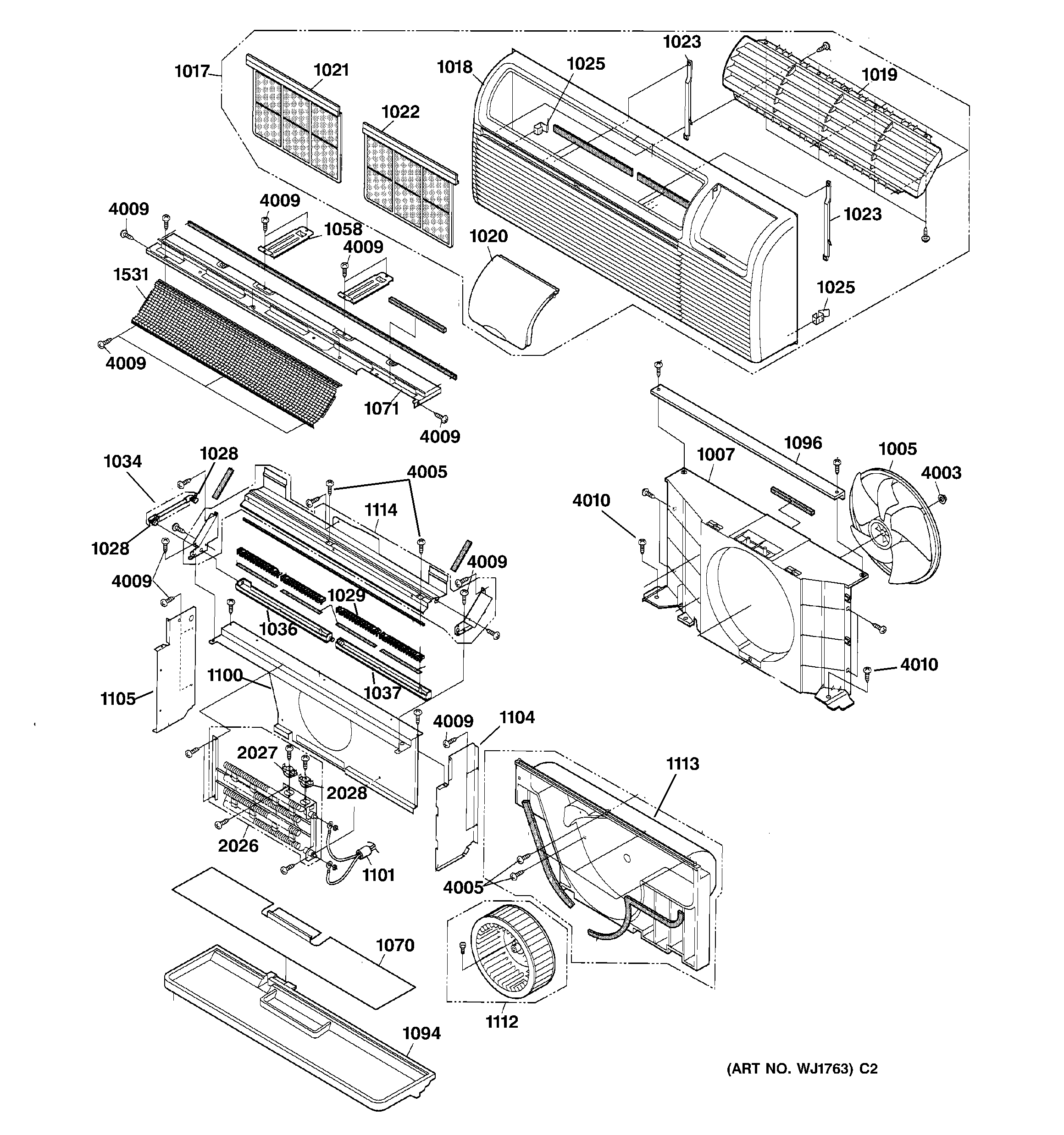

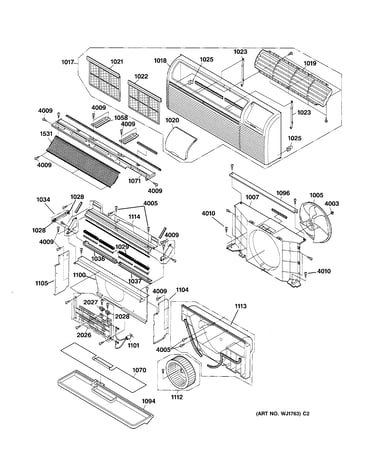

Grille & air moving parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10005

$38.62 |
13% OFF Phone Price : $44.62
In Stock
Dribbler L WJ05X10018
#1036

Grille & air moving parts diagram

Dribbler l

Part #WJ05X10018

$11.06
In Stock
Spring WP02X10001
#1025

Grille & air moving parts diagram

Spring

Part #WP02X10001

$9.51
In Stock
Pump Cover WP79X10005
#1009

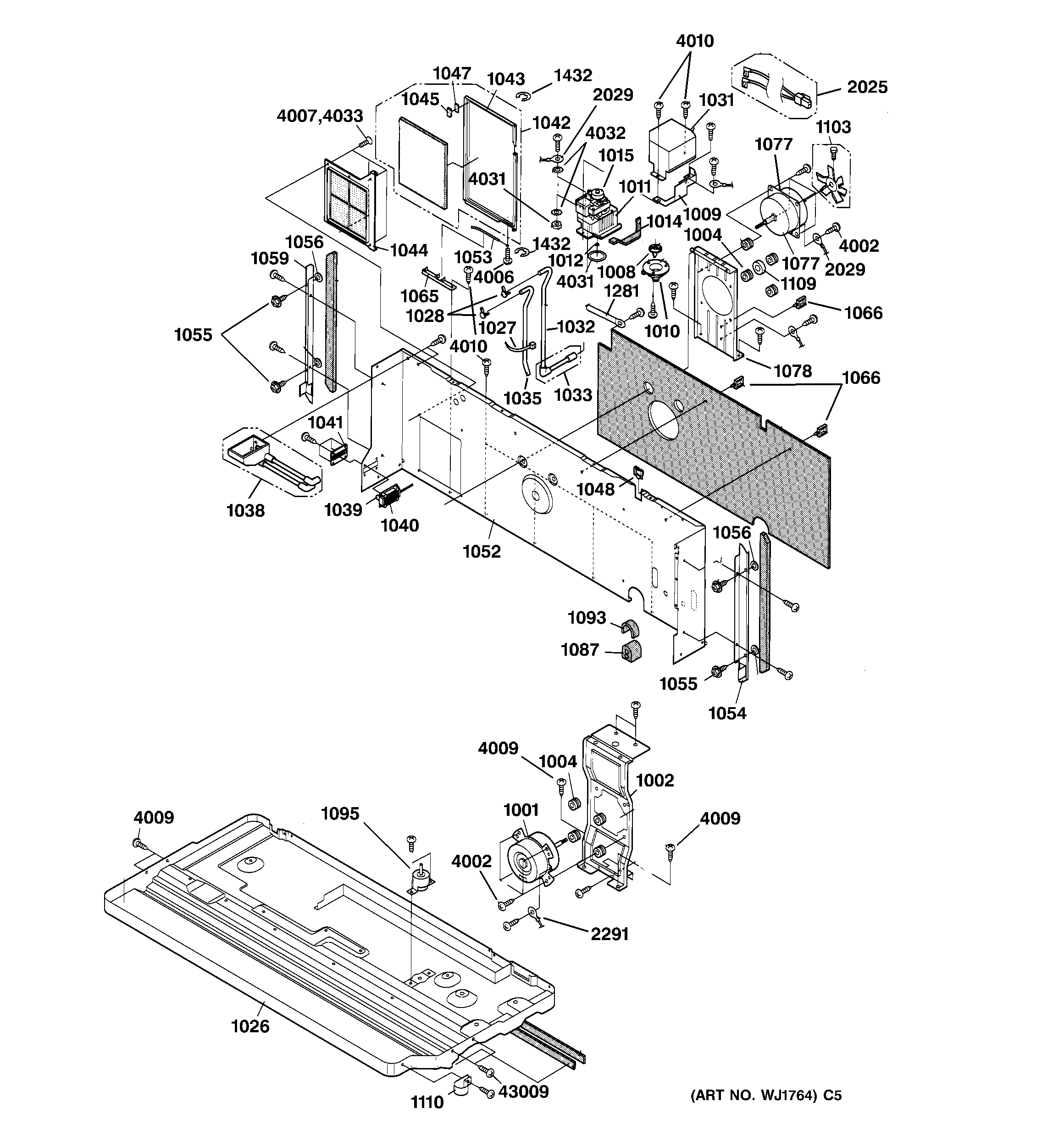

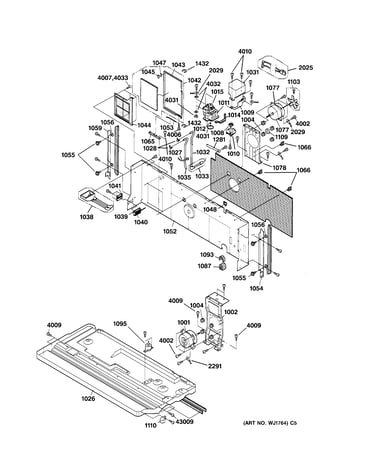

Chassis assembly diagram

Pump cover

Part #WP79X10005

$10.06
In Stock
Special Screw WP01X10004
#1055

Chassis assembly diagram

Special screw

Part #WP01X10004

This item is not returnable
$5.69
In Stock
Spacer WP01X10010
#2018

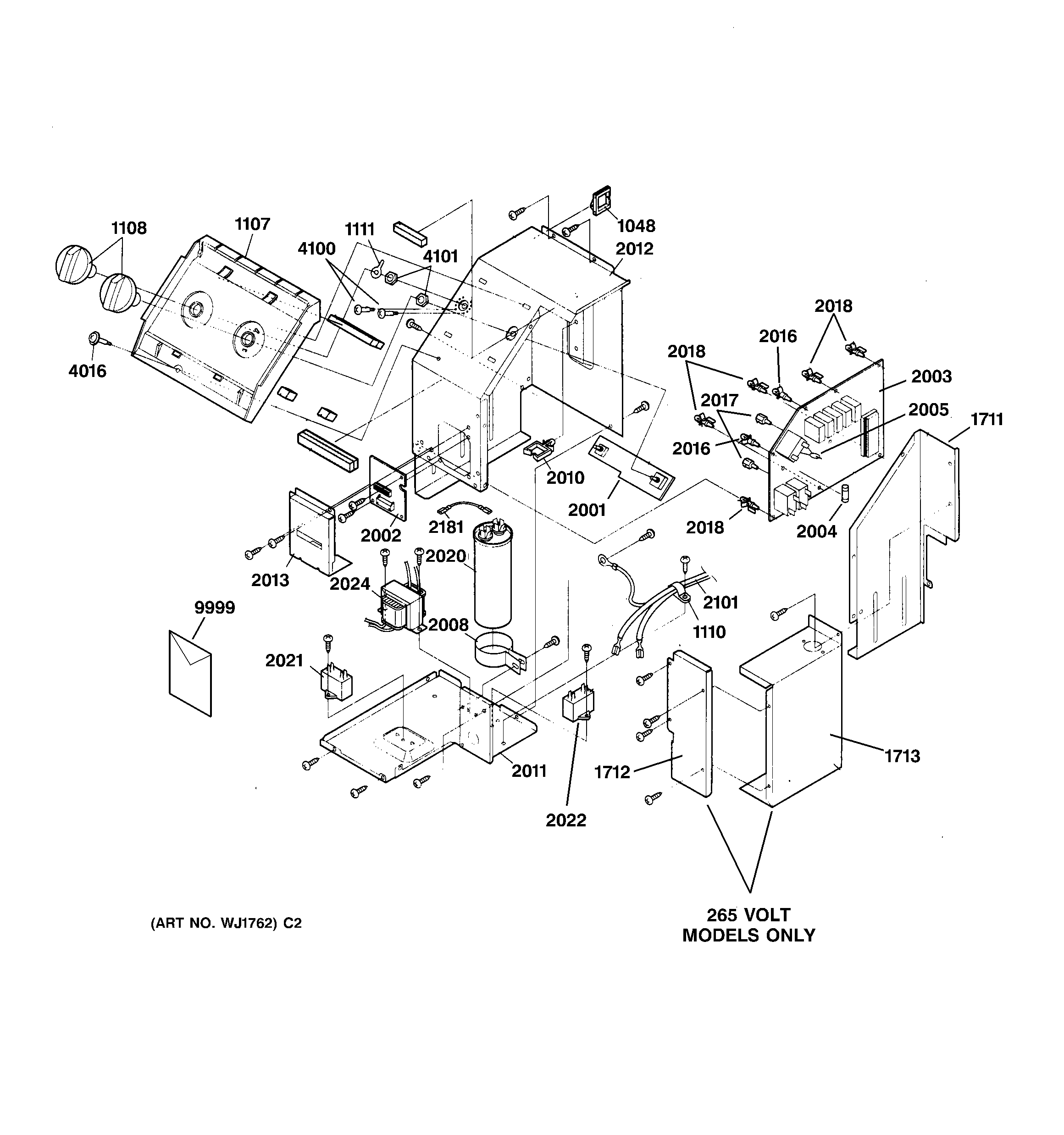

Control assembly diagram

Spacer

Part #WP01X10010

$8.37
In Stock
Damper Wire WP01X10003
#1053

Chassis assembly diagram

Damper wire

Part #WP01X10003

$14.09
In Stock
Washer : M4x WJ01X10061
#4032

Chassis assembly diagram

Washer : m4x

Part #WJ01X10061

This item is not returnable
$2.16
In Stock
Wire Holder WJ03X10006
Wire holder

Part #WJ03X10006

$11.74
In Stock
O Ring S WJ05X10015
#1012

Chassis assembly diagram

O ring s

Part #WJ05X10015

$8.37
In Stock
