Model # MVWC450XW4 Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MVWC450XW4 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

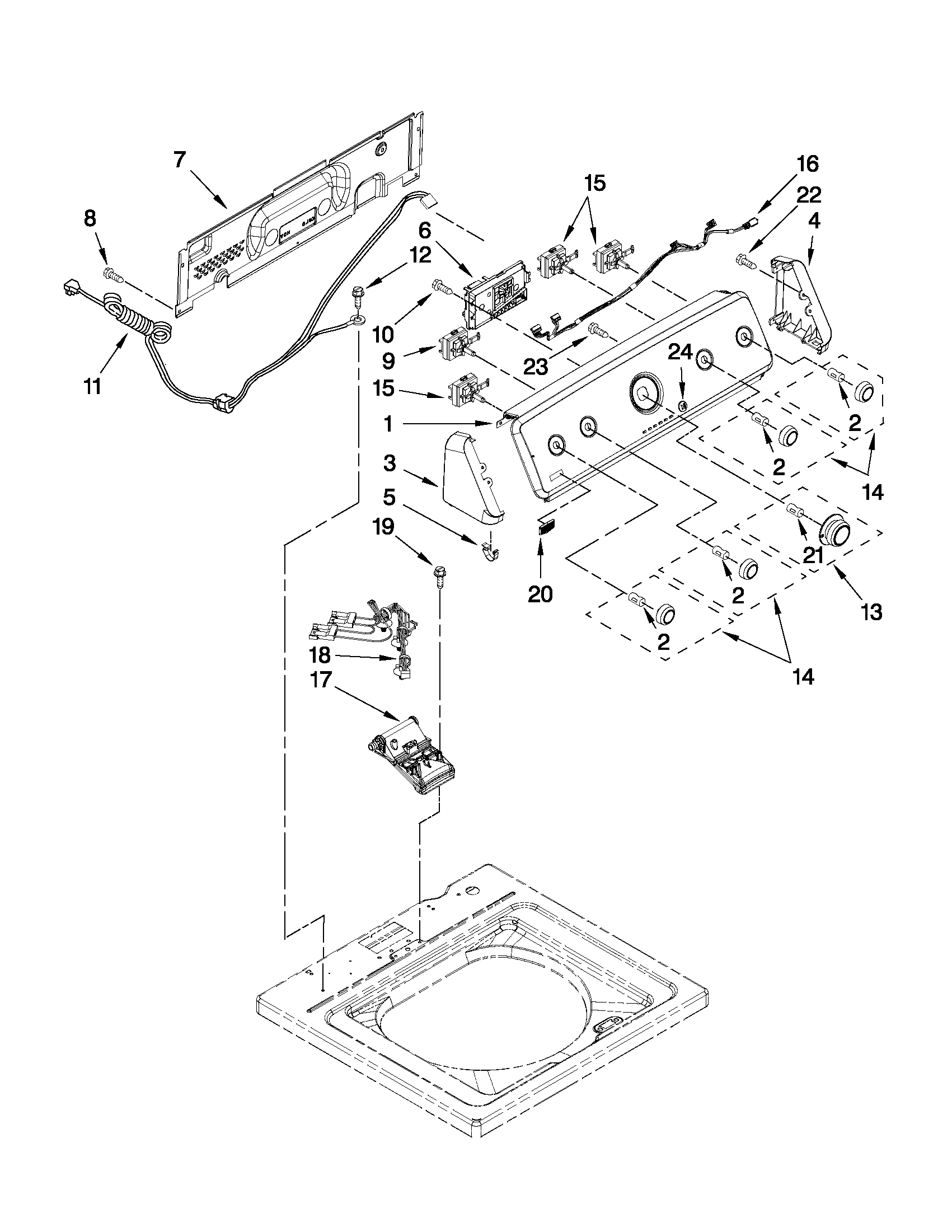

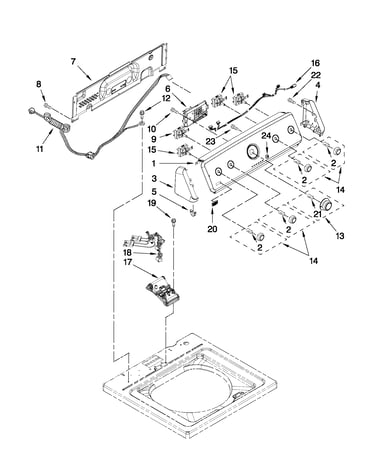

SELECT DIAGRAM
Browse Parts for
MVWC450XW4 Washer
#9

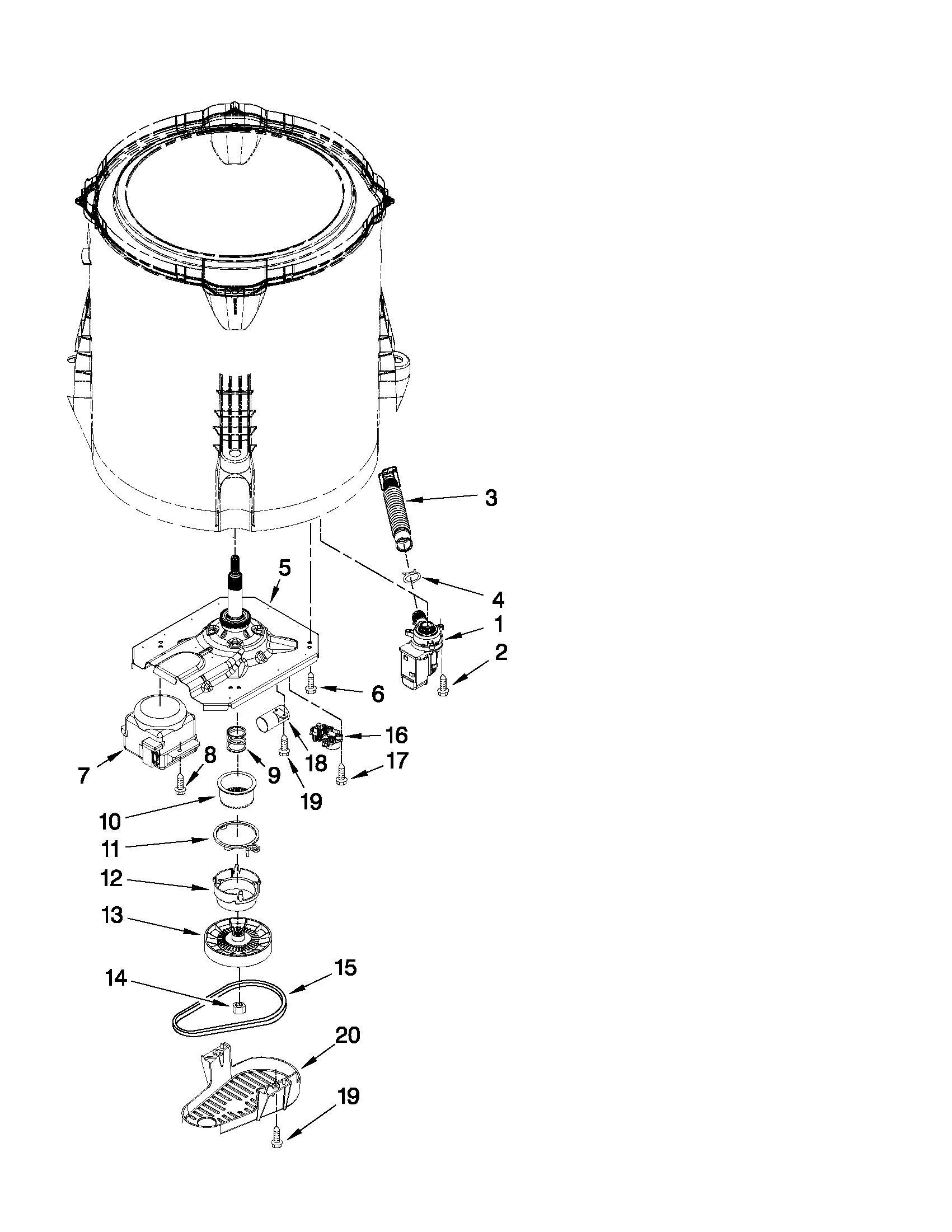

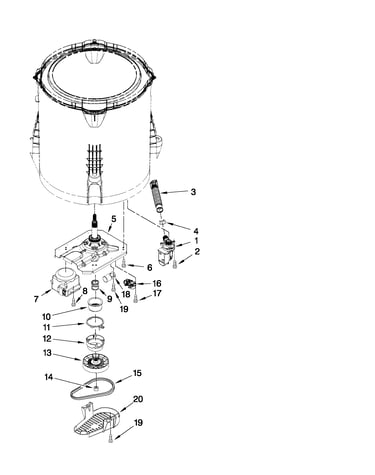

Gearcase, motor and pump parts diagram
Spring
Part #W10326374
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10326374. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#12
Gearcase, motor and pump parts diagram
Cam
Part #W10006354
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006354. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#11
Gearcase, motor and pump parts diagram
Cam
Part #W10006353
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006353. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#10
Gearcase, motor and pump parts diagram
Washer drive pulley and splutch assembly
Part #W10006352
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#13
Gearcase, motor and pump parts diagram
Washer motor drive pulley
Part #W10006356
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006356. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#8

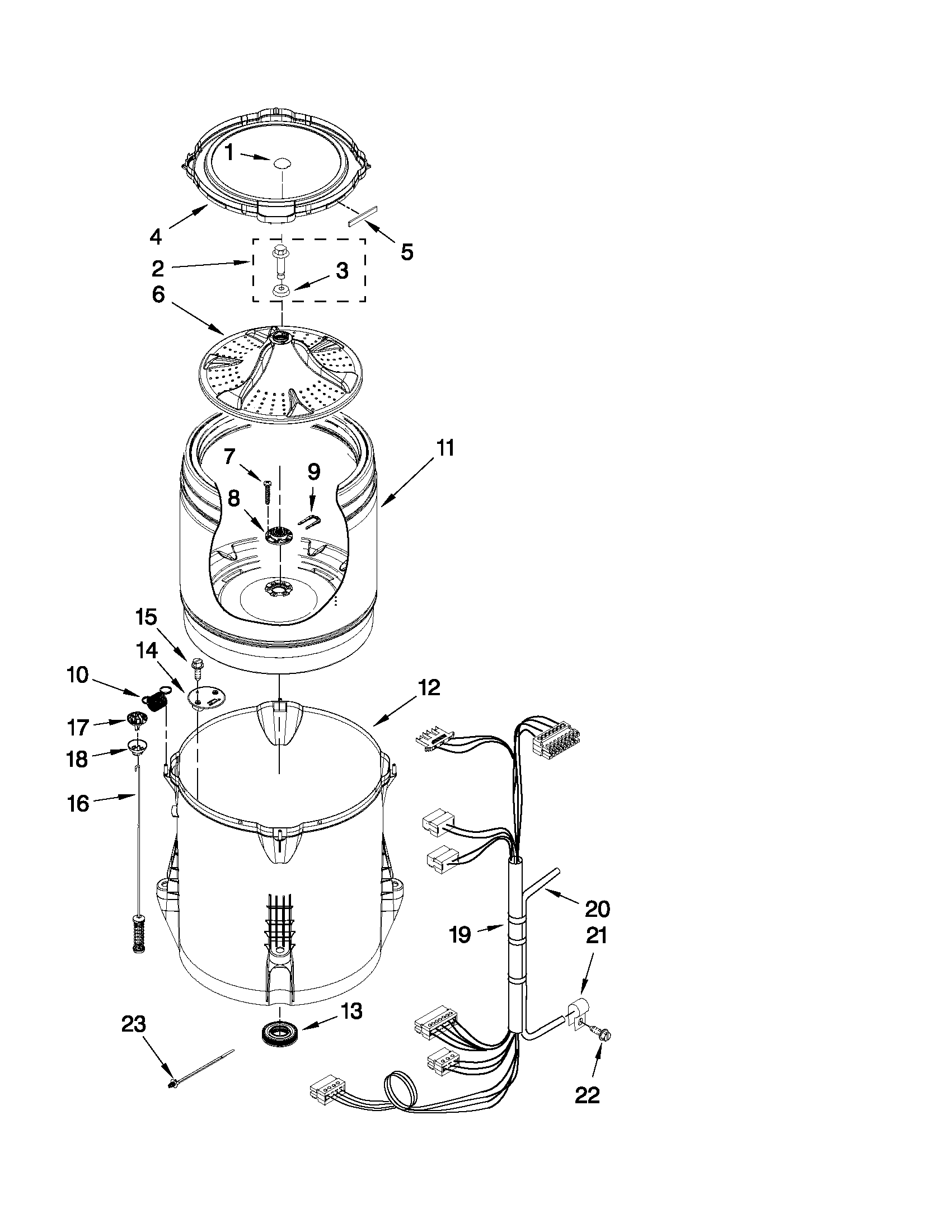

Basket and tub parts diagram
Driveblock -
Part #W10396887
Replaced by #W10528947
?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
$34.12 |
15% OFF Phone Price : $40.12
In Stock
#16
Gearcase, motor and pump parts diagram
Washer actuator
Part #W10006355
Replaced by #WPW10006355
?
Manufacturer substitution
This part replaces W10006355. Substitute parts can look different from the original.
$43.51 |
12% OFF Phone Price : $49.51
In Stock
#18
Gearcase, motor and pump parts diagram
Washer start/run capacitor
Part #W10390446
Replaced by #W11395618
?
Manufacturer substitution
This part replaces W10390446. Substitute parts can look different from the original.
$61.51 |
9% OFF Phone Price : $67.51
In Stock
#5
Gearcase, motor and pump parts diagram
Washer gear case
Part #W10469846
Replaced by #W11454372
?
Manufacturer substitution
This part replaces W10469846. Substitute parts can look different from the original.
$173.74 |
6% OFF Phone Price : $185.74
In Stock
#14

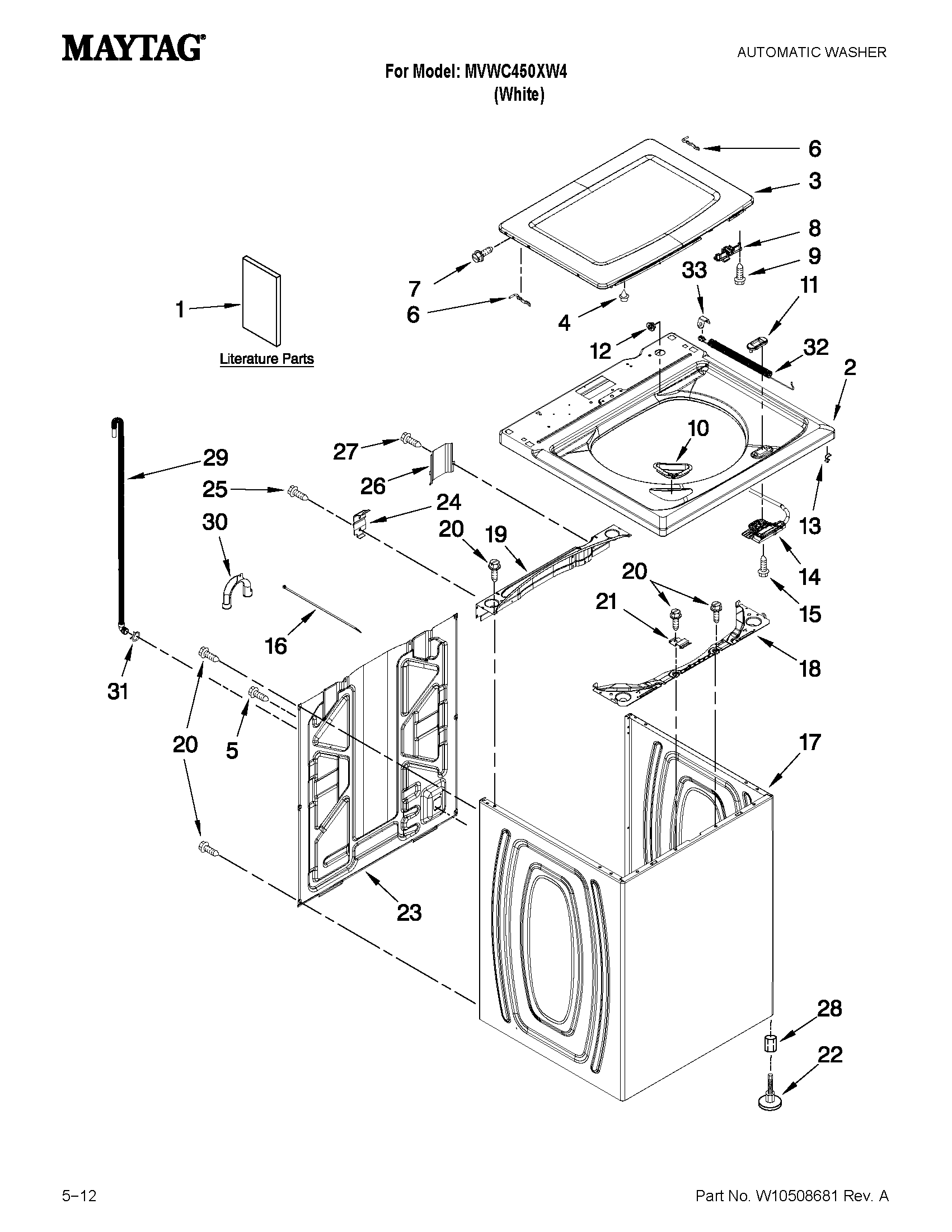

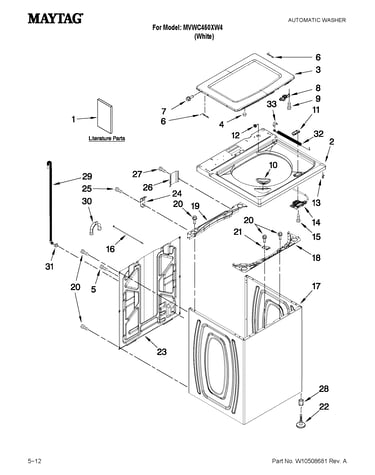

Top and cabinet parts diagram
Washer lid lock assembly
Part #W10238287
Replaced by #W10404050
?
Manufacturer substitution
This part replaces W10238287. Substitute parts can look different from the original.
$41.07 |
13% OFF Phone Price : $47.07
In Stock
