Model # GM3211GXAA Official Magic Chef gas freestanding range

Here are the diagrams and repair parts for Official Magic Chef GM3211GXAA gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

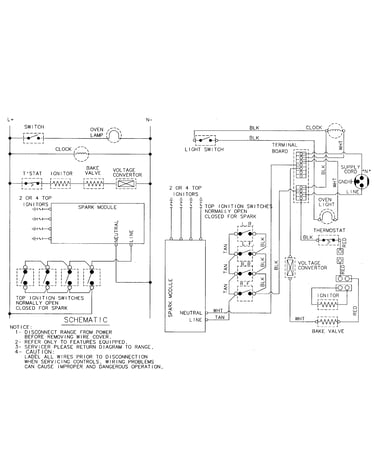

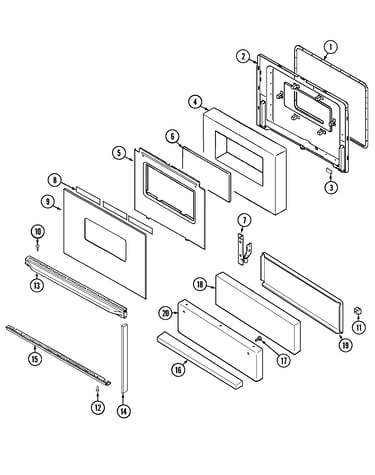

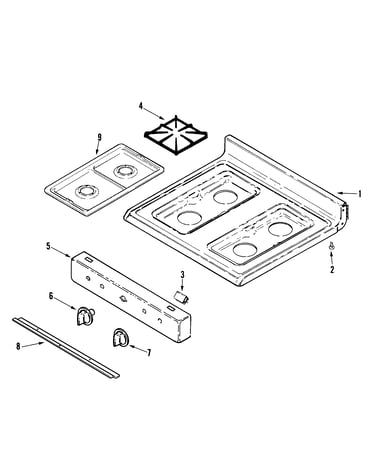

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 790448
#11A

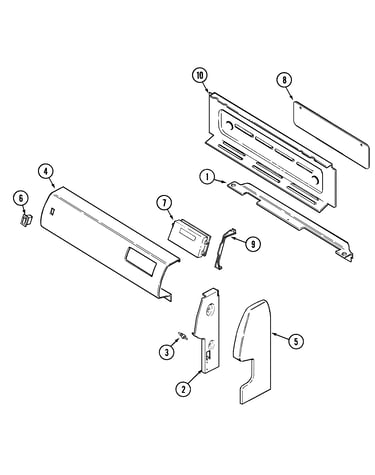

Control panel diagram

Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Bracket, Ant 74002311
#3

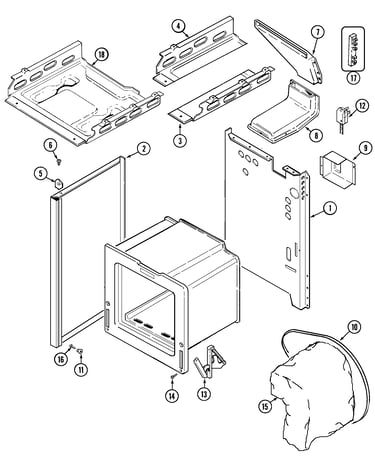

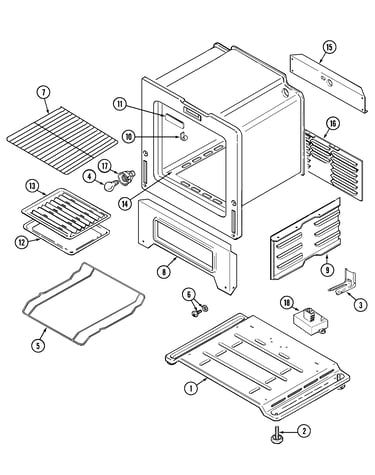

Oven/base diagram

Bracket, ant

Part #74002311

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74002311. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P347-60
#7B

Control panel diagram

Screw

Part #7101P347-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P347-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 707113
#8

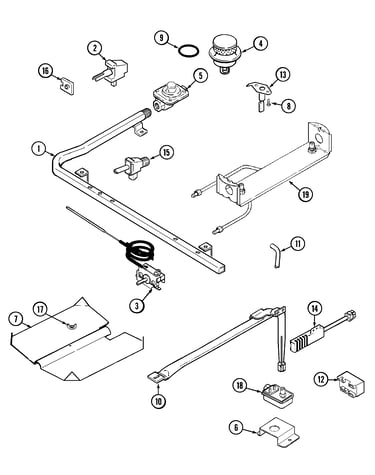

Gas controls diagram

Screw

Part #707113

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707113. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P077-60
#9A

Control panel diagram

Screw

Part #7101P077-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Orifice Fitting 5187D026-60
#19

Gas controls diagram

Orifice fitting

Part #5187D026-60

Replaced by #WP5187M026-60

?
Manufacturer substitution
This part replaces 5187D026-60. Substitute parts can look different from the original.
$71.39 |
8% OFF Phone Price : $77.39
In Stock
Thermostat Clip 7112P004-60
#10

Oven/base diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Range Oven Control Thermostat 74002390
#3

Gas controls diagram

Range oven control thermostat

Part #74002390

Replaced by #WP74002390

?
Manufacturer substitution
This part replaces 74002390. Substitute parts can look different from the original.
$155.72 |
7% OFF Phone Price : $167.72
In Stock
Oven 74002327
#8

Oven/base diagram

Oven

Part #74002327

$11.60
In Stock
