Model # GTWN7450H1WW Official GE washer

Here are the diagrams and repair parts for Official GE GTWN7450H1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Washer Hub Nut WH02X10363
#330

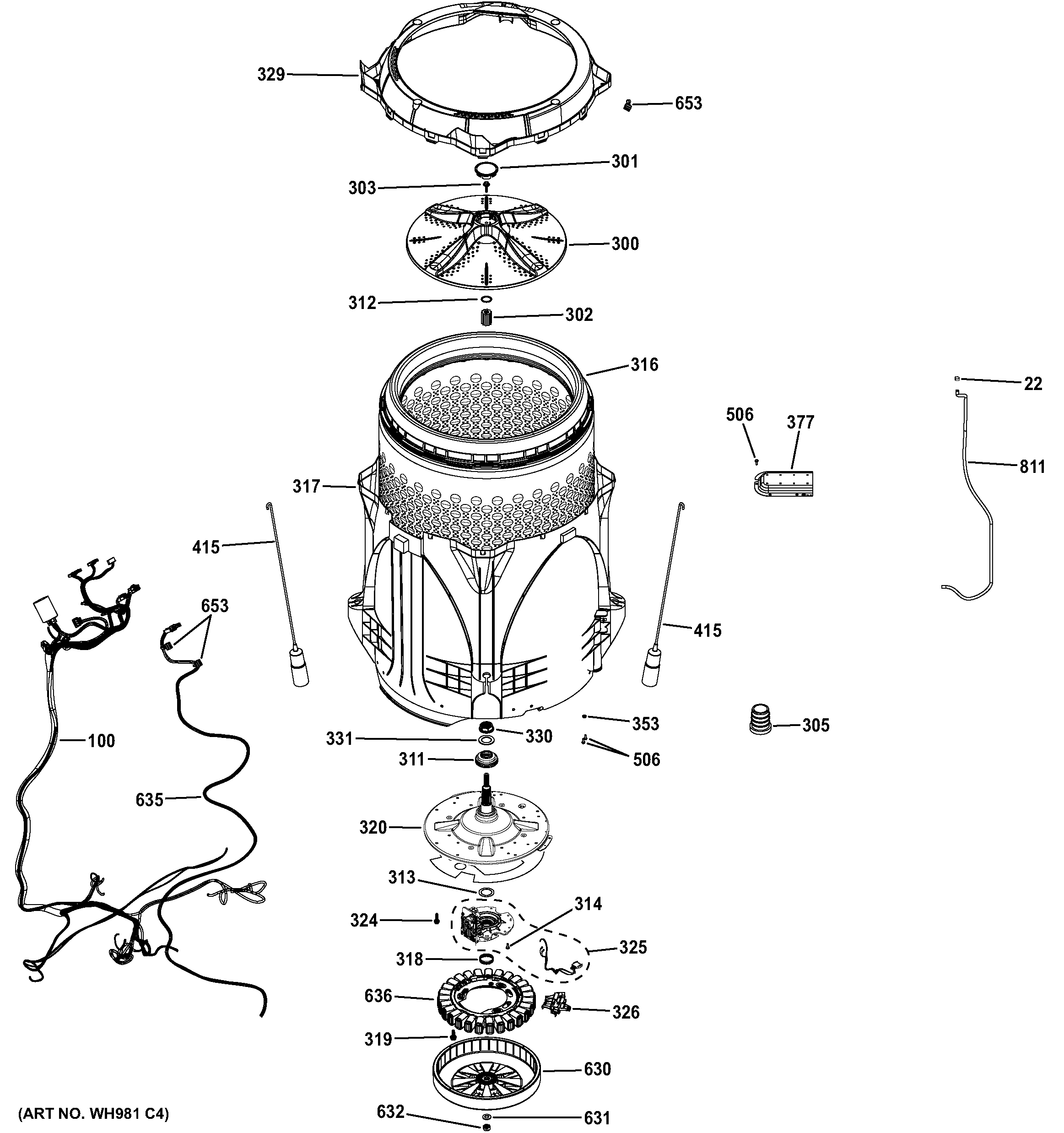

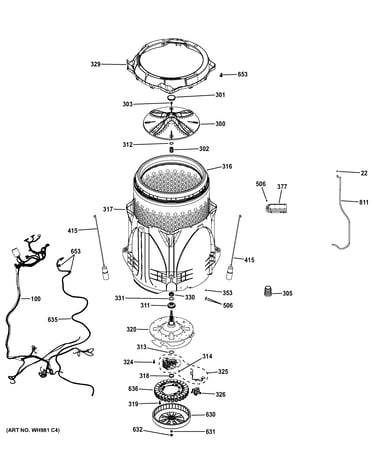

Tub & motor diagram

Washer hub nut

Part #WH02X10363

BEST SELLER
$13.21 |
13% OFF Phone Price : $15.21
In Stock
Washer Motor Rotor Position Sensor WH12X10558
#326

Tub & motor diagram

Washer motor rotor position sensor

Part #WH12X10558

Replaced by #WH12X23995

?
Manufacturer substitution
This part replaces WH12X10558. Substitute parts can look different from the original.
$39.32 |
13% OFF Phone Price : $45.32
In Stock
Wire Tie WH01X10217
#218

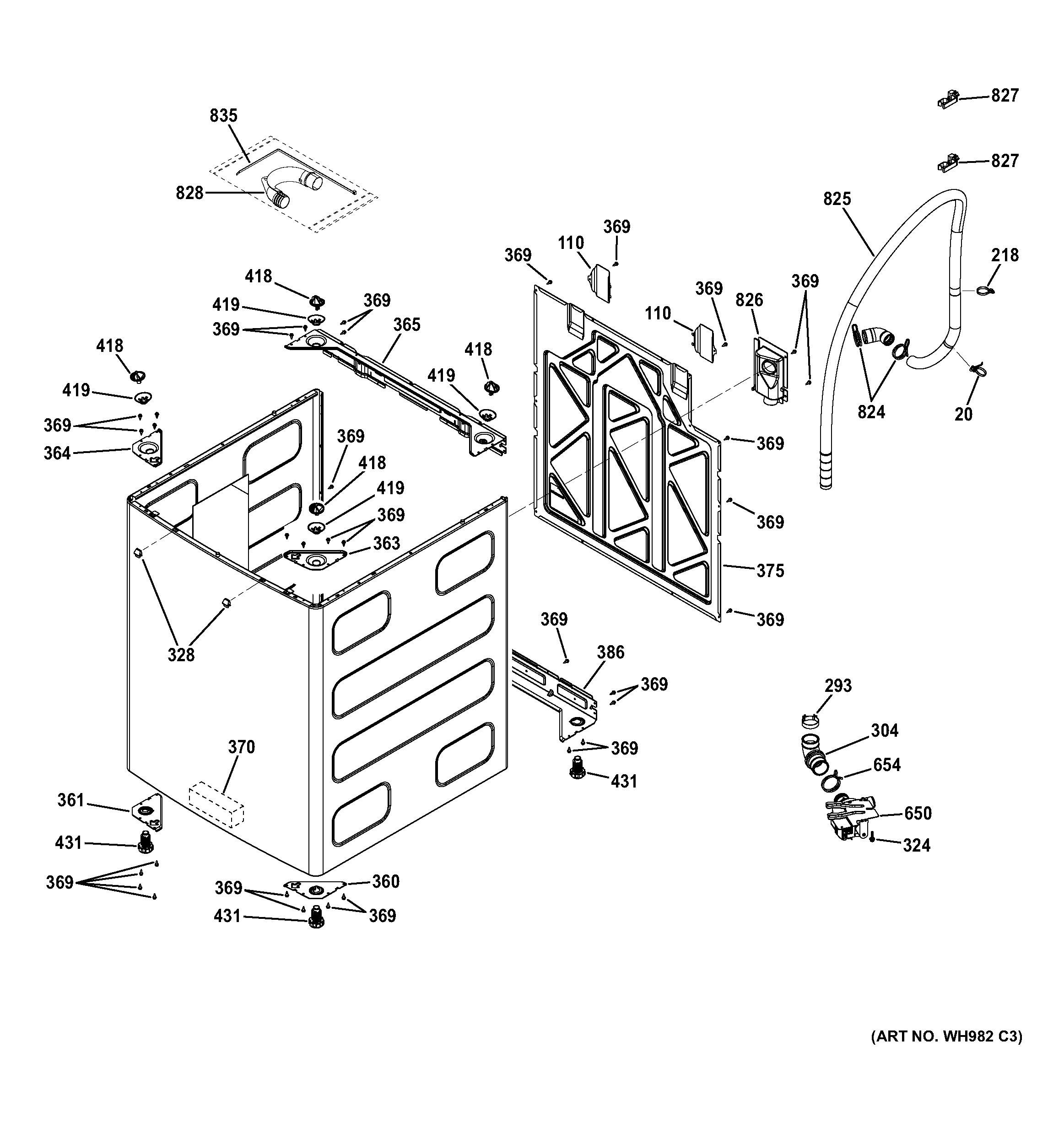

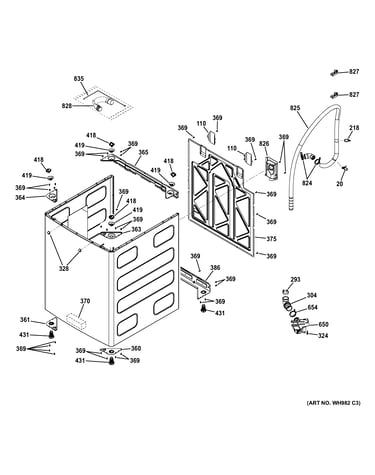

Cabinet diagram

Wire tie

Part #WH01X10217

Replaced by #WH01X10704

?
Manufacturer substitution
This part replaces WH01X10217. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Scr 1/4 - 20 WH02X10382
#303

Tub & motor diagram

Scr 1/4 - 20

Part #WH02X10382

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose WH41X10319
#825

Cabinet diagram

Washer drain hose

Part #WH41X10319

$28.41 |
17% OFF Phone Price : $34.41
In Stock
Washer Motor Stator WH39X20678
#636

Tub & motor diagram

Washer motor stator

Part #WH39X20678

$179.58 |
6% OFF Phone Price : $191.58
In Stock
Washer Lid Lock Assembly WH12X20357
#390

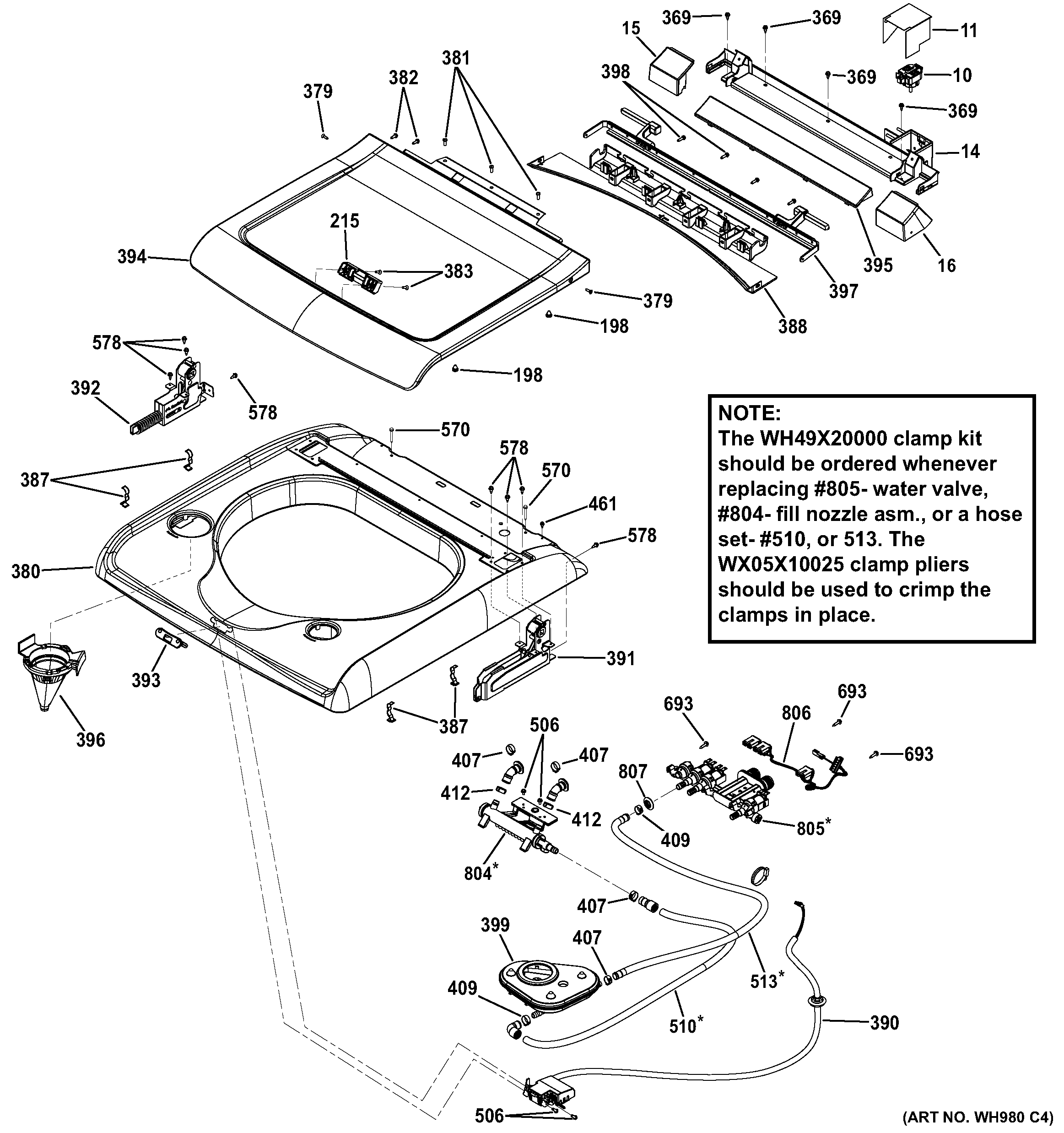

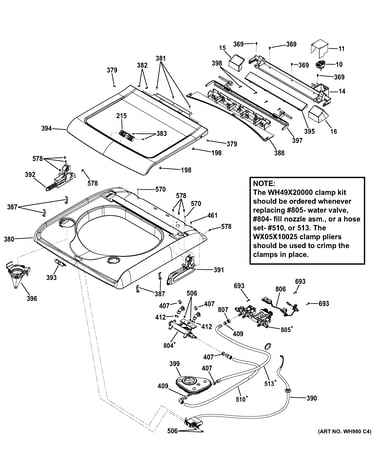

Top panel & lid diagram

Washer lid lock assembly

Part #WH12X20357

$77.85 |
7% OFF Phone Price : $83.85
In Stock
Washer Suspension Rod And Spring Assembly WH16X10174
#415

Tub & motor diagram

Washer suspension rod and spring assembly

Part #WH16X10174

$23.80 |
20% OFF Phone Price : $29.80
In Stock
Washer Electronic Control Board (replaces Wh12x20329, Wh12x20499) WH12X20503
#35

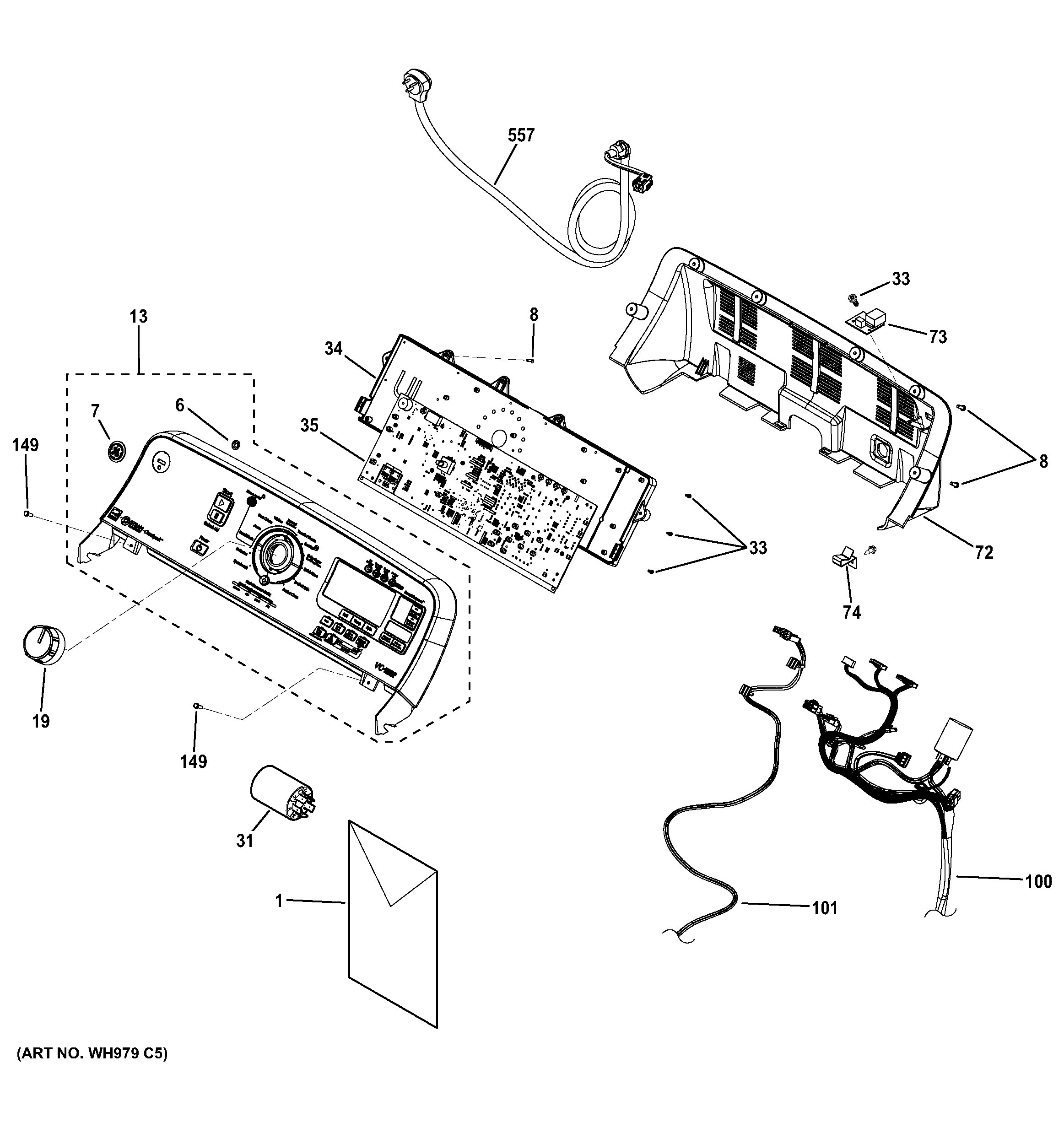

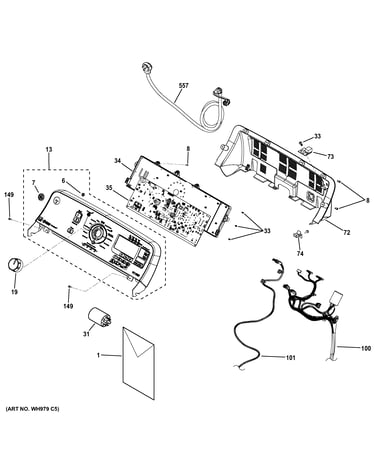

Controls & backsplash diagram

Washer electronic control board (replaces wh12x20329, wh12x20499)

Part #WH12X20503

This item is not returnable
$380.75
In Stock
Screw WH02X1217
Screw

Part #WH02X1217

Replaced by #WH2X1217

?
Manufacturer substitution
This part replaces WH02X1217. Substitute parts can look different from the original.
$7.09 |
12% OFF Phone Price : $8.09
In Stock
