Danby
Compact Refrigerator

Model # DCR382W Official Danby refrigerator

Here are the diagrams and repair parts for Official Danby DCR382W refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Danby Refrigerator Leveling Leg 314B9025P001
#165

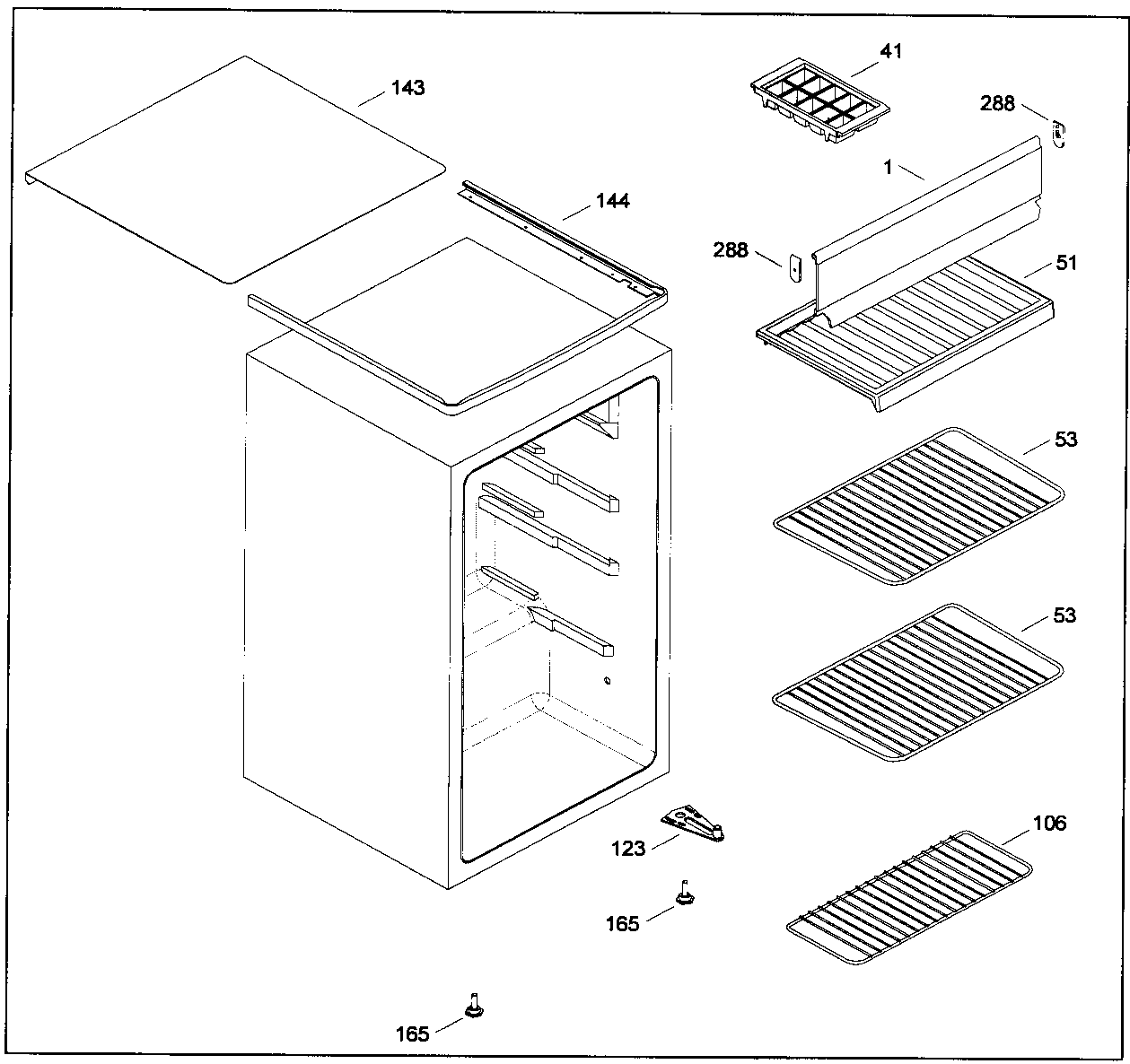

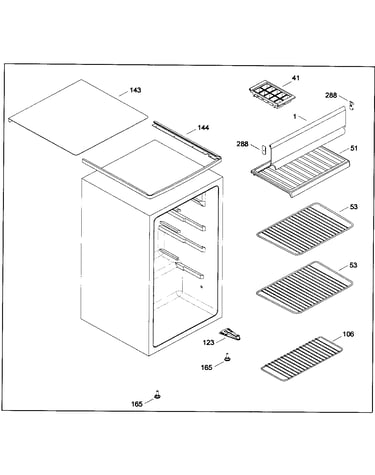

Cabinet parts diagram

Danby refrigerator leveling leg

Part #314B9025P001

This item is not returnable
$2.16
In Stock
Ptc 8ea303 206021
#238

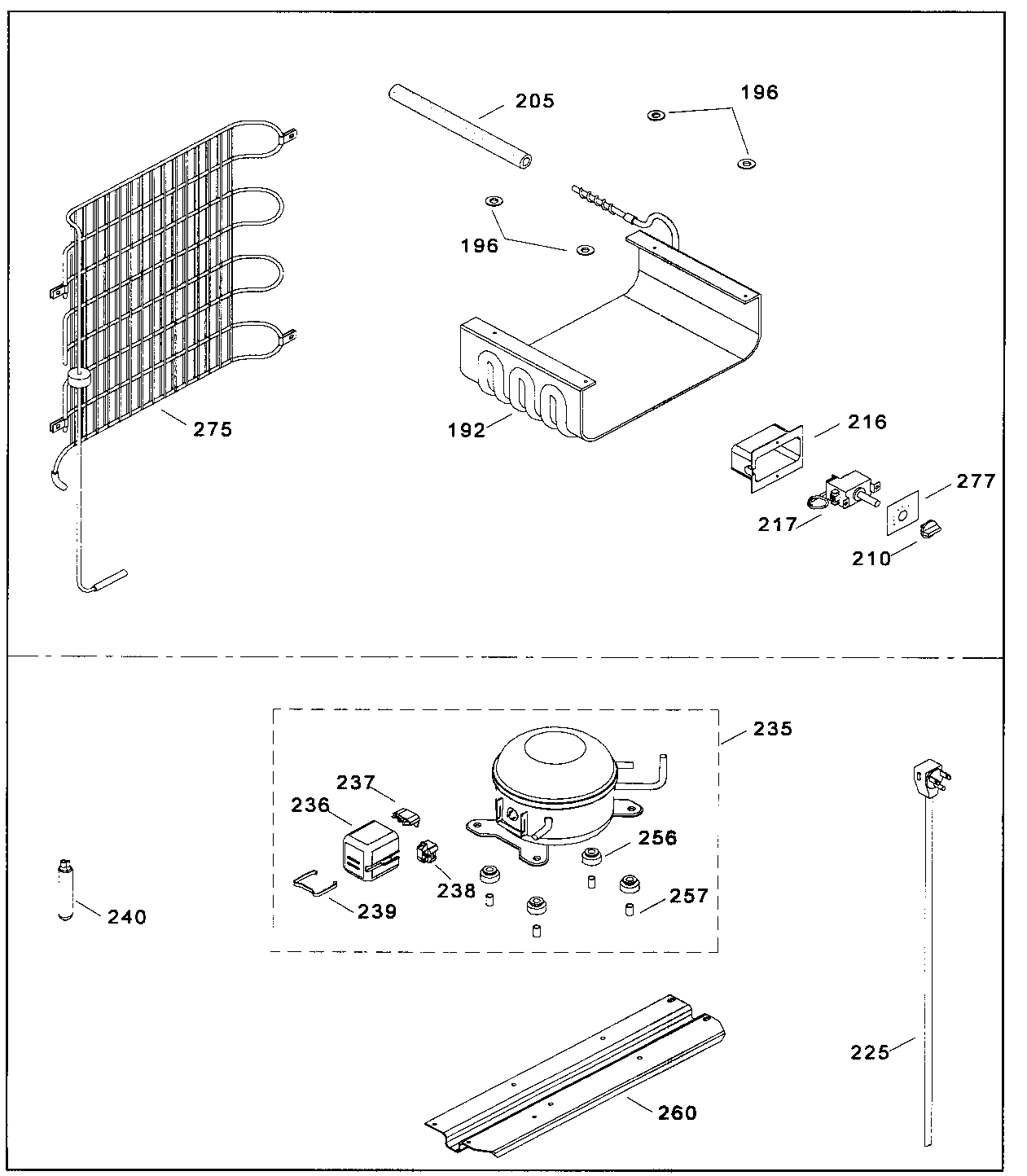

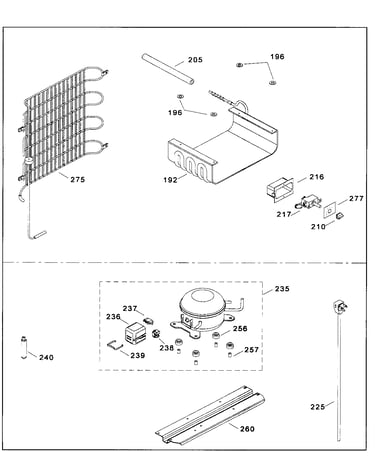

Compressor assy diagram

Ptc 8ea303

Part #206021

The manufacturer no longer makes this part, and there's no substitute part

Front Wire Shelf 314B9441P001
#21

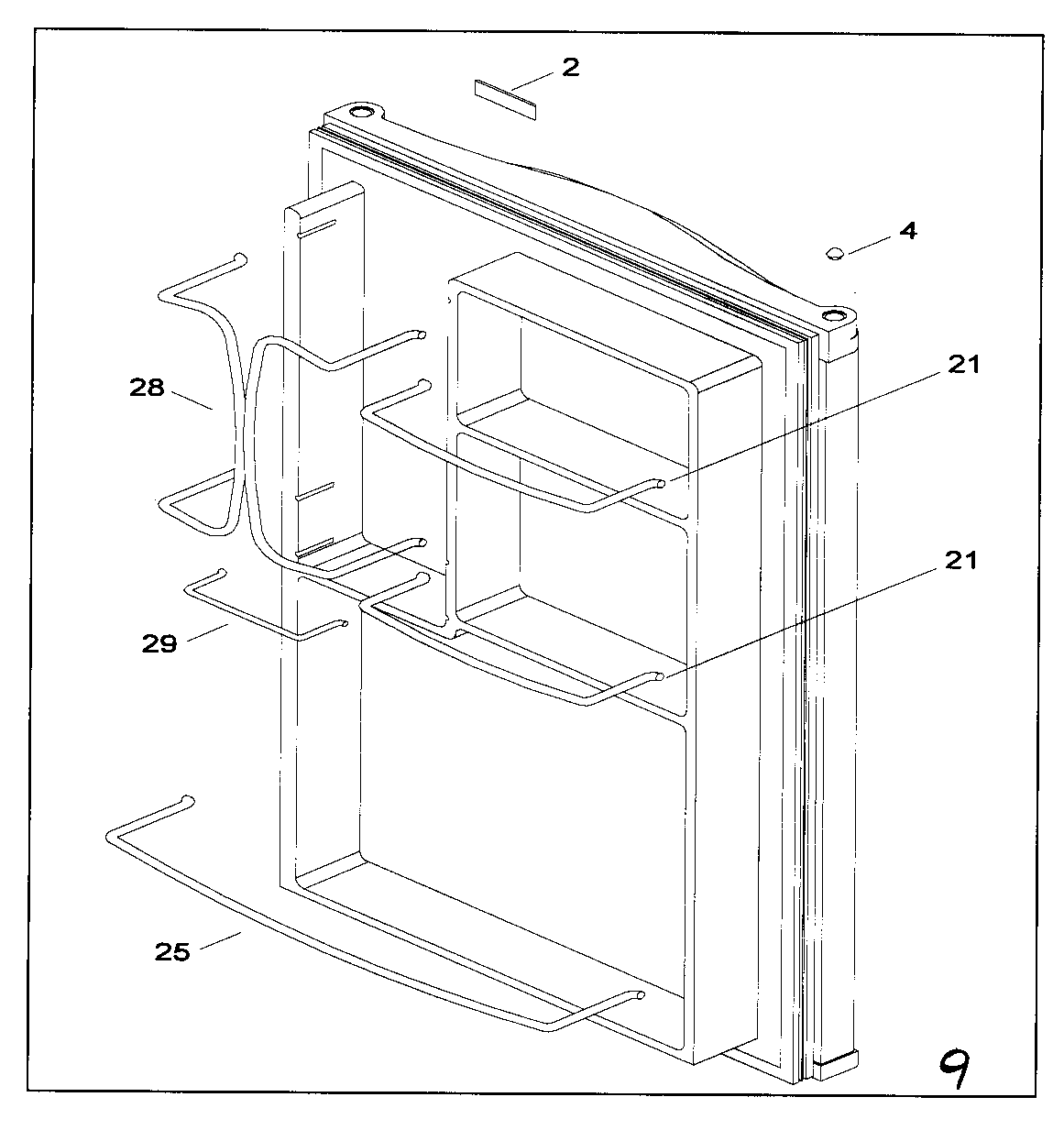

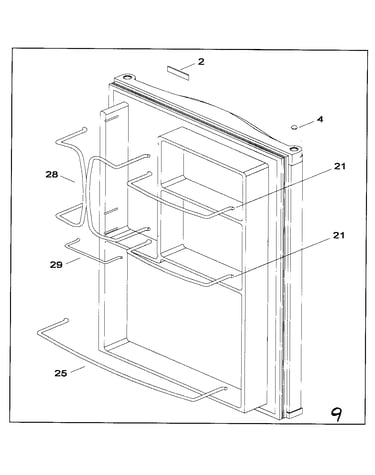

Door assy diagram

Front wire shelf

Part #314B9441P001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Nameplate 314B9388P001
#2

Door assy diagram

Refrigerator nameplate

Part #314B9388P001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Cube Tray 186D5236P001
#41

Cabinet parts diagram

Refrigerator ice cube tray

Part #186D5236P001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Vegetable Pan Cover 314B9321P003
#106

Cabinet parts diagram

Refrigerator vegetable pan cover

Part #314B9321P003

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Overload 306015
#237

Compressor assy diagram

Refrigerator overload

Part #306015

The manufacturer no longer makes this part, and there's no substitute part

Defrost Tray 186D5262P001
#51

Cabinet parts diagram

Defrost tray

Part #186D5262P001

The manufacturer no longer makes this part, and there's no substitute part

Trim Veg Pan Cover 314B9320P002
#NI

Door assy diagram

Trim veg pan cover

Part #314B9320P002

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf 314B9274P001
#53

Cabinet parts diagram

Refrigerator shelf

Part #314B9274P001

The manufacturer no longer makes this part, and there's no substitute part
