Model # 58715382100A Official Kenmore dishwasher
Here are the diagrams and repair parts for Official Kenmore 58715382100A dishwasher, as well as links to manuals and error code tables, if available.

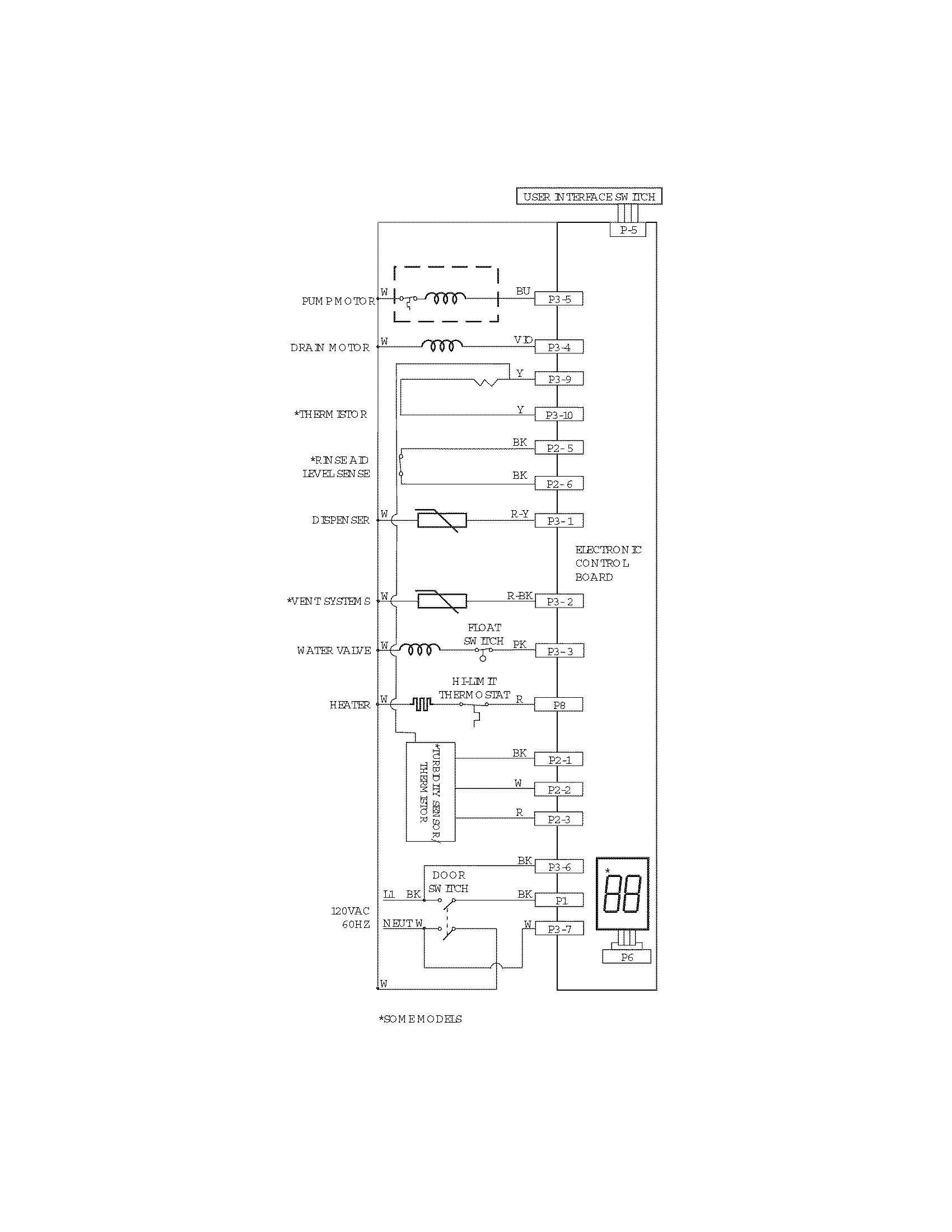

By Schematic
By Part

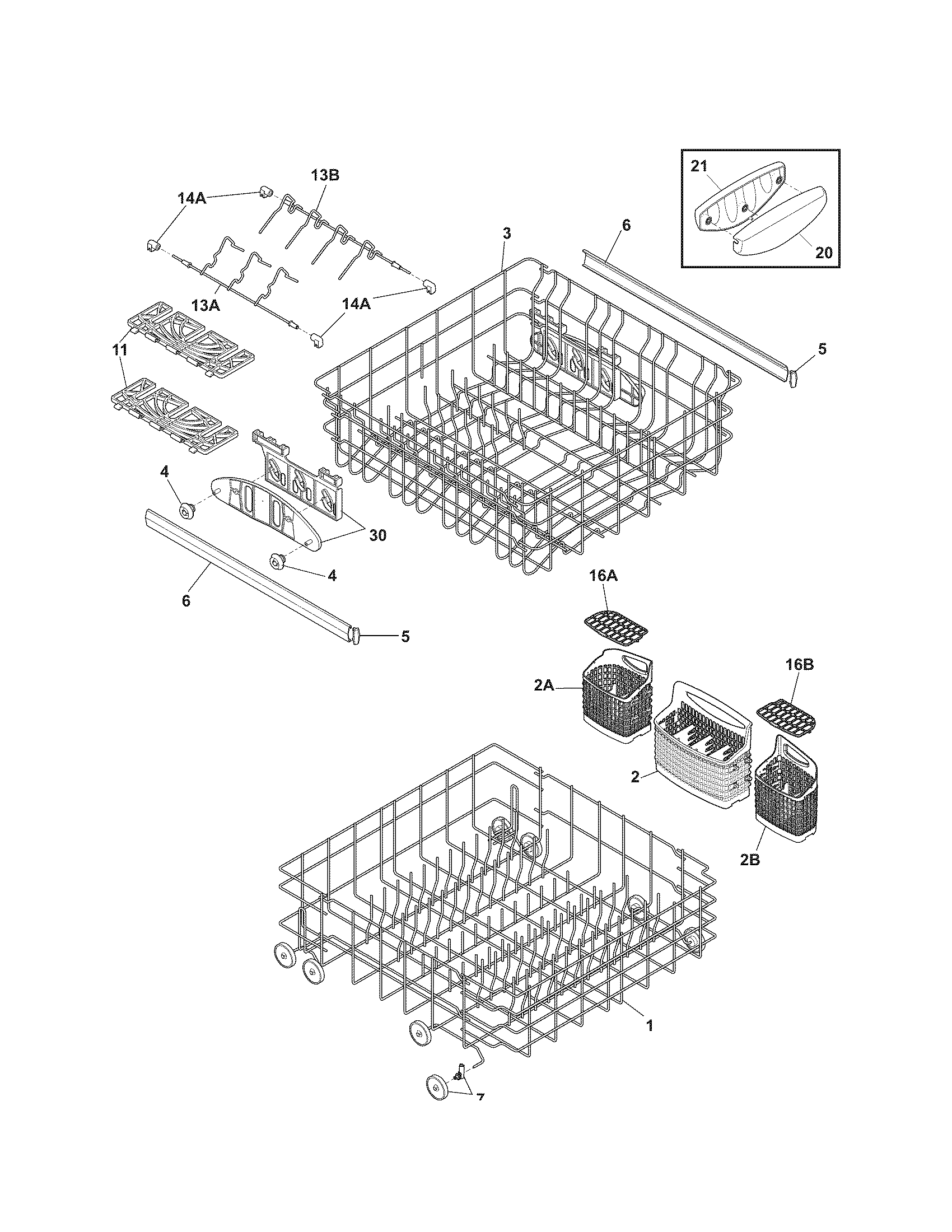

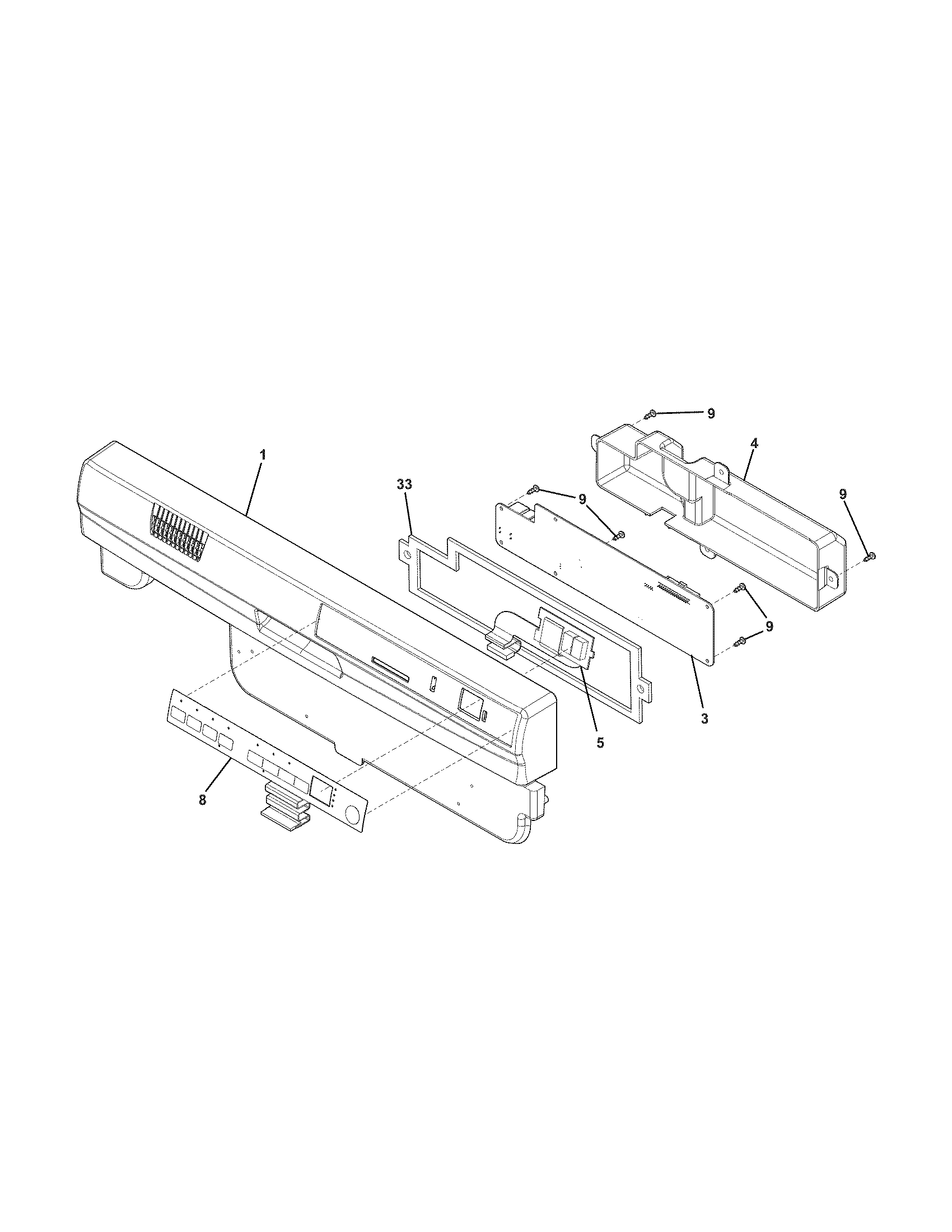

SELECT DIAGRAM
Browse Parts for58715382100A Dishwasher
- #3

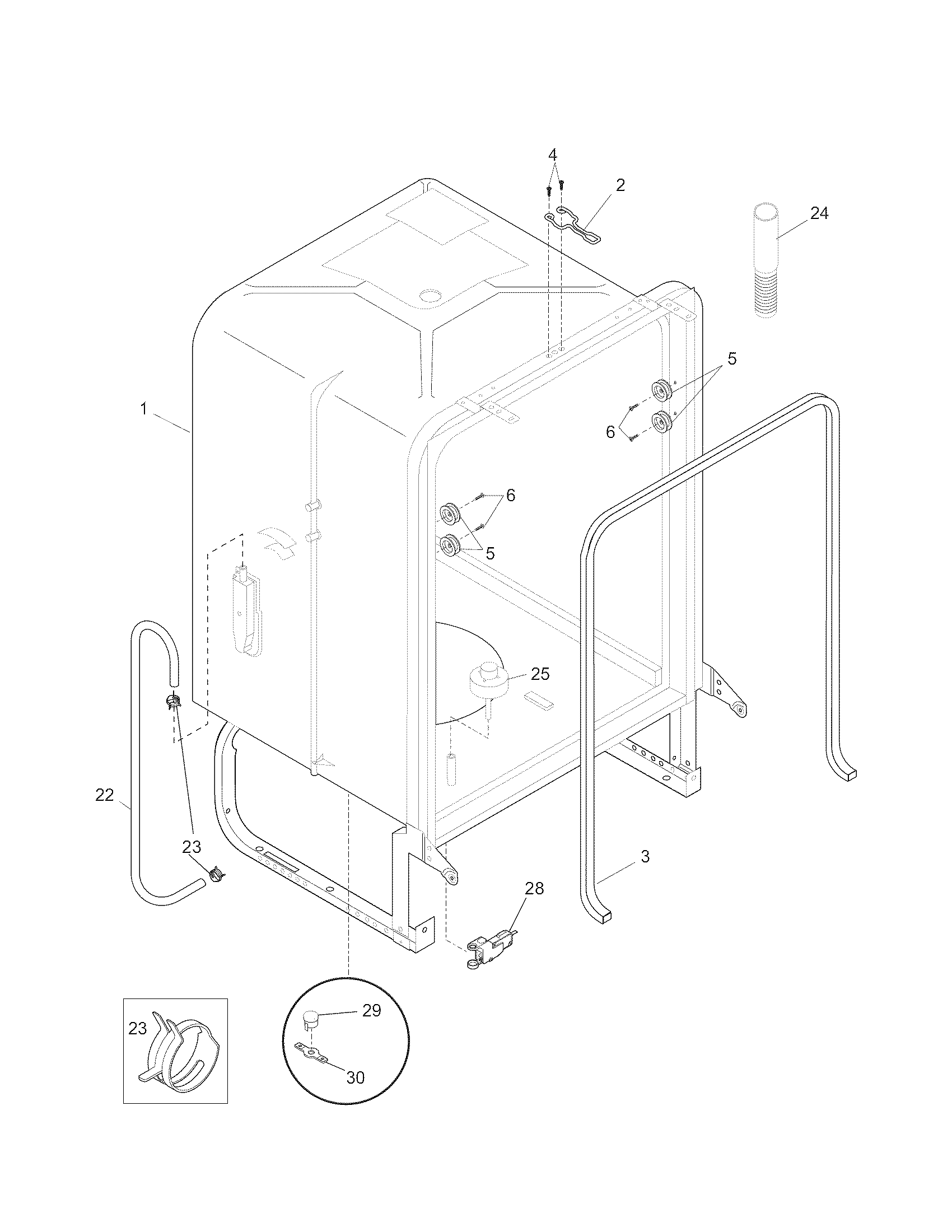

Tub diagram
Dishwasher tub gasketPart #154782401
Replaced by #154827601
?Manufacturer substitutionThis part replaces 154782401. Substitute parts can look different from the original.$27.75 |18% OFF Phone Price : $33.75In Stock - #24

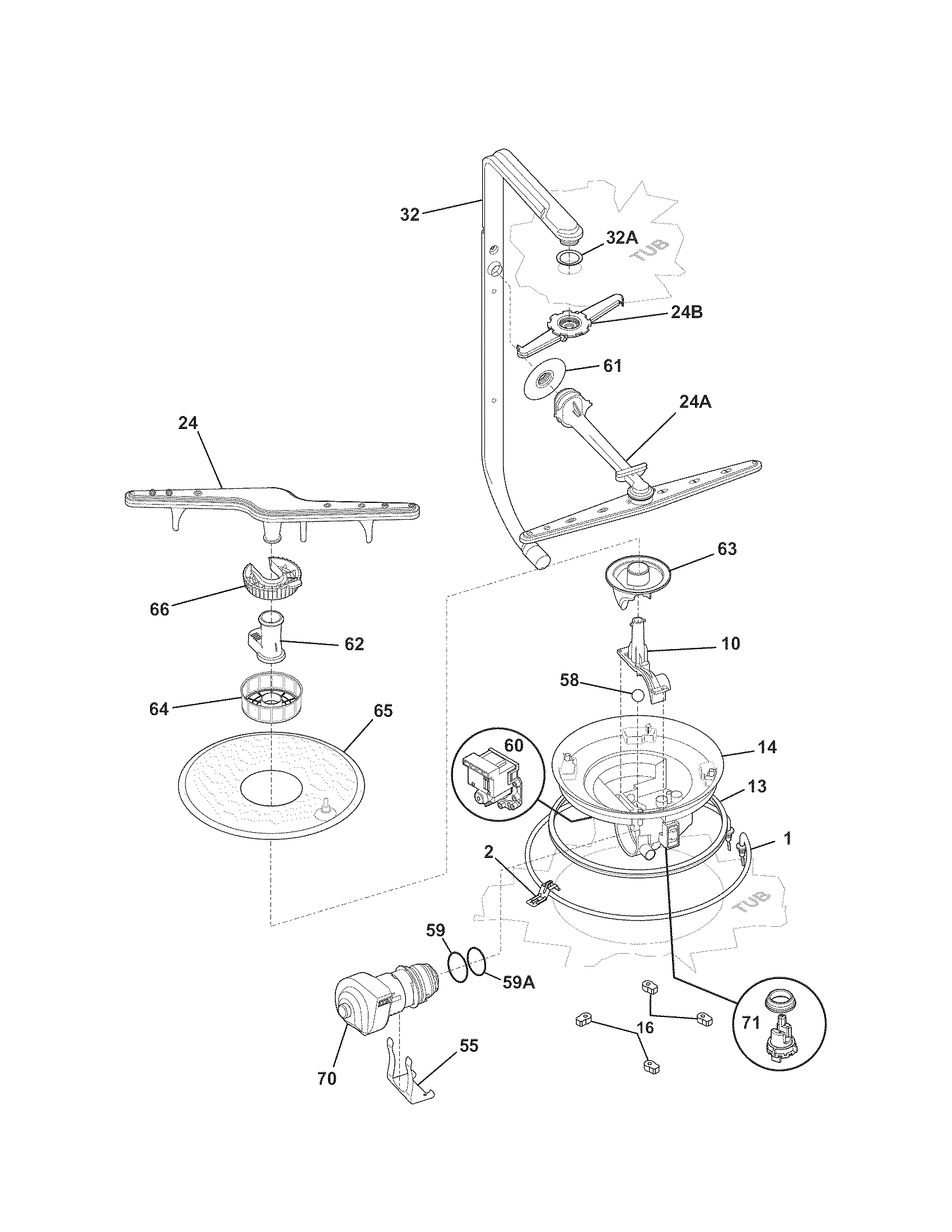

Motor & pump diagram
Dishwasher spray armPart #154568002
Replaced by #5304517203
?Manufacturer substitutionThis part replaces 154568002. Substitute parts can look different from the original.$35.36 |15% OFF Phone Price : $41.36In Stock - #49

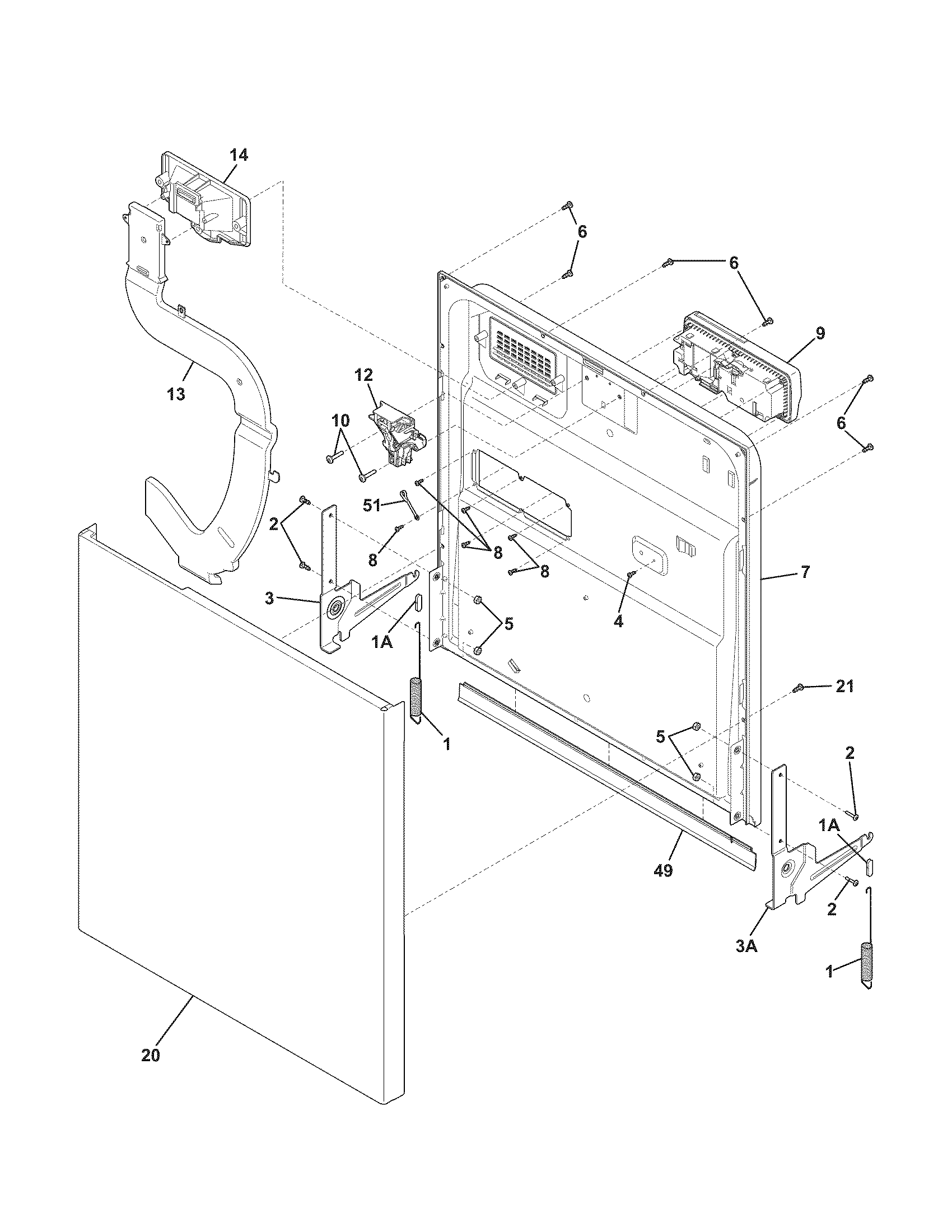

Door diagram
Door gasketPart #154759101
Replaced by #809006501
?Manufacturer substitutionThis part replaces 154759101. Substitute parts can look different from the original.$24.61 |20% OFF Phone Price : $30.61In Stock - #70
Motor & pump diagram
Dishwasher pump motorPart #154794401
Replaced by #154844301
?Manufacturer substitutionThis part replaces 154794401. Substitute parts can look different from the original.$188.91 |6% OFF Phone Price : $200.91In Stock - #62
Motor & pump diagram
Dishwasher lower spray arm supportPart #154294102
Replaced by #5304518968
?Manufacturer substitutionThis part replaces 154294102. Substitute parts can look different from the original.$13.18 |13% OFF Phone Price : $15.18In Stock - #1
Motor & pump diagram
HeaterPart #154663801
Replaced by #154825001
?Manufacturer substitutionThis part replaces 154663801. Substitute parts can look different from the original.$60.13 |9% OFF Phone Price : $66.13In Stock - #12
Door diagram
Dishwasher door latchPart #154758101
Replaced by #5304516818
?Manufacturer substitutionThis part replaces 154758101. Substitute parts can look different from the original.$36.57 |14% OFF Phone Price : $42.57In Stock - #59A
Motor & pump diagram
Dishwasher pump o-ring, frontPart #154247001
$38.32 |14% OFF Phone Price : $44.32In Stock - #24
Tub diagram
Drain hosePart #154753201
Replaced by #807117001
?Manufacturer substitutionThis part replaces 154753201. Substitute parts can look different from the original.$30.29 |17% OFF Phone Price : $36.29In Stock - #3

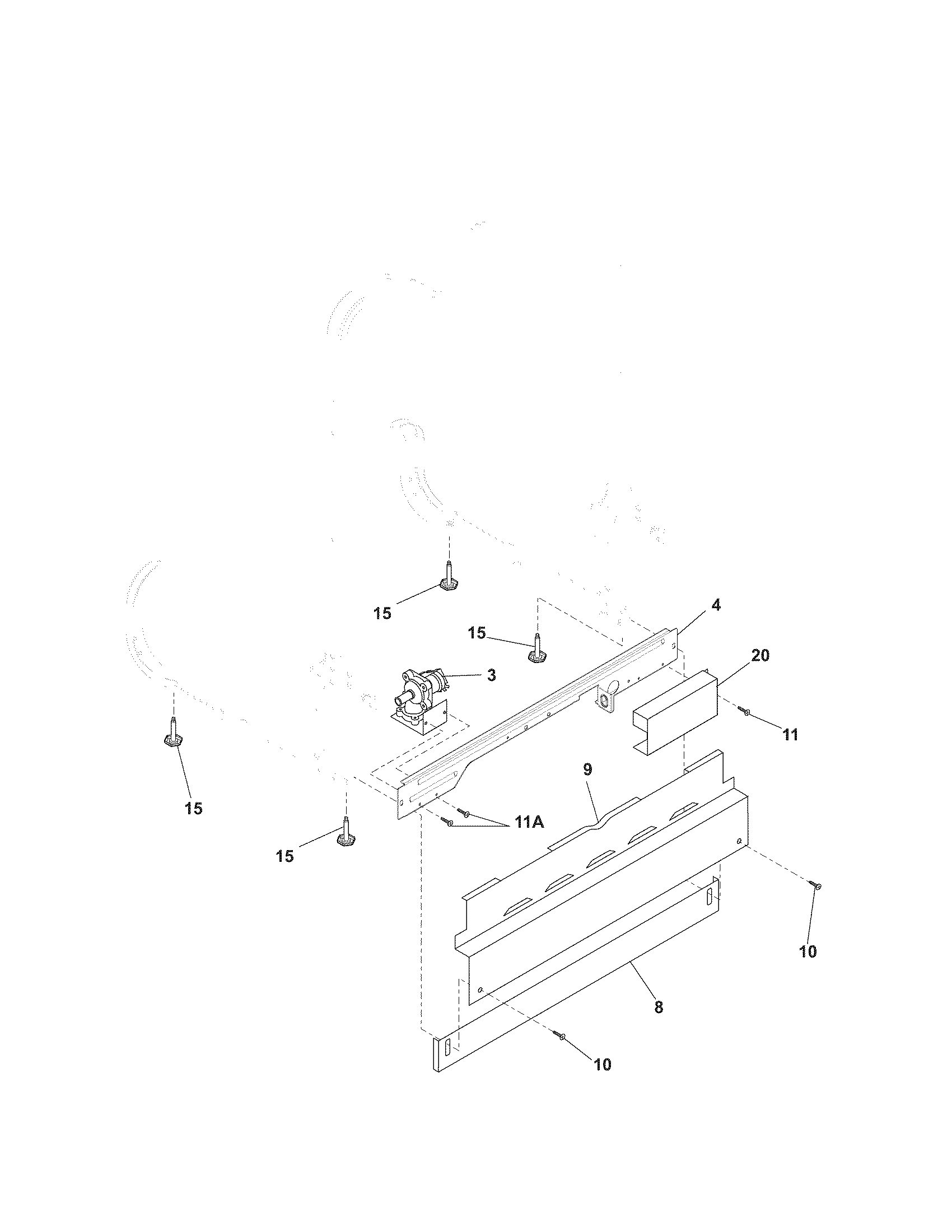

Frame diagram
Dishwasher water inlet valvePart #154637401
$45.62 |12% OFF Phone Price : $51.62In Stock
