Kenmore
Bottom-Mount Refrigerator

Model # 79575282400 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79575282400 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

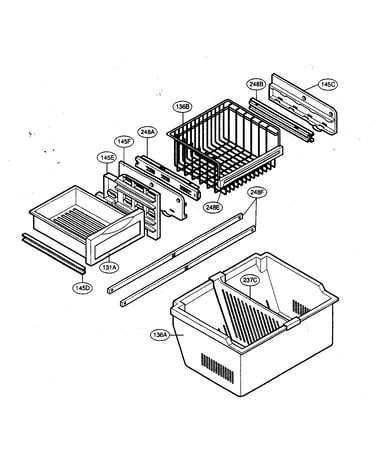

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Refrigerator Drier Assembly 5851JJ2002B
#317A

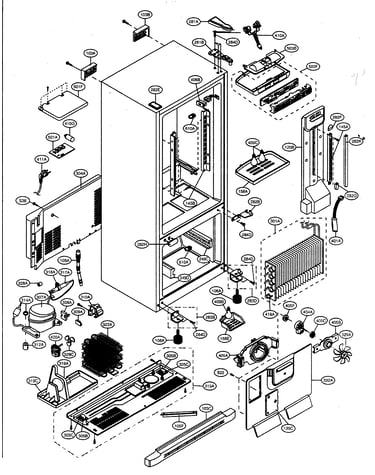

Case parts diagram

Refrigerator drier assembly

Part #5851JJ2002B

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002B. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Refrigerator Drain Assembly 5251JJ2003A
#105A

Case parts diagram

Refrigerator drain assembly

Part #5251JJ2003A

Replaced by #5251JA3003D

?
Manufacturer substitution
This part replaces 5251JJ2003A. Substitute parts can look different from the original.
BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Refrigerator Gasket Assembly 4987JJ1004A
#203A

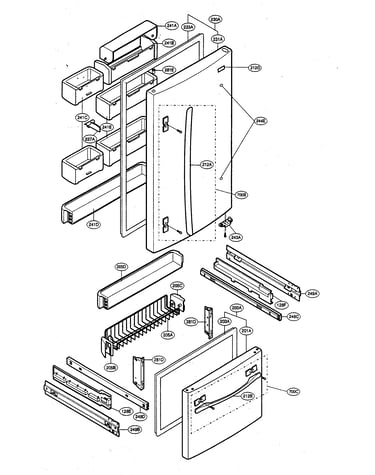

Door parts diagram

Refrigerator gasket assembly

Part #4987JJ1004A

Replaced by #ADX73350925

?
Manufacturer substitution
This part replaces 4987JJ1004A. Substitute parts can look different from the original.
BEST SELLER
$63.22 |
9% OFF Phone Price : $69.22
In Stock
Refrigerator Ice Maker Assembly 5989JA0002E
#600A

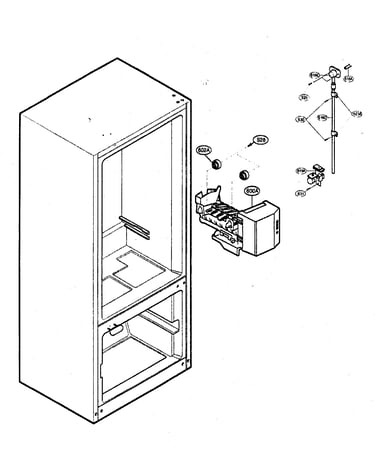

Ice maker parts diagram

Refrigerator ice maker assembly

Part #5989JA0002E

Replaced by #5989JA0002Y

?
Manufacturer substitution
This part replaces 5989JA0002E. Substitute parts can look different from the original.
BEST SELLER
$195.66 |
6% OFF Phone Price : $207.66
In Stock
Refrigerator Water Inlet Valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g) 5220JA2009D
#619A

Ice maker parts diagram

Refrigerator water inlet valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g)

Part #5220JA2009D

BEST SELLER
$67.26 |
8% OFF Phone Price : $73.26
In Stock
Refrigerator Evaporator 5421JJ1001B
#301A

Case parts diagram

Refrigerator evaporator

Part #5421JJ1001B

BEST SELLER
$263.19 |
$12.00 OFF Phone Price : $275.19
In Stock
Refrigerator Water Tubing 5210JA3005N
#616D

Ice maker parts diagram

Refrigerator water tubing

Part #5210JA3005N

Replaced by #5210JA3005W

?
Manufacturer substitution
This part replaces 5210JA3005N. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.18 |
15% OFF Phone Price : $13.18
In Stock
Refrigerator Door Bin 5005JJ2005B
#241E

Door parts diagram

Refrigerator door bin

Part #5005JJ2005B

Replaced by #5005JJ2018A

?
Manufacturer substitution
This part replaces 5005JJ2005B. Substitute parts can look different from the original.
BEST SELLER
$94.51 |
6% OFF Phone Price : $100.51
In Stock
Refrigerator Defrost Heater 5300JB1100J
#418A

Case parts diagram

Refrigerator defrost heater

Part #5300JB1100J

BEST SELLER
$87.46 |
6% OFF Phone Price : $93.46
In Stock
Refrigerator Shelf 5027JJ1008B
#143E

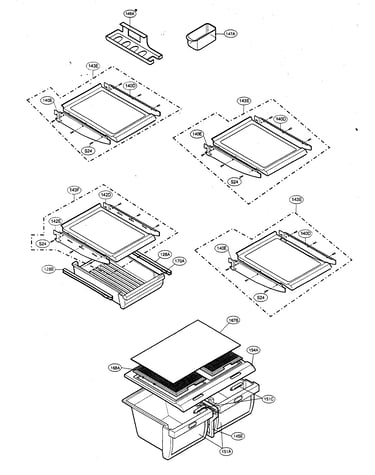

Refrigerator parts diagram

Refrigerator shelf

Part #5027JJ1008B

Replaced by #AHT72996107

?
Manufacturer substitution
This part replaces 5027JJ1008B. Substitute parts can look different from the original.
$76.47 |
7% OFF Phone Price : $82.47
In Stock
