Caloric
Side-By-Side Refrigerator

Model # GFD240-1W2 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GFD240-1W2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

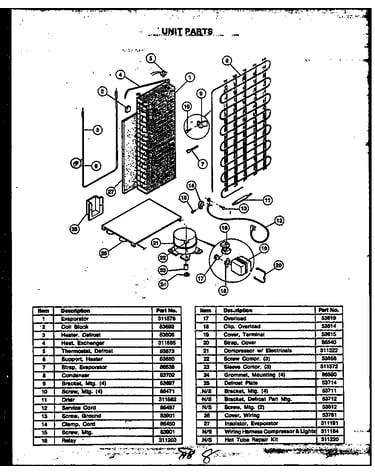

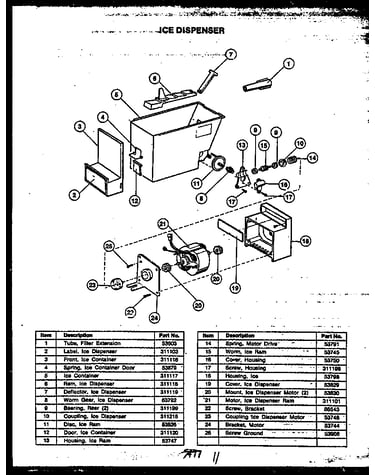

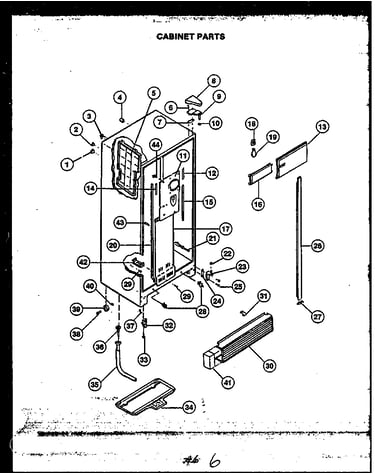

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 296 parts  |
Refrigerator Butter Dish 53729
#9

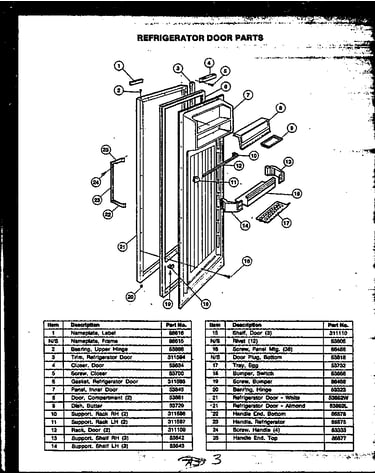

Refrigerator door parts diagram

Refrigerator butter dish

Part #53729

Replaced by #5303001090

?
Manufacturer substitution
This part replaces 53729. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Egg Tray 53732
#17

Refrigerator door parts diagram

Egg tray

Part #53732

Replaced by #215817806

?
Manufacturer substitution
This part replaces 53732. Substitute parts can look different from the original.
This item is not returnable
$14.09 |
12% OFF Phone Price : $16.09
In Stock

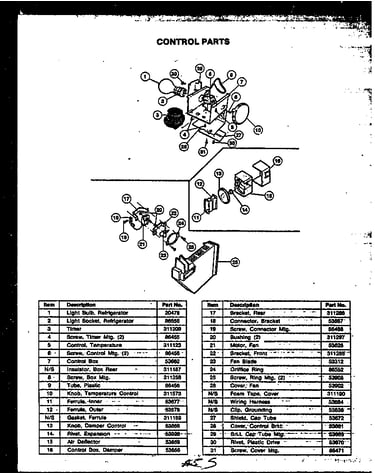

Screw, Box Mtg. 311258
Screw, box mtg.

Part #311258

The manufacturer no longer makes this part, and there's no substitute part

Harness, Ice & Water Wiring 311577
#44

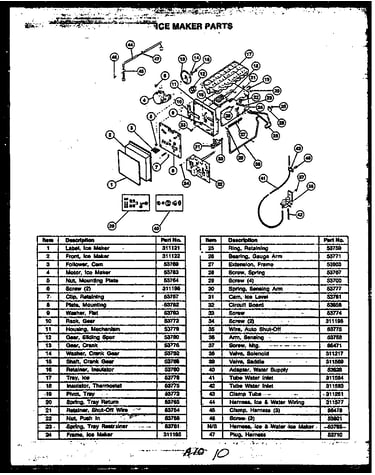

Ice maker parts diagram

Harness, ice & water wiring

Part #311577

The manufacturer no longer makes this part, and there's no substitute part

Label, Lower Shelf 311201

#NI

All parts diagram

Label, lower shelf

Part #311201

The manufacturer no longer makes this part, and there's no substitute part

Freezer Door - Almond 311213L
#1B

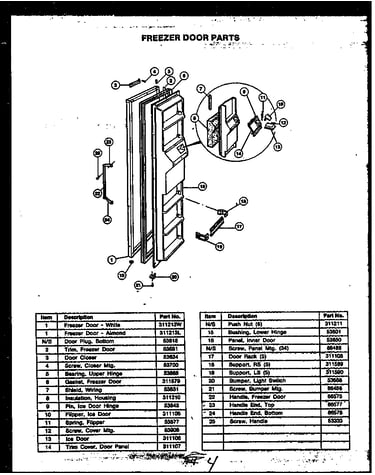

Freezer door parts diagram

Freezer door - almond

Part #311213L

The manufacturer no longer makes this part, and there's no substitute part

Clip, Water Actuator 53749
#13

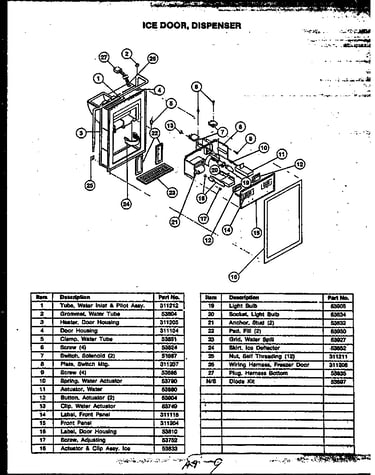

Ice door diagram

Clip, water actuator

Part #53749

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 311581
#30

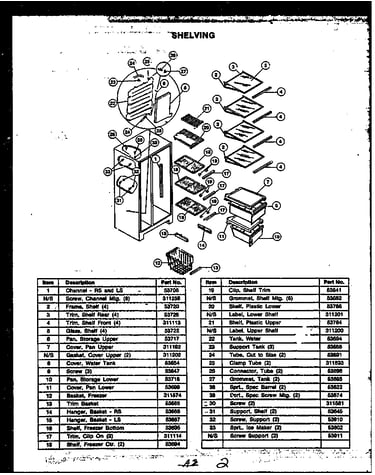

Shelving diagram

Refrigerator screw

Part #311581

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Gasket 311579
#6

Freezer door parts diagram

Refrigerator freezer door gasket

Part #311579

The manufacturer no longer makes this part, and there's no substitute part

Screw, Mtg. 53612

#NI

All parts diagram

Screw, mtg.

Part #53612

The manufacturer no longer makes this part, and there's no substitute part
