Craftsman
Radial Arm Saw

Model # 02319 Official Craftsman 12" radial arm saw

Here are the diagrams and repair parts for Official Craftsman 02319 12" radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

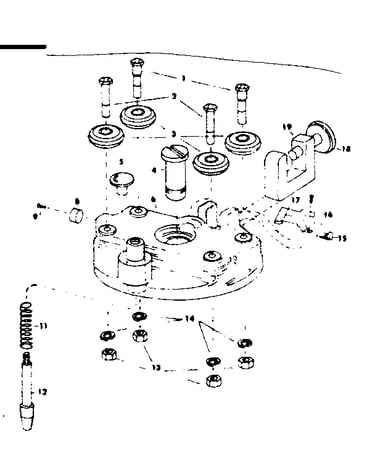

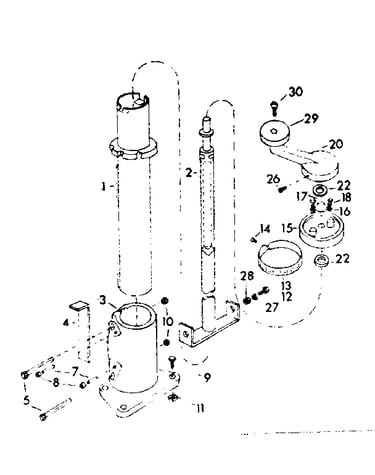

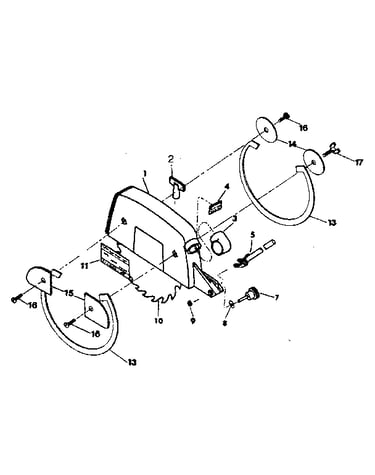

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Dewalt Wrench 99056-03

#NI

All parts diagram

Dewalt wrench

Part #99056-03

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 32114-01
#35

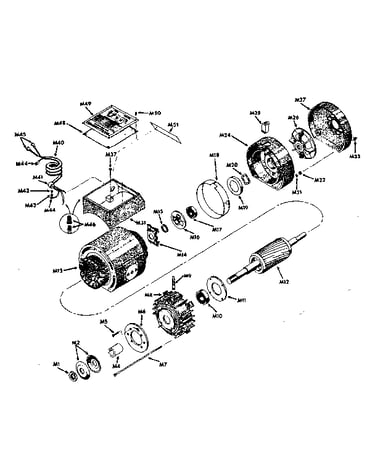

Unit diagram

Twist-on wire connector

Part #32114-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Wrench 99056-11

#NI

All parts diagram

Dewalt wrench

Part #99056-11

The manufacturer no longer makes this part, and there's no substitute part

Washer 99384-04
#22

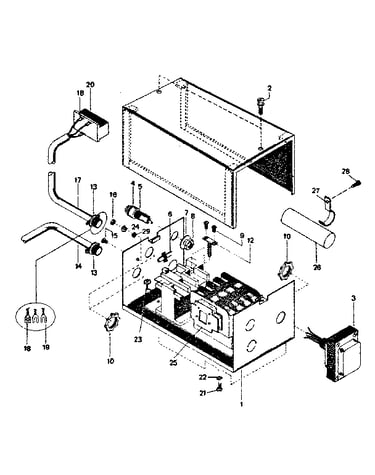

Magnetic starter assembly diagram

Washer

Part #99384-04

The manufacturer no longer makes this part, and there's no substitute part

Switch 203824
Switch

Part #203824

The manufacturer no longer makes this part, and there's no substitute part

Screw 12122
#17

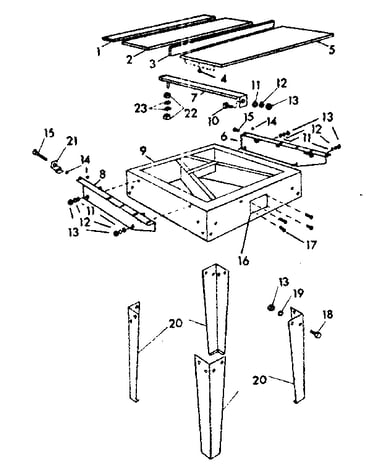

Table and frame diagram

Screw

Part #12122

The manufacturer no longer makes this part, and there's no substitute part

Terminal 34289
#33

Unit diagram

Terminal

Part #34289

The manufacturer no longer makes this part, and there's no substitute part

Pin 82083
#42

Arm assembly diagram

Pin

Part #82083

The manufacturer no longer makes this part, and there's no substitute part

Spring 96723
#2

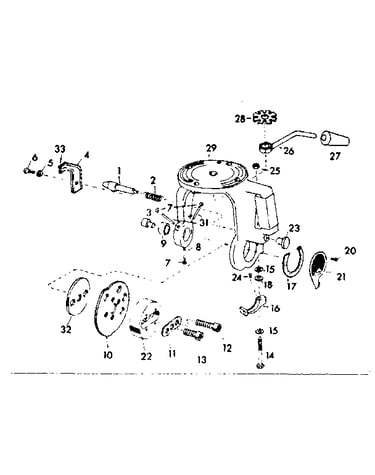

Yoke assembly diagram

Spring

Part #96723

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 418
#29

Magnetic starter assembly diagram

Lock washer

Part #418

The manufacturer no longer makes this part, and there's no substitute part
