Kenmore
Garbage Disposal

Model # 17565260 Official Kenmore lady kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17565260 lady kenmore garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

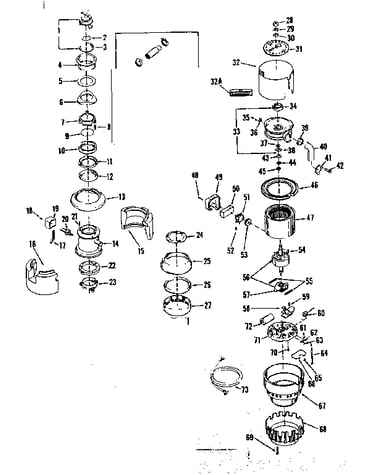

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Insinkerator Garbage Disposal Mounting Gasket 1155
#10

Replacement parts diagram

Insinkerator garbage disposal mounting gasket

Part #1155

The manufacturer no longer makes this part, and there's no substitute part

Screw 1268
#52

Replacement parts diagram

Screw

Part #1268

The manufacturer no longer makes this part, and there's no substitute part

Screw 1614
#69

Replacement parts diagram

Screw

Part #1614

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Support Ring 5166
#9

Replacement parts diagram

Insinkerator garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Wire Shield 1266
#36

Replacement parts diagram

Insinkerator wire shield

Part #1266

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange Gasket 1160
#5

Replacement parts diagram

Insinkerator garbage disposal sink flange gasket

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Washer 6557
#38

Replacement parts diagram

Washer

Part #6557

The manufacturer no longer makes this part, and there's no substitute part

Fiber Gasket 12141
#30

Replacement parts diagram

Fiber gasket

Part #12141

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Tailpipe Gasket 1470
#39

Replacement parts diagram

Insinkerator garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part

Emerson Screw 11448
Emerson screw

Part #11448

The manufacturer no longer makes this part, and there's no substitute part
