Amana
Top-Mount Refrigerator

Model # BIRA Official Amana built-in refrigerator/freezer

Here are the diagrams and repair parts for Official Amana BIRA built-in refrigerator/freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 282 parts  |
Shelf Rail, L.h. B0502603

#NI

All parts diagram

Shelf rail, l.h.

Part #B0502603

The manufacturer no longer makes this part, and there's no substitute part

Screw Butter Keeper Mfg. 8a X 5/8" Truss Head A0238701
Screw butter keeper mfg. 8a x 5/8" truss head

Part #A0238701

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Shelf D0777001
#129A

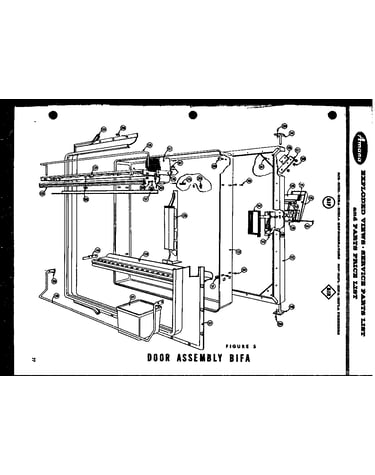

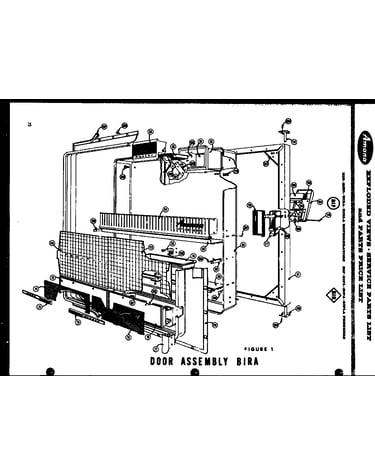

Door assembly bifa diagram

Refrigerator door shelf

Part #D0777001

The manufacturer no longer makes this part, and there's no substitute part

Drip Trough D0796401
#55

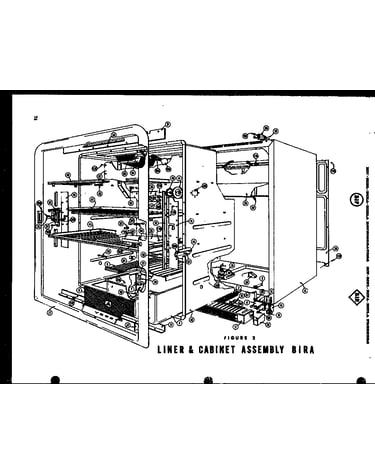

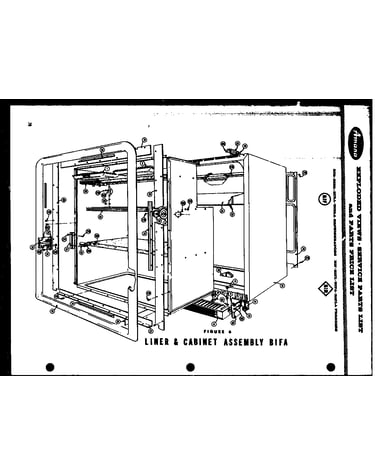

Liner & cabinet assembly bira (i) diagram

Drip trough

Part #D0796401

The manufacturer no longer makes this part, and there's no substitute part

Light Socket Assembly B0474201
#169

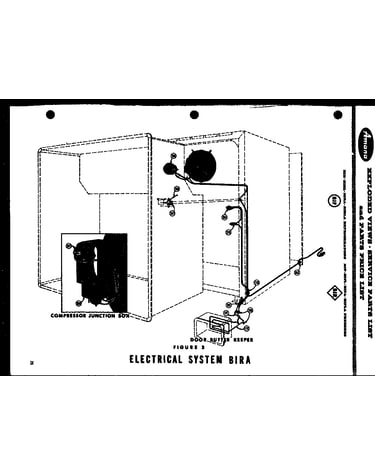

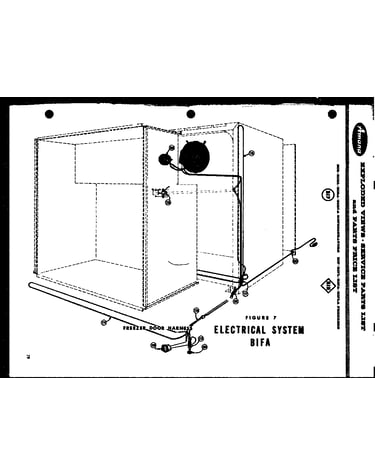

Electrical system bira diagram

Light socket assembly

Part #B0474201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Housing Assembly C0693502
#127C

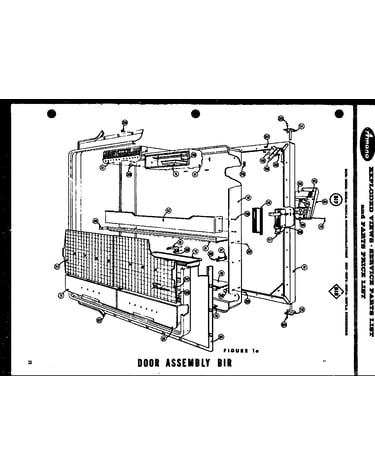

Door assembly bifa diagram

Refrigerator light housing assembly

Part #C0693502

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Control B0500201
#157

Electrical system bira diagram

Refrigerator temperature control

Part #B0500201

The manufacturer no longer makes this part, and there's no substitute part

Breaker Strip, Top C0693601
#21

Liner & cabinet assembly bira (i) diagram

Breaker strip, top

Part #C0693601

The manufacturer no longer makes this part, and there's no substitute part

Condenser Shroud B0501801
#148

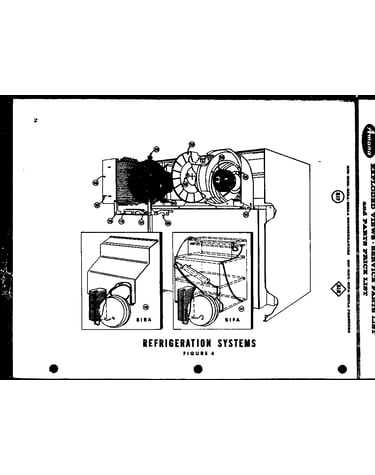

Refrigeration systems diagram

Condenser shroud

Part #B0501801

The manufacturer no longer makes this part, and there's no substitute part

Screw, Machine, No. 10-24 X 3/4 Rd. Hd., Lower Hinge & G A0334001
Screw, machine, no. 10-24 x 3/4 rd. hd., lower hinge & g

Part #A0334001

The manufacturer no longer makes this part, and there's no substitute part
